Wavo AIR - Get your audio on cloud nine.
Wavo AIR - Tutorial Video
By Photo's
Phillip Nichols-Wright
For content creators, videographers, and interviewers at all levels, the JOBY Wavo AIR digital true wireless microphone system offers relieving simplicity, confidence-inspiring sound quality, and all the elements needed to easily record two subjects to a camera or mobile device. The transmitters not only work with the supplied external lavalier mics, but also feature built-in omni mic capsules so they can be used as wire-free, clip-on microphones.
With its ultracompact components and ready-from-the-factory operability, the entire system is designed to be sleek, small, and user-friendly. Setting the Wavo AIR apart from products in the same class are the highly versatile mounting options (some included and others available separately), which enable placement of the Wavo AIR on anything from clothing or a camera shoe to a pole or tripod. Whether powered by the internal 6-hour batteries or via USB Type-C, the transmitters and receiver can keep you company for plenty of shoots.
Ready Out of the Box for 2-Person Shoots
Complete with two wireless transmitters that have built-in omni mics, two lavalier microphones, and an ultracompact dual-channel receiver, the interview-ready Wavo AIR makes it easy for content creators to record two subjects to a camera or smartphone. Plus, it includes indoor and outdoor wind protection to keep wind rustling noise out of the signal.
High Quality and Hands Free
The Wavo AIR brings crisp and clear sound free from wires and over a distance that can't be covered by shotgun mics or built-in mics on cameras and smartphones.
Since the transmitters and receiver are pre-paired before they leave the factory, the Wavo AIR won't slow you down when you need to set up fast. Don't worry about weaving through menus or switching channels or frequencies; the system is made to work for you, out of the box.
Cables for Mobile or Mirrorless
The Wavo AIR is supplied with TRS (for cameras) and TRRS (for mobile devices) audio cables, the receiver's 3.5mm output can be connected to virtually any imaging hardware.
Highly Versatile Mounting Options
Provided with clip-on supports, a pendant option, and a shoe mount, the Wavo AIR components can be positioned in a variety of places. Snag the Wavo AIR Expansion Kit (available separately) to maximize the mounting capabilities to include strap-based, hook-and-loop fastener, 1/4"-20, and additional cold shoe methods.
- Ultracompact transmitter and receiver housings
- Flexible mic options (omni mics built into transmitters and external lav mics included)
- Operates in the 2.4 GHz spectrum, away from VHF/UHF wireless systems
- 18 channels with auto-scanning for hassle-free use
- Up to six hours of working time via internal batteries
- Recharging or powering via USB Type-C ports
- Onboard LEDs indicate battery, charging, and pairing status
- Up to 164' line-of-sight wireless range
- Supports up to five simultaneous systems (10 mics maximum) in one environment

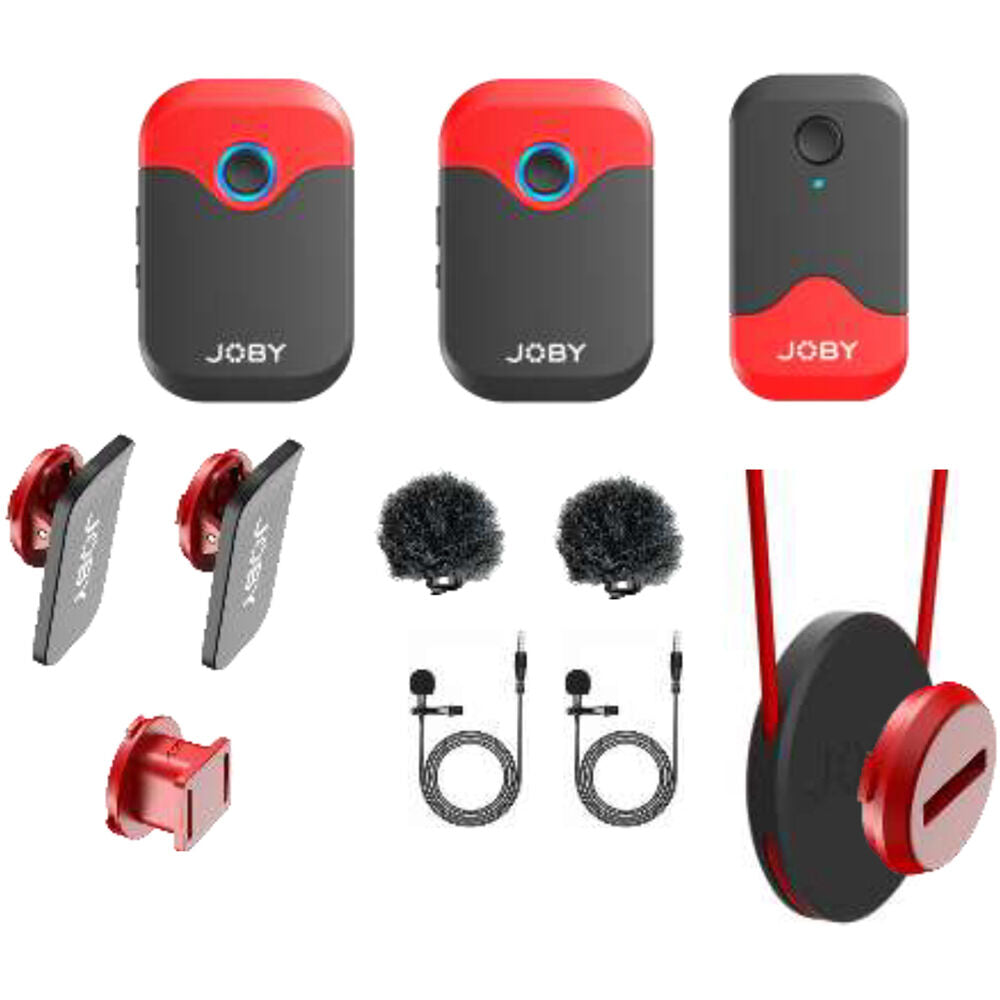

In the Box
- JOBY Wavo AIR 2-Person Digital Wireless Lavalier Microphone System (2.4 GHz)
- Dual-Channel Receiver
- 2 x Clip-On Transmitters
- 2 x Lavalier Microphones
- 2 x Alligator Clips
- 2 x Foam Windscreens
- 2 x Clip-On Furry Windshields
- 3.5mm TRS to TRS Cable
- 3.5mm TRS to TRRS Cable
- 3 x USB Type-C to USB Type-A Cables
- 2 x Clip-On Supports
- Magnet and Pendant Support
- Cold Shoe Support
- Pairing Pin
Table of Contents
- Description
- Ready Out of the Box for 2-Person Shoots
- High Quality and Hands Free
- Connect and Shoot
- Cables for Mobile or Mirrorless
- Highly Versatile Mounting Options
- Additional Features
JOBY WAVO AIR Specs
System
Wireless Technology |
Digital 2.4 GHz |
Number of RF Channel Frequencies |
18 |
Included Transmitters |
2 x Clip-On with Microphone |
Diversity |
Non-Diversity |
RF Channel Scanning |
Auto-Scan |
Max Operating Range |
164' / 50 m |
Max Transmitters per Band |
5 |
Built-In Recorder |
No |
Timecode Support |
No |
Encryption |
None |
SNR |
>78 dB |
Receiver
Receiver Type |
Camera-Mount / Beltpack / Portable |
Mounting Options |
Belt Clip, Shoe-Mount (with Included Hardware) |
Antenna |
1 x Internal |
Number of Audio Channels |
2 |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Output |
Network I/O |
None |
Word Clock I/O |
None |
USB/Lightning Connectivity |
1 x USB-C Female (Bus Power, Charging) |
Standalone Audio Interface Capable |
No |
Power Requirements |
Battery, Bus Power (USB) |
Battery Type |
1 x Built-In Rechargeable (Included) |
Approx. Battery Life |
6 Hours |
DC Input Power |
5 VDC |
Display & Indicators |
1 x LED (Battery Status, Recharging) 1 x LED (Sync) |
Housing |
ABS, Plastic |
Dimensions |
1.4 x 2.5 x 0.7" / 35 x 64 x 18.5 mm |
Weight |
0.9 oz / 26.5 g |
Transmitter
Transmitter Type |
Clip-On with Microphone |
RF Output Power |
10 mW |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Input |
Included Cable Connector |
1/8" / 3.5 mm TRS |
Pad |
None |
Muting |
None |
Auto-Level Control |
No |
Signal Processing |
None |
Sync Method |
Proprietary |
Antenna |
1 x Internal |
Power Requirements |
Battery, Bus Power (USB) |
Battery Type |
1 x Built-In Rechargeable (Included) |
Approx. Battery Life |
6 Hours |
USB/Lightning I/O |
1 x USB-C (Bus Power, Charging) |
Display & Indicators |
1 x LED (Battery Status, Recharging) 1 x LED (Sync) |
Housing |
ABS, Plastic |
Dimensions |
1.7 x 2.5 x 0.8" / 42.5 x 64 x 19.3 mm |
Weight |
1.2 oz / 34 g |
Microphone
Microphone Type |
Lavalier |
Sound Field |
Mono |
Operating Principle |
Pressure Operated |
Capsule |
Electret Condenser |
Polar Pattern |
Omnidirectional |
Frequency Range |
50 Hz to 18 kHz |
SNR |
78 dB |
Maximum SPL |
110 dB SPL |
Sensitivity |
-30 dB |
Outputs |
1 x 1/8" / 3.5 mm TRS Male Unbalanced (on Attached Cable) |
Microphone 2
Microphone Type |
Lavalier Capsule |
Sound Field |
Mono |
Operating Principle |
Pressure Operated |
Capsule |
Electret Condenser |
Polar Pattern |
Omnidirectional |
Frequency Range |
50 Hz to 18 kHz |
SNR |
78 dB |
Maximum SPL |
120 dB SPL |
Sensitivity |
-42 dB |
Packaging Info
Package Weight |
1.205 lb |
Box Dimensions (LxWxH) |
11.3 x 4.4 x 2" |
