Description

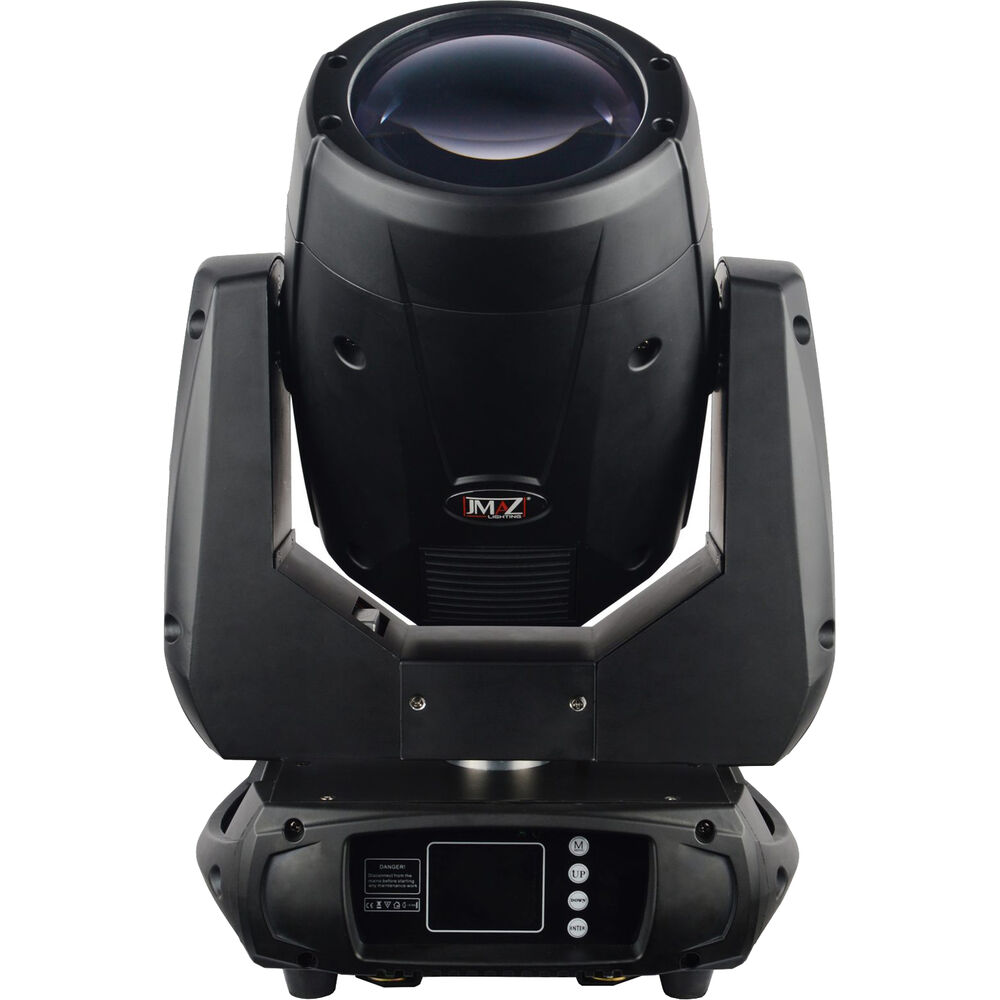

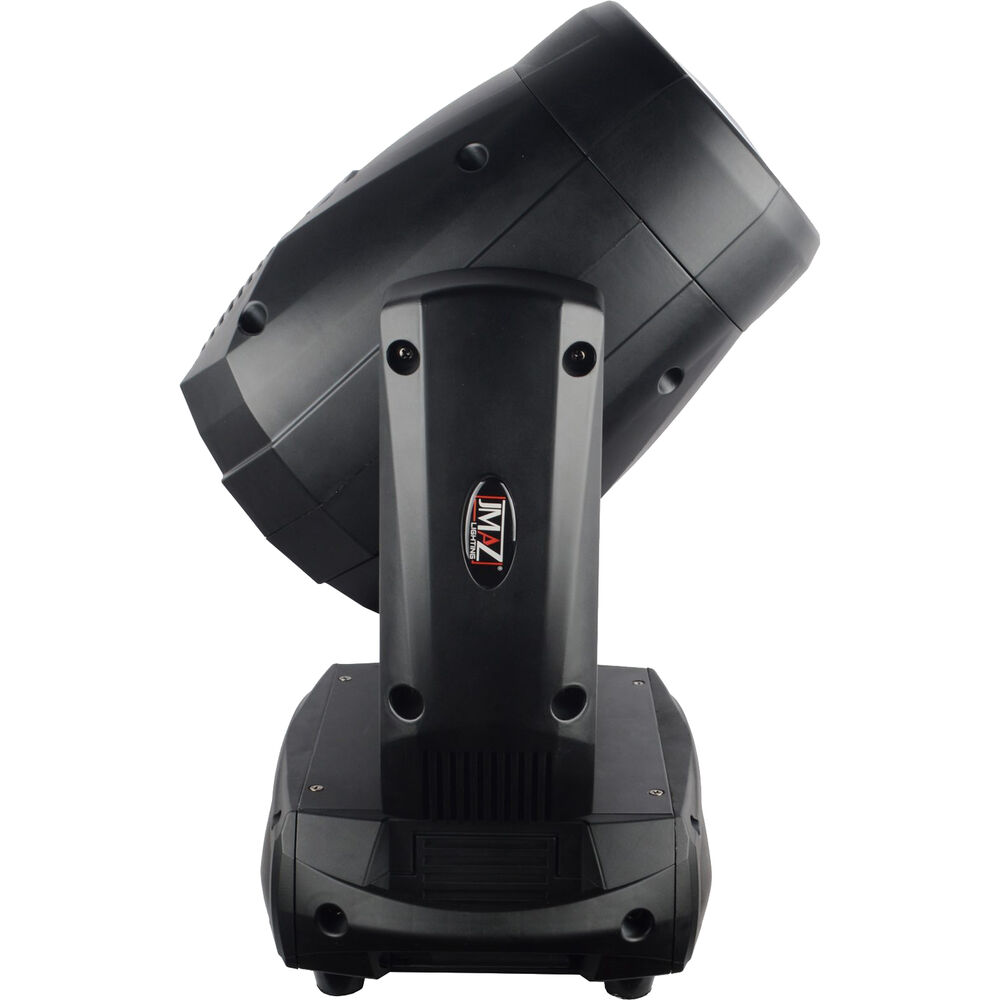

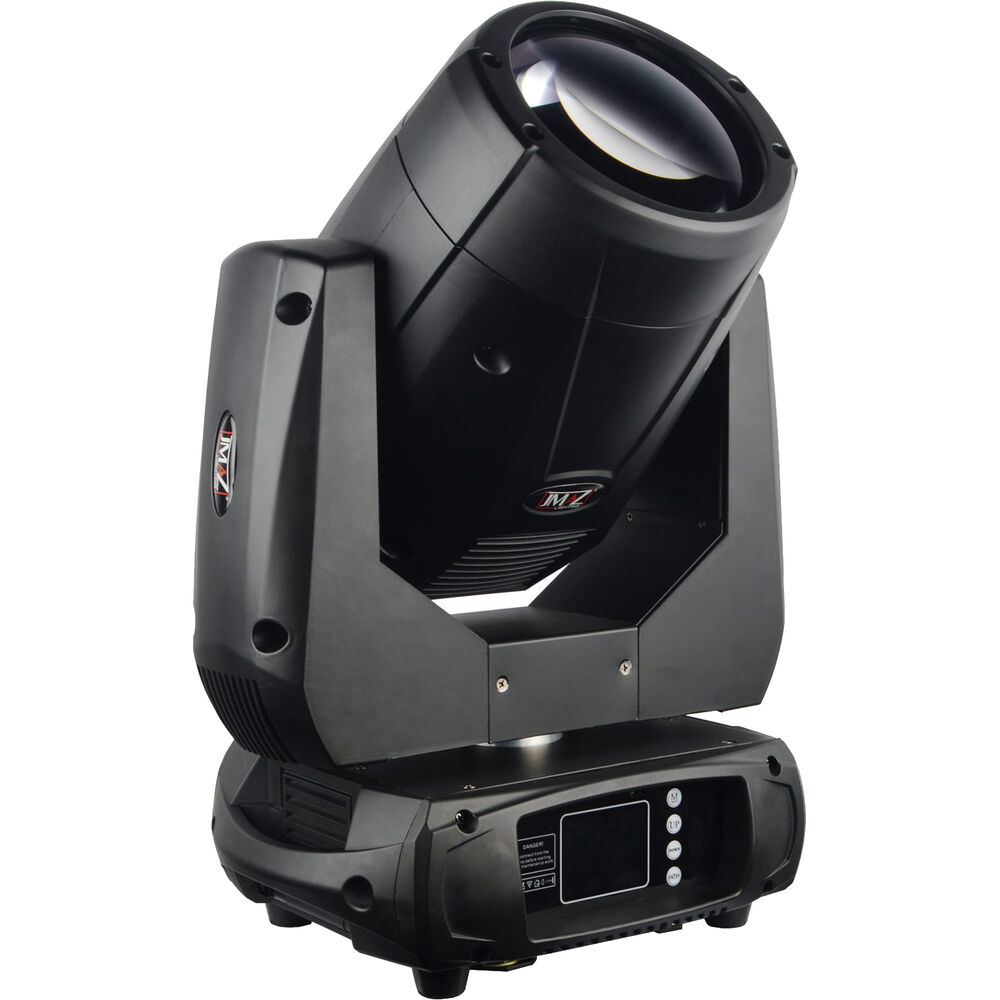

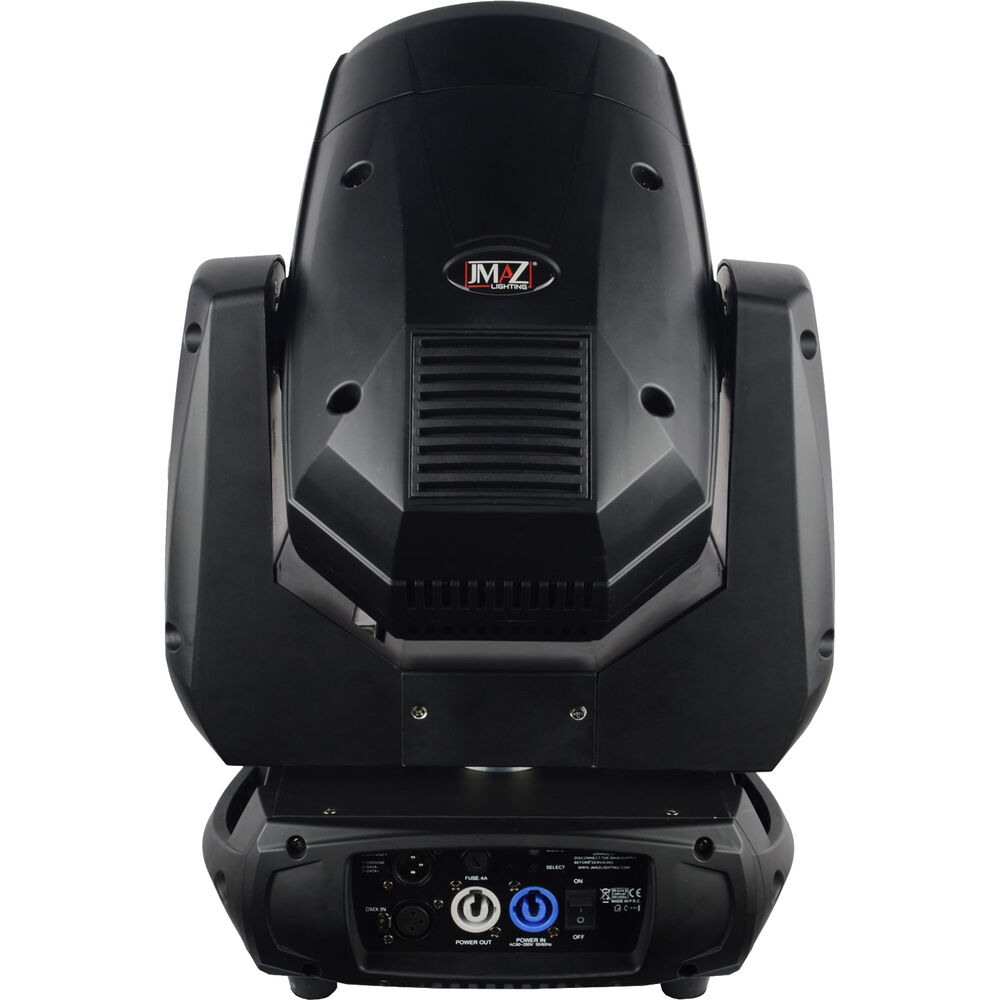

JMAZ Lighting Phantom Beam Overview
Lighting professionals looking for a moving head spot/beam/wash light with wireless DMX capabilities will appreciate the black JMAZ Lighting PHANTOM BEAM 120 LED, a bright LED moving head well suited for installations, large-scale concerts, TV studios, mobile performances, night shows, weddings, stages, one-off events, rental houses, houses of worship, and mobile DJ applications. The fixture is powered by a 120W white LED and includes a color-wheel (11 colors + open) and a Gobo wheel (19 static Gobos). The 6-facet linear prism and 8+16-facet circular prism feature independent variable speed and direction, allowing you to create impressive aerial effects over large areas.
The PHANTOM BEAM 120 LED features 8-/16-bit pan and tilt movement for smooth and precise resolution. The fixture features several control modes including primary/secondary, sound activated, automatic, RF remote control, and DMX (12/14 channel modes). The integrated Wi-MAZ wireless DMX technology allows for complete control without DMX cables. The control panel includes an LCD menu with four-buttons for manual setup as well as two 3-pin DMX I/O. The PHANTOM BEAM 120 LED includes an Omega bracket, powerCON power cord, a DMX signal cable, an RF remote control, and a safety cable.
- Powered by 120W cool white LED 7500k
- Long-life LED (rated over 50,000 hours)
- Beam angle: 2°
- 9 built-in shows with RF remote control included
- Built-in Wi-MAZ Wireless DMX technology
- Operating modes: DMX512, master-slave, sound active, and built-in shows
- 6-facet linear prism with variable speed and direction
- 8+16-facet circular prism with variable speed and direction
- Motorized focus from near to far (8.2 to 49.2')
- 1 color wheel with 11 colors plus white
- 19 static gobos plus open
- 12 and 14 DMX channel modes
- Electronic dimming: 0 to 100%
- 8-/16-bit smooth and precise resolution for pan/tilt movement
- 360 / 540 / 630° pan and 90 / 180 / 270° tilt movement
- Pan/ tilt invert mode for contrasting movement when fixtures are linked together
- powerCON in/out
- 3-pin XLR connectors in/out
- Scan position memory, auto reposition after unexpected movement
- Includes Omega bracket for truss mounting
- Powered by 120W cool white LED 7500k
- 9 built-in shows with RF remote control included
- Built-in Wi-MAZ Wireless DMX technology
In the Box
- JMAZ Lighting PHANTOM BEAM 120 LED 11-Color LED Moving Head with Wireless DMX (Black)
- PowerCON Power Cord
- RF Remote Control
- Omega Bracket
- Limited 2-Year Manufacturer Warranty
JMAZ Lighting Phantom Beam Specs
| Fixture Type |
Moving Head / Special Design
|
| Light Source |
1 x White LED - 120 W
|
| Colors |
Aqua, Blue, Dark Blue, Green, Light Blue, Magenta, Orange, Pink, Red, Warm White, White (Spot)
|
| Beam Angle |
2°
|
| Control Protocols |
DMX512
|
| AC Input Power |
110 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
180 W
|
| Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP20 |
| Mounting |
Omega Bracket
|
| Fixture Type |
Moving Head / Special Design
|
| Light Source |
1 x White LED - 120 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Aqua, Blue, Dark Blue, Green, Light Blue, Magenta, Orange, Pink, Red, Warm White, White (Spot)
|
| Color Temperature |
7500K
|
| Beam Angle |
2°
|
| Shutter / Strobe |
Electronic
|
| Focus |
Motorized
|
| Dimming |
Electronic, 0 to 100%
|
| Prism |
24-Facet Circular (Rotating)
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Sound-Active, Standalone
|
| Macros / Programs |
Auto-Program
Sound-Active Color Change |
| Effects |
Strobe
Color Strobe Gobo Scroll Color Scroll |
| Gobos |
19 x Fixed Metal Gobo
|
| Tilt Ranges |
270° / 180° / 90°
|
| Pan Ranges |
630° / 540° / 360°
|
| Pan/Tilt Inversion |
Yes
|
| Movement Resolution |
8 / 16-Bit
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
2 Mode(s):
12 / 14-Channel |
| Display / Controls |
LCD / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Inputs/Outputs |
2 x XLR 3-Pin DMX Input/Output
|
| AC Input Power |
110 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1 x powerCON
Output: 1 x powerCON |
| Power / Current Consumption |
180 W
|
| Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP20 |
| Mounting |
Omega Bracket
|
| Included Accessories |
No
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Dimensions |
19.4 x 13.2 x 8.8" / 49.3 x 33.6 x 22.4 cm
|
| Weight |
31.3 lb / 14.2 kg
|
