Description

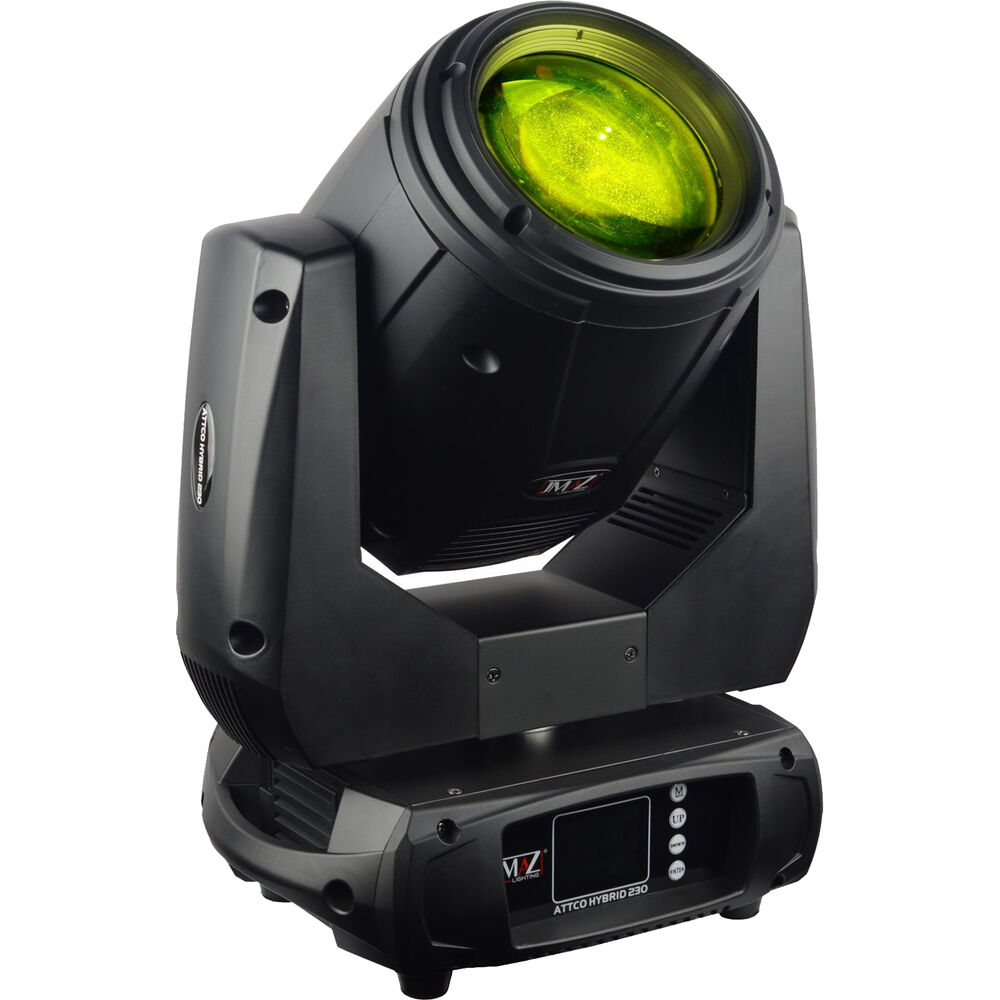

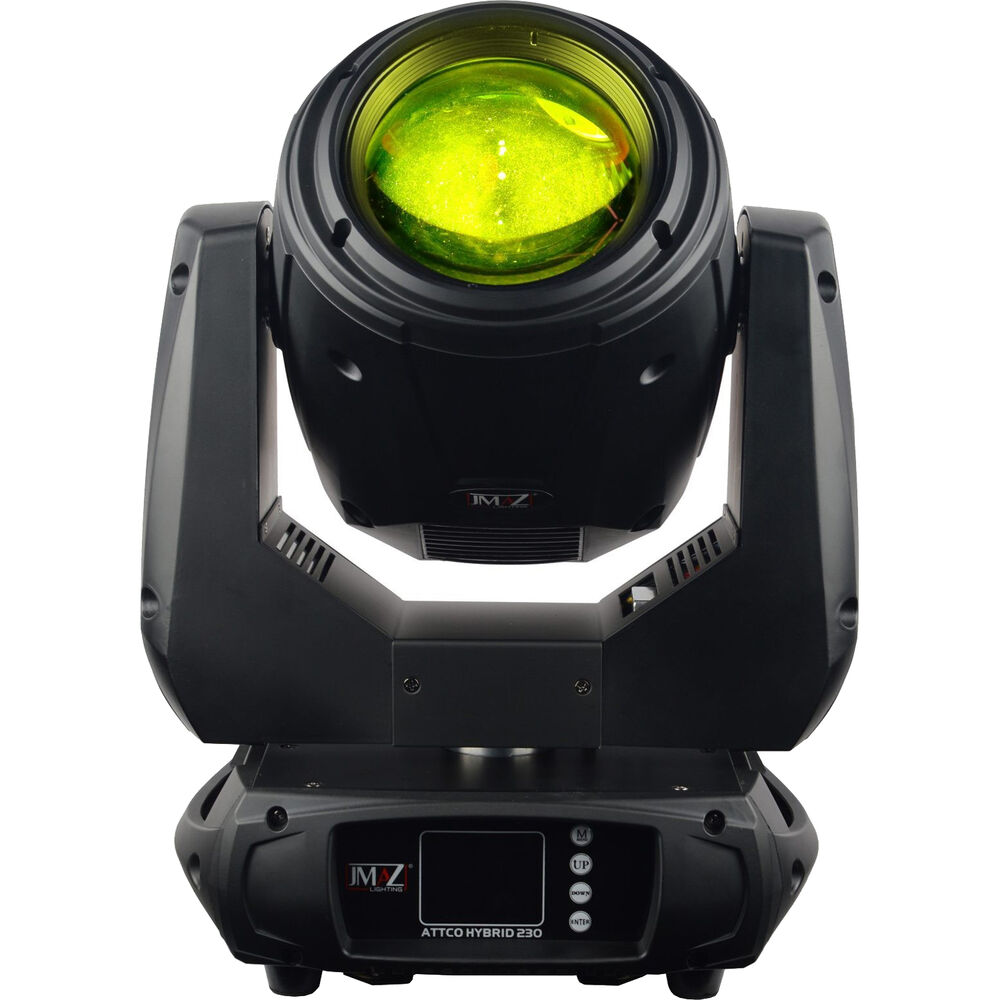

JMAZ Lighting Attco Beam 230 Overview
Lighting professionals looking for a moving head beam/wash light with a full complement of professional characteristics will appreciate the black JMAZ Lighting ATTCO BEAM 230, a bright LED moving head well suited for large concerts, clubs, rental houses, special events, houses of worship, and more. The fixture is powered by a OSRAM 231W LED with a sharp 2.5° beam angle and includes a color-wheel (11 colors + open) and a Gobo wheel (16 static Gobos + open). Two rotating prisms (16- and 24-facet) create a more impressive show to cover larger areas. A frost filter create wash effects for a completely different look than the standard beam. The motorized focus accommodates distances from 8.2 to 98.4'.
The ATTCO BEAM 230 features 8-/16-bit pan and tilt movement for smooth and precise resolution. The fixture features several control modes including primary/secondary, sound activated, automatic, RF remote control (included), and DMX (14/16 channel modes). The control panel includes an LCD menu with four-buttons for manual setup as well as two 3-pin DMX I/O and two powerCON power I/O. The ATTCO BEAM 230 includes an Omega bracket, a powerCON power cord, a DMX signal cable, and a safety cable.
- OSRAM 231W light source
- 2000-hour lifespan
- Beam angle: 2.5°
- Large 5.4" anti-reflection front lens provides uniform lighting field with no hot spot
- Improved optics and flat beam field
- 11 colors + white with bicolor option
- 16 static gobos + open with beam reducers included
- Fast Pan & Tilt movements
- Double blade shutter for dimming, strobe, and pulse effects
- DMX control with 14 or 16 DMX channels
- Auto, Music modes
- Manual control via the fixture�s LCD screen
- Feedback for Pan/Tilt movement correction
- Electronic ballast and power supply
- ABS die-cast plastic cover with aluminum structure
- Motorized focus from near to far (8.2 to 98.4')
- 16-facet prism with variable speed and direction
- 16-facet prism+8-facet prism with variable speed and direction
- Combined prism effect by 16-facet prism and 16-facet +8-facet prism with variable speed and direction
- Prisms can be both inserted on the beam and their rotation speed and direction is independently controlled.
- Frost filter available (Hybrid effect for wash)
- Variable direction rainbow effect with speed adjustable
- Dual flag mechanical dimming system
- 20 pulse/sec high-speed shutter/strobe effect with variable speed
- Preset variable/random strobe and dimming pulse effect
- 2.4" TFT LCD display
- Display reversible for upside down application
- Vector mode with blackout MIB function
- Electronic ballast and power supply
- powerCON IN/OUT
- 3-pin XLR connectors IN/OUT
- Lamp using time readable on the display
- 55 dB at 3�
- Fastening Omega clamps
- Safety attachment point available
In the Box
- JMAZ Lighting ATTCO BEAM 230 12-Color LED Moving Head (Black)
- Omega Bracket
- powerCON Power Cord
- DMX Signal Cable
- RF Remote Control
- Safety Cable
- Limited 2-Year Manufacturer Warranty
JMAZ Lighting Attco Beam 230 Specs
| Fixture Type |
Moving Head / Special Design
|
| Light Source |
1x White LED - 231 W
|
| Colors |
Blue, CTB (Color Temperature Blue), CTO (Color Temperature Orange), Green, Light Blue, Magenta, Orange, Pink, Purple, Red, White, Yellow
|
| Beam Angle |
2.5°
|
| Control Protocols |
DMX512
|
| AC Input Power |
90 to 260 VAC, 50/60 Hz
|
| Power / Current Consumption |
310 W
|
| Mounting |
Omega Bracket
|
| Fixture Type |
Moving Head / Special Design
|
| Light Source |
1x White LED - 231 W
|
| Expected Lamp Life |
2000 Hours
|
| Colors |
Blue, CTB (Color Temperature Blue), CTO (Color Temperature Orange), Green, Light Blue, Magenta, Orange, Pink, Purple, Red, White, Yellow
|
| Photometrics |
15,257 fc / 164,230 Lux at 32.8' / 10 m
6798 fc / 73,170 Lux at 49.2' / 15 m |
| Beam Angle |
2.5°
|
| Shutter / Strobe |
Electronic
|
| Focus |
Motorized
|
| Dimming |
Electronic, 0 to 100%
|
| Prism |
16-Facet Circular (Rotating)
24-Facet Circular |
| Operating Modes |
Automatic, DMX, Primary/Secondary, Sound-Active, Standalone
|
| Macros / Programs |
8x Auto-Program
Sound-Active Color Change |
| Effects |
Strobe
Color Strobe Gobo Scroll Gobo Shake Frost Filter |
| Gobos |
16x Fixed Metal Gobo
|
| Tilt Ranges |
270° / 180° / 90°
|
| Pan Ranges |
630° / 540° / 360°
|
| Pan/Tilt Inversion |
Yes
|
| Movement Resolution |
8 / 16-Bit
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
2 Mode(s):
14 / 16-Channel |
| Display / Controls |
LCD / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
2 x XLR 3-Pin DMX Input/Output
|
| AC Input Power |
90 to 260 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON |
| Power / Current Consumption |
310 W
|
| Environmental Protection |
Dust-Resistant (IP20)
|
| Mounting |
Omega Bracket
|
| Included Accessories |
No
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Dimensions |
14.8 x 14.6 x 8" / 375 x 370 x 203 mm
|
| Weight |
29.1 lb / 13.2 kg
|
