Description
JMAZ Electro W8 Overview

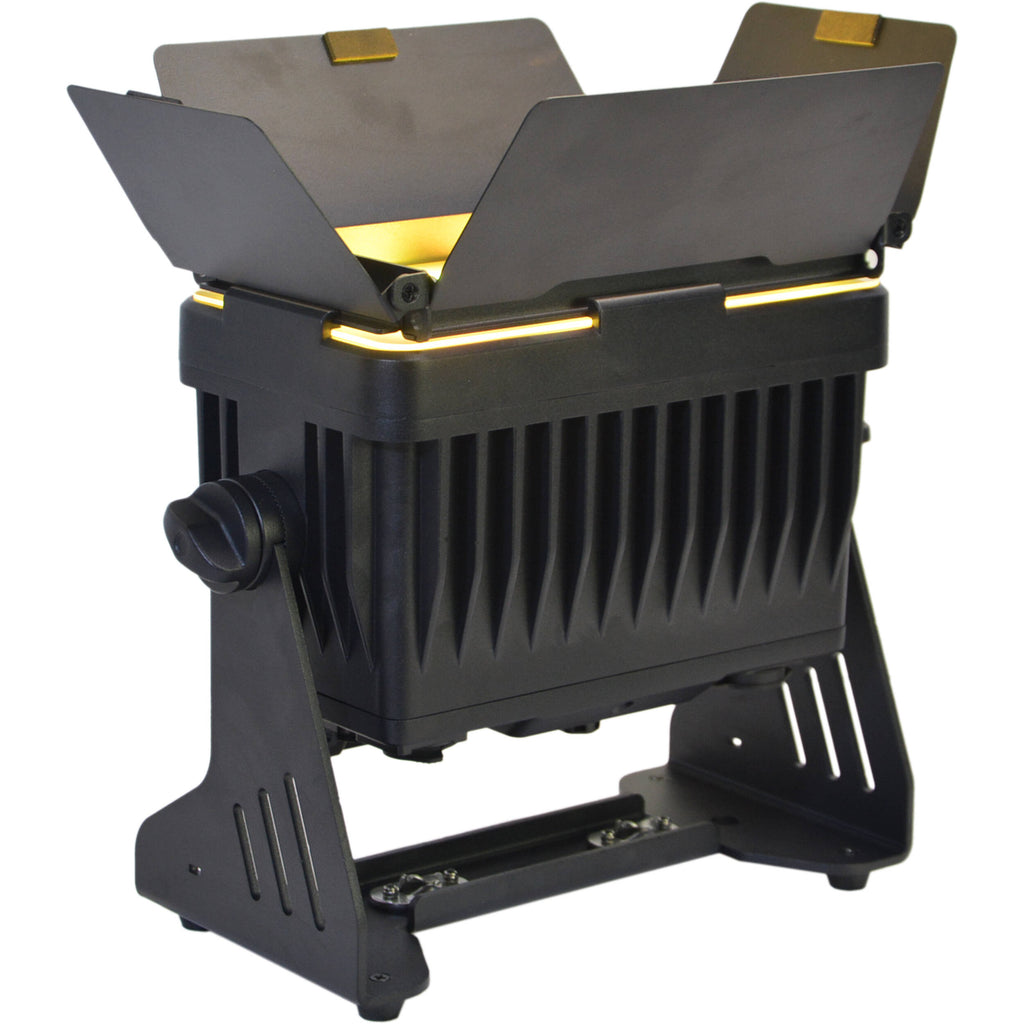

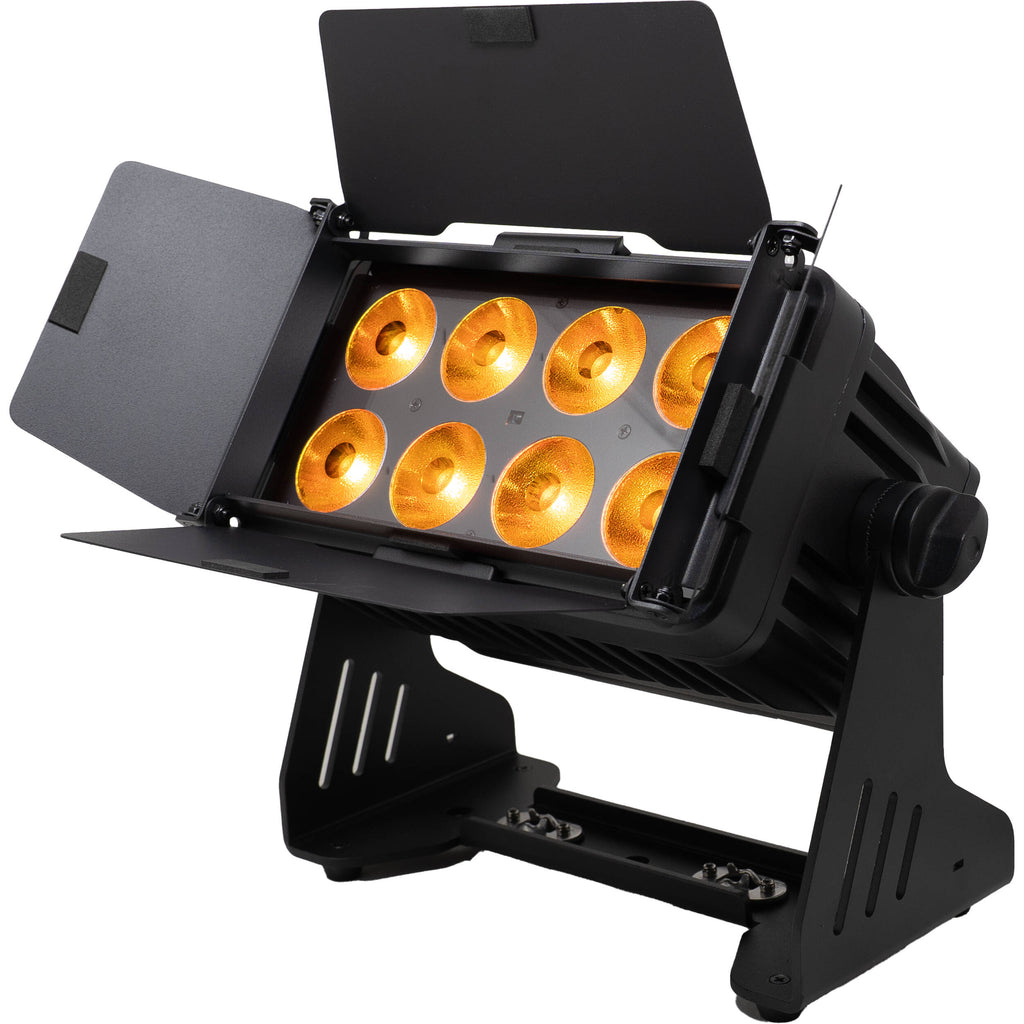

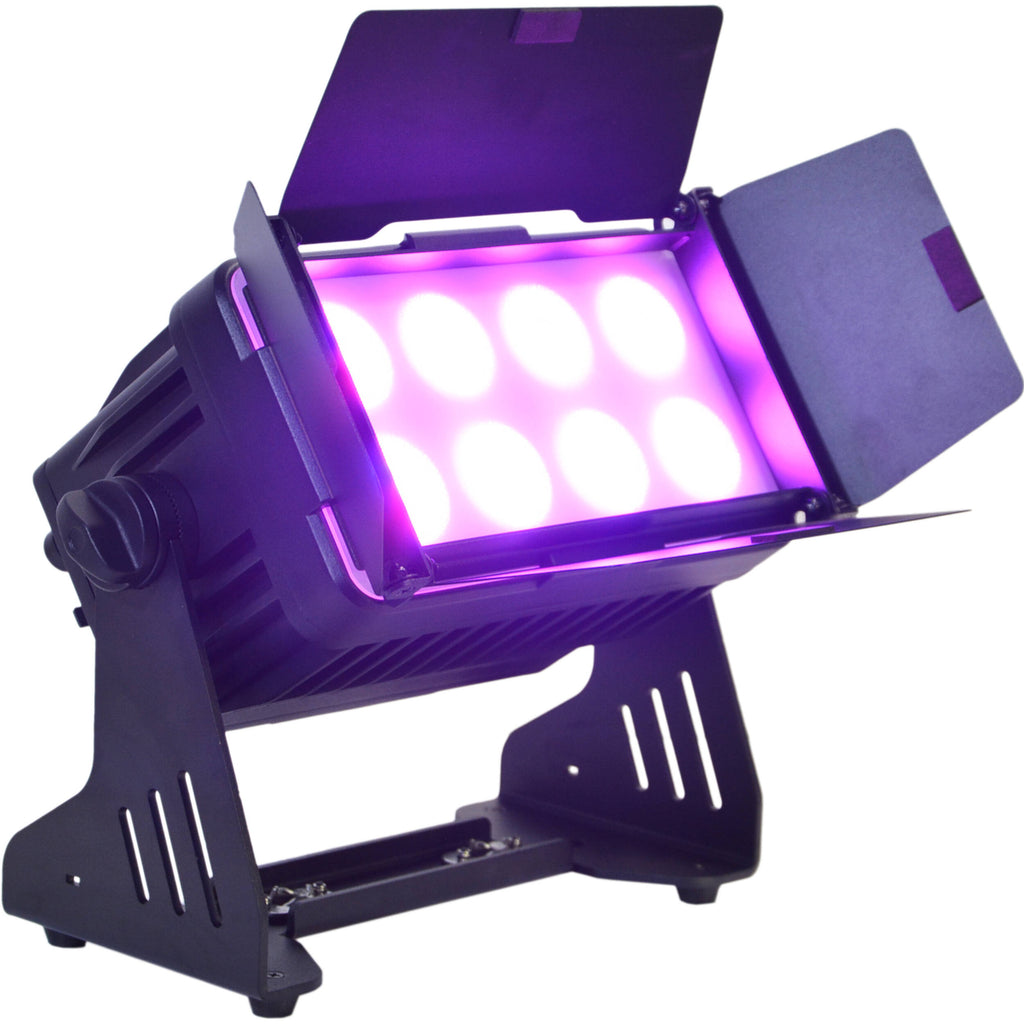

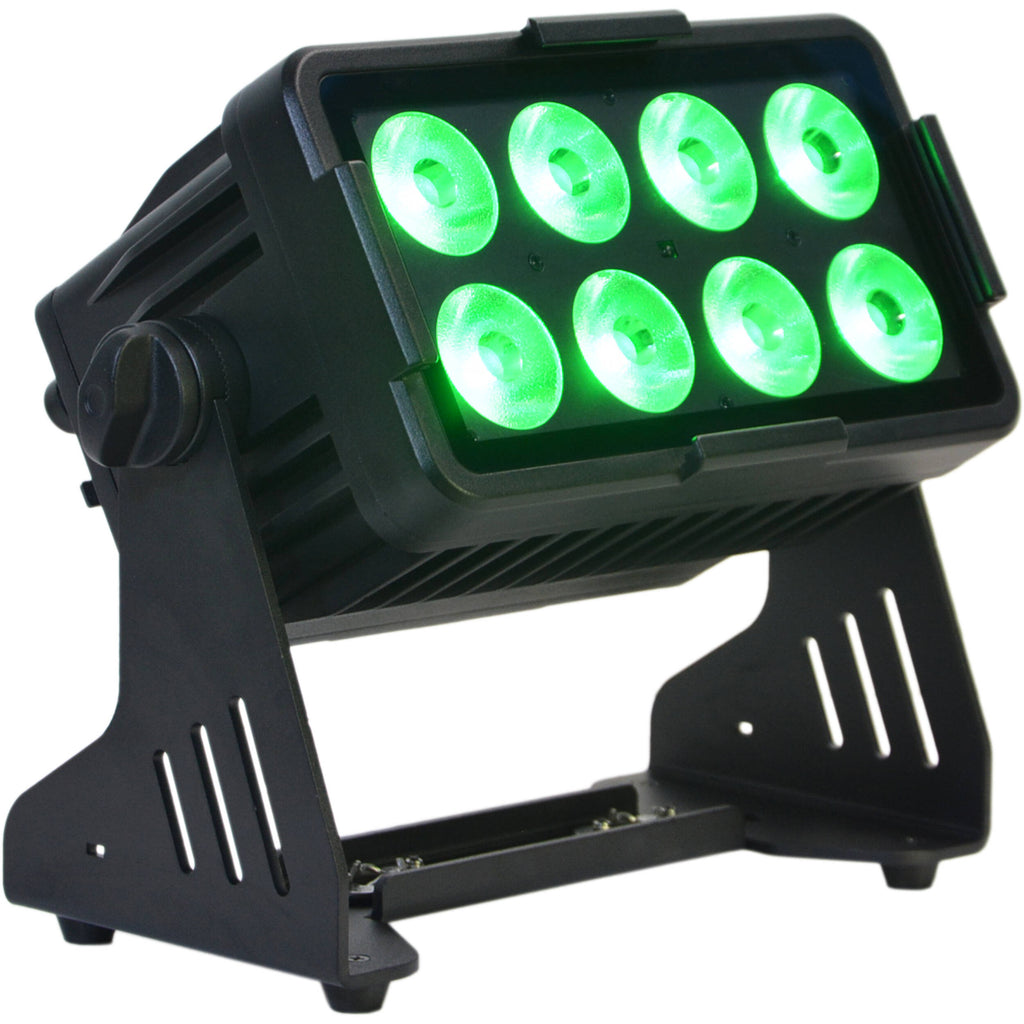

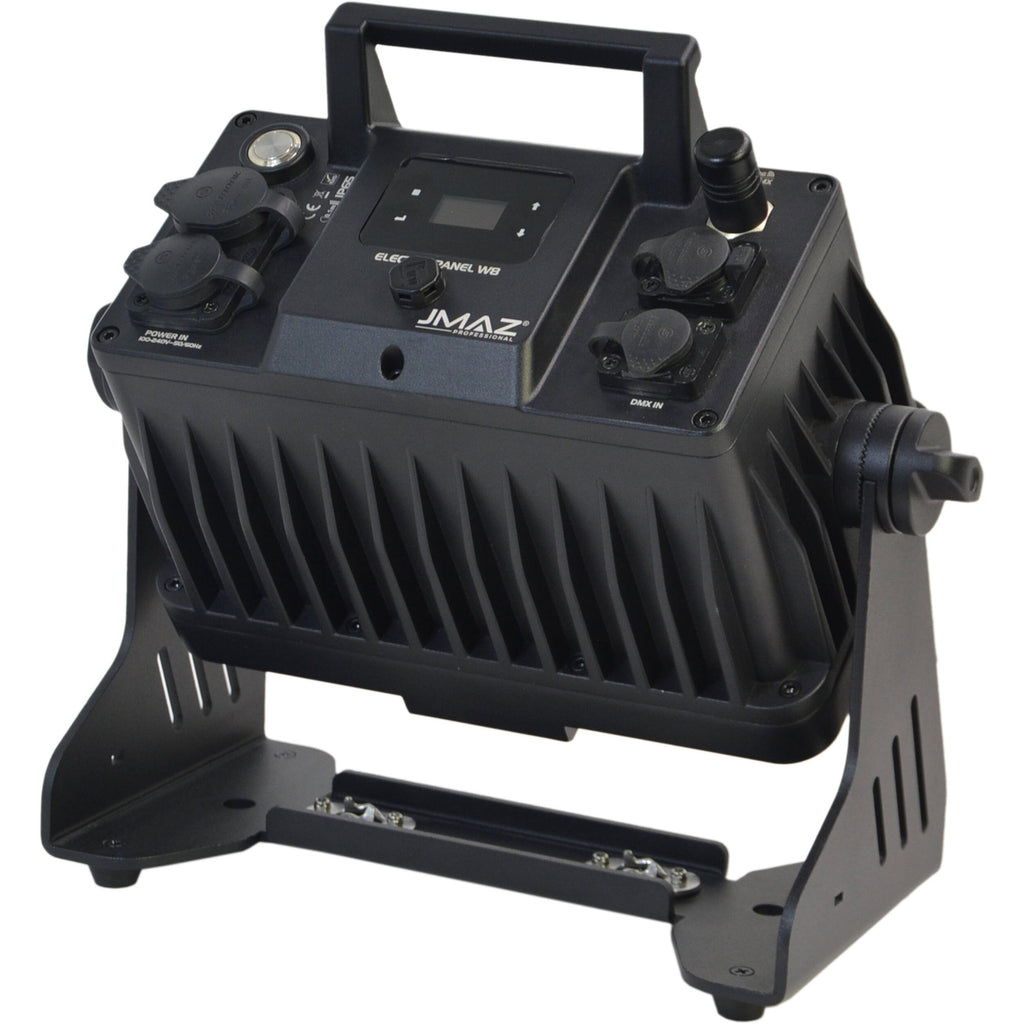

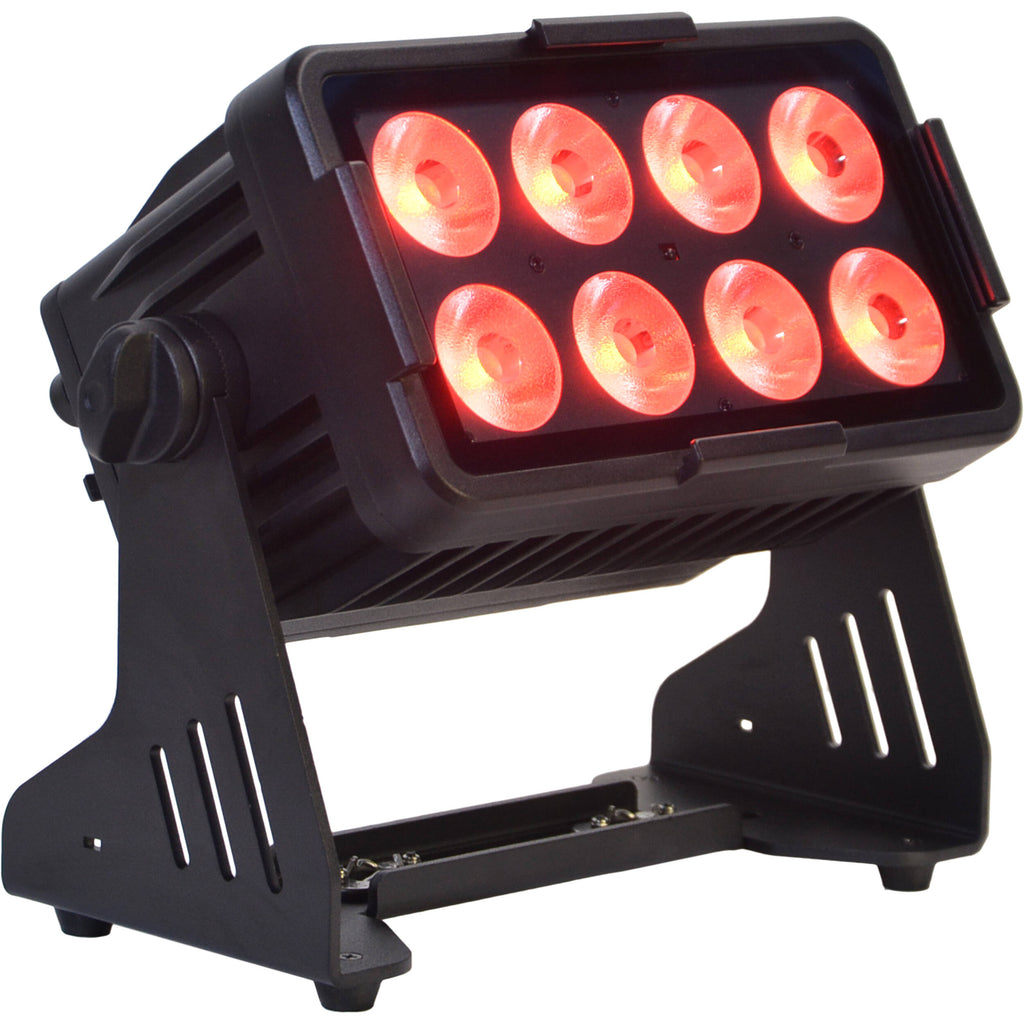

Achieve bright color washes for use in a variety of all-weather events with the Electro W8 RGB+L Outdoor Battery Powered LED Light Panel from JMAZ. This battery-powered fixture is designed to create remarkable color for professional outdoor applications in all-weather conditions, thanks to its IP65 rating. Engineered with eight 12W RGB+Lime LEDs and an internal battery, the Electro W8 offers 14 hours of battery life or up to 40 hours in saving mode. The unit supports DMX512, wireless DMX via LumenRadio CRMX, RDM, and includes a convenient IR remote.
Vibrant Color Rendering
The Electro W8 provides 2300-8500K CCT, as well as smooth color mixing with a wide palette of color options. Internal programs include smooth color fading with 73 preset color programs and 72 auto/fade programs. A diffusion filter is included, which expands the native 20? beam angle to 40?, while the supplied barndoors allow you to control the dispersion for tight and dramatic effects. The Electro W8 also ships with a TRUE1 power cable and omega bracket.
Additional Details
- HSV, HSI, 3, 4, 6, 11, and 16 personalities for tailored control
- TRUE1 in/out power connector
- Operates and charges simultaneously via a built-in battery charger
- 4.5 hours charging time

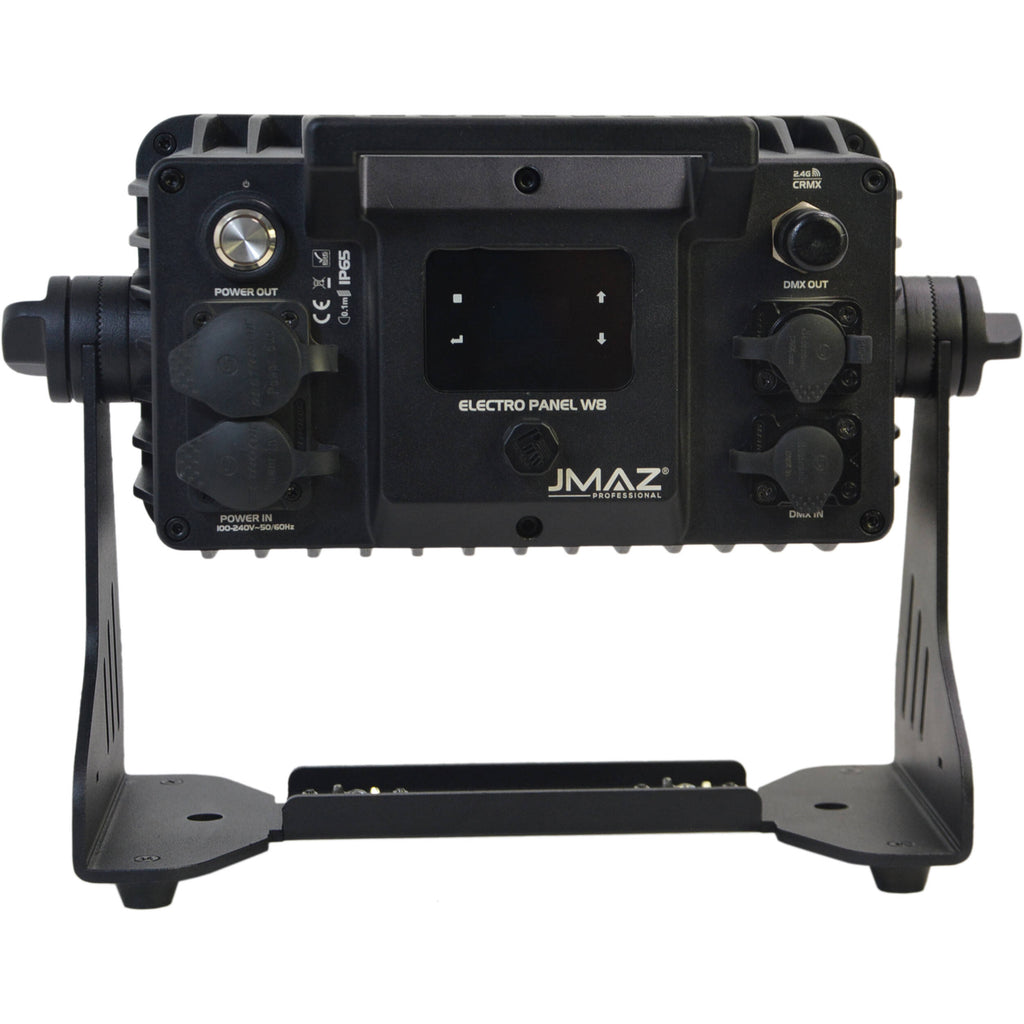

- IP65-rated 5-pin DMX in/out ports for wired data connection
- CE, FCC, and RoHS certified; UL-listed battery
UPC: 618528598963
Items Included
- JMAZ Electro W8 RGB+L Outdoor Battery Powered LED Light Panel
- Diffuser
- Barndoors
- TRUE1 Power Cable
- Omega Bracket
- IR Remote
- Limited 3-Year Manufacturer Warranty
- Limited 6-Month Manufacturer Warranty (Internal Battery)
Additional Resources
JMAZ Electro W8 Specs
Key Specs
| Fixture Type |
LED Panel
|
| Light Source |
8x Color/UV LED - 12 W
|
| Colors |
Blue, Green, Lime, Red
|
| Beam Angle |
20? (without Filter)
40? (with Filter) |
| Control Protocols |
DMX512, CRMX, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 W
|
| Mounting |
Floor Base, Omega Bracket
|
Light
| Fixture Type |
LED Panel
|
| Light Source |
8x Color/UV LED - 12 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Lime, Red
|
| Photometrics |
20?:
2666 fc / 28,702 Lux at 3.3' / 1 m (Full On) 334 fc / 3604 Lux at 9.8' / 3 m (Full On) 121 fc / 1310 Lux at 16.4' / 5 m (Full On) 40?: 934 fc / 10,055 Lux at 3.3' / 1 m (Full On) 113 fc / 1221 Lux at 9.8' / 3 m (Full On) 41 fc / 443 Lux at 16.4' / 5 m (Full On) |
| Color Temperature |
2500 to 5600K
|
| Beam Angle |
20? (without Filter)
40? (with Filter) |
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic
|
Performance
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 25 Hz
|
| Gobos |
No
|
Control
| Control Protocols |
DMX512, CRMX, RDM
|
| DMX Channel Modes |
7 Mode(s):
3 / 4 / 6 / 11 / 16-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
IR Remote
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
IR
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Fuse |
No
|
| Power / Current Consumption |
120 W
|
| Power Linking |
18 Units at 110 VAC
30 Units at 208 VAC 40 Units at 230 VAC Total Current: 20 A |
| Battery Type |
18.5 V Lithium-Ion
|
| Battery Capacity |
15,600 mAh / 288.6 Wh
|
| Approximate Battery Life |
Up to 14 Hours
Energy Saving: Up to 40 Hours |
| Battery Charging Time |
4.5 Hours
|
Physical
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
14 to 140?F / -10 to 60?C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x Power Cable
1x Barn Doors 1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, FCC, RoHS, UL
|
| Dimensions |
12.6 x 9.5 x 5.6" / 32 x 24.1 x 14.2 cm
|
| Weight |
13.1 lb / 5.9 kg
|
