Description

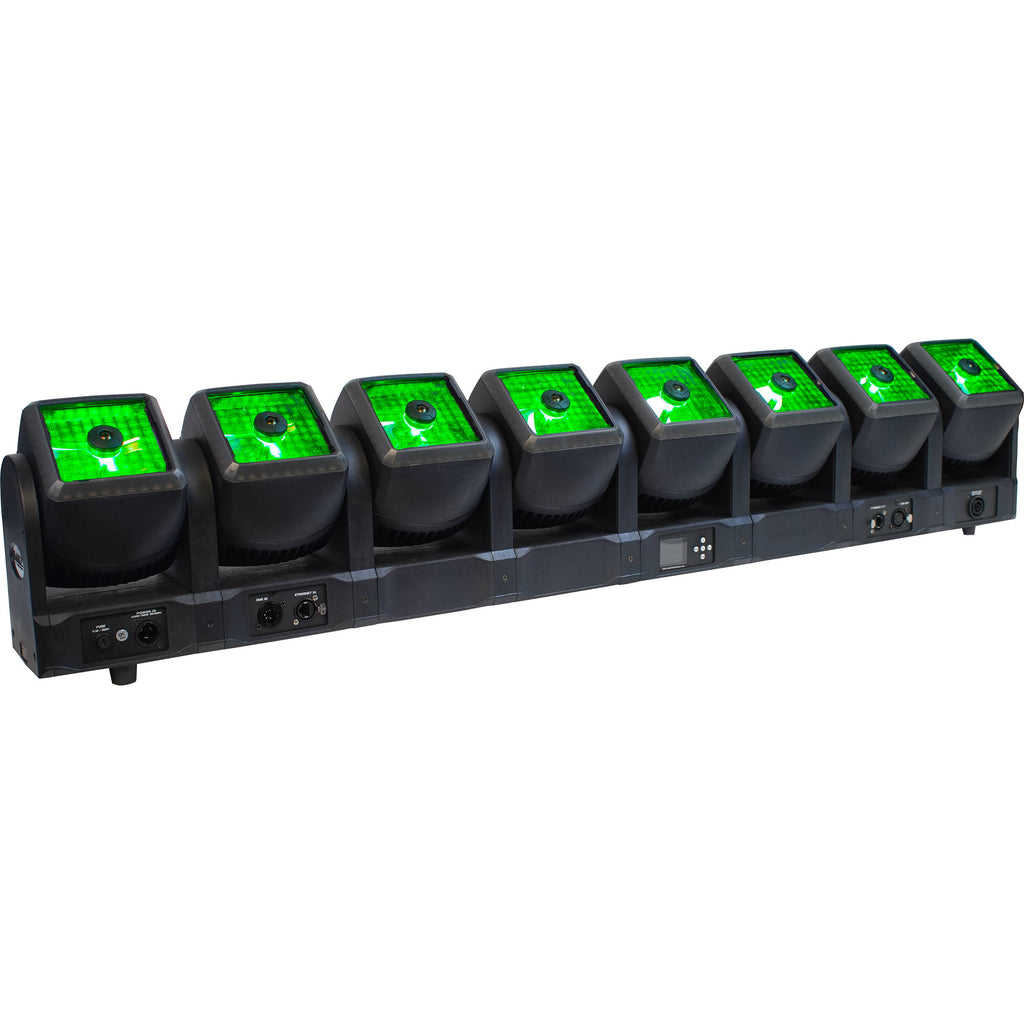

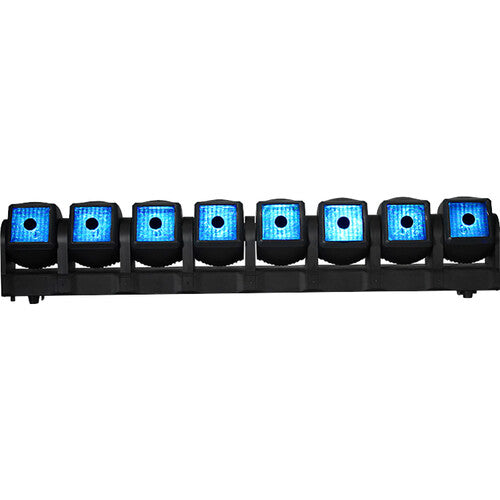

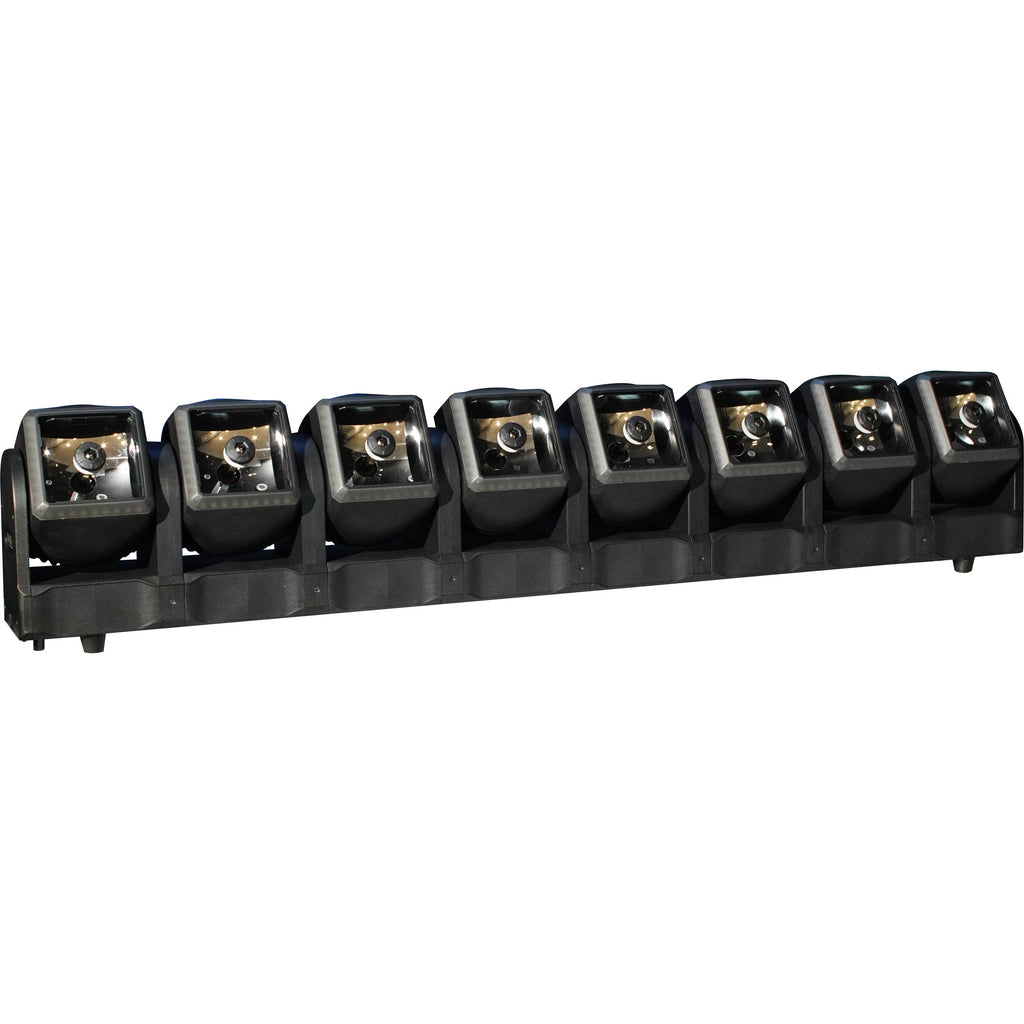

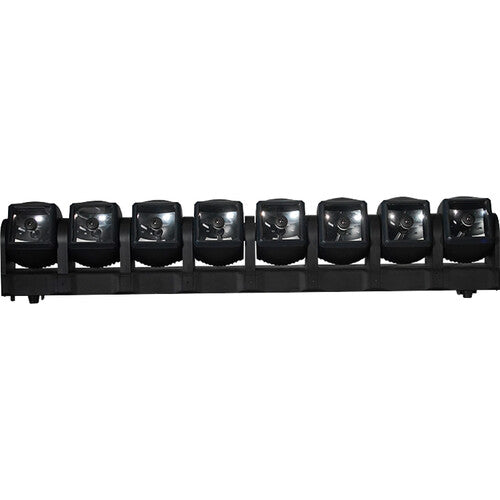

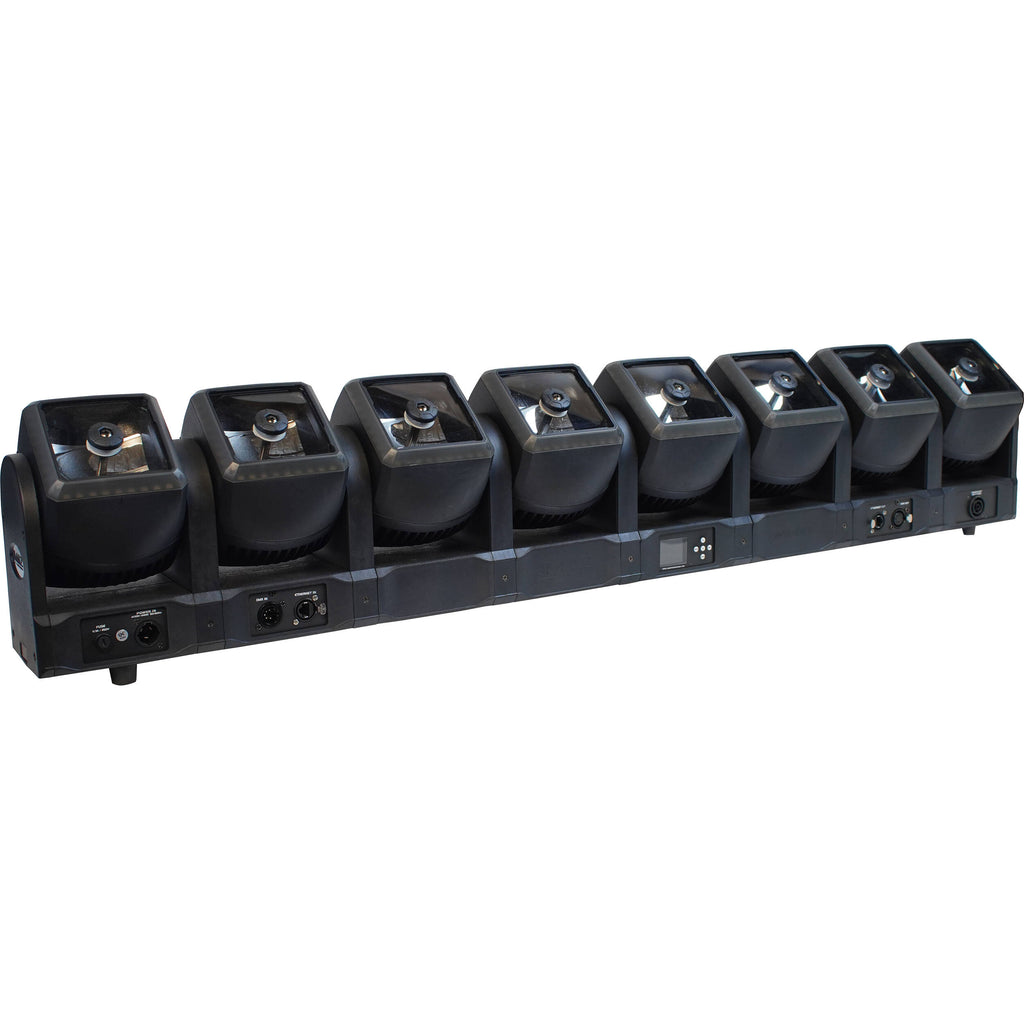

JMAZ Centipede B8 Overview
Featuring eight powerful 60W RGBW LEDs, the 8-head Centipede B8 RGBW LED Bar from JMAZ doubles the size of the B4 model to provide a solution for lighting designers working in demanding and more complex setups. Creating captivating multi-beam and ambient ring effects, the Centipede B8 enables individual pixel and ring control, while providing 240 RGB SMD LEDs for ring effect up to 48W. The fixture has a wide 2500-8000K color temperature and packs a ton of effects, including sharp beam effect and dynamic color macros. For maximum control of every facet of the fixture, use the different DMX channel modes with DMX512, or the advanced Art-Net or Kling-Net protocols. JMAZ includes a TRUE1 power cord along with a 5-pin DMX cable.
Color System
Highlights include built-in virtual colors, individual pixel control, as well as movement macros with foreground/background color control, and dynamic ring color/effects. The Centipede B8 offers two modes for 360? continuous movement or 8- bit and 16-bit 240? adjustment.
Fast Programming
Select preset home position macros and precise speeds via DMX or scan the position memory with automatic tilt position correction. Other control methods besides DMX are Art-Net, RDM, sACN, and Kling-Net.
Dynamic Effect
Other features include 0-100% smooth linear electronic dimming, shutter/strobe with high speed settings, 0-25 Hz shutter/strobe effect, preset pulse strobe or random strobe effects with variable speeds.
Construction
Aluminum and steel housing with high-impact flame-retardant PA6 GF30 with 30% glass fiber.
Additional Details
- Outputs 9640 lux at 3.3' per head
- 3.5? beam angle
- Various personalities
- TRUE1 in/out power connection
- 50,000-hour LED life expectancy
- Fan cooling
- IP20 rated
- CE, cETL, FCC, and RoHS certified
- Includes two mounting brackets and safety cables
UPC: 618528598680
Items Included
- JMAZ Centipede B8 RGBW LED Bar (8-Head)
- TRUE1 Power Cable
- 5-Pin DMX Cable
- 2 x Omega Bracket
- 2 x Safety Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
JMAZ Centipede B8 Specs
Key Specs
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
8x Color LED - 60 W
240x Color LED (SMD) - 0.2 W |
| Colors |
Blue, Green, Red, White
|
| Beam Angle |
3.5?
|
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
640 W
|
| Mounting |
Floor Base, Omega Bracket
|
Light
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
8x Color LED - 60 W
240x Color LED (SMD) - 0.2 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
3.5?:
895 fc / 9640 Lux at 3.3' / 1 m (Full On) 118 fc / 1278 Lux at 9.8' / 3 m (Full On) 45 fc / 487 Lux at 16.4' / 5 m (Full On) |
| Color Temperature |
2500 to 8000K
|
| Beam Angle |
3.5?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100%
|
Performance
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 25 Hz
|
| Gobos |
No
|
Movement
| Tilt Ranges |
360? / 240?
|
| Pan/Tilt Inversion |
Yes
|
| Movement Resolution |
8 / 16-Bit
|
Control
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| DMX Channel Modes |
4 Mode(s):
24 / 58 / 90 / 130-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Fuse |
F 12 A 250 V
|
| Power / Current Consumption |
640 W
|
| Power Linking |
3 Units at 110 VAC
6 Units at 208 VAC 6 Units at 230 VAC |
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
14 to 140?F / -10 to 60?C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x DMX Cable
1x Power Cable 2x Safety Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, FCC, RoHS, cETL
|
| Dimensions |
47.3 x 9.3 x 6.6" / 120.1 x 23.6 x 16.8 cm
|
| Weight |
Not Specified by Manufacturer
|
