Description

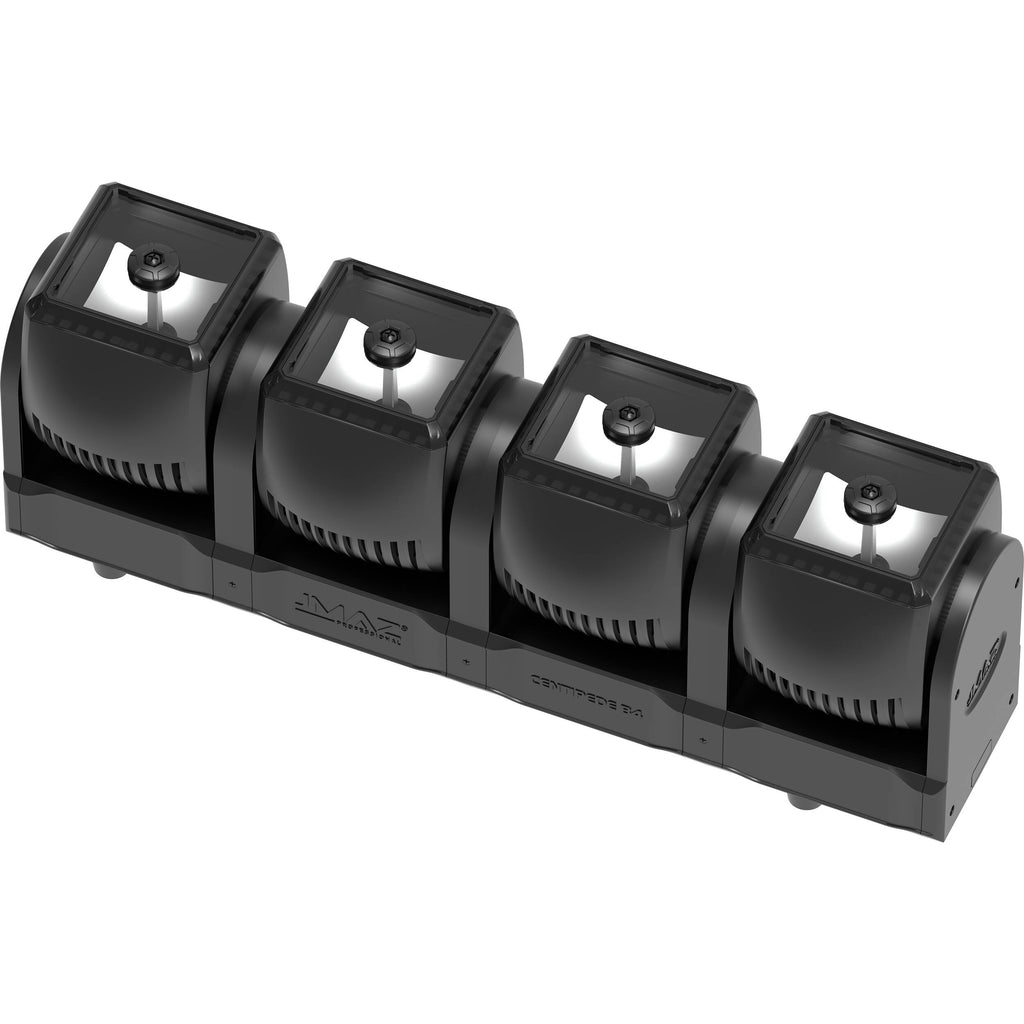

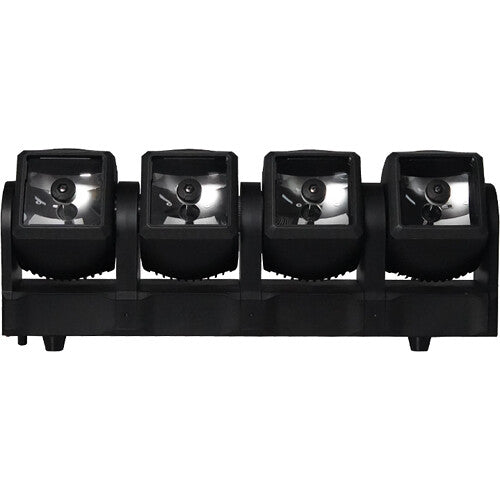

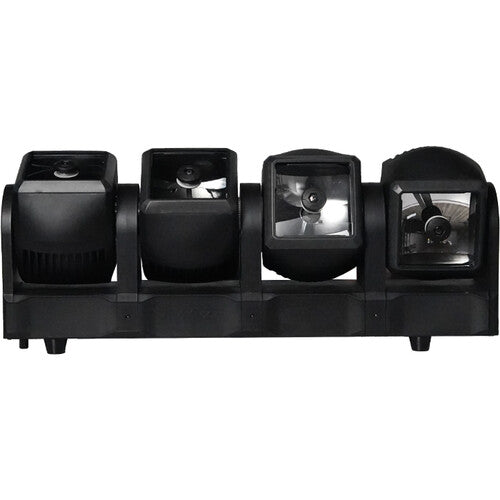

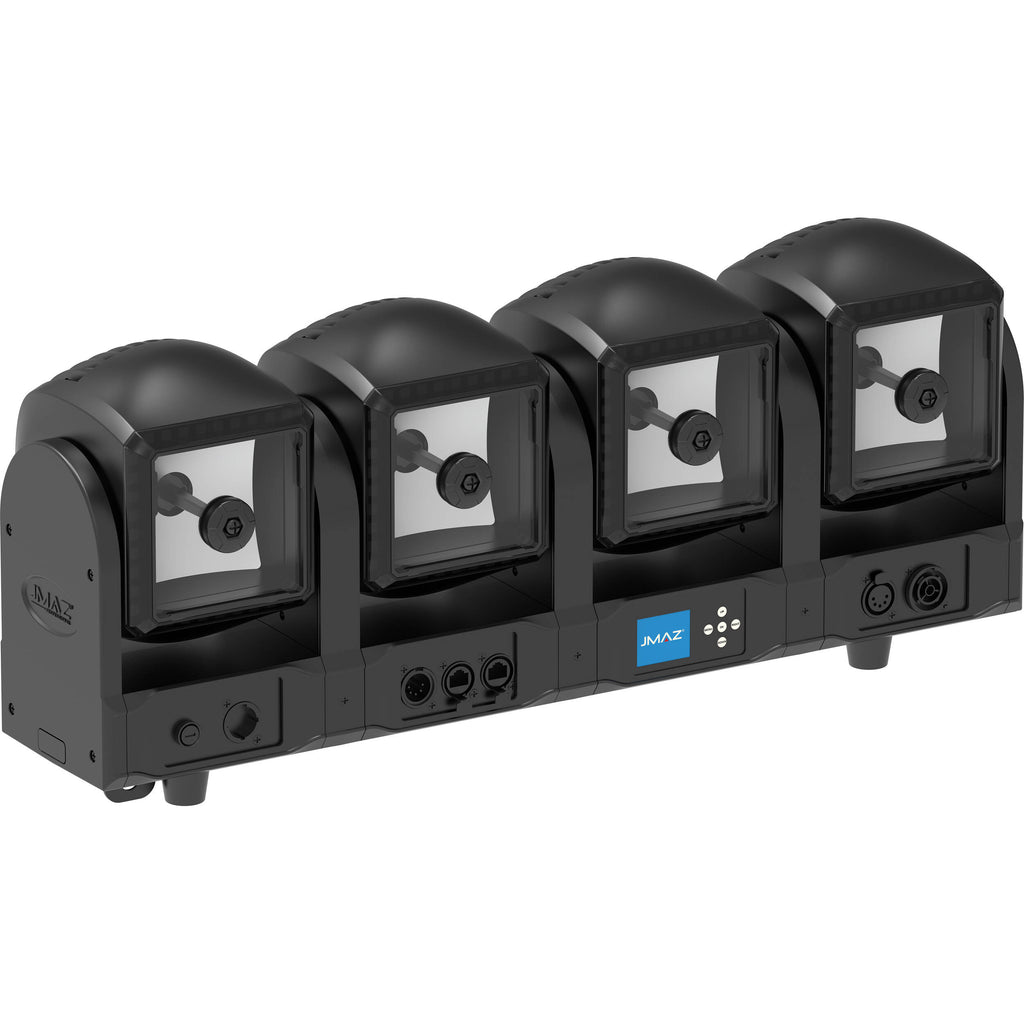

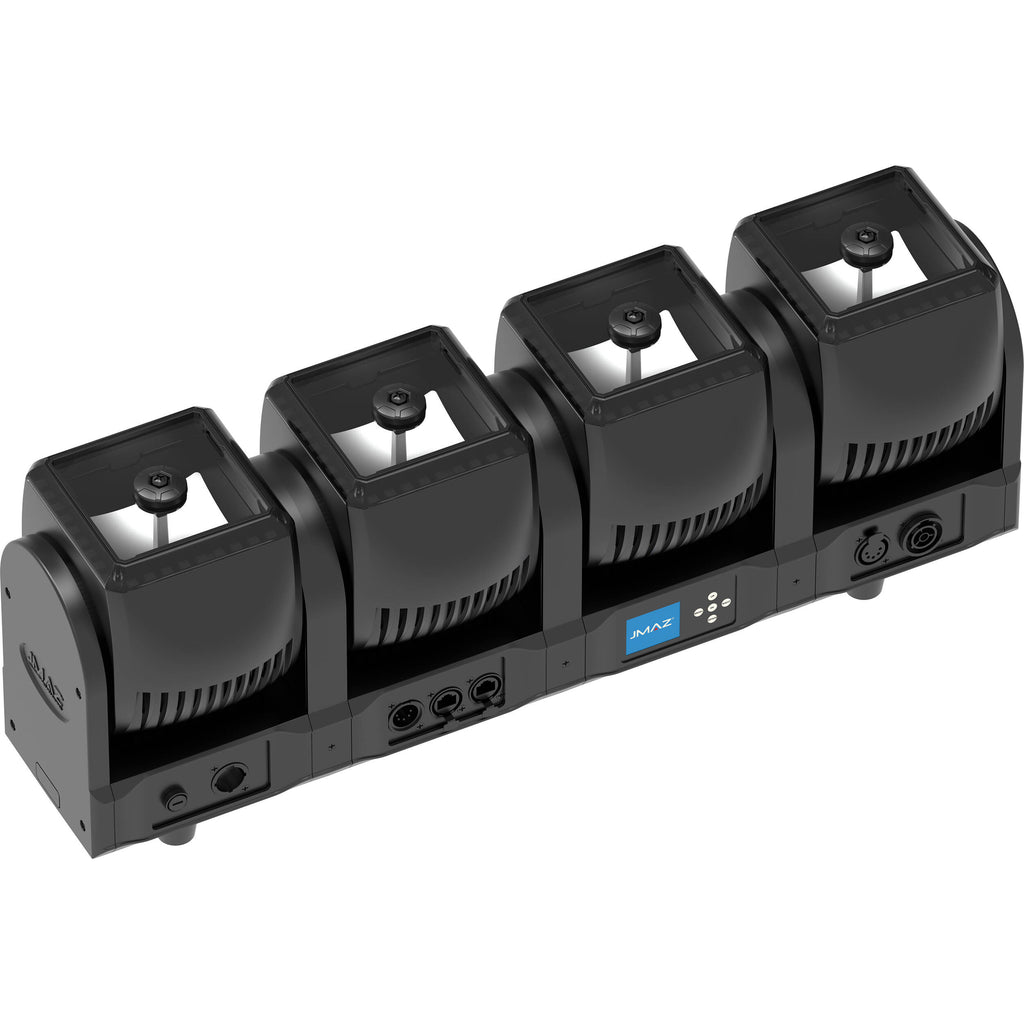

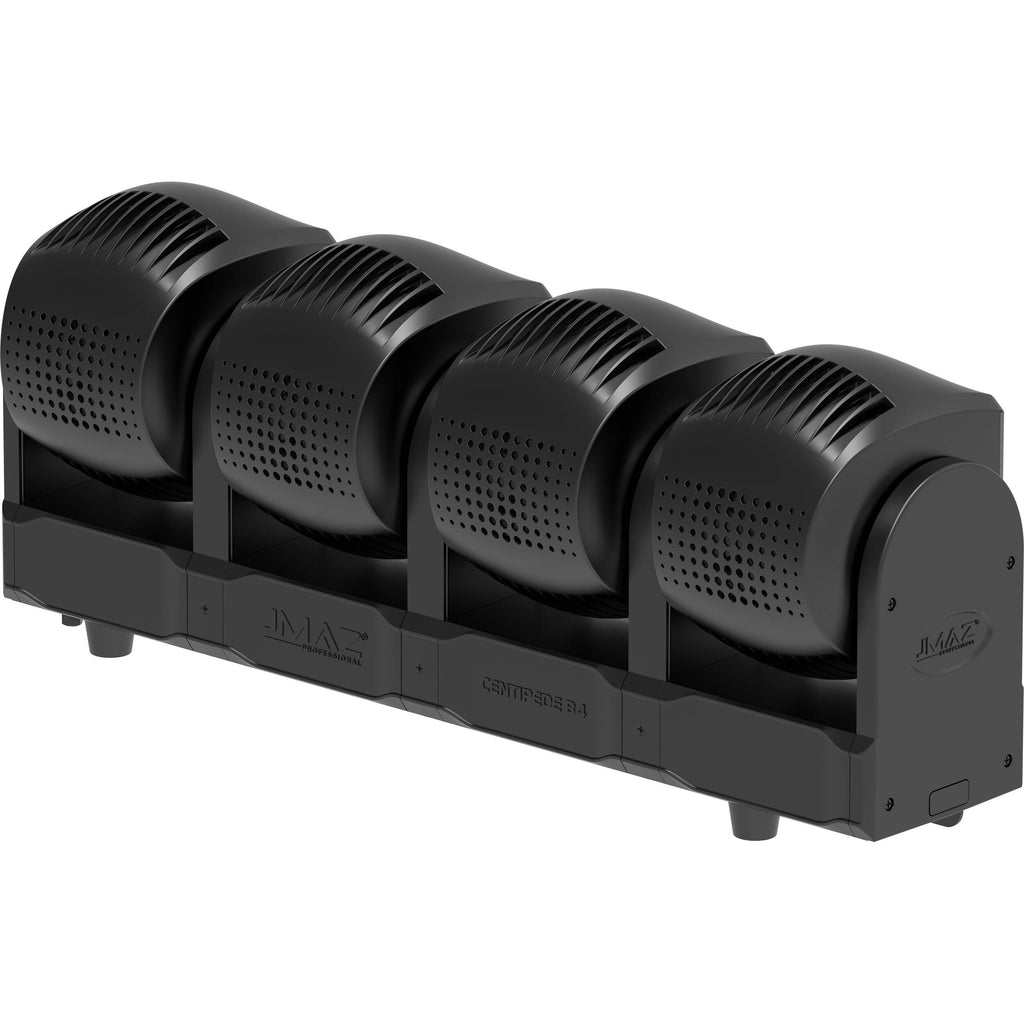

JMAZ Centipede B4 Overview
Lighting professionals in need of 16-bit RGBW color mixing and individual 360? tilt control will appreciate the 4-head Centipede B4 RGBW LED Bar from JMAZ. Designed with four 60W RGBW LEDs and offering individual pixel mapping and ring control, the Centipede B4 also provides 120 RGB SMD LEDs (30 per head) for ring effects up to 24W. The fixture has a wide 2500-8000K color temperature and packs a ton of effects, including sharp beam effect and dynamic color macros, creating vibrant and versatile lighting results. For maximum control of every facet of the fixture, use the different DMX channel modes with DMX512, or the advanced Art-Net or Kling-Net protocols. JMAZ includes a TRUE1 power cord along with a 5-pin DMX cable.

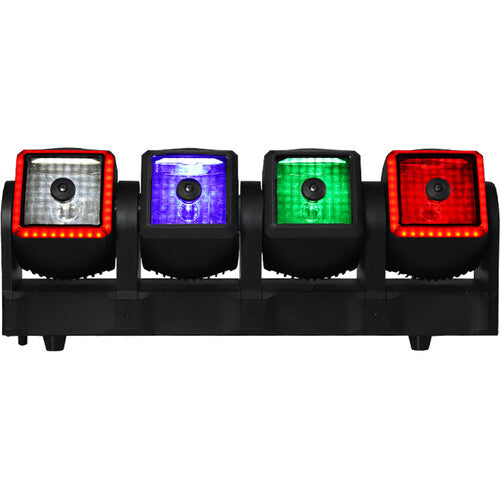

Color System
Highlights are built-in virtual colors, pixel mapping with individual pixel control on each LED, as well as movement macros with foreground/background color control, and dynamic RBG color macros for eye-candy outer ring. The Centipede B4 offers two modes for 360? continuous movement or 8- bit and 16-bit 240? adjustment.
Fast Programming
Select preset home position macros and precise speeds via DMX or scan the position memory with automatic tilt position correction. Other control methods besides DMX are Art-Net, RDM, and sACN.
Dynamic Effect
Other features include 0-100% smooth linear electronic dimming, shutter/strobe with high speed settings, 0-25 Hz shutter/strobe effect, preset pulse strobe or random strobe effects with variable speeds.
Construction
Aluminum and steel housing with high-impact flame-retardant PA6 GF30 with 30% glass fiber.
Additional Details
- Outputs 9640 lux at 3.3' per head
- 3.5? beam angle
- Various personalities
- TRUE1 in/out power connection
- 50,000-hour LED life expectancy
- Fan cooling
- IP20 rated
- CE, cETL, FCC, and RoHS certified
- Includes two mounting brackets and safety cables
UPC: 618528598673
Items Included
- JMAZ Centipede B4 RGBW LED Bar (4-Head)
- powerCON IP65 TRUE1 Power Cable
- 5-Pin DMX Cable
- 2 x Omega Bracket
- 2 x Safety Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
JMAZ Centipede B4 Specs
Key Specs
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
4x Color LED - 60 W
120x Color LED (SMD) - 0.2 W |
| Colors |
Blue, Green, Red, White
|
| Beam Angle |
3.5?
|
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
320 W
|
| Mounting |
Floor Base, Omega Bracket
|
Light
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
4x Color LED - 60 W
120x Color LED (SMD) - 0.2 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
3.5?:
895 fc / 9640 Lux at 3.3' / 1 m (Full On) 118 fc / 1278 Lux at 9.8' / 3 m (Full On) 45 fc / 487 Lux at 16.4' / 5 m (Full On) |
| Color Temperature |
2500 to 8000K
|
| Beam Angle |
3.5?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100%
|
Performance
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 25 Hz
|
| Gobos |
No
|
Movement
| Tilt Ranges |
360? / 240?
|
| Pan/Tilt Inversion |
Yes
|
Control
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Fuse |
F 12 A 250 V
|
| Power / Current Consumption |
320 W
|
| Power Linking |
6 Units at 110 VAC
12 Units at 208 VAC 12 Units at 230 VAC Total Current: 20 A |
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
14 to 140?F / -10 to 60?C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x DMX Cable
1x Power Cable 2x Safety Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, FCC, RoHS, cETL
|
| Dimensions |
23 x 9.3 x 5" / 58.4 x 23.6 x 12.7 cm
|
| Weight |
42.1 lb / 19.1 kg
|
