Description

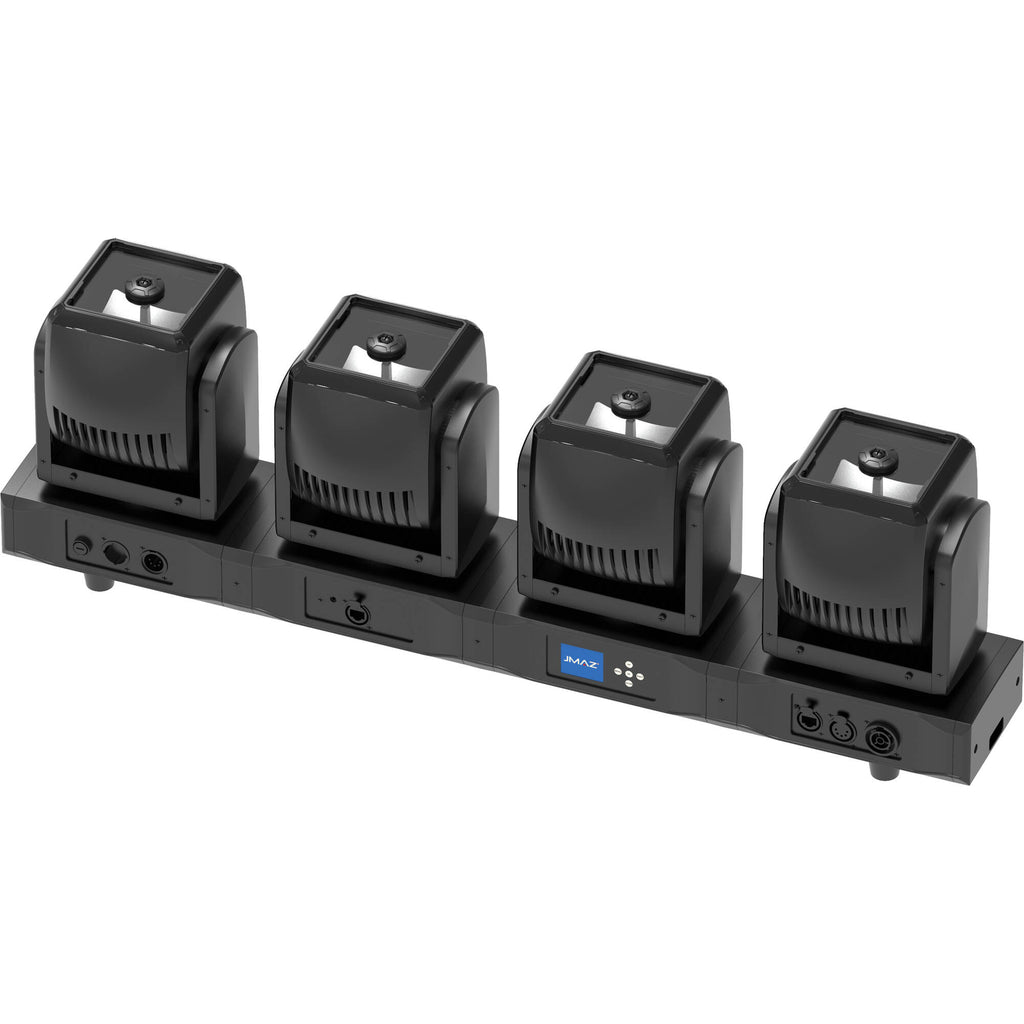

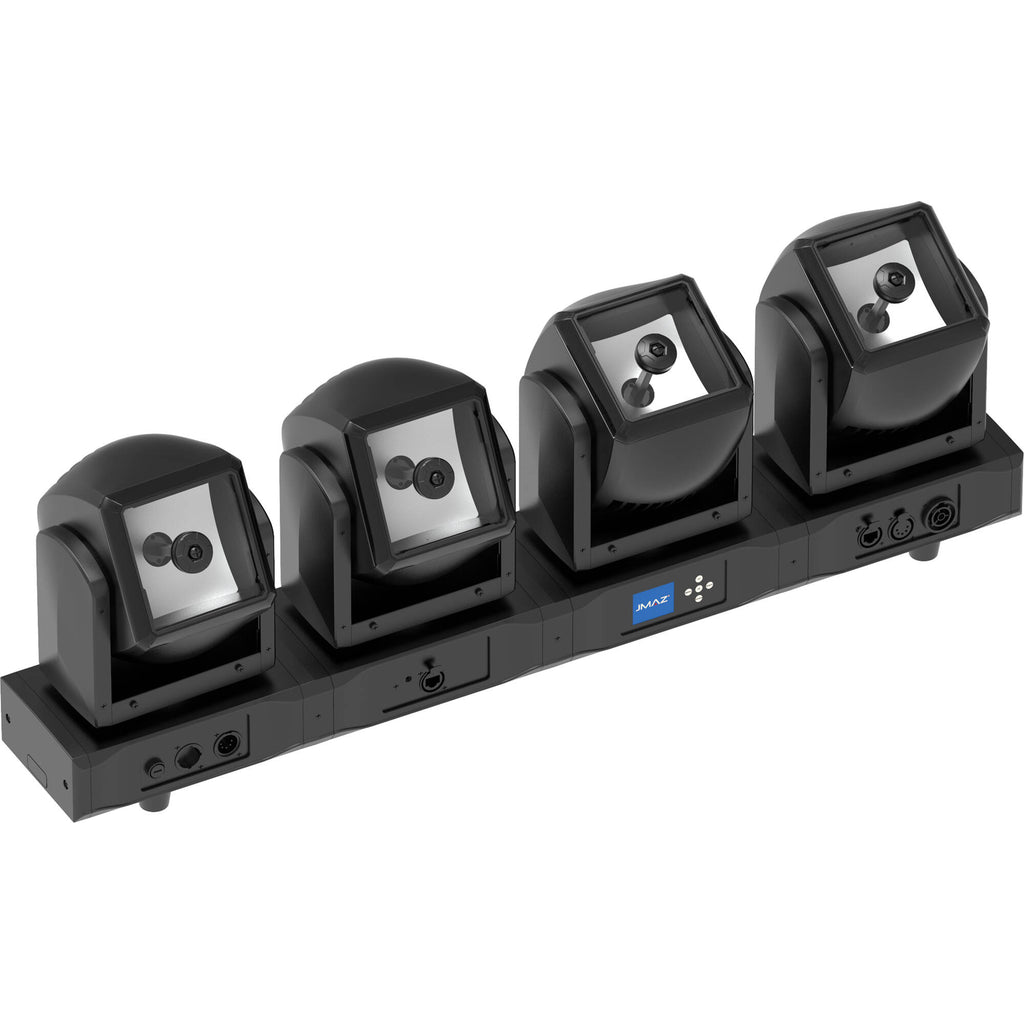

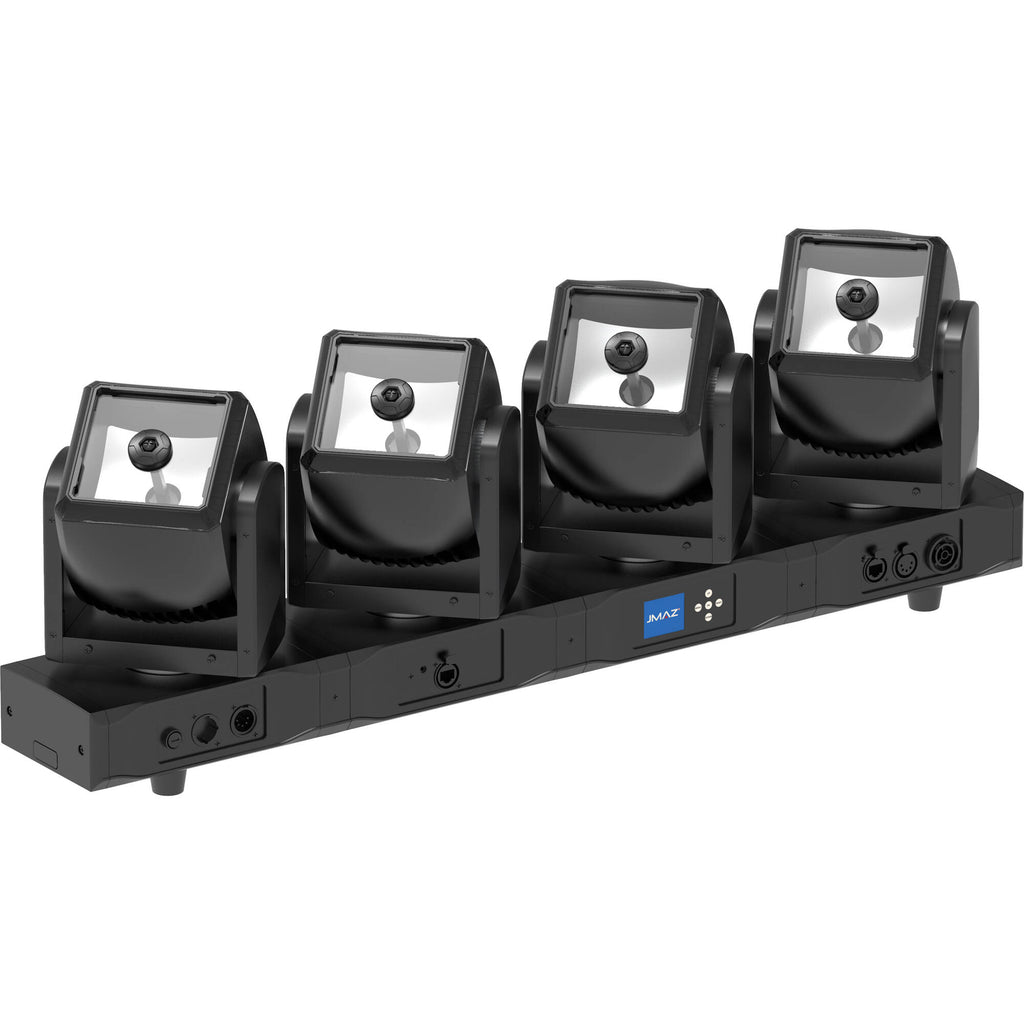

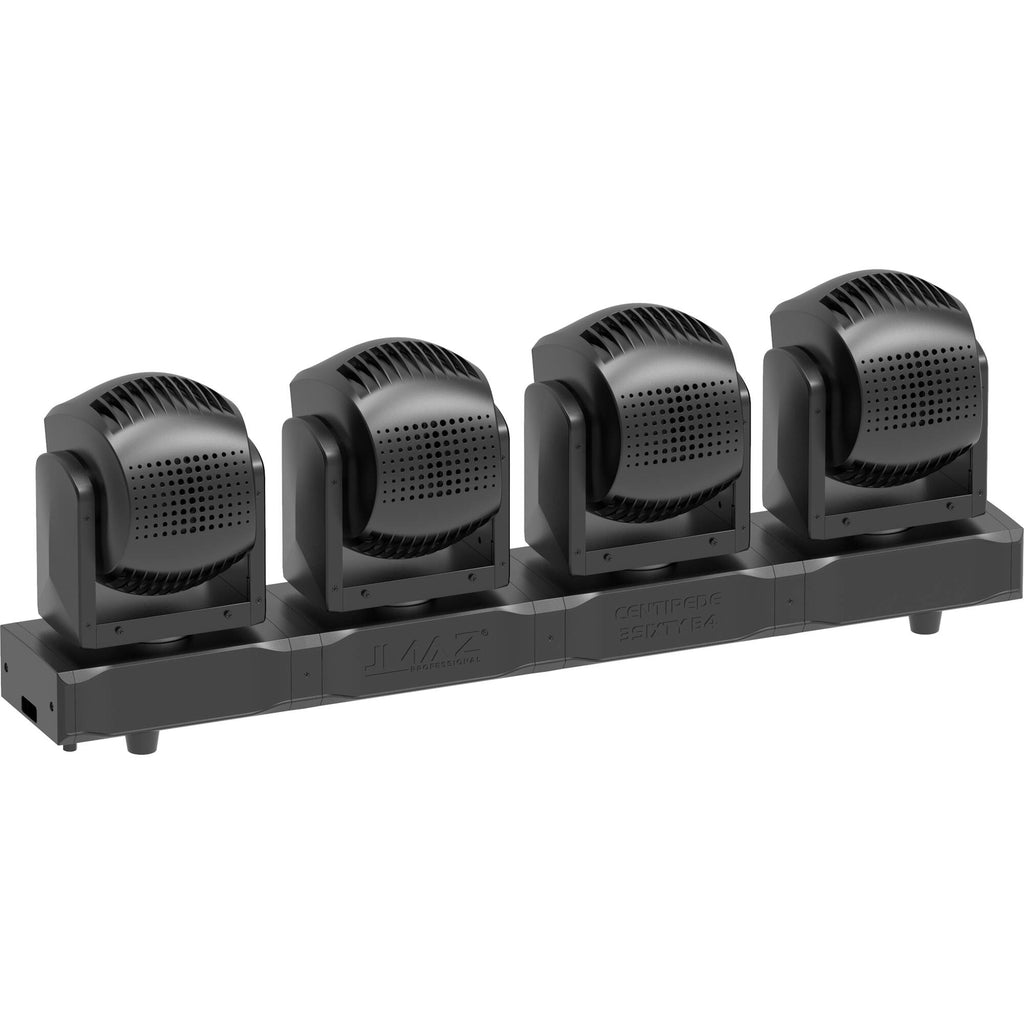

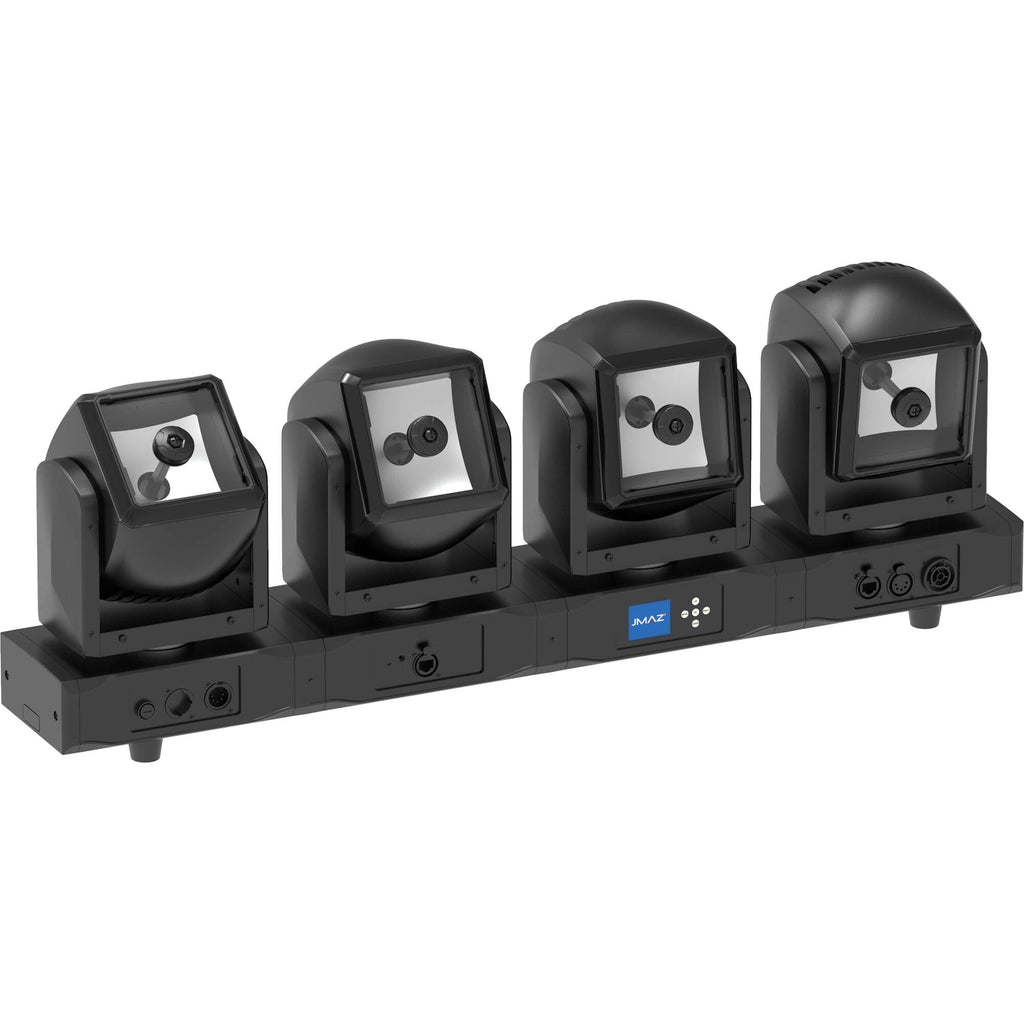

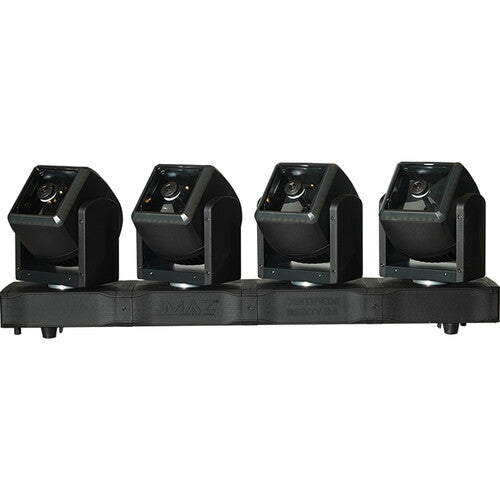

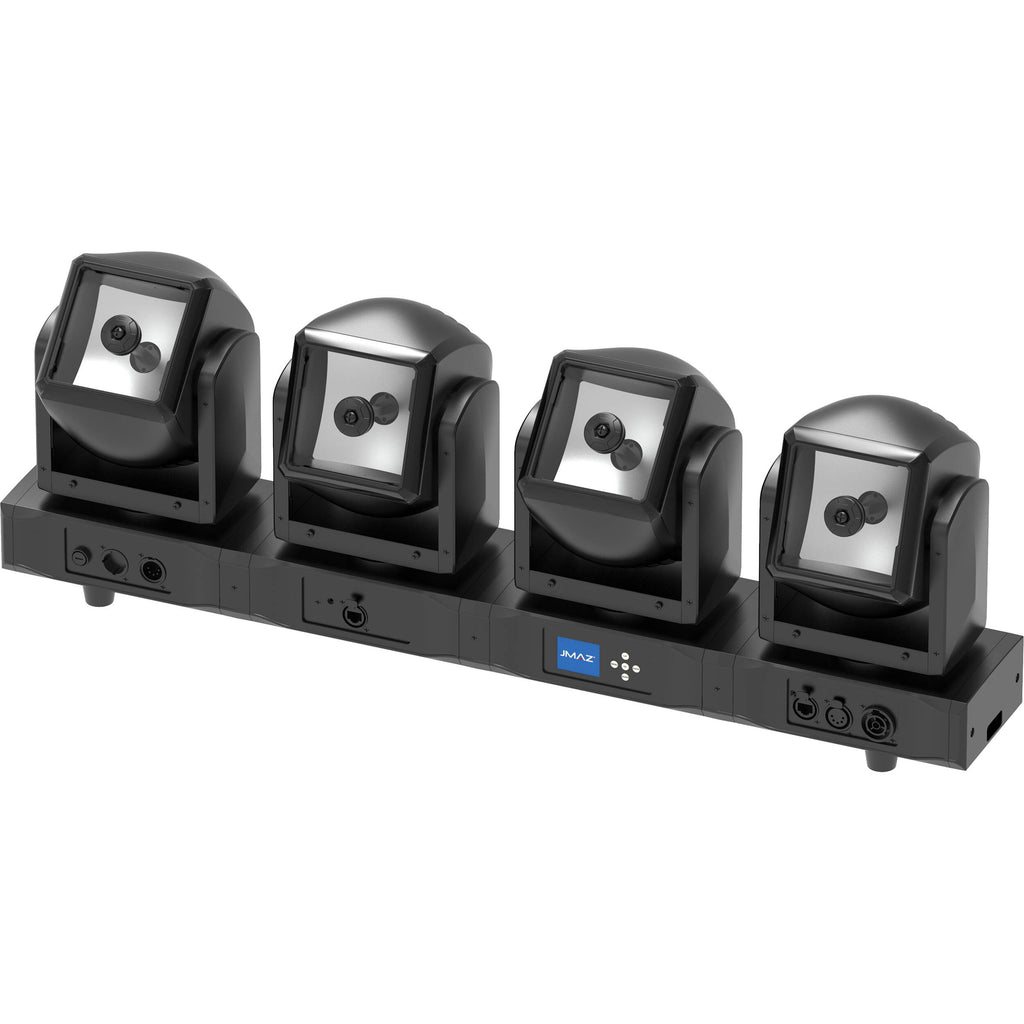

JMAZ Centipede 3SIXTY B4 Overview
Lighting designers in need of a compact RGBW moving 4-head LED solution with individual head pixel control will be impressed by the Centipede 3SIXTY B4 RGBW LED Moving Head Bar from JMAZ. The 3SIXTY B4 is a 4-head LED lighting fixture that provides multiple lighting effects, well suited for DJs, clubs, concerts, and other types of installations. Equipped with four 60W RGBW LEDs and complemented by 120 RGB SMD LEDs, the 3SIXTY B4 provides complete creative control with 360? infinite pan/tilt. JMAZ includes a TRUE1 power cord along with a 5-pin DMX cable.
Color System
Highlights are built-in virtual colors, individual pixel control, as well as movement macros and dynamic ring color/effects. The 3SIXTY B4 enables foreground/background color control and excels in both beam intensity and color precision. Experience a 2500-8000K tunable color temperature with 16-bit RGBW color mixing.
Control Methods
Control options include DMX512 or the advanced Art-Net, RDM, sACN, and Kling-Net protocols for seamless integration into your lighting systems.
Additional Details
- Outputs 18,160 lux at 9.8'
- 3.5? beam angle
- Various personalities
- TRUE1 in/out power connection
- CE, cETL, FCC, and RoHS certified
- Includes two mounting brackets and safety cables
UPC: 618528599069
Items Included
- JMAZ Centipede 3SIXTY B4 RGBW LED Moving Head Bar (4-Head)
- TRUE1 Power Cable
- 5-Pin DMX Cable
- 2 x Omega Bracket
- 2 x Safety Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
JMAZ Centipede 3SIXTY B4 Specs
Key Specs
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
4x Color LED - 60 W
120x Color LED (SMD) - 0.2 W |
| Colors |
Blue, Green, Red, White
|
| Beam Angle |
3.5?
|
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
260 W
|
| Mounting |
Floor Base, Omega Bracket
|
Light
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
4x Color LED - 60 W
120x Color LED (SMD) - 0.2 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
3.5?:
1687 fc / 18,160 Lux at 9.8' / 3 m (Full On) 622 fc / 6700 Lux at 16.4' / 5 m (Full On) 319 fc / 3440 Lux at 32.8' / 10 m (Full On) |
| Color Temperature |
2500 to 8000K
|
| Beam Angle |
3.5?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100%
|
Performance
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 25 Hz
|
| Gobos |
No
|
Movement
| Tilt Ranges |
360? / 270?
|
| Pan Ranges |
540? / 360?
|
| Movement Resolution |
8 / 16-Bit
|
Control
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| DMX Channel Modes |
4 Mode(s):
53 / 69 / 76 / 84-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Fuse |
F 12 A 250 V
|
| Power / Current Consumption |
260 W
|
| Power Linking |
6 Units at 110 VAC
12 Units at 208 VAC 14 Units at 230 VAC Total Current: 20 A |
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
14 to 140?F / -10 to 60?C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x DMX Cable
1x Power Cable 2x Safety Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, FCC, RoHS, cETL
|
| Dimensions |
31.5 x 10.5 x 6.6" / 80 x 26.7 x 16.8 cm
|
| Weight |
34 lb / 15.4 kg
|
