Description
- Real-World Interface for eBOX
- Relay Outputs/Opto-Isolated Inputs

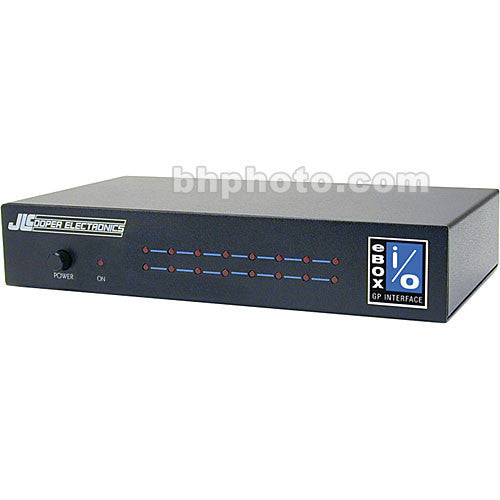

The eBOX io from JL Cooper is a companion product to the eBOX general purpose interface box that converts the GPI (General Purpose Interface) inputs and outputs on the eBOX to completely isolated inputs and outputs. There are 8 optically isolated inputs and 8 relay isolated inputs on the unit.

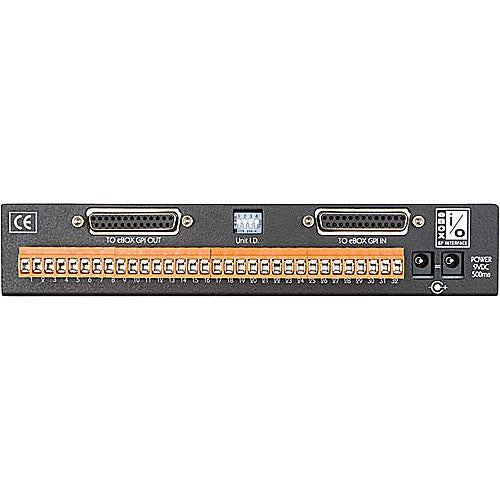

All connections are made on the rear panel via high density screw terminals. Up to 3 eBOX io's can be cascaded to convert all 24 eBOX GPI inputs and outputs. Front panel LEDs indicate signal status for easy troubleshooting. The eBOX io is a half rack unit that can fit alongside an eBOX in a single rack space.
In the Box
JLCooper eBOX io - GPI Interface
- External Power Supply
- 2 x 25-pin Jumper Cables
- 4 x 8-pin Terminal Blocks
- 4 x Rubber Feet
- One (1) Year Warranty
| Connectors | 2 x 25-pin D-Sub 32 x High-Density Screw Terminals |
| Power Requirements | 9VDC at 500mA (0.5A) center positive (via included external power supply) |
| Dimensions (WxDxH) | 8.5 x 4.7 x 1.75" (216 x 119 x 45mm) |
| Weight | 4 lbs (1.8kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.15 lb |
| Box Dimensions (LxWxH) | 12.2 x 7.6 x 2.2" |
