Description
JackReel MKR-1-1694A Overview

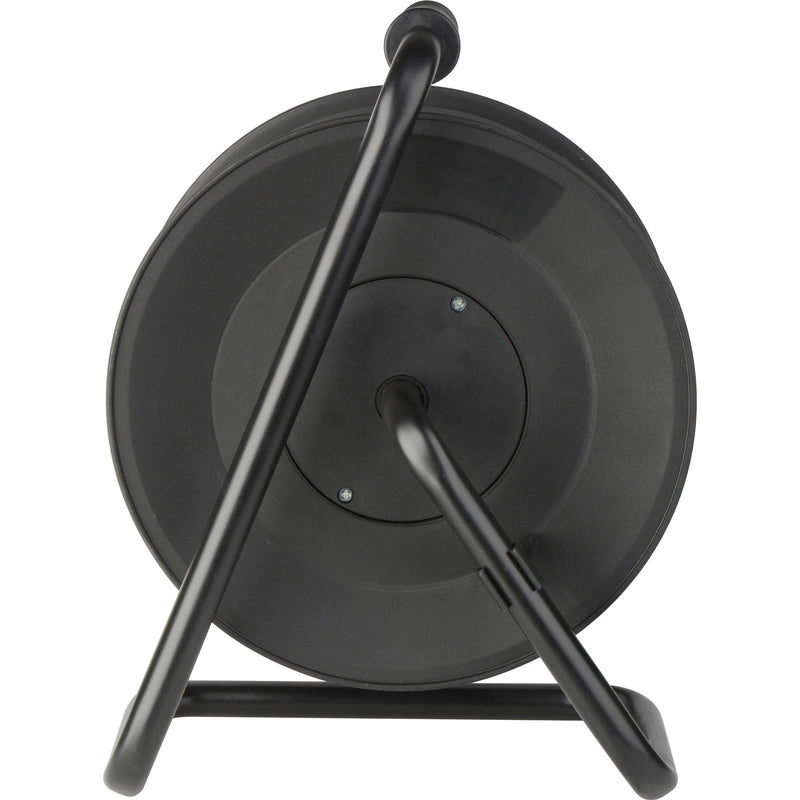

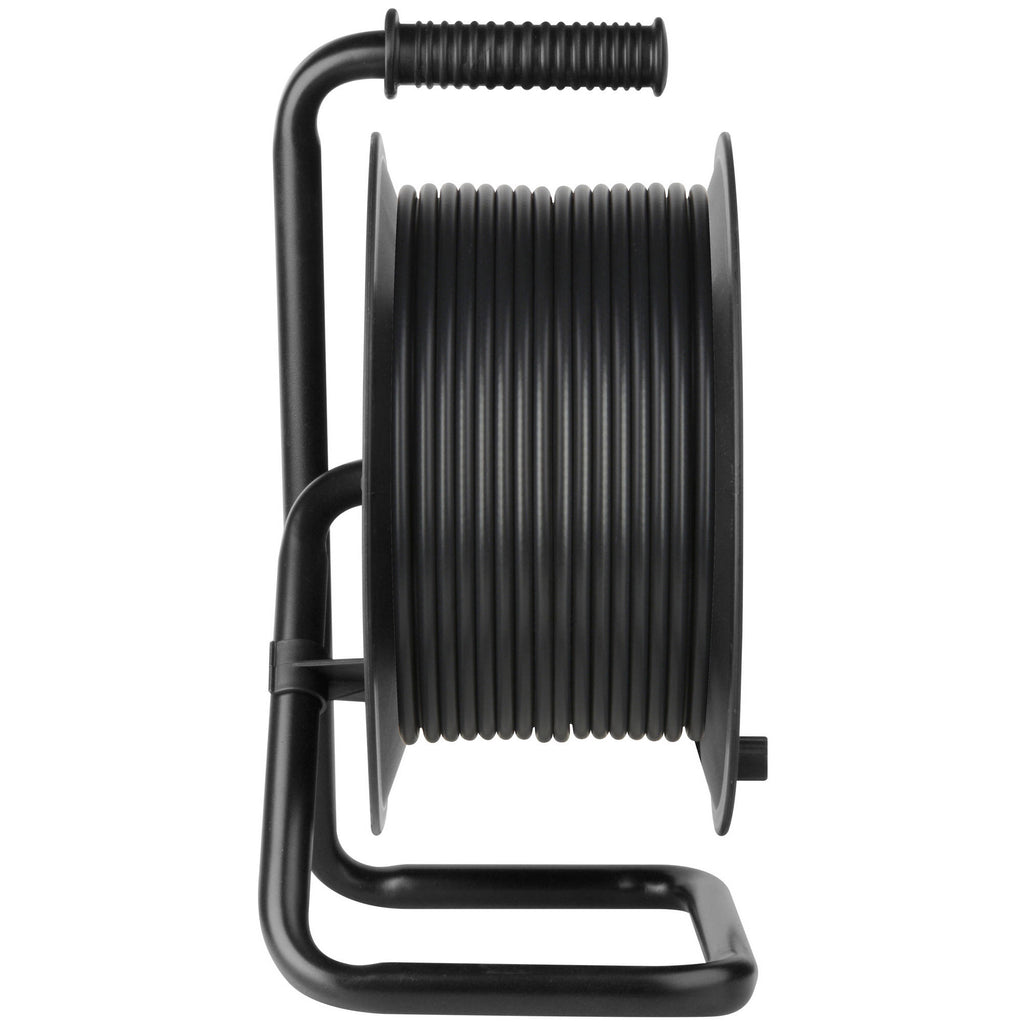

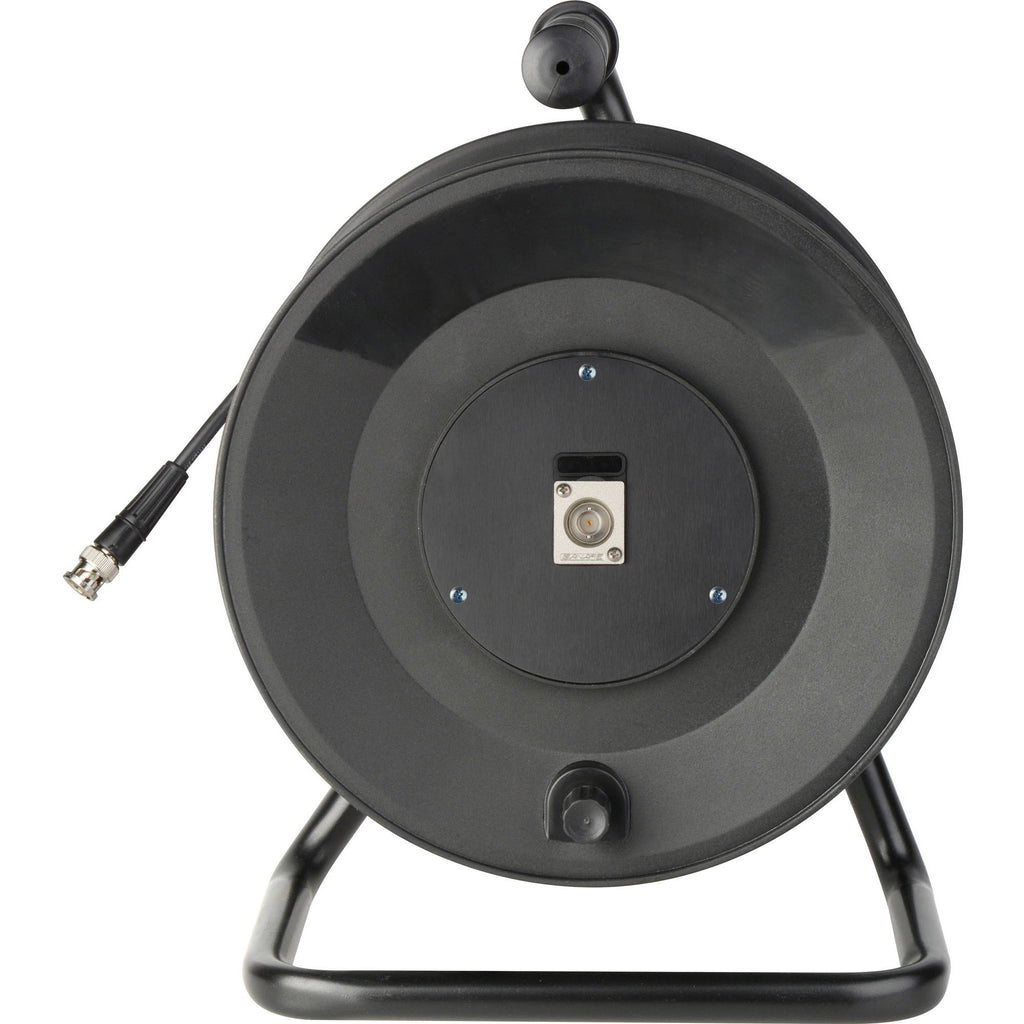

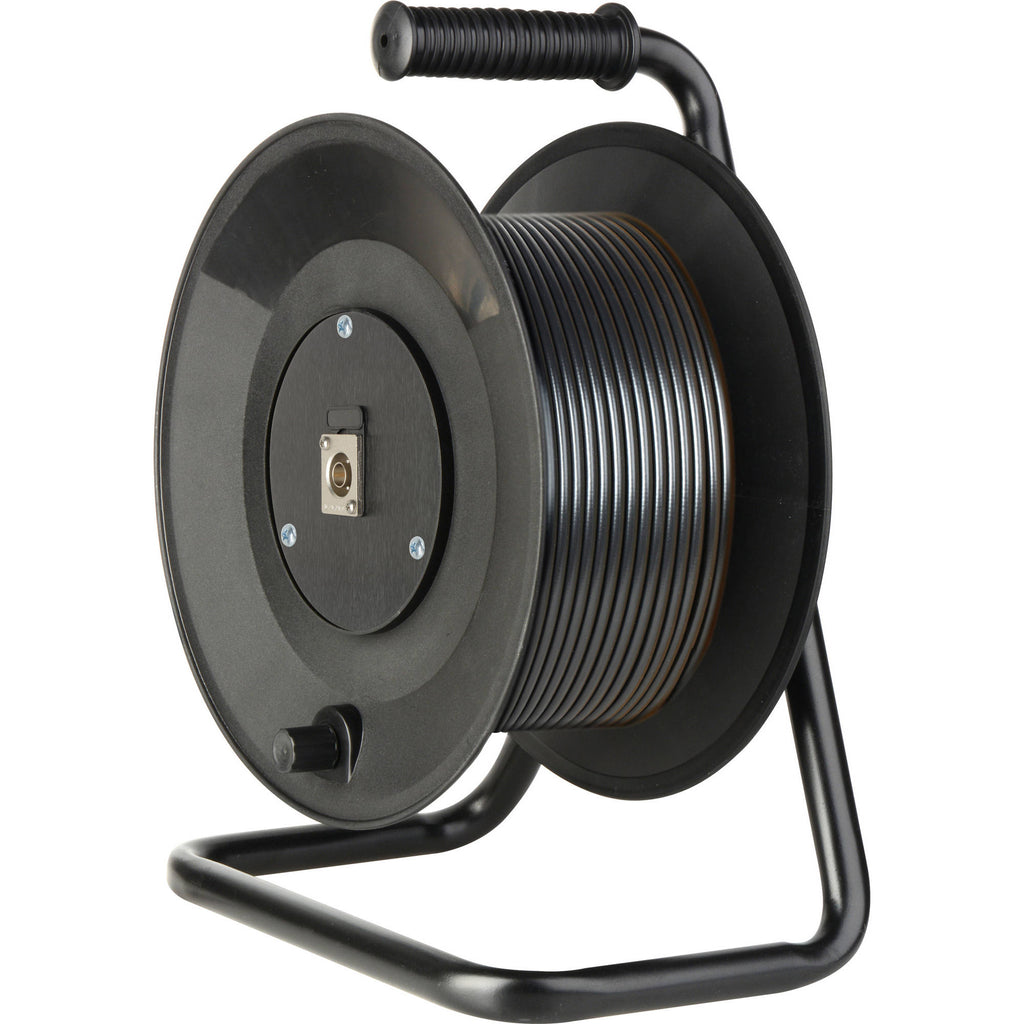

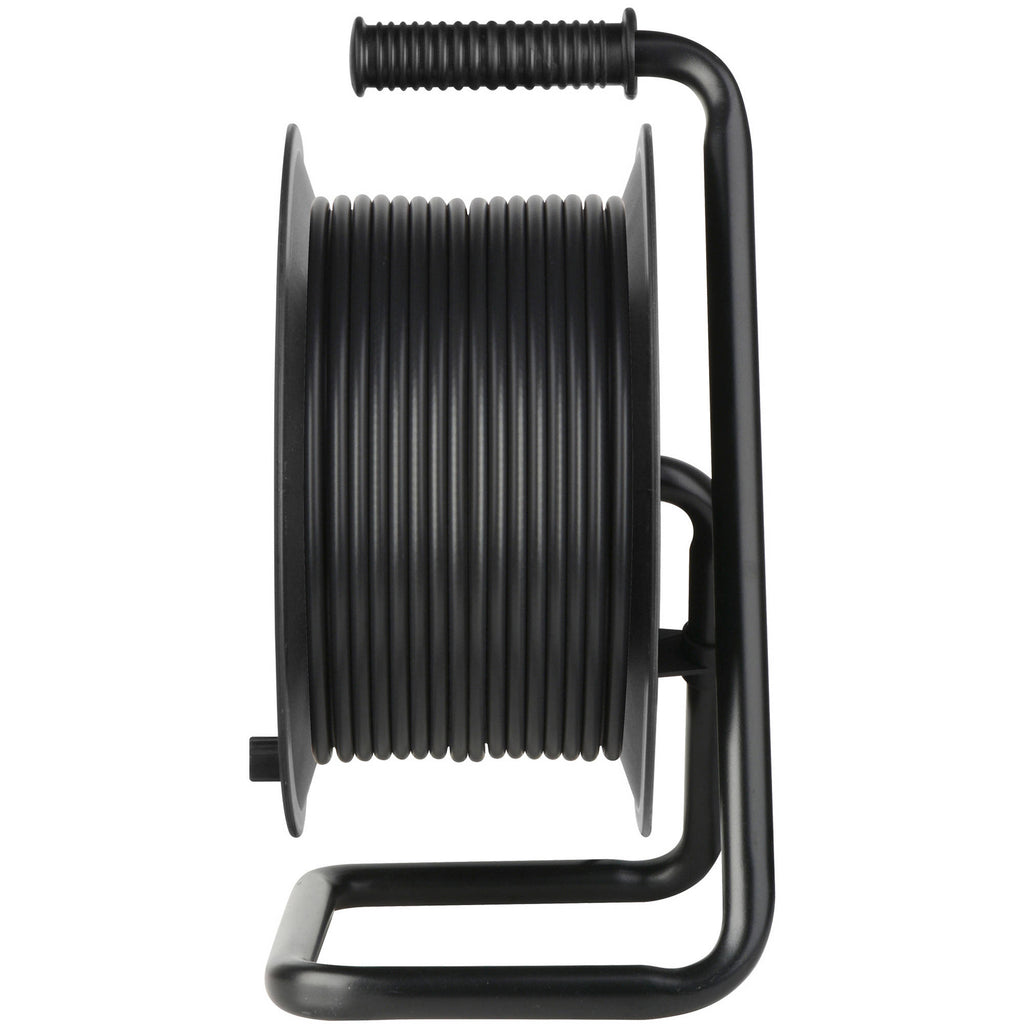

The TecNec Jackreel Deluxe BNC Reel has 250' of Belden 1694A Cable reeled in, ready for deployment. With its handy rewind knob, the cable can be quickly re-spooled. The reel itself is constructed from injection-molded structural plastic to be lightweight and rugged for use in production. This cable reel is great for studios, houses of worship, rental houses, or any other institution that requires long cable runs.
In the Box
- JackReel Jackreel Deluxe BNC Reel (Belden 1694A, 250')
- Limited Lifetime Warranty on Cable
- Limited 1-Year Warranty on Reel
JackReel MKR-1-1694A Specs
General
| Connector 1 | 1 x BNC |
| Connector 2 | 1 x BNC |
| Cable Length | 250' / 76.2 m |
| Signal Type | 3G-SDI |
| Coaxial Type | RG-6 |
| Conductor Material | Bare Copper |
| Insulation Type | Polyethylene |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Outer Diameter | 0.28" / 7.1 mm |
| Shielding | 95% Tinned Copper Braid 100% Aluminum Foil |
| Wire Gauge | 18 AWG |
| Weight | 26.1 lb / 11.84 kg |
Electrical
| Maximum Signal Loss | 0.24 dB at 1 MHz over 100' / 30.48 m |
| Capacitance | 16.2 pF/ft |
Environmental
| Certifications | RoHS *as per Manufacturer |
| Operating Temperature | -22 to 167°F / -30 to 75°C |
Packaging Info
| Package Weight | 13.7 lb |
| Box Dimensions (LxWxH) | 15 x 11.6 x 8.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
