j5create JCA366 Overview
-
1Description
-
2Four FHD Monitor Support
-
3Multi-Viewing
-
4Multiple Display Modes
-
5Compatibility

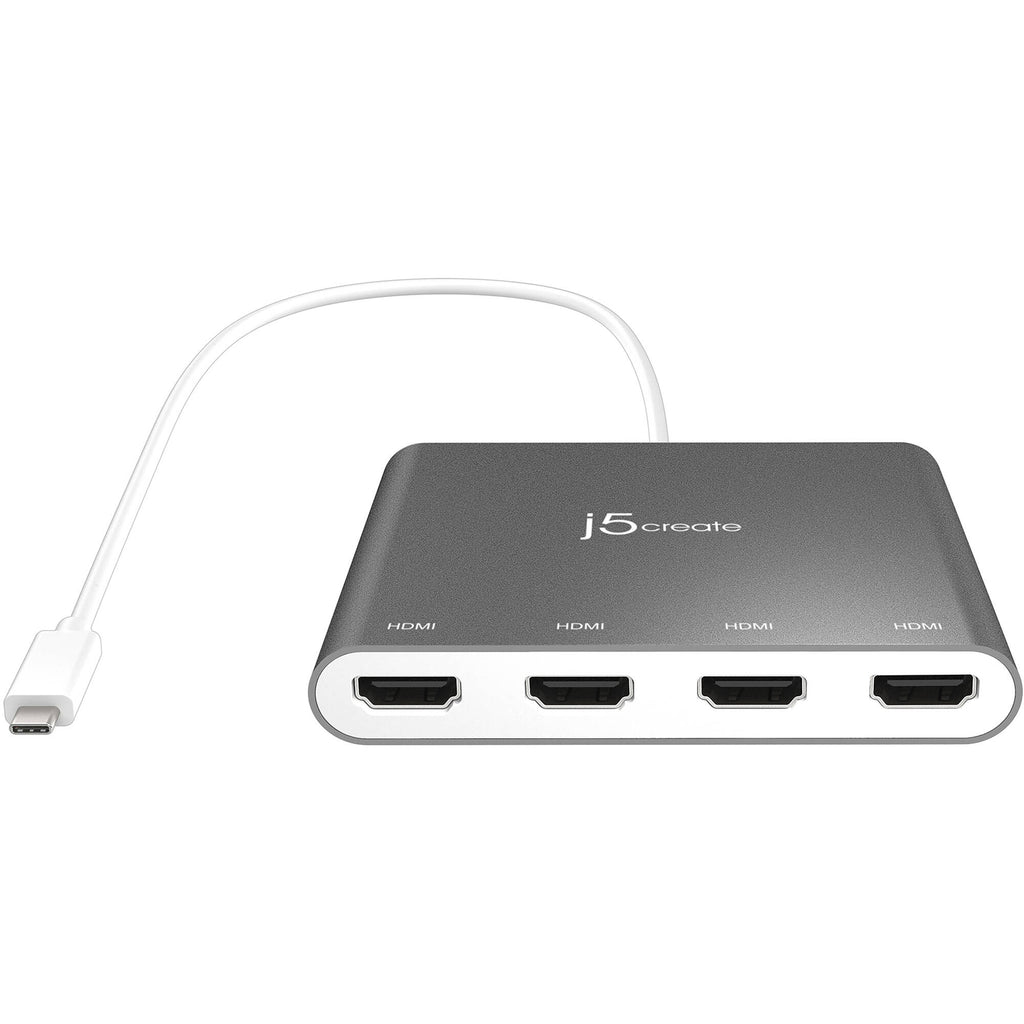

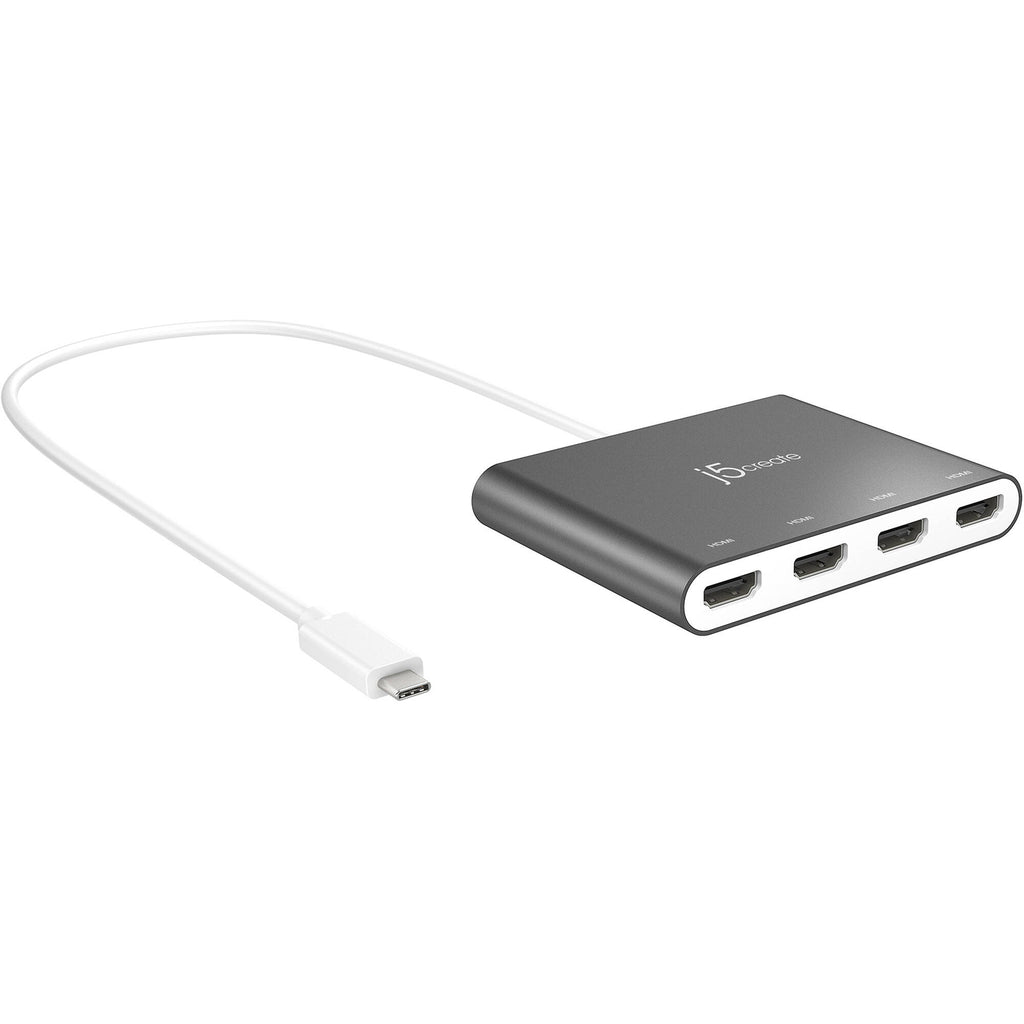

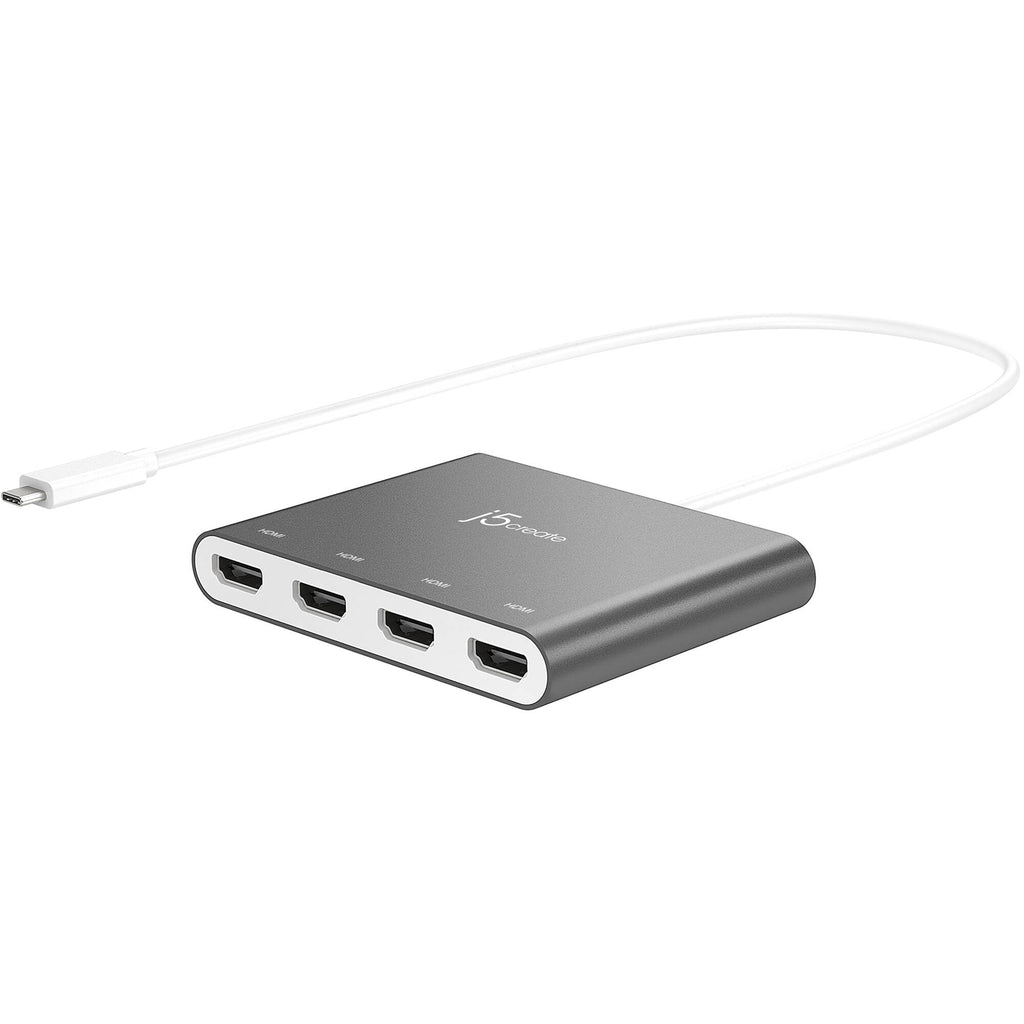

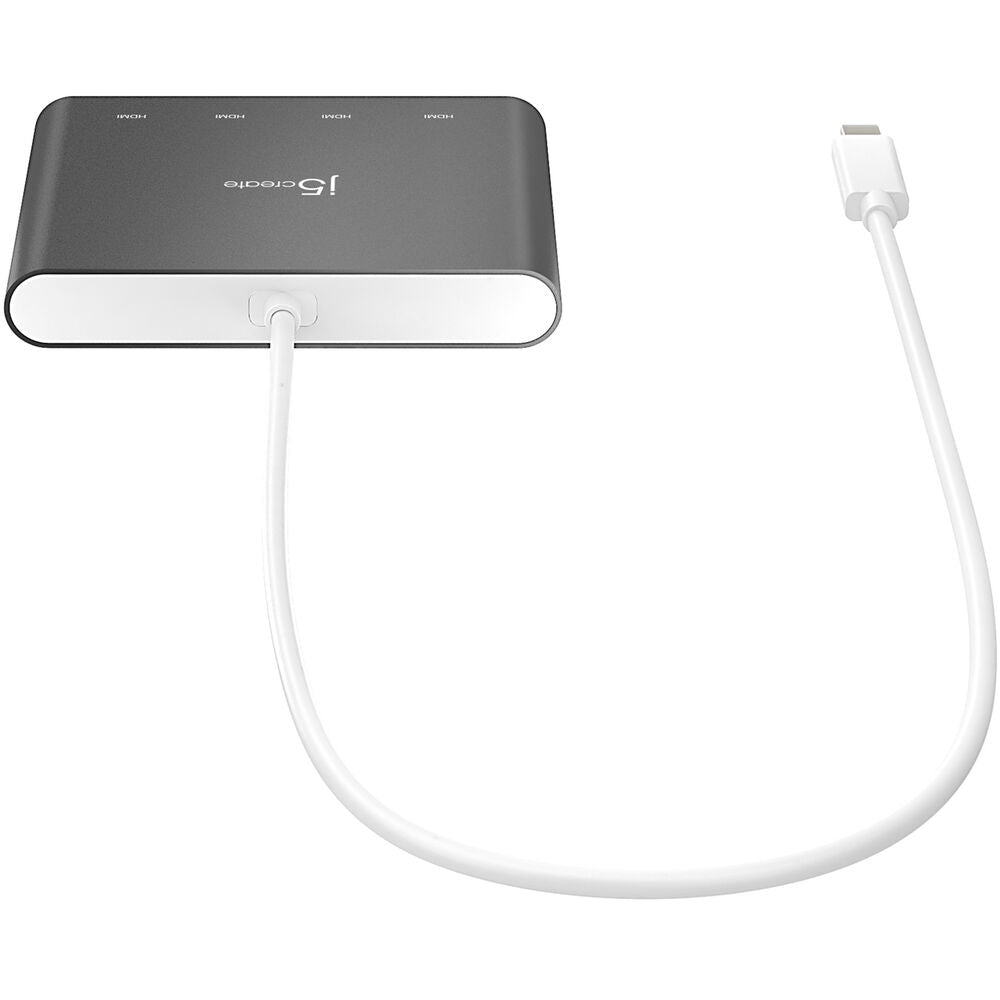

Enhance your productivity and multitasking efficiency by connecting up to four external monitors to your USB 3.1 Gen 1 Type-C compatible system using the JCA366 USB Type-C to 4-Port HDMI Multi-Monitor Adapter from j5create. This adapter includes four female HDMI ports, each of which can support a 1920 x 1080 FHD monitor at 60 Hz with 48 kHz audio, which can be rotated according to your preference. Downloading and installing the j5create Multi-Monitor Assistant software allows you to configure your monitors in your preferred setup. The software also allows you to drag-and-drop specific windows from your main screen to each of the connected monitors. Additionally, you can dedicate the monitors to single full screen views or divide each screen into eight tasks for a total of up to 32 segmented windows. With the adapter's bus-powered design, you can quickly connect it to your compatible USB Type-C DisplayPort port without needing to plug in an external power adapter.
Four FHD Monitor Support

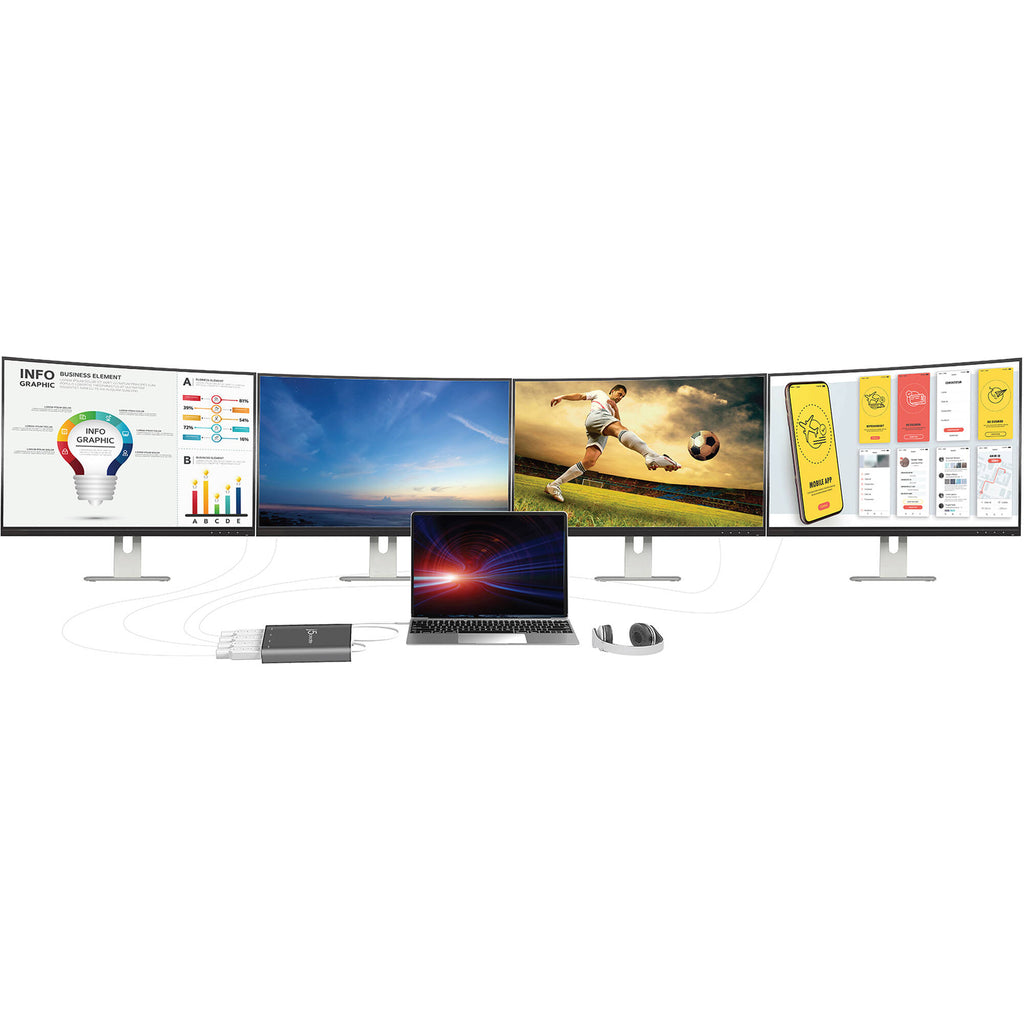

The JCA366 allows you to connect up to four 1920 x 1080 resolution HDMI monitors to your compatible computer's USB 3.1 Gen 1 Type-C port. No additional power adapter is required.
Multi-Viewing
Using the Multi-Monitor Assistant software allows you to dedicate each of the connected screens to show a single window by dragging and dropping them from the main screen or pressing the corresponding hotkeys. Each screen can also be divided into halves, quarters, or eighths for a total of 32 segmented windows.
Multiple Display Modes
Extend or mirror your main screen to the external screens. Primary mode allows you to have individual applications open on each monitor and Display Rotation mode lets you view documents and web pages in portrait mode to boost productivity.
Compatibility
Microsoft Windows 10 (32-bit or 64-bit)
macOS X 10.8 or later
A computer with a 2.8 GHz Intel Core i3 dual-core CPU and 2GB of memory or higher is required.
![]()
UPC: 847626003646
In the Box
- j5create JCA366 USB Type-C to 4-Port HDMI Multi-Monitor Adapter
- Limited 2-Year Warranty
- Additional Limited 6-Month Warranty with Registration
Table of Contents
- Description
- Four FHD Monitor Support
- Multi-Viewing
- Multiple Display Modes
- Compatibility
j5create JCA366 Specs
Connections
| Display |
4 x HDMI (Female) |
Host Connections
| System Connection |
1 x USB 3.1 / USB 3.2 Gen 1 Type-C Male |
| Connection Type |
Integrated Cable |
Video/Audio
| Maximum Supported Resolution |
1920 x 1080 |
| Audio Support |
Yes |
Environmental
| Operating Humidity |
85% |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Humidity |
85% |
| Storage Temperature |
14 to 149°F / -10 to 65°C |
General
| Cable Length |
19.7" / 500 mm |
| LED Indicator |
None |
| Enclosure Material |
Aluminum |
| Dimensions |
4 x 3.1 x 0.6" / 101.5 x 79.5 x 16 mm |
| Weight |
5.6 oz / 158 g |
Packaging Info
| Package Weight |
0.505 lb |
| Box Dimensions (LxWxH) |
8.2 x 4.95 x 1.25" |
