Description
j5create JVA11 Overview
- 1Description
- 2Key Features
- 3System Requirements
- 4Recommended Software

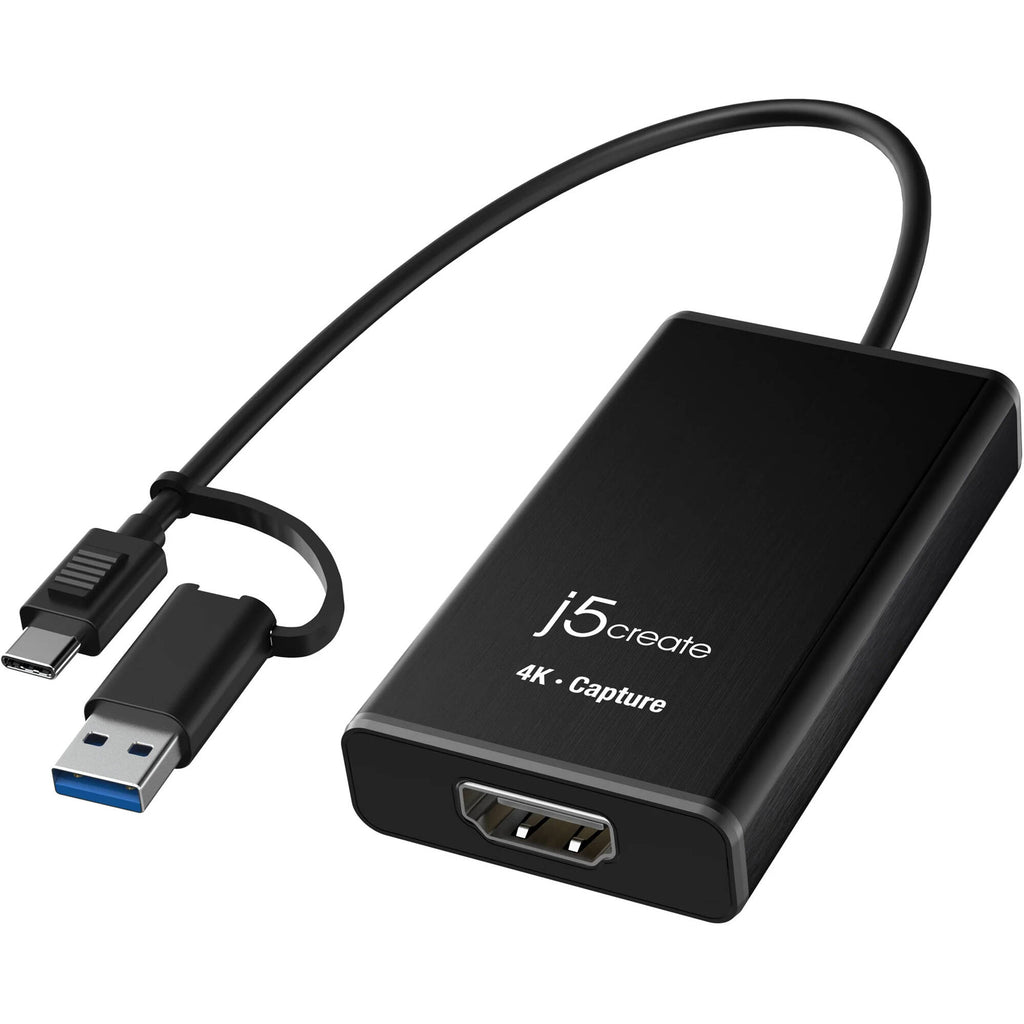

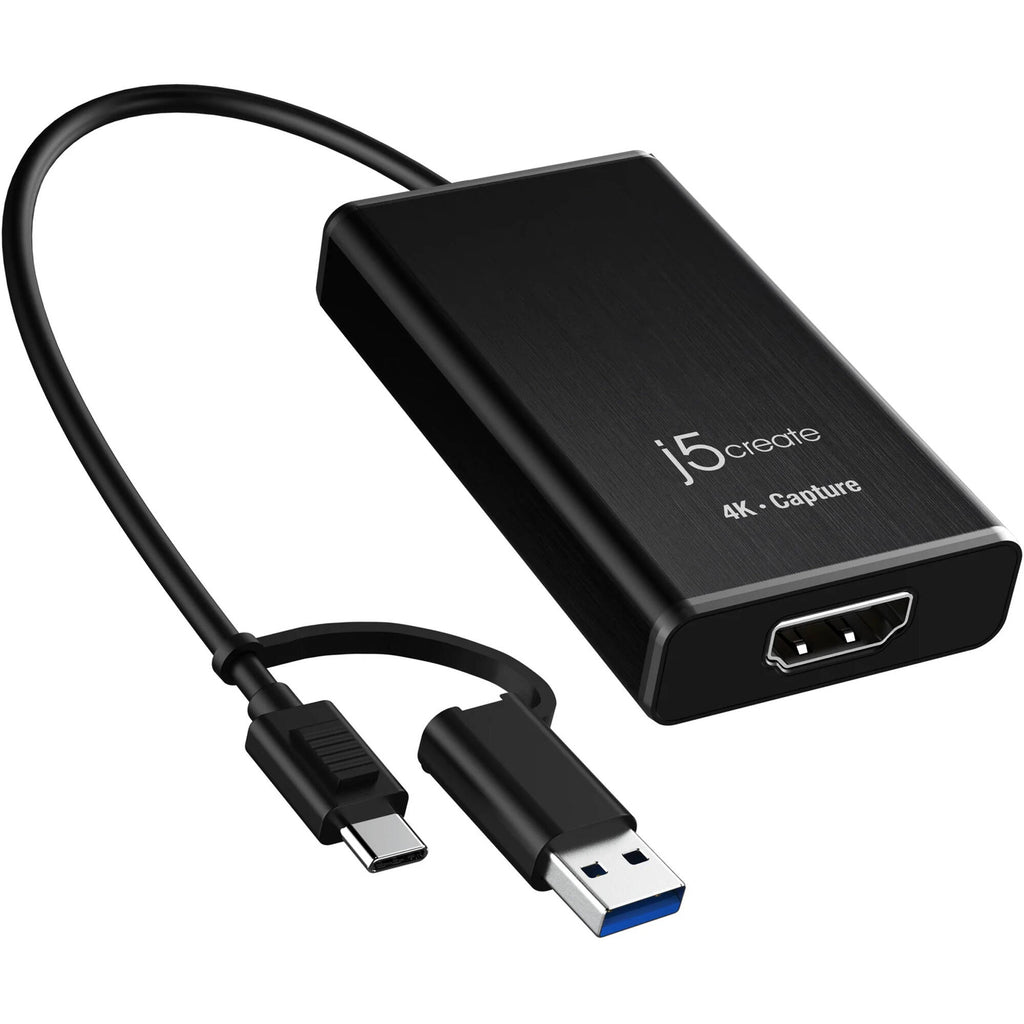

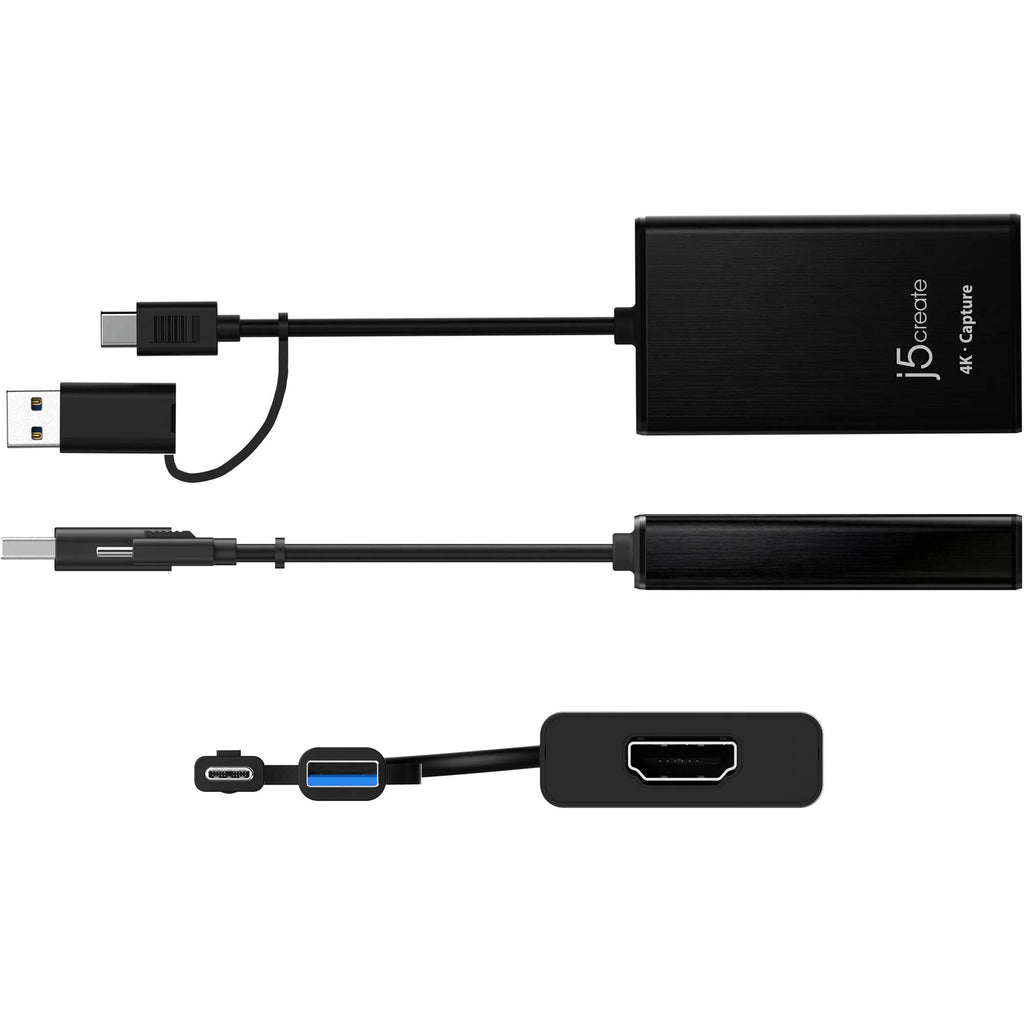

Mix and capture two live 4K video feeds using your computer, laptop, or mobile device with the 4K HDMI Capture Adapter from j5create. Designed for vlogging or internet streaming productions, the video capture adapter provides an HDMI input and USB-C and USB-A 3.2 outputs. It features UVC plug-and-play standard, so it is easy to set up and get up and running quickly.
The capture device outputs up to UHD 4K30 or 1080p60 video to your computer via USB 3.2, which also provides bus power to the device. The portable, lightweight capture device is compatible with Android, ChromeOS, macOS, and Windows systems.
Key Features

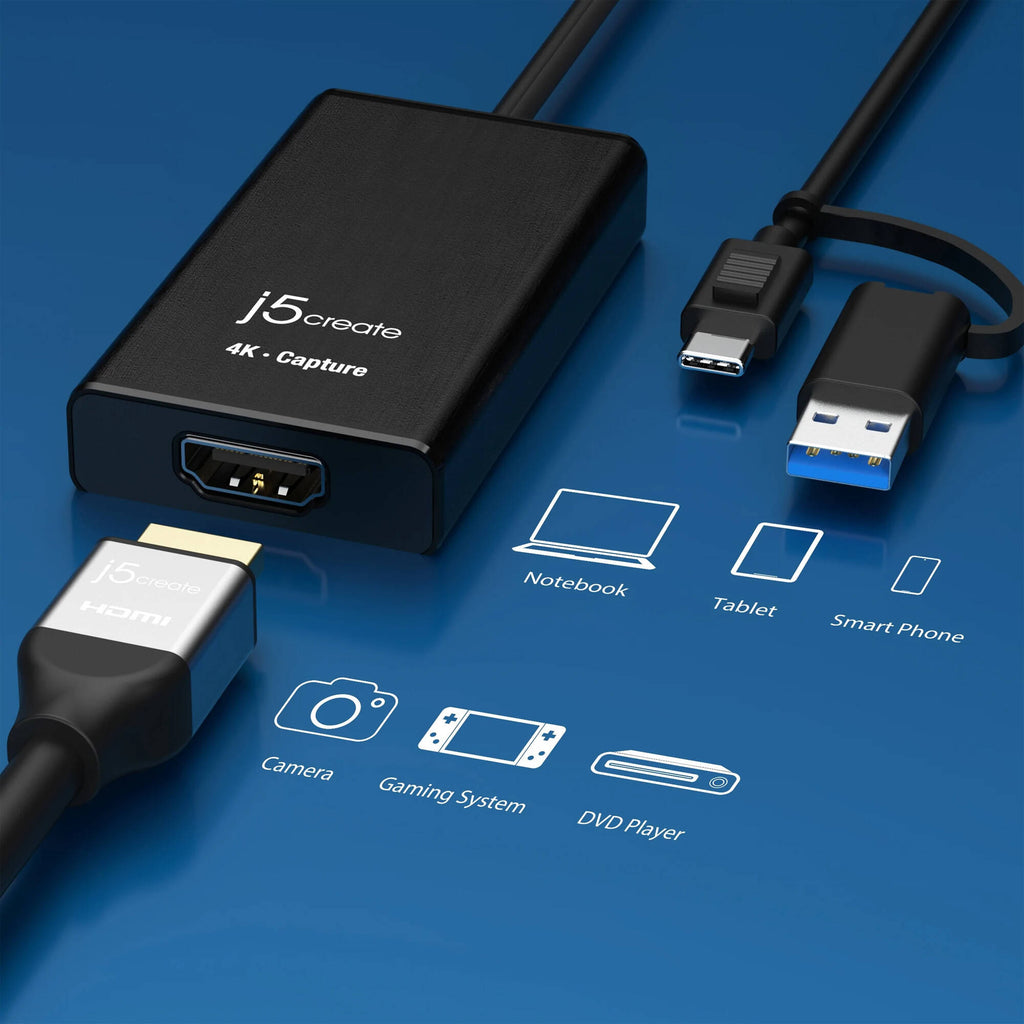

HDMI input for capturing

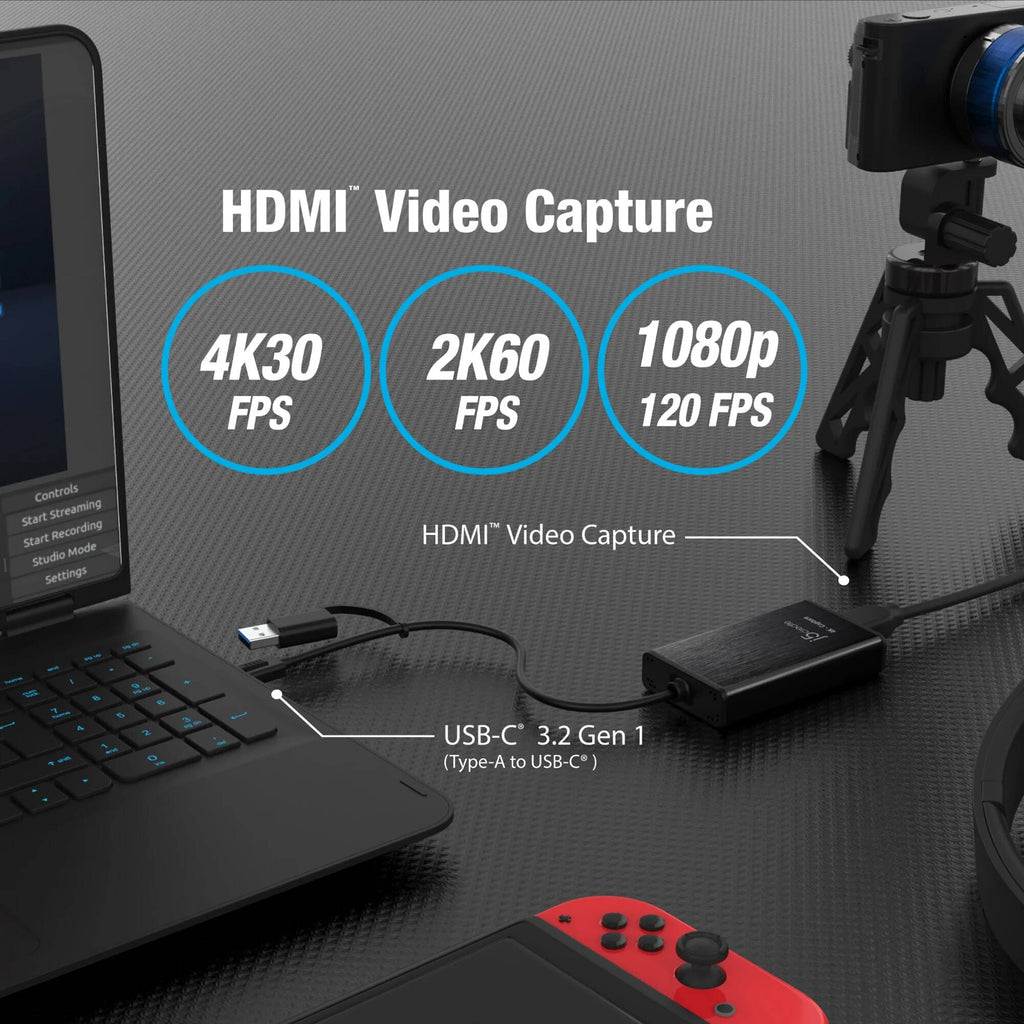

Capture up to UHD 4K30 video and audio high-performance record through USB-C 3.2 Gen 1
UVC standard; no driver installation required
Ultra-low latency stream through USB-A/USB-C 3.2 Gen 1 connection
Field production made easy with its compact size
System Requirements
Available USB-C or USB-A port (USB 3.2 / 3.0 is recommended)
Windows 7 or later
macOS 10.12 or later
Android 8.1 or later
Chrome OS with UVC support
CPU: Intel Core i7 6700HQ and above
GPU: NVIDA GTX 960M and above
RAM: 8 GB or higher
Recommended Software
Windows
OBS, XSplit Broadcaster
macOS
OBS, QuickTime
Android
CameraFi
UPC: 847626006029
In the Box
- j5create 4K HDMI Capture Adapter
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Key Features
- System Requirements
- Recommended Software
j5create JVA11 Specs
Inputs / Outputs
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 with Additional USB-A Adapter
|
| Video Inputs |
1 x HDMI Female
|
| Audio Inputs |
No
|
| Video Outputs |
1 x USB-C Male
|
Format Support
| Input Video Format |
HDMI
UHD 4K at 30 fps |
| Output Video Format |
USB-C (4:2:2/4:2:0 RGB, YUV)
UHD 4K 30 fps DCI 2K at 60 fps 1080p at 120 fps |
| Output Audio Format |
USB Audio: 48 kHz
|
| Embedded Audio |
HDMI
|
Standards
| HDR Compatibility |
No
|
Hardware
| OS Compatibility |
Windows 7 or Later
macOS 10.12 or Later 8.1 or Later Chrome OS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Consumption |
530 mA
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
14 to 149°F / -10 to 65°C
|
| Operating Humidity |
80% (Non-Condensing)
|
| Storage Humidity |
85% (Non-Condensing)
|
General
| Dimensions |
2.8 x 1.6 x 0.56" / 72 x 41 x 14.14 mm
|
| Weight |
1.9 oz / 55 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14396.2 |
| 3-5 | ₹ 14249.3 |
| 5-10 | ₹ 13955.5 |
| 10+ | ₹ 13661.7 |
Bulk discount will be automatically applied during checkout based on quantity.
