IXDD604 is a dual high-speed gate ultrafast driver. Each of the two outputs can source and sink 4A of peak current while producing voltage rise and fall times of less than 10ns. The input of each driver is virtually immune to latch up, and proprietary circuitry eliminates cross conduction and current shoot-through. Low propagation delay and fast, matched rise and fall times make the IXD_604 family ideal for high-frequency and high-power applications. The IXDD604 is a dual non-inverting driver with an enable. Applications are efficient power MOSFET and IGBT switching, switch mode power supplies, motor controls, DC to DC converters, class-D switching amplifiers, pulse transformer driver.
- Extended operating temperature range -40°C to +125°C
- Logic input withstands negative swing of up to 5V
- Outputs may be connected in parallel for higher drive current
- Matched rise and fall times
- Low propagation delay time
- Low, 10µA supply current at TA = 25°C
- Low output impedance
- 8-pin SOIC package
- Supply voltage is 4.5 to 35V
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
IXYS SEMICONDUCTOR |
| Part Number |
IXDD604SIATR |
| Quantity |
|
| Technical Data Sheet EN |
 |

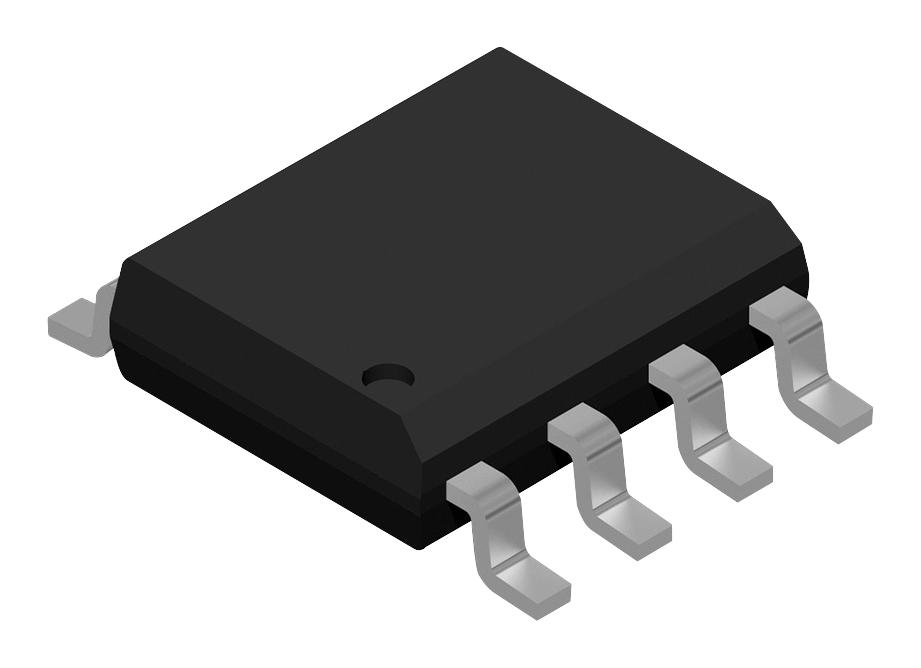

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
