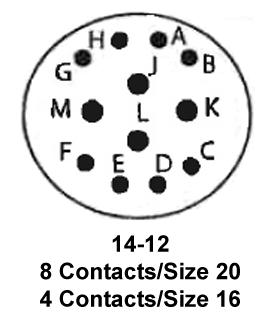

ITT Cannon KPT06A14-12SX KPT06A14-12SX Circular Connector KPT Straight Plug 12 Contacts Solder Socket Bayonet 14-12

The KPT06A14-12SX from ITT Cannon is KPT series, MIL-DTL-26482 series I equivalent straight plug with 12 contacts. The KPT series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 series I with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The KPT series general purpose solder connectors are optimized for fast assembly featuring clip-in contact & insulator design. They are intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors. Design modifications can be achieved at low cost.

• Bayonet coupling assures fast and reliable mating/unmating
• Environmentally sealed, IP68 rated
• Operating temperature range from -55°C to +125°C
• Durability of 500 mating cycles
• 200m/s² at 10Hz to 2000Hz vibration
• Insulation resistance is 5000Mohm at 25°C
• Resilient polychloroprene (neoprene) insulator and grommet
• Salt spray exposure of 500hour
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy solder socket contacts with gold plating

Applications

Industrial, Commercial

Other details

Brand	ITT CANNON
Part Number	KPT06A14-12SX
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
