ITT Cannon KPSE07E14-5S KPSE07E14-5S Circular Connector Kpse Jam Nut Receptacle 5 Contacts Crimp Socket Bayonet 14-5

The KPSE07E14-5S from ITT Cannon is KPSE series, MIL-DTL-26482 series I equivalent jam nut receptacle with 5 contacts. The KPSE series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 series I with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The KPSE series high performance crimp connectors are optimized for fast assembly featuring clip-in contact & insulator design. They are intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors. Design modifications can be achieved at low cost.

• Bayonet coupling assures fast and reliable mating/unmating
• Environmentally sealed, IP68 rated
• Operating temperature range from -55°C to +125°C
• 500 mating cycles
• 200m/s² at 10Hz to 2000Hz vibration
• Insulation resistance is 5000Mohm at 25°C
• Resilient polychloroprene (neoprene) insulator and grommet
• Salt spray exposure of 500hour
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp socket contacts with gold plating

Applications

Industrial, Commercial

Other details

Brand	ITT CANNON
Part Number	KPSE07E14-5S
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN

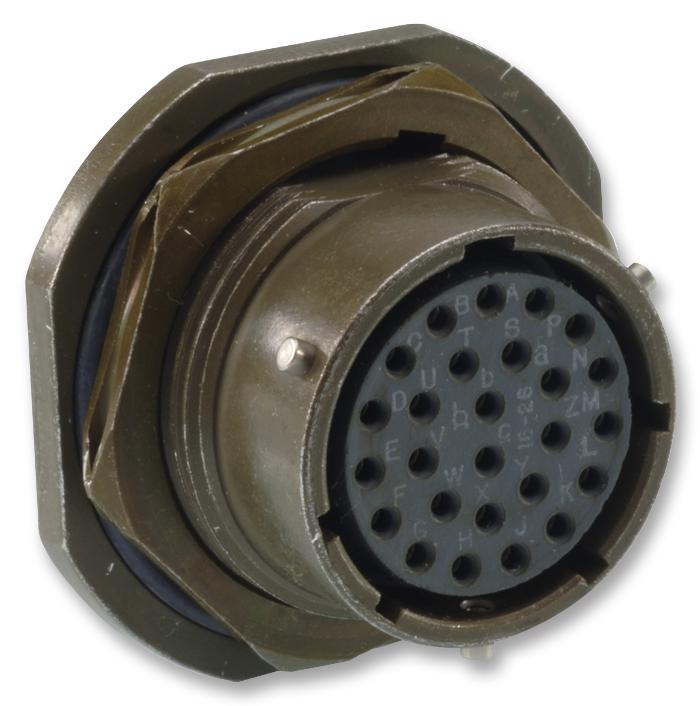

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
