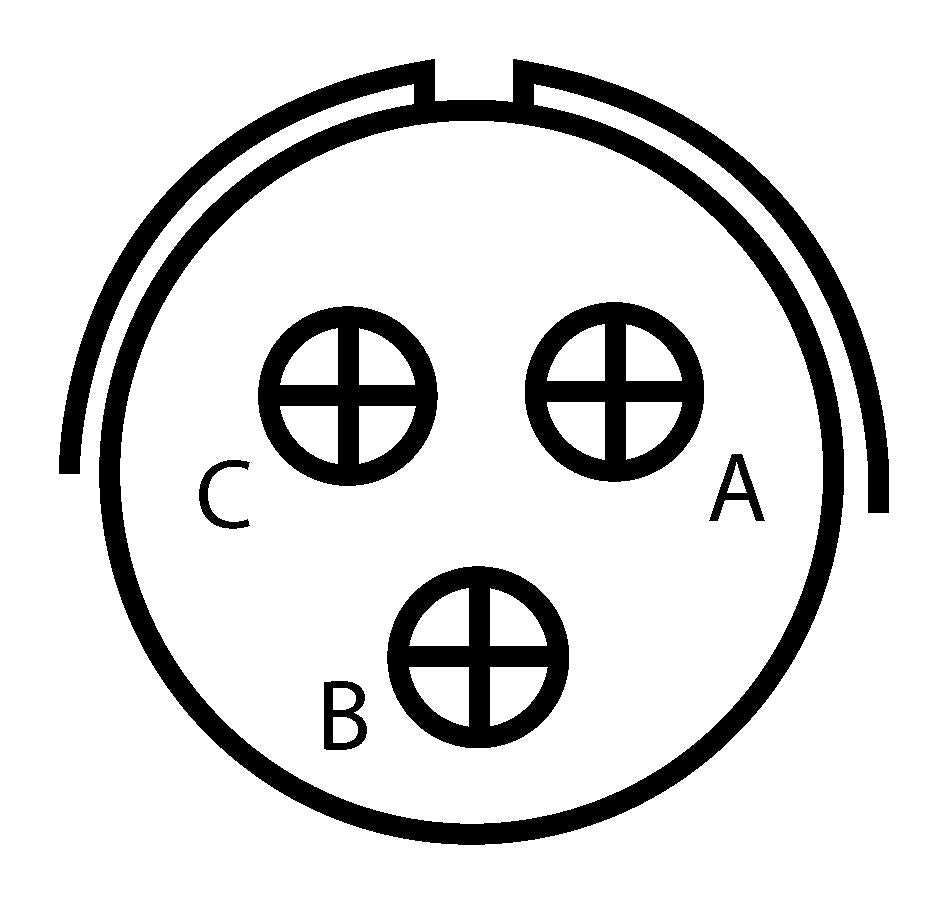

ITT Cannon CA3100E14S-7SBF80-05F0 CA3100E14S-7SBF80-05F0 Circular Connector CA-B Wall Mount Receptacle 3 Contacts Crimp Socket - Not Supplied

The CA3100E14S-7SBF80-05F0 from ITT Cannon is CA-B series, MIL-DTL-5015 series equivalent wall mount receptacle with 3 contacts. CA-B series connectors are available in wide range of connector styles and sizes. The design meets MIL-DTL-5015 standards. It provides superior performance in extreme environmental conditions and offers exceptional sealing's against the ingress of fluids and will withstand the effects of high vibration. It provides high mechanical robustness with high density contact arrangements in a miniature circular shell and combines high coupling durability. It is the most versatile connector for an accurate connects and disconnect in environmentally challenging situations.

• Rapid mating and unmating by a positive quarter turn bayonet locking mechanism
• Quick-mating 3-point reverse bayonet coupling, shock and vibration proof
• 500 mating cycles, IP67/68/69k environmental resistance
• Operating temperature range of -55°C to +125°C
• Insulation resistance is > 1000Mohm
• Resilient polychloroprene (neoprene) insulator
• Moisture and corrosion resistant
• Operating voltage is 50VAC
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp socket contacts with silver plating

Applications

Commercial, Industrial

Other details

Brand	ITT CANNON
Part Number	CA3100E14S-7SBF80-05F0
Quantity	Each
Technical Data Sheet EN
