ITT Cannon CA06COME20-4S CA06COME20-4S Circular Connector CA-COM Straight Plug 4 Contacts Solder Socket Threaded 20-4

The CA06COME20-4S from ITT Cannon is CA-COM series, MIL-DTL-5015 series equivalent straight plug with 4 contacts. CA-COM series connectors are available in wide range of connector styles and sizes. These connectors are an alternative solution for extraordinary vibration resistance. The design meets MIL-DTL-5015 standards. It provides superior performance in extreme environmental conditions and resists aggressive fluids like fuel and oil. High mechanical robustness with high density contact arrangements in a miniature circular shell and combines high coupling durability. This is most versatile connector for an accurate connects and disconnect in environmentally challenging situations. These series of connectors are intermateable and interchangeable with the corresponding types as per SAE-AS50151 and VG95234 as they offer the same mounting dimensions and contact arrangements.

• Threaded coupling, quick mating
• Secured locking system
• 500 mating cycles, IP67 environmental resistance
• Operating temperature range of -55°C to +125°C
• Insulation resistance is > 1000Mohm
• Resilient polychloroprene (neoprene) insulator
• Moisture and corrosion resistant
• Operating voltage is 50VAC
• Aluminium alloy body material with zinc die-cast, nickel plating
• Copper alloy solder socket contacts with silver plating

Applications

Commercial, Industrial

Other details

Brand	ITT CANNON
Part Number	CA06COME20-4S
Quantity	Each
Technical Data Sheet EN
Technical Data Sheet EN

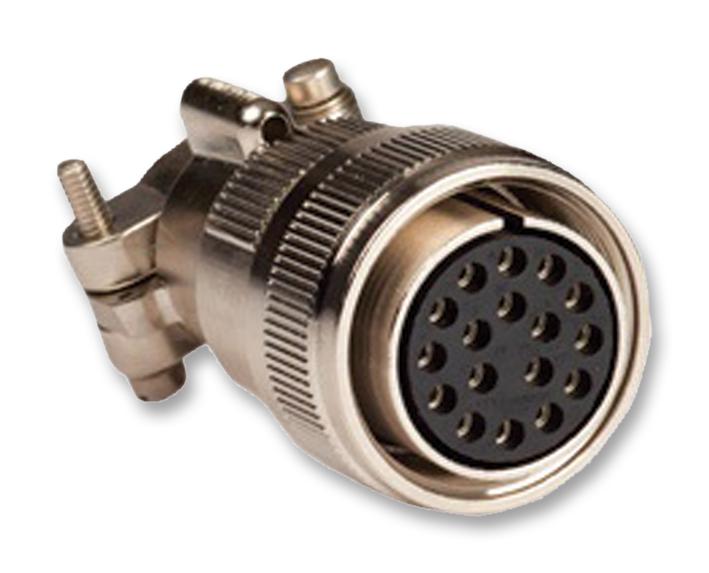

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
