ITT Cannon CA06COME14S-6PBF80 CA06COME14S-6PBF80 Circular Connector CA-COM-B Straight Plug 6 Contacts Crimp Pin Reverse Bayonet 14S-6

The CA06COME14S-6PBF80 from ITT Cannon is CA-COM-B series, MIL-DTL-5015 series equivalent straight plug with 6 contacts. CA-COM-B series connectors are available in wide range of connector styles and sizes. It provides superior performance in extreme environmental conditions and resists aggressive fluids like fuel and oil. High mechanical robustness with high density contact arrangements in a miniature circular shell and combines high coupling durability. This is most versatile connector for an accurate connects and disconnect in environmentally challenging situations. The coupling unit is featured by roller bolts made of stainless steel rolling down the mating ramp, thus reducing coupling torque. These series of connectors are intermateable and interchangeable with the corresponding types as per SAE-AS50151 and VG95234 as they offer the same mounting dimensions and contact arrangements.

• Rapid mating and unmating by a positive quarter turn bayonet locking mechanism
• Reverse bayonet coupling, offers exceptional vibration protection by a simple 120° turn
• 500 mating cycles, IP67 environmental resistance
• Operating temperature range of -55°C to +125°C
• Insulation resistance is > 1000Mohm
• Resilient polychloroprene (neoprene) insulator
• Moisture and corrosion resistant
• Operating voltage is 50VAC
• Aluminium alloy body material with zinc die-cast, nickel plating
• Copper alloy crimp pin contacts with silver plating

Applications

Commercial, Industrial

Other details

Brand	ITT CANNON
Part Number	CA06COME14S-6PBF80
Quantity	Each
Technical Data Sheet EN

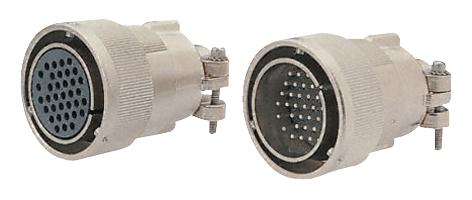

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
