- Solid Ball Bearing Sliding Rails
- For Most Rackmount Chassis
- 3-Stage Temporary Lock
- SECC Steel Construction
- Load Capacity 85 lb (38.55 kg)
- Cabinet Depth 22 to 31"

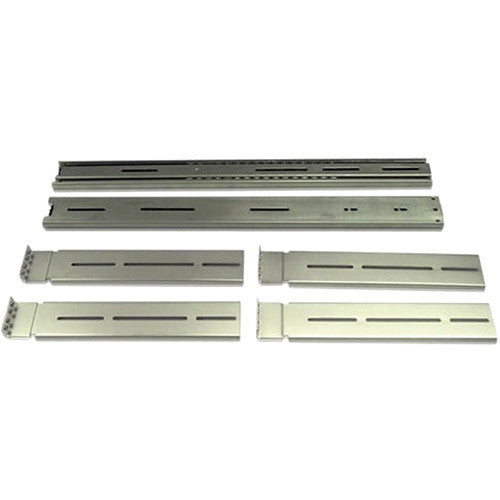

The iStarUSA Sliding Rail Kit (20" / 508mm) consists of 2 solid ball bearing sliding rails and is designed make accessing your rack mounted equipment easier. It features a 3-stage temporary lock, which allows you to securely pull your equipment out in stages without having to extract the entire unit. Constructed from SECC steel that provides strength and durability, these rails are capable of handling system weights up to 85 lb (38.55 kg).
- Solid ball bearing sliding rails for most rackmount chassis
- 3-stage temporary lock enables you to securely pull out your equipment in stages without having to extract the entire unit
- SECC steel construction for strength and durability
- Can handle equipment weighing up to 85 lb (38.55 kg)
- Designed to be used with chassis up to up to 23" (584.2 mm) in length
- Installable in cabinets that have depths ranging from 22 to 31" (558.8 to 787.4 mm)
In the Box
iStarUSA Sliding Rail Kit (20" / 508mm)
RoHS Compliance Version | Yes |
Standard Drive Bays | None |
Material of Main Chassis | 1.2 mm SECC Steel |
Supported Chassis Depth | up to 23" (584.2 mm) |
Supported Cabinet Depth | 22 to 31" (558.8 to 787.4 mm) |
Packaging Info |
Package Weight | 5.0 lb |
Box Dimensions (LxWxH) | 22.0 x 2.0 x 2.0" |
