iStarUSA D-300-FS Overview
The iStarUSA D-300-FS 3U Compact Stylish Rackmountable Chassis with Front-mounted ATX Power Supply incorporates performance and capacity in a 3U form factor. It features two 5.25" and six 3.5" bays for high density storage application. Whether it's web server or a database server, the D-300-FS chassis can accommodate the thermal requirements of dual processor and Raid drive storage needs. The 7 PCI slots support PCI, PCI 64-bit, AGP, and PCI-Express add-on cards which enable future upgrades for customized functions and application needs.

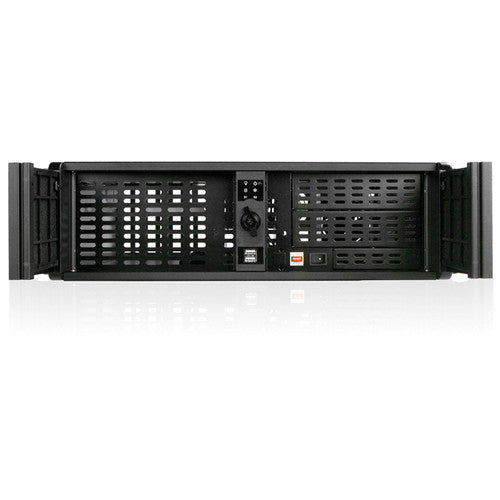

3-way aluminum front panel with locks

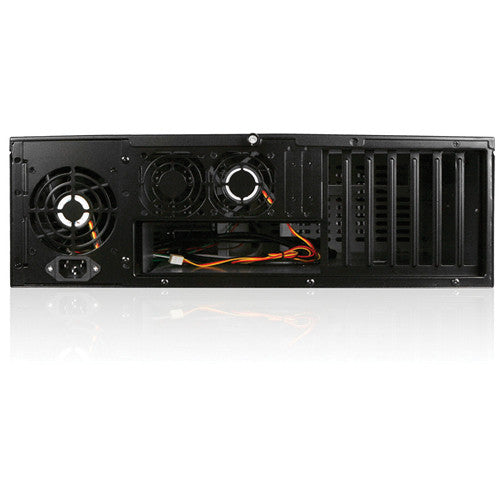

One 80mm and one 60mm cooling fan
Front mounted ATX power supply
Power and alarm reset switch
Optional aluminum chassis (sold separately)
In the Box
- iStarUSA D-300-FS 3U Compact Stylish Rackmountable Chassis (Black Bezel)
- Installation Hardware
- Limited 1-Year Manufacturer Warranty
iStarUSA D-300-FS Specs
General
Motherboard Support |
ATX, Micro-ATX |
External Drive Bays |
1 x 3.5" 2 x 5.25" |
Internal Drive Bays |
5 x 3.5"
|
Expansion Slots |
7 x Low-Profile |
I/O |
2 x USB-A (USB 2.0) |
Compatible Power Supply |
ATX |
Security
Security Features |
Security Lock |
Cooling
Included Cooling |
1 x 60 mm 1 x 80 mm |
Physical
Rack Form Factor |
3RU |
Air Filter |
Yes |
Dimensions (W x H x D) |
19 x 5.25 x 20.8" / 482.6 x 133.3 x 528.3 mm |
Packaging Info
Package Weight |
31 lb |
Box Dimensions (LxWxH) |
26.006 x 21.5 x 10.4" |
