Description

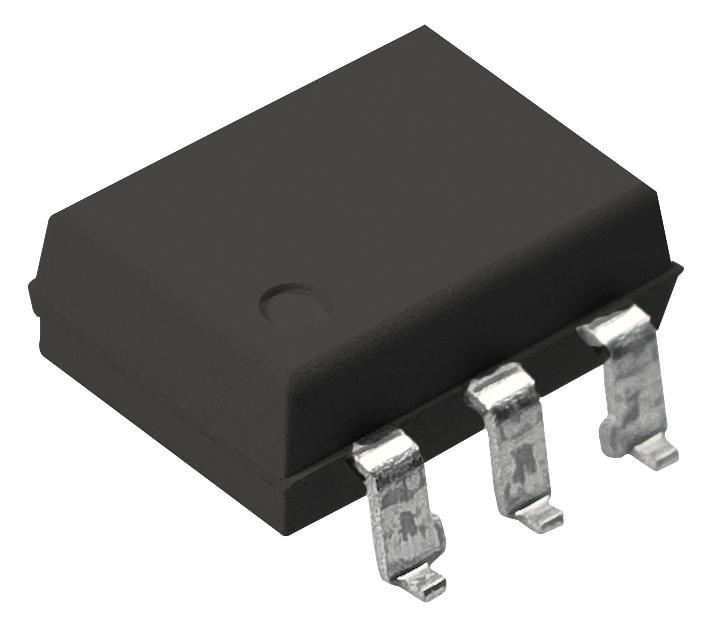

The MOC3062XSM is a 6-pin Optically Coupled Isolator consisting of a gallium arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral TRIAC mounted. It is suitable for CRTs and power TRIAC driver.
- All electrical parameters 100% tested
- 50mA Forward current
- 6V Reverse voltage
- 250mW Total power dissipation
- 600V Peak blocking voltage
- 5.3kVrms High isolation voltage
Motor Drive & Control, Consumer Electronics, Computers & Computer Peripherals, Industrial
Other details
| Brand | ISOCOM |
| Part Number | MOC3062XSM |
| Quantity | Each |
| Technical Data Sheet EN |  |
