Description

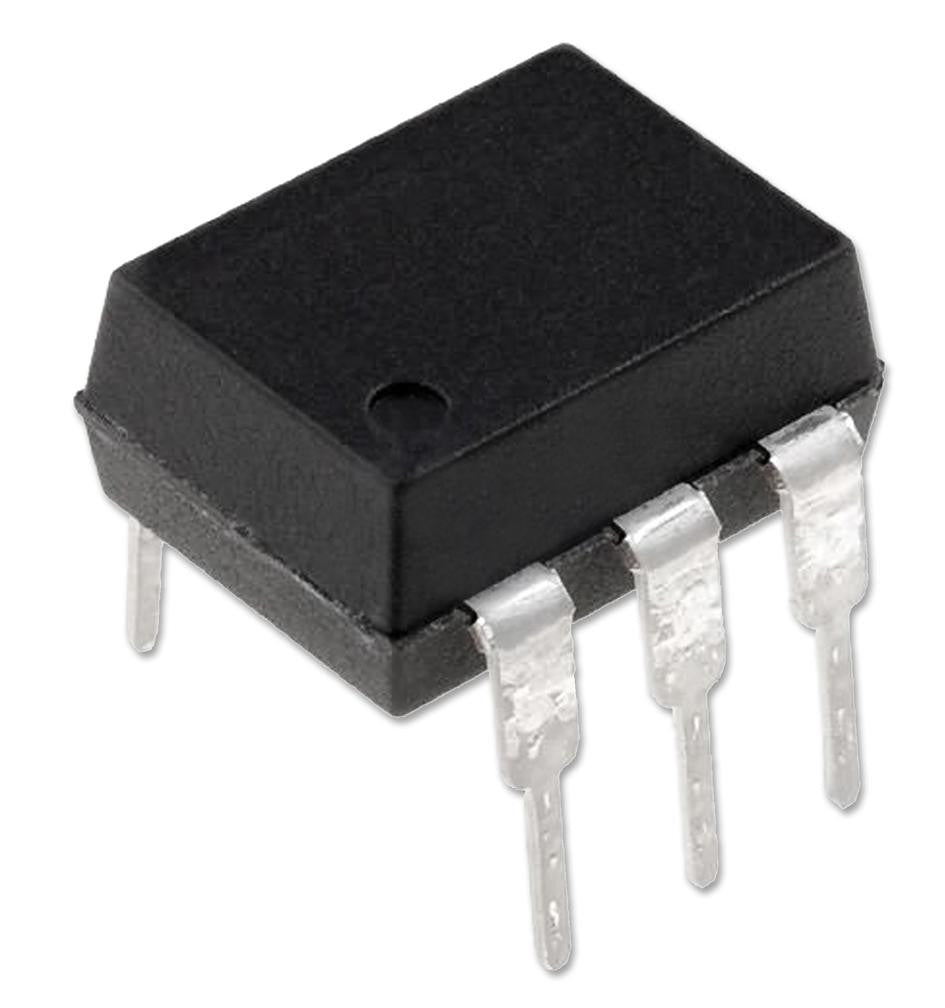

The H11G2 is a 1-channel 6-pin Optically Coupled Isolator consisting of a gallium arsenide infrared emitting diode and a silicon Darlington which has an integral base-emitter resistor to optimize switching speed and elevated temperature characteristics.
- Low collector dark current - 100nA maximum at 80VCE
Applications
Communications & Networking, Signal Processing
Product details
| Optocoupler Case Style | DIP |
| Forward Current If Max | 50mA |
| Collector Emitter Voltage V(br)ceo | 80V |
| No. of Channels | 1 Channel |
| CTR Min | 1000% |
| Packaging | Each |
| Product Range | - |
| Isolation Voltage | 5.3kV |
| No. of Pins | 6Pins |
Other details
| Brand | ISOCOM |
| Part Number | H11G2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
