Description

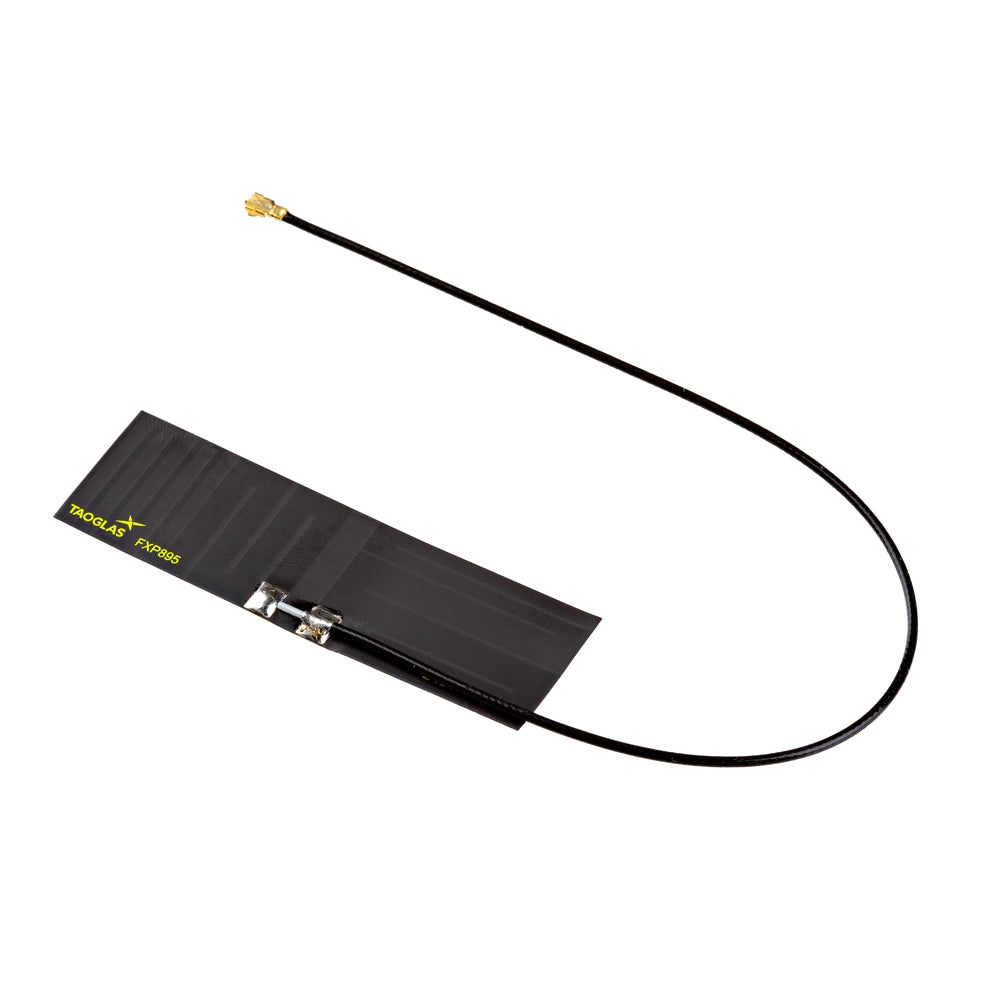

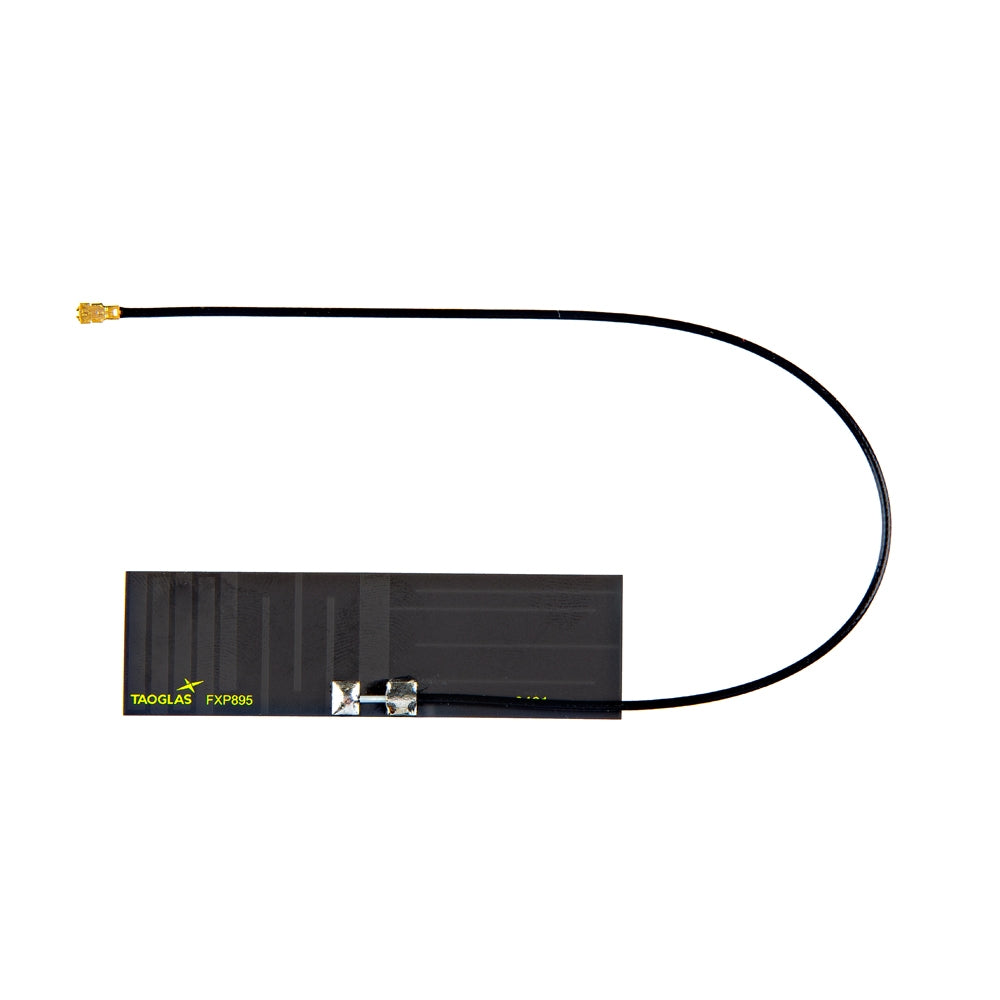

This expertly designed wideband antenna covers global 860-928MHz ISM/LoRA frequencies with a single connection, a rarity for such applications.
Features & Specs
-
Band
- 868MHzFrequency:
- 863-870MHz
- Efficiency: 51.6%
- Average Gain: -2.87dB
- Peak Gain: 1.92dBi
- 915MHzFrequency:
- 902-928MHz
- Efficiency: 58.3%
- Average Gain: -2.34dB
- Peak Gain: 2.83dBi
- 868MHzFrequency:
- Impedance: 50Ω
- Polarization: Linear
- Radiation Pattern: Omni
- Max Input Power: 2W

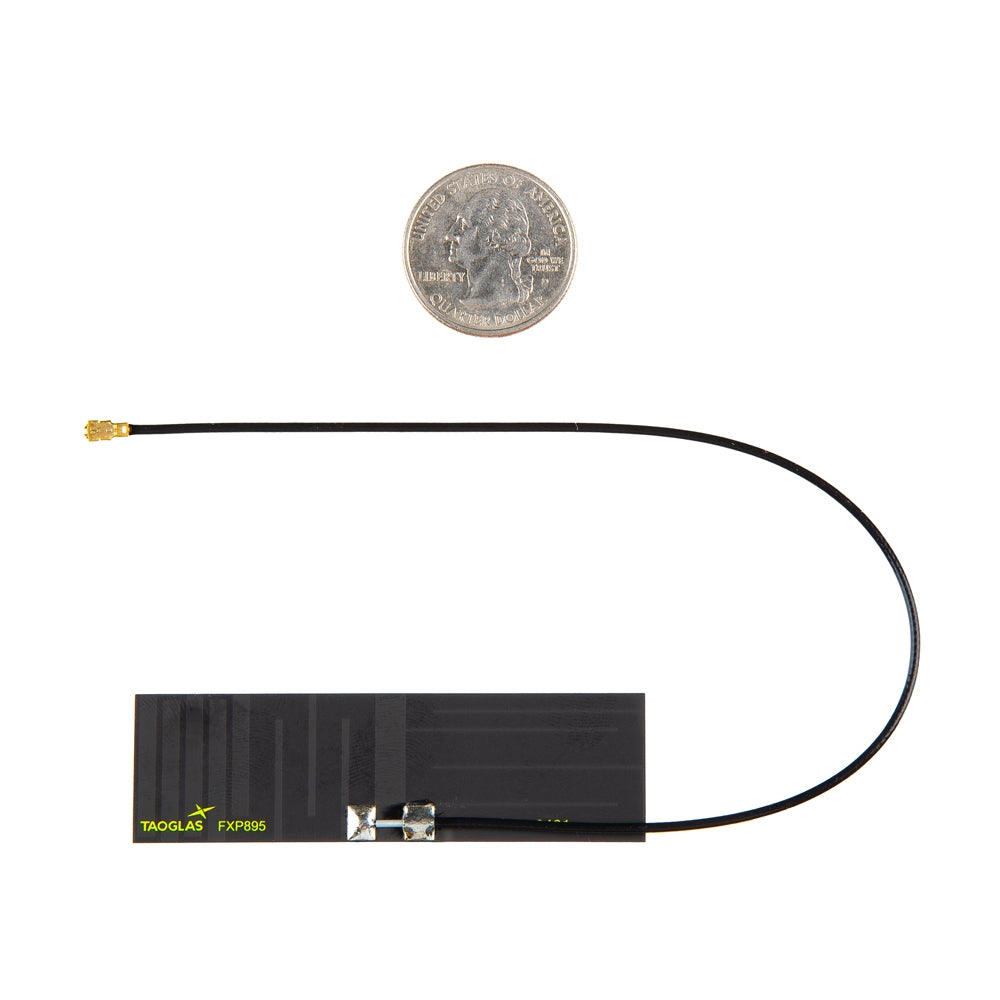

- Dimensions: 69.3 x 20 x 0.2mm
- Weight: 2g
- Material: Polymer

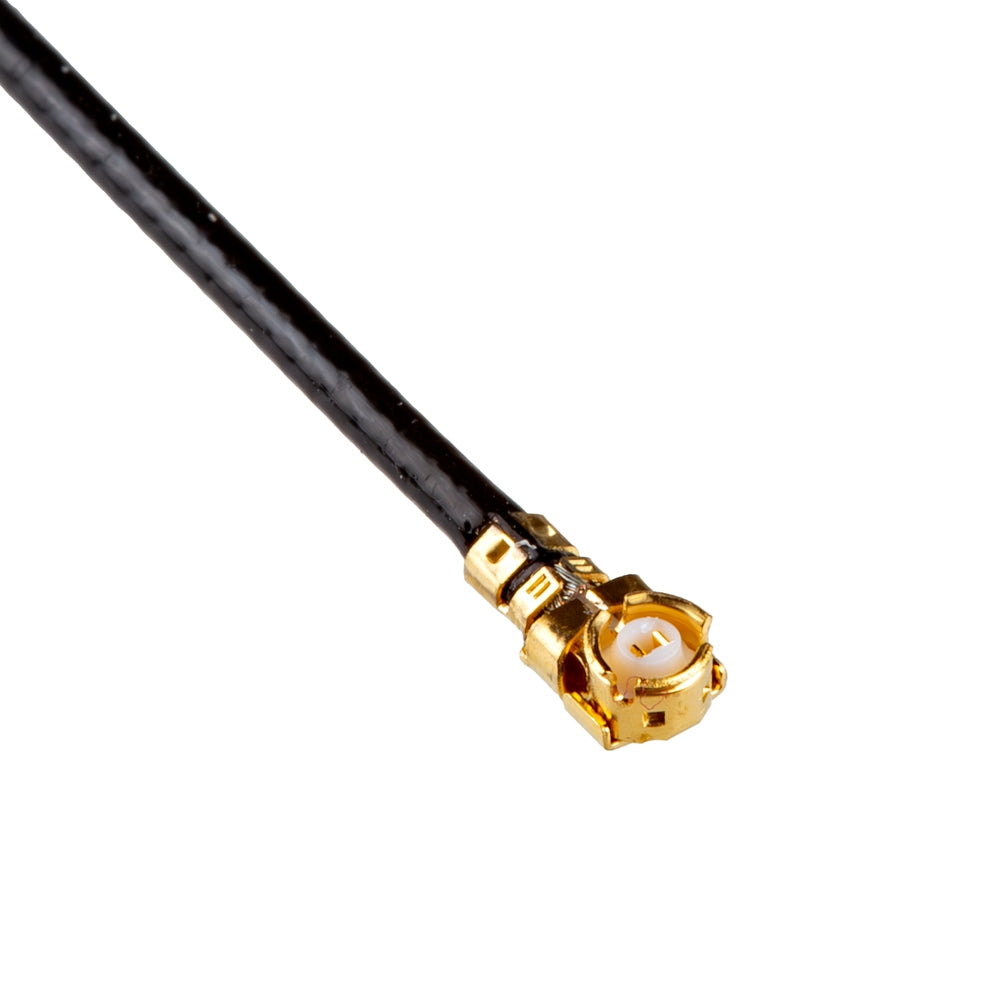

- Connector: IPEX MHFI U.FL compatible
- Cable: 1.37mm Coaxial
- Operation Temperature: -40°C to 85°C
- Relative Humidity: 40% to 95%
Features & Specs
-
Band
- 868MHzFrequency:
- 863-870MHz
- Efficiency: 51.6%
- Average Gain: -2.87dB
- Peak Gain: 1.92dBi
- 915MHzFrequency:
- 902-928MHz
- Efficiency: 58.3%
- Average Gain: -2.34dB
- Peak Gain: 2.83dBi
- 868MHzFrequency:
- Impedance: 50Ω
- Polarization: Linear
- Radiation Pattern: Omni
- Max Input Power: 2W
- Dimensions: 69.3 x 20 x 0.2mm
- Weight: 2g
- Material: Polymer
- Connector: IPEX MHFI U.FL compatible
- Cable: 1.37mm Coaxial
- Operation Temperature: -40°C to 85°C
- Relative Humidity: 40% to 95%
