Description

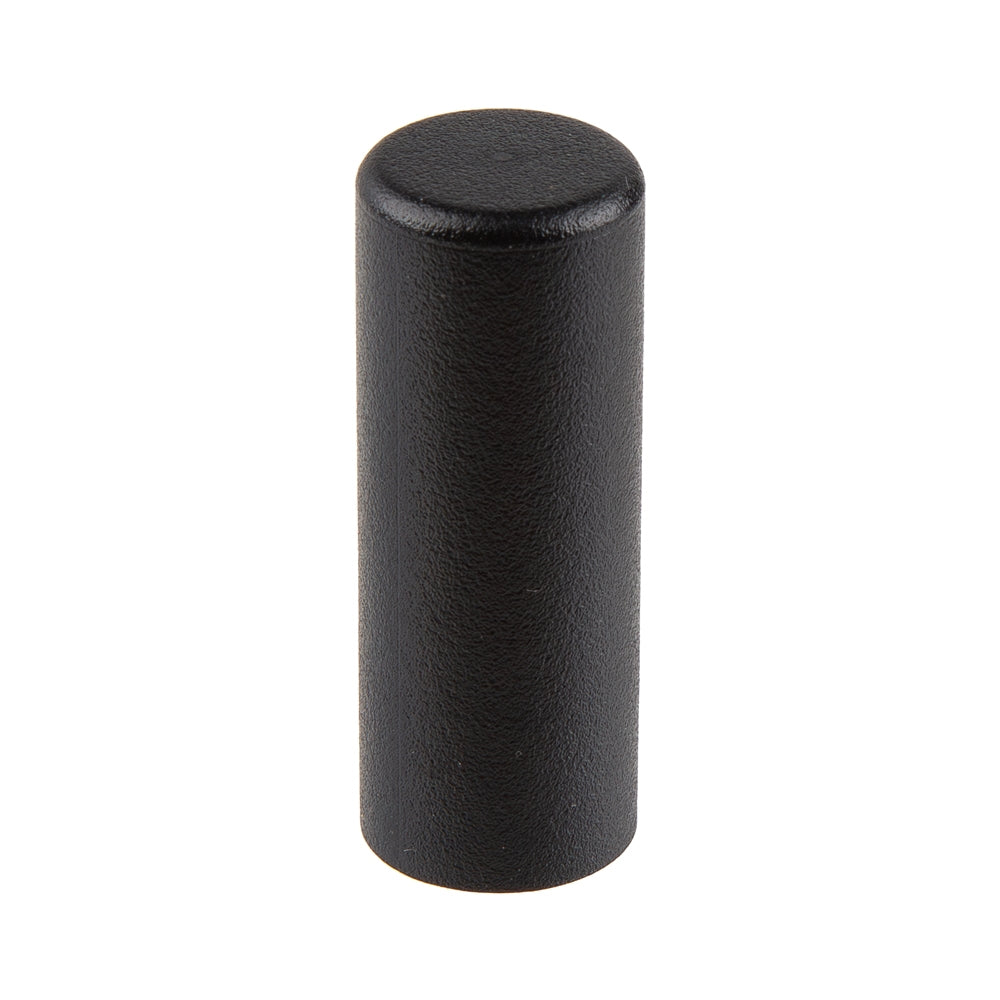

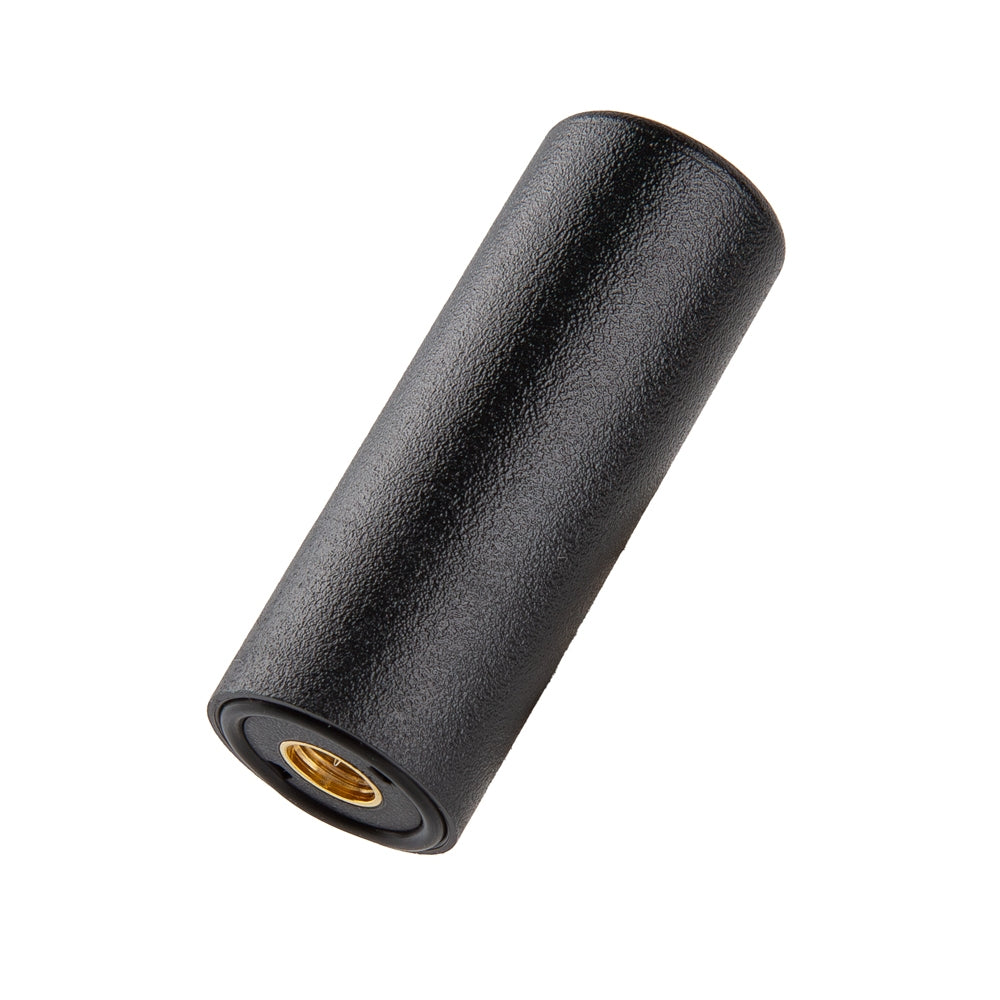

The Maxtena M1621HCT-P-SMA is a compact, high-performance passive Iridium antenna, designed for reliable data communication over the Iridium satellite network. It is ideal for use with the RockBLOCK 9704 satellite IoT module.
Features & Specs
- Frequency Range: 1616-1626.5MHz
- Polarization: RHCP
- Peak Gain: 2.8 dBic (typical)
- Axial Ratio: 0.2 dB (typical) / 0.5 dB (max)
- VSWR: 1.5 (max)
- Impedance: 50 ohms

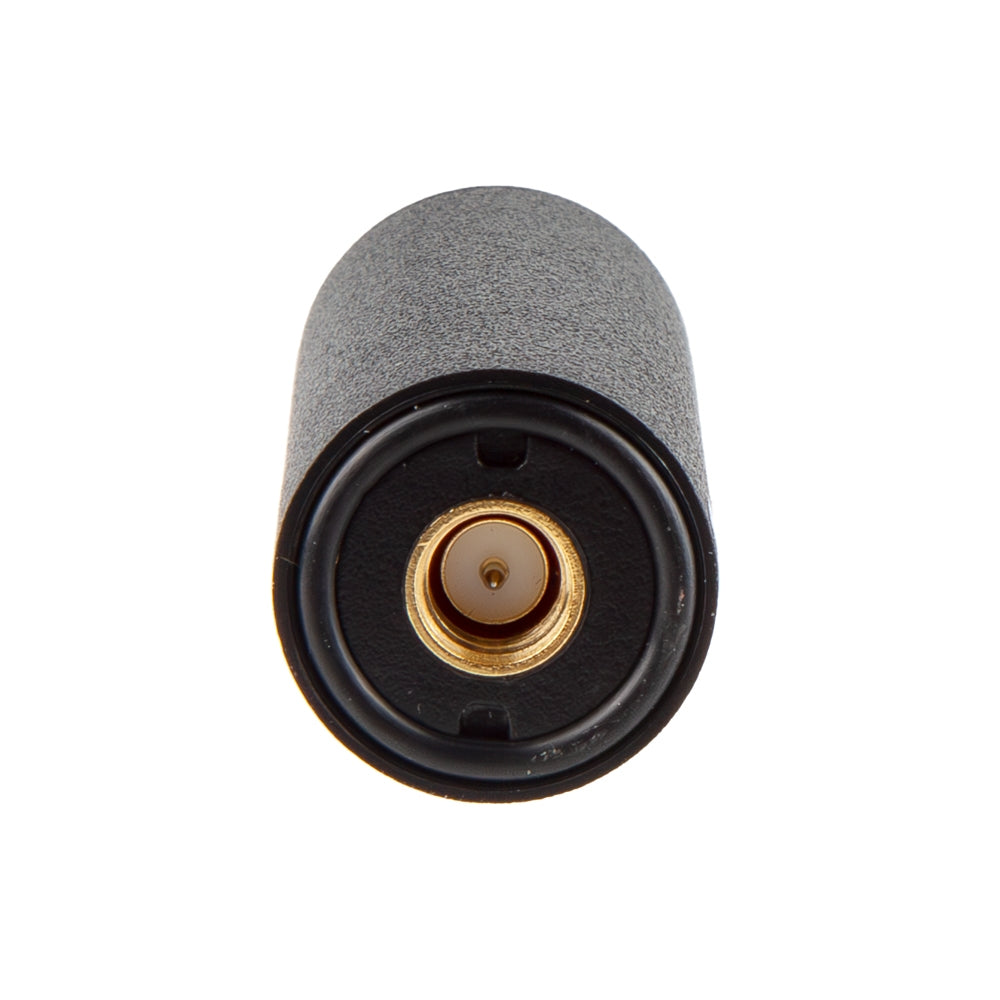

- Connector: SMA Male

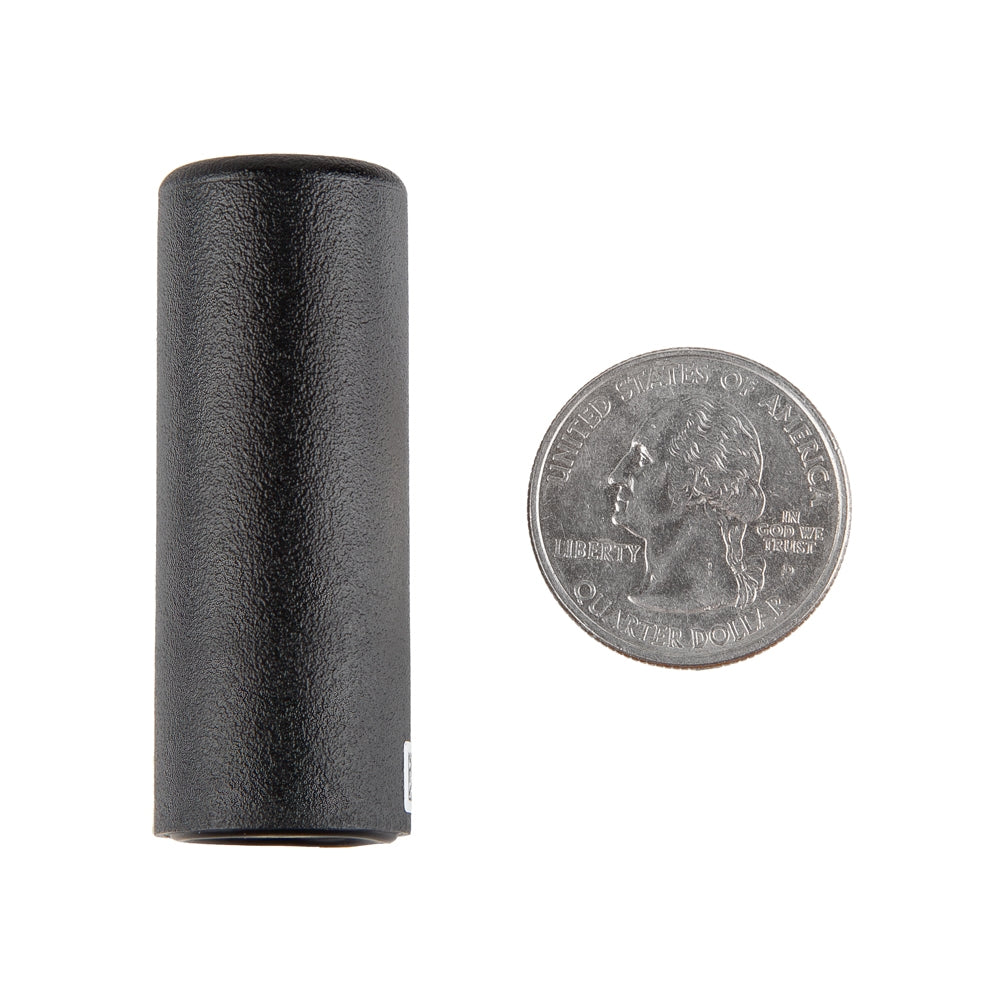

- Dimensions: 49mm (height) x 19mm (diameter)
- Weight: 52g
- Environmental Rating: IP67
- Operating Temperature: -40°C to +85°C
Features & Specs
- Frequency Range: 1616-1626.5MHz
- Polarization: RHCP
- Peak Gain: 2.8 dBic (typical)
- Axial Ratio: 0.2 dB (typical) / 0.5 dB (max)
- VSWR: 1.5 (max)
- Impedance: 50 ohms
- Connector: SMA Male
- Dimensions: 49mm (height) x 19mm (diameter)
- Weight: 52g
- Environmental Rating: IP67
- Operating Temperature: -40°C to +85°C
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 18536.7 |
| 3-5 | ₹ 18347.55 |
| 5-10 | ₹ 17969.25 |
| 10+ | ₹ 17590.95 |
Bulk discount will be automatically applied during checkout based on quantity.
