Description

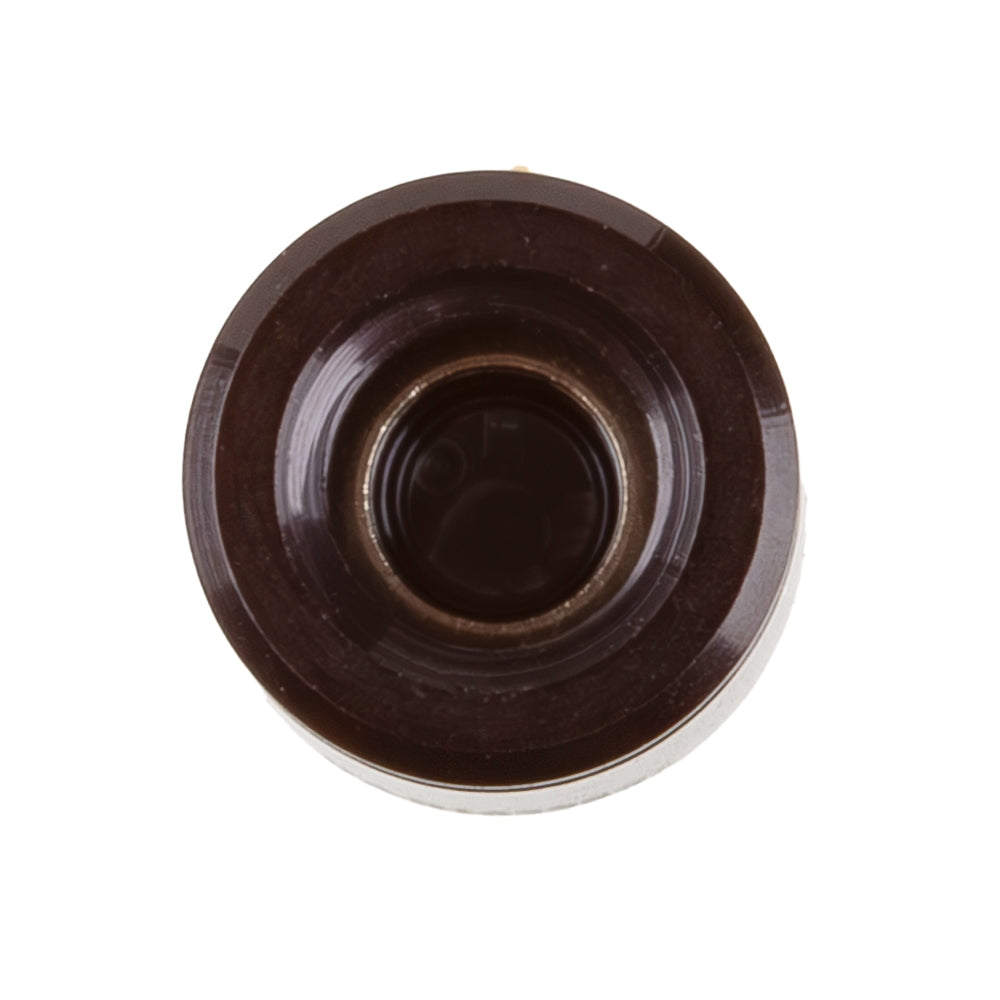

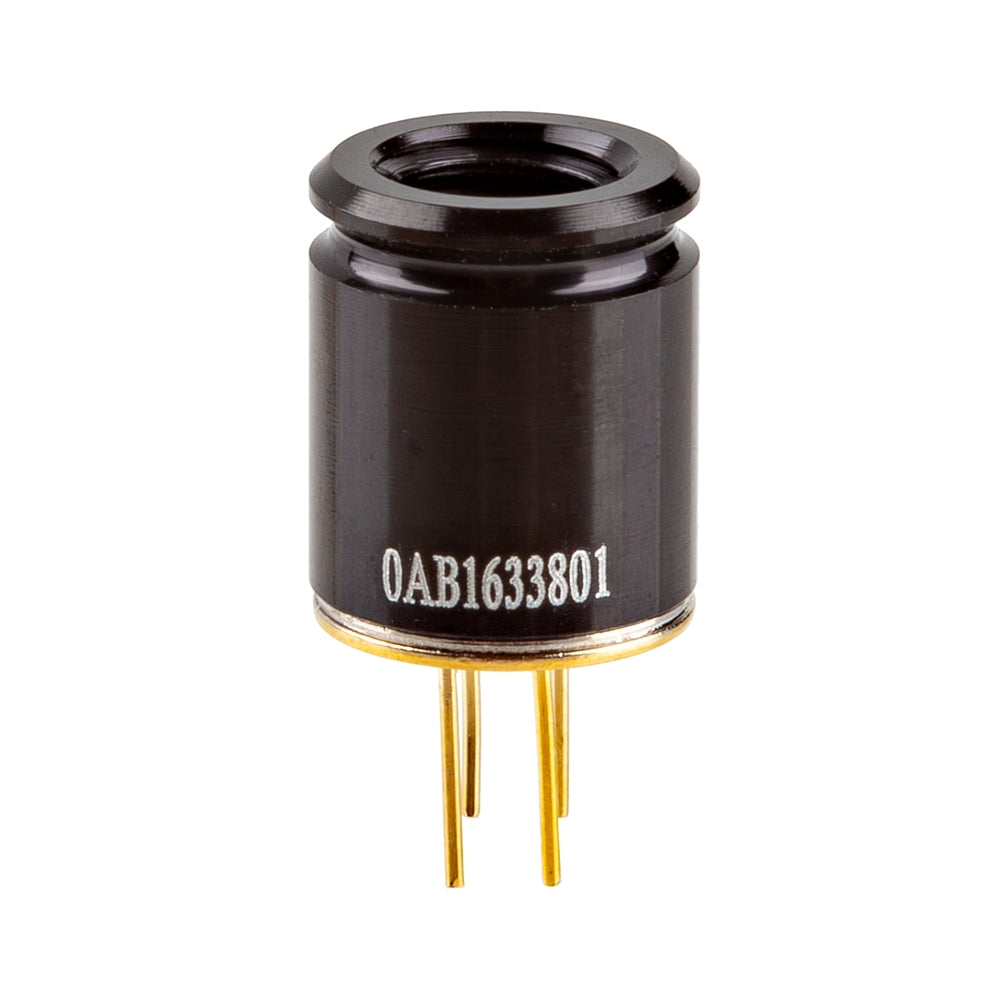

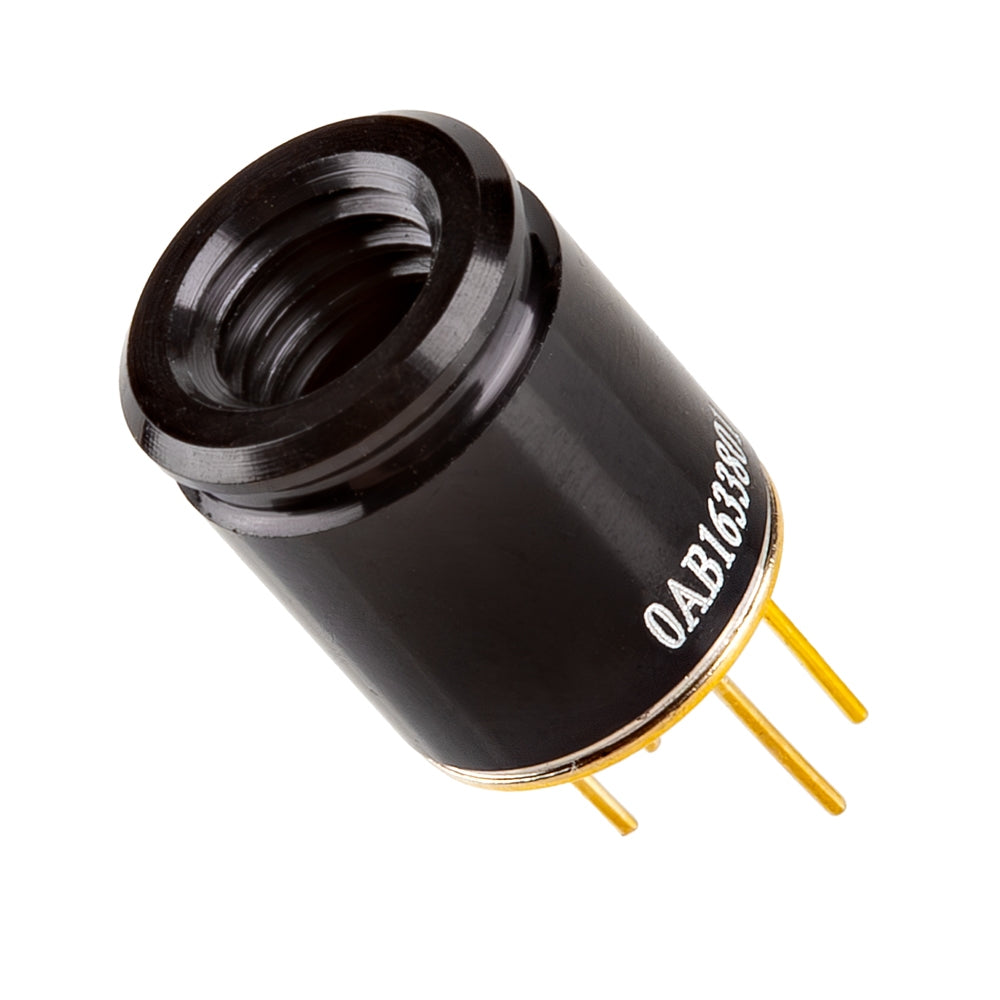

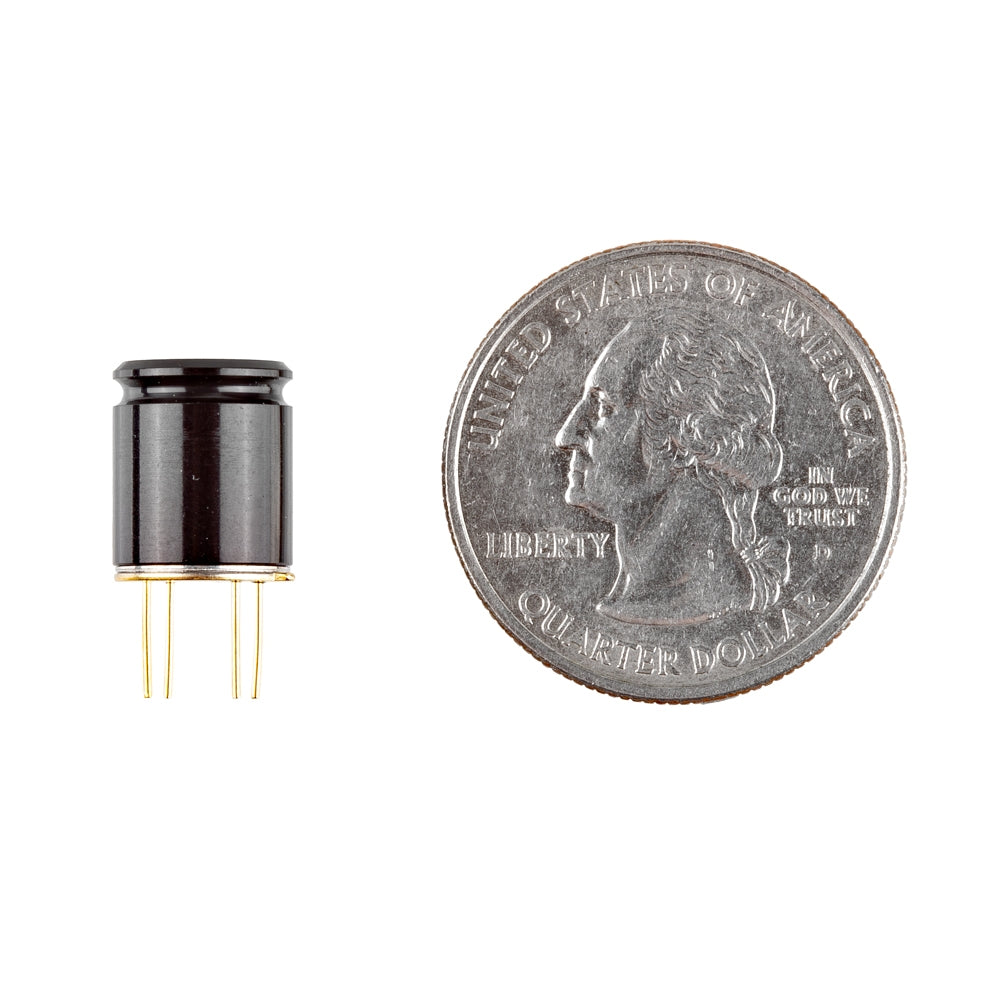

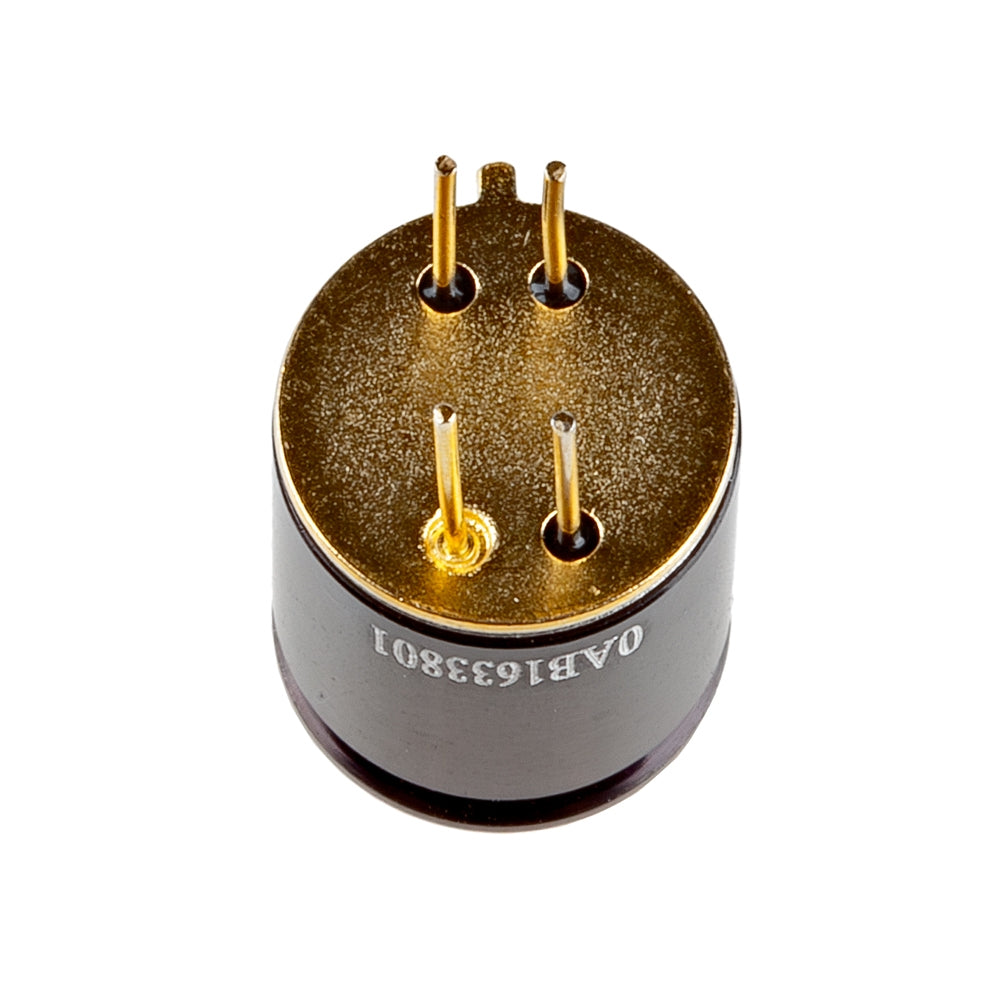

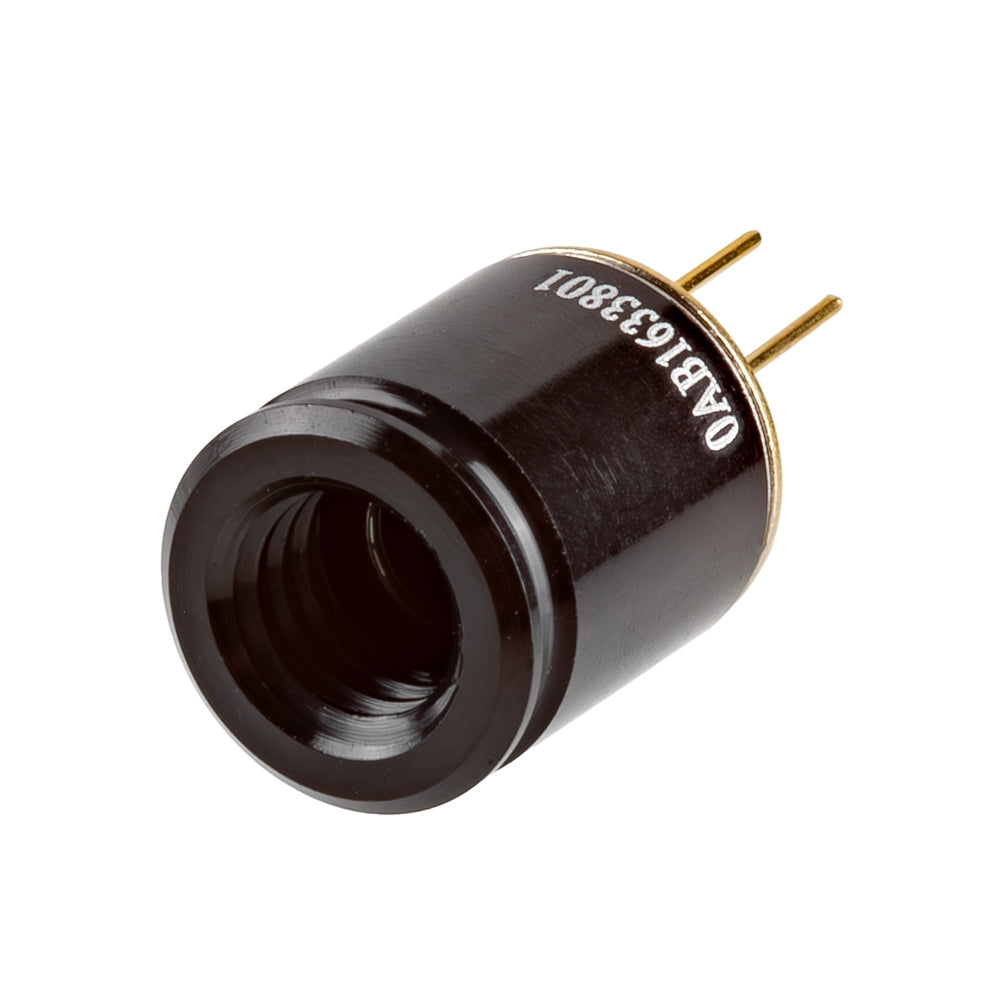

The MLX90640 is a fully calibrated 32x24 pixels thermal IR array in an industry standard 4-lead TO39 package with digital interface. The MLX90640 contains 768 FIR pixels. An ambient sensor is integrated to measure the ambient temperature of the chip and supply sensor to measure the VDD. The outputs of all sensors IR, Ta and VDD are stored in internal RAM and are accessible through I2C
Features & Specs
- Field of View (FOV): 55°x35°
- Pixel Array: 32x24
- Package: TO39
- Noise Equivalent Temperature Difference (NETD): 0.1K RMS @1Hz refresh rate
- Digital Interface: I2C
- Programmable Refresh Rate: 0.5Hz ~ 64Hz
- Supply Voltage: 3.3V
- Current Consumption: less than 23mA
- Operating Temperature: -40°C ~ 85°C
- Target Temperature: -40°C ~ 300°C
Features & Specs
- Field of View (FOV): 55°x35°
- Pixel Array: 32x24
- Package: TO39
- Noise Equivalent Temperature Difference (NETD): 0.1K RMS @1Hz refresh rate
- Digital Interface: I2C
- Programmable Refresh Rate: 0.5Hz ~ 64Hz
- Supply Voltage: 3.3V
- Current Consumption: less than 23mA
- Operating Temperature: -40°C ~ 85°C
- Target Temperature: -40°C ~ 300°C
