Description

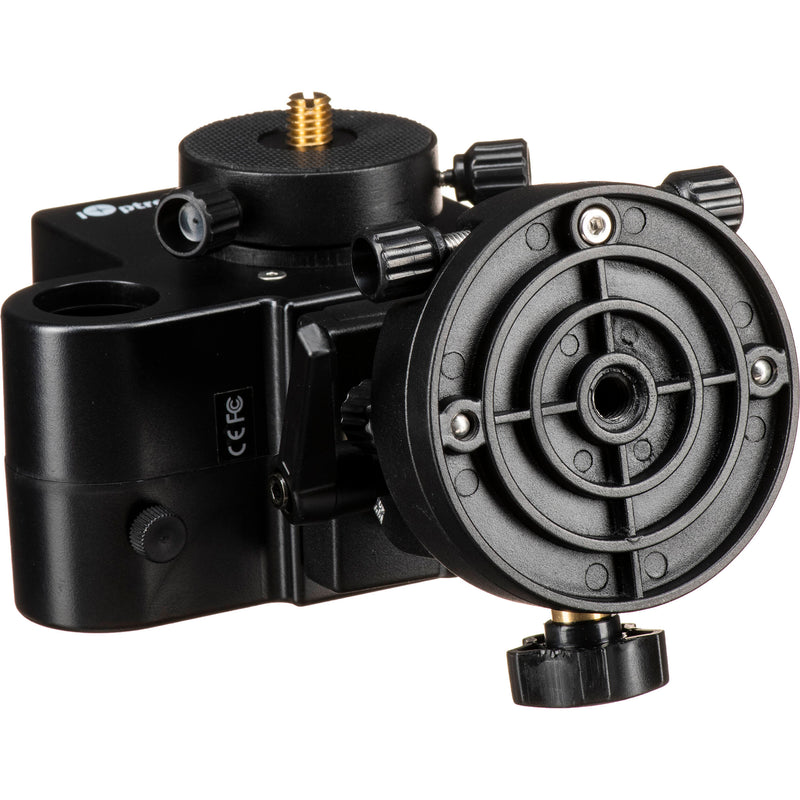

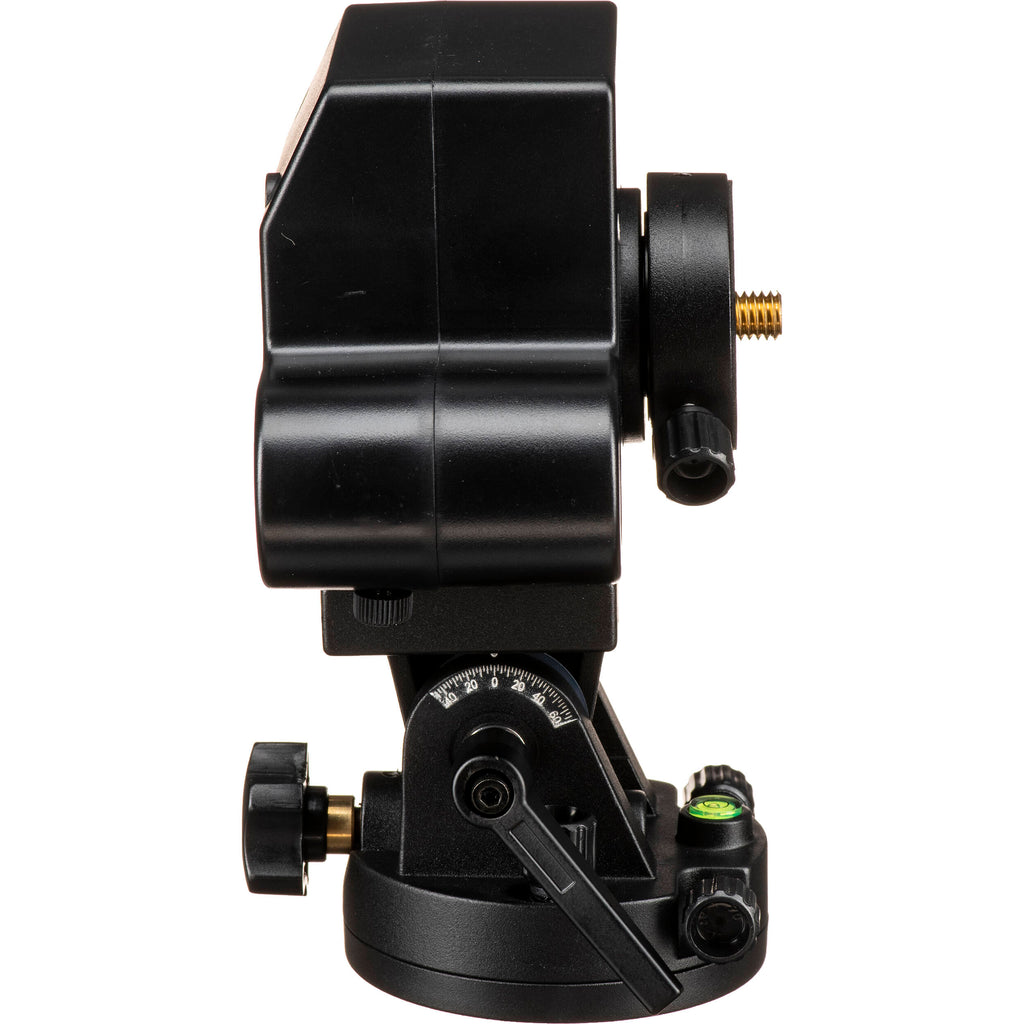

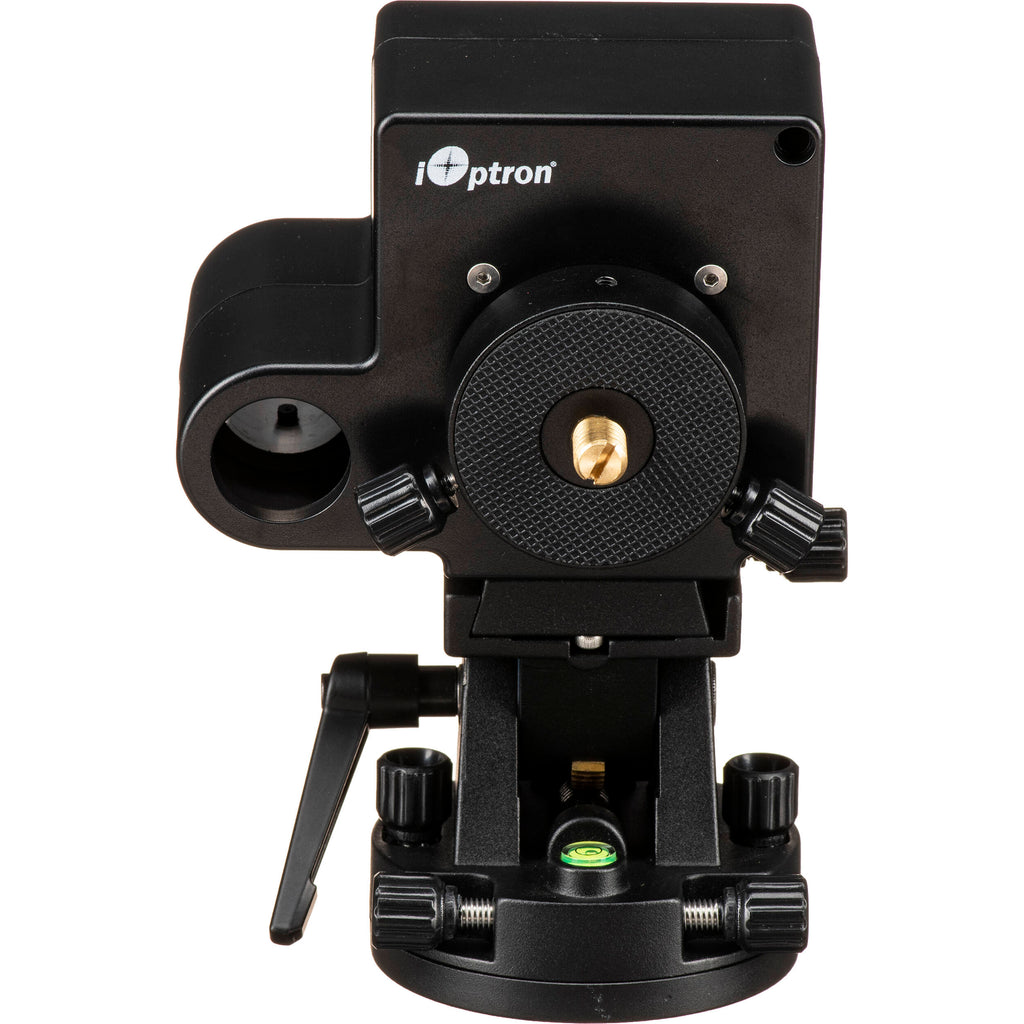

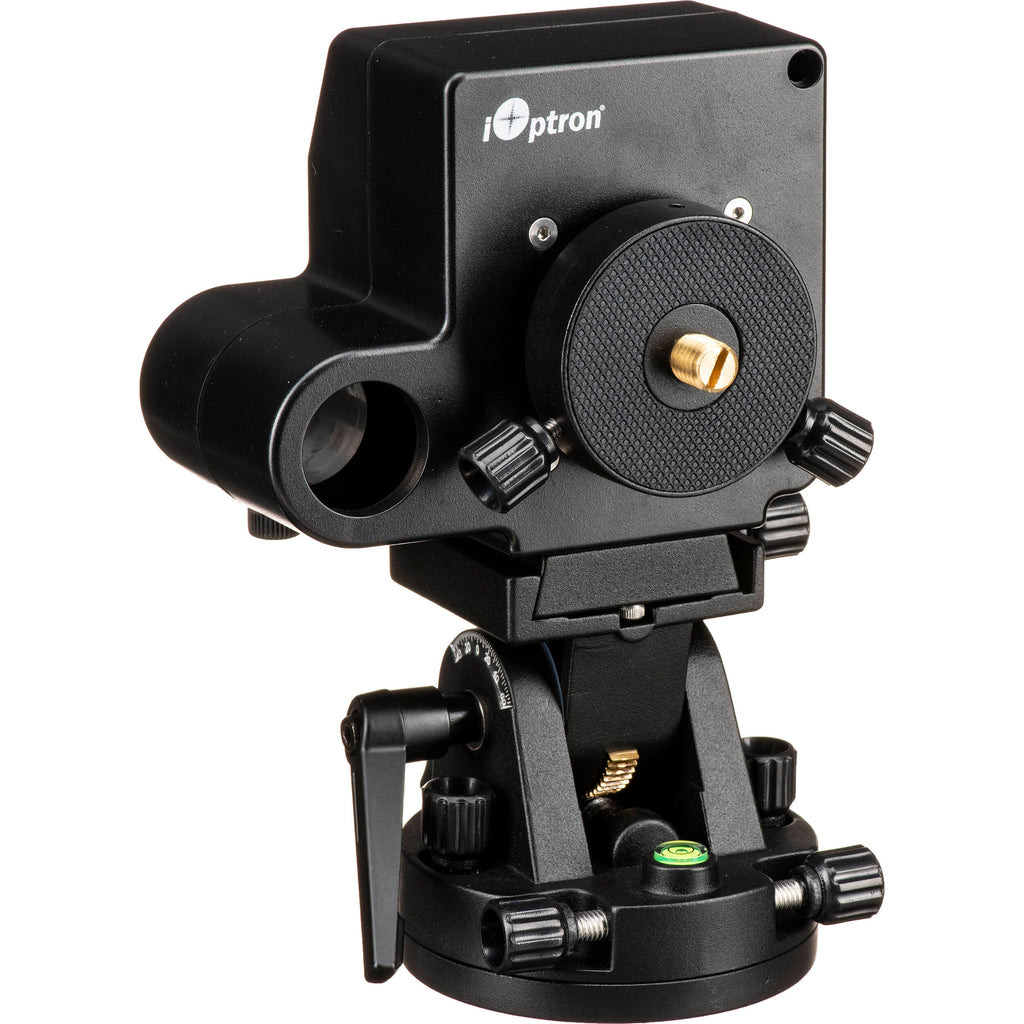

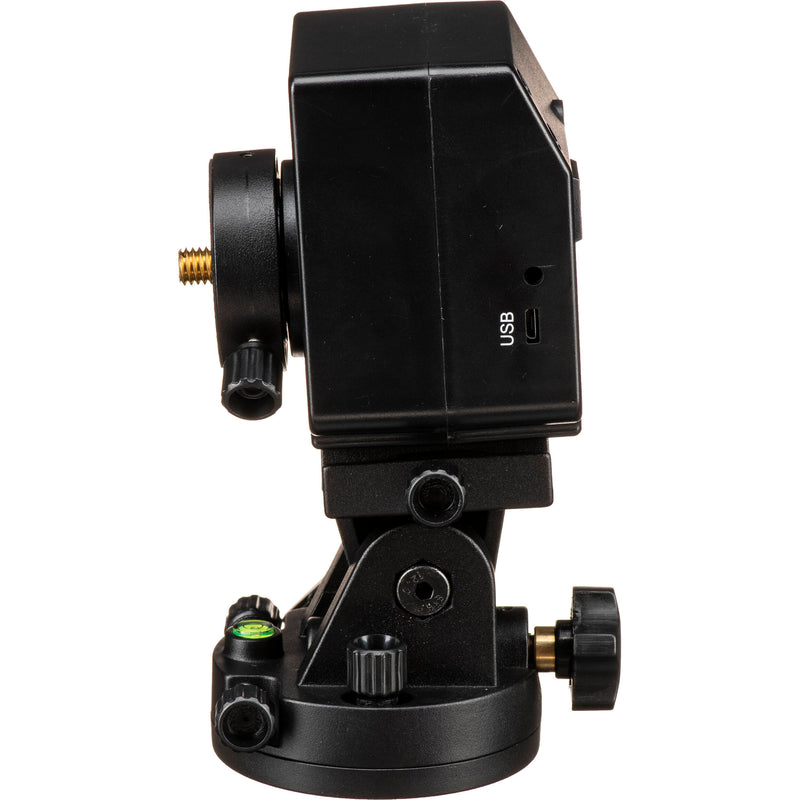

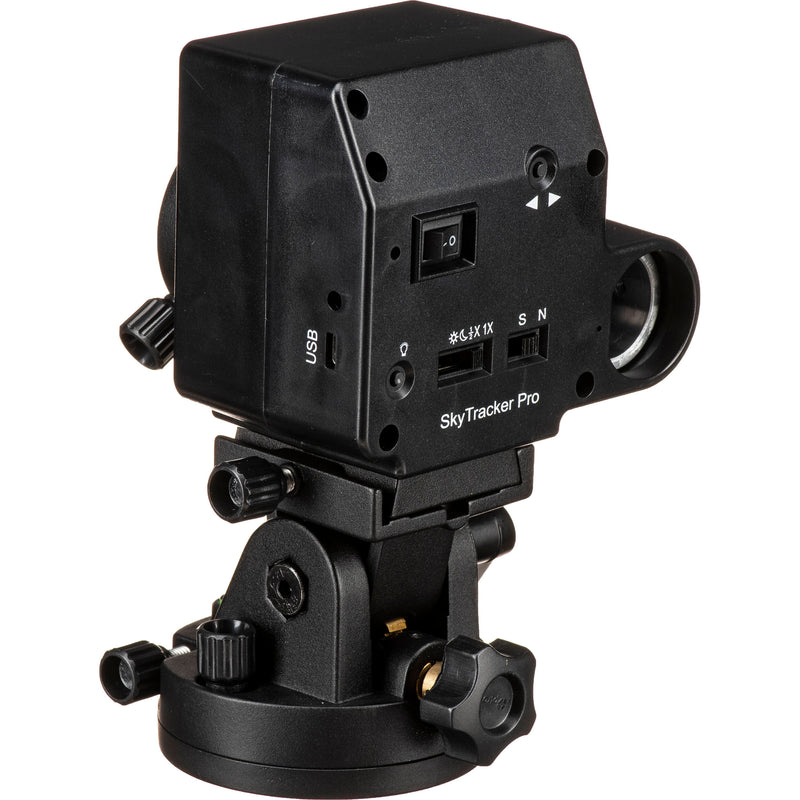

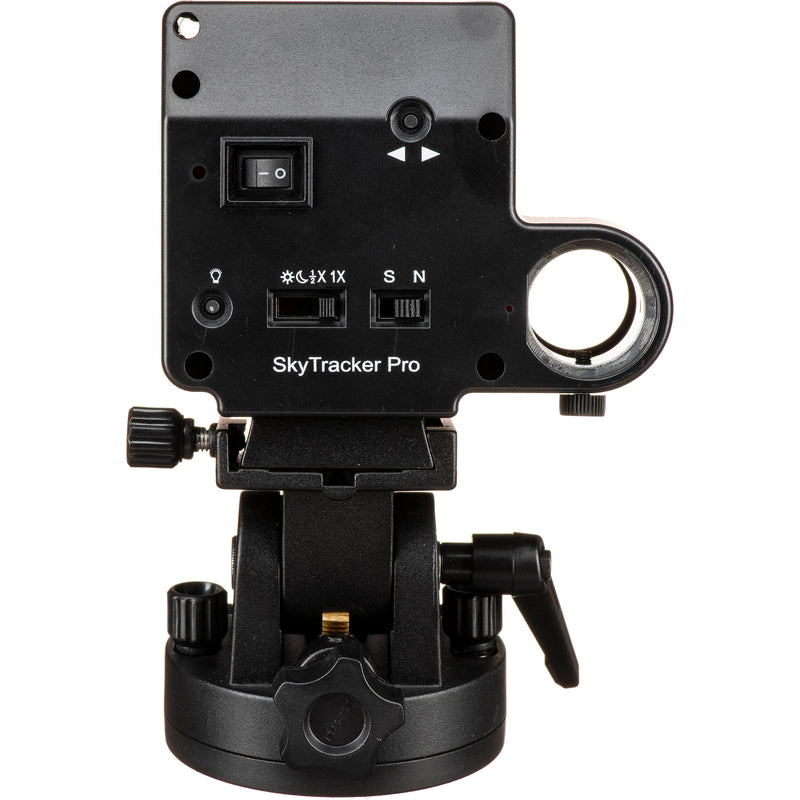

iOptron SkyTracker Pro Overview
- 1Description
- 2Mount Head
- 3Motors and Gears
- 4Mounting
- 5iPolar Electronic Polar Scope
iOptron upgrades their SkyTracker Pro EQ Camera Mount with the addition of the iPolar Electronic Polar Scope�replacing the old-school analog polar scope with precise computer-aided polar alignment for your wide-field astrophotography sessions.
The mount is specifically made to capture long-exposure images of the moon and sun or wide-field photos of the night sky and skyscapes. It offers smooth and quiet right ascension motor tracking for clear imaging and precise tracking and multiple mounting options for both the camera and the mount itself. An internal rechargeable battery has a runtime of up to 24 continuous hours on a single charge so you'll be able capture multiple images with different filters or build stunning long time-lapse videos.
The single-axis servo motor features four tracking speeds: solar, lunar, 1x celestial (for tracking wide-field star patterns), and 1/2x celestial (for combination skyscape framing). Its tracking rates can be used in both the Northern and Southern hemispheres for worldwide use. The included iPolar Electronic Polar Scope is plug-and-play compatible with Windows PCs and makes precise polar alignment fast and easy using the on-screen computer instructions. Power for the iPolar comes via the USB computer connection, so it won't deplete the SkyTracker's battery and affect its runtime.
The SkyTracker comes in two parts: the Alt-Az base and the tracker module. The base attaches to 3/8"-16 photo/video/field tripod posts via its socket or 1/4"-20 posts with the included adapter plug. The tracking module can be attached to the base with a simple Vixen-style dovetail plate and saddle or directly to a tripod via a 3/8"-16 socket. The camera mounts onto the tracking module's motorized plate using an optional ball head for camera rigs up to 2.6 pounds, or with an optional counterweight kit for rigs from 2.6 to 6.6 pounds, including the lens.
Mount Head
- Single-axis equatorial
- 6.6-pound payload capacity
- 30 to 65° latitude adjustment range with Alt-Az base
- ±5° AZ adjustment range
- Camera mounts on optional ball head or counterweight kit, available separately
- Aluminum alloy construction with ABS polycarbonate covers
- Mount and base weighs 2.5 pounds
- Internal Li-Poly 2000mAh battery with up to 24 hours of continuous runtime
- Micro-USB charging, reaches 80% charge in 5 hours
- Wide 5 to 104° operating temperature
Motors and Gears
- Single right-ascension DC servo motor
- Quiet and virtually vibration-free for steadier imaging
- Tracking speeds: 1x celestial, 1/2x celestial, solar, lunar
- 180x forward and reverse fast slew speeds for polar alignment and to find objects
- Selectable Northern or Southern hemisphere
- Right ascension shaft: 25mm diameter, steel
- Worm wheel: 74mm diameter, 144 teeth, aluminum alloy
- Worm gear: 11mm diameter, brass
- Four-piece bearing
Mounting
- Mount and base only. A tripod is required for proper use
- SkyTracker attaches to base with a Vixen-style dovetail plate and saddle
- Mount SkyTracker directly to photo/video ball heads or tripod via 3/8"-16 or 1/4"-20 socket
- Optional counterweight kit for smoother and more accurate tracking
- Camera mounts to SkyTracker with a standard 1/4"-20 threaded post
iPolar Electronic Polar Scope
- Designed to fit directly into the SkyGuider Pro
- Installs without the need for additional adapters or mounts
- Utilizes a digital camera and downloadable computer software for Windows PC to provide accurate polar alignment anywhere on earth
- Works even if pole stars are not visible or the night is cloudy or suffers from light pollution
- Simple on-screen alignment instructions
- Plug-and-play; no drivers required
- Powered by USB computer connection
- 24" USB cable included
In the Box
- iOptron SkyTracker Pro EQ Camera Mount with iPolar Polar Scope (Mount Only)
- iOptron iPolar Electronic Polar Scope
- Padded Carrying Case
- Micro-USB Charging Cable
- Limited 1-Year Warranty
- Limited 90-Day Battery Warranty
- Description
- Mount Head
- Motors and Gears
- Mounting
- iPolar Electronic Polar Scope
iOptron SkyTracker Pro Specs
| Construction | Die-Cast Aluminum with ABS Cover |
| Payload Capacity | 6.6 lb / 3.0 kg |
| Mount Type | Equatorial |
| Motor Drive | Right-Ascension Single-Axis DC Servo |
| Adjustment Range | Latitude: -30 to 65º, with Alt-Az Base AZ: ±5° |
| Mounting | Base to Tripod: 3/8"-16, or 1/4"-20 with Included Adapter Base to SkyTracker: Vixen-Style Dovetail SkyTracker to Camera: 1/4"-20 |
| Battery | Internal Lithium-Poly, 3.7 V, 2000 mAh |
| Runtime | 24 h Max, Continuous Operation at 68°F / 20°C |
| Charging | Micro-USB Port, 5 VDC Charges to 80% in 5 h |
| Operating Temperature | 5 to 104°F / -15 to 40°C |
| Dimensions | 4.5 x 4.5 x 3.7" / 11.5 x 11.5 x 9.5 cm Base Diameter: 3.1" / 8.0 cm |
| Weight | Mount Only: 1.5 lb / 685 g, with Battery Mount with Base: 2.5 lb / 1.2 kg |
| Package Weight | 3.545 lb |
| Box Dimensions (LxWxH) | 8.6 x 5.9 x 5" |
