Description
iOptron CEM26 Overview
- 1Description
- 2Mount
- 3Motors and Gears
- 4Go2Nova 8409 Hand Controller
- 5LiteRoc Tripod
- 6Hard Carrying Case

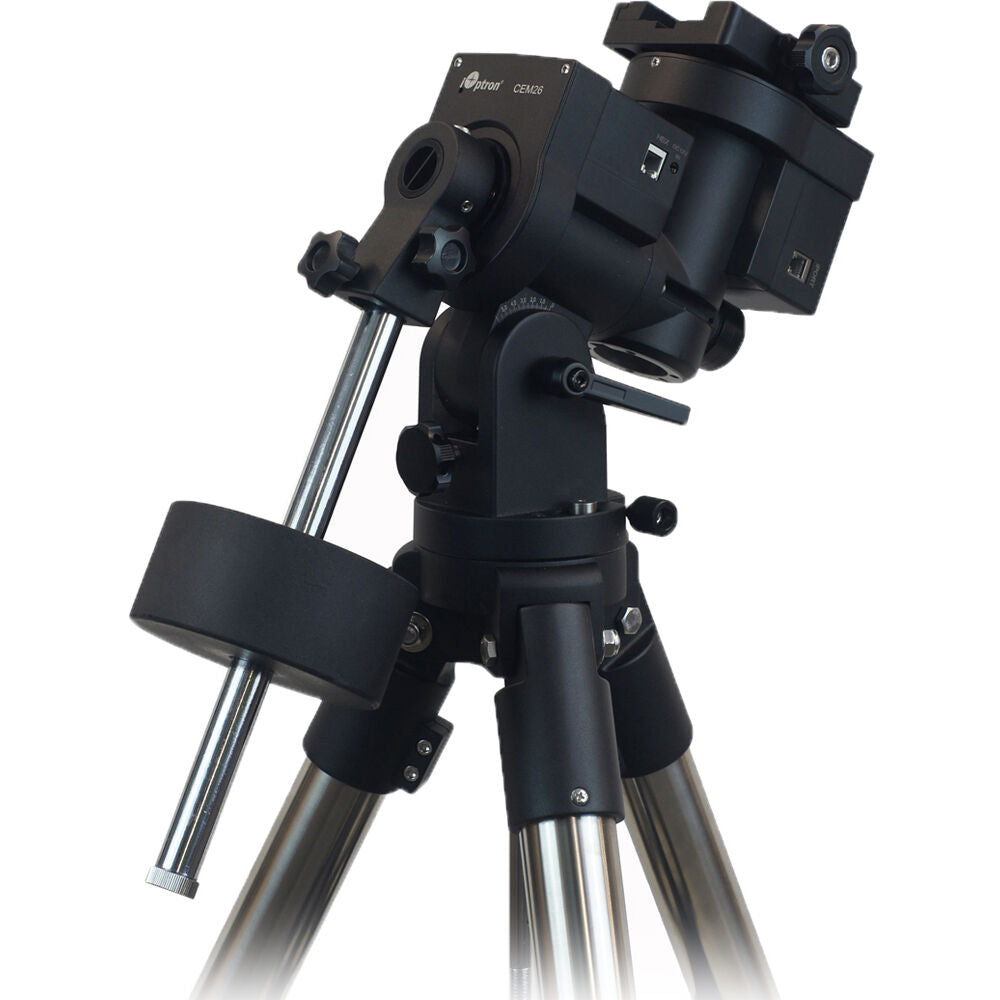

With a head design and precise synchronous belt transmission that improve tracking accuracy with reduced vibration, the iOptron CEM26 Center-Balance GoTo EQ Mount makes an ideal mount for your astronomy and astrophotography needs when using small to medium refractors, reflectors, or Cassegrain optical tubes. Its combination of powerful computer hand controller, iPolar electronic alignment scope, and integrated Wi-Fi module enable you to spend less time aligning your mount and more time enjoying the wonders of the universe. In addition to the mount head, you also get iOptron's LiteRoc tripod that provides the stability of a 2" tripod, but with lighter 1.75" diameter legs and a hard carrying case for the mount head and accessories like the hand controller.
Mount
- Ideal for small to medium sized refractors, reflectors, and Cassegrain optical tubes
- German equatorial configuration provides smooth and accurate single axis celestial tracking for observation and astrophotography
- Center-balanced "Z" design places weight over the mount's center of gravity to provide greater stability, smoother movement, and quieter running while requiring less counterweight
- <±10 arcsec of periodic error that can be trained out over time with PEC function on hand controller
- 26-pound payload capacity, excluding included counterweight
- 0-60° latitude; ±6° azimuth adjustment range
- Integrated iPolar electronic polar finder works globally; no Polaris (north) or Sigma Octantis (south) necessary; no need to rotate the mount during alignment
- Built-in Wi-Fi module allows you to control the mount via smartphones running controller app
- 3.8" Vixen-style dovetail saddle
- Retractable counterweight bar prevents hitting the tripod or otherwise interfering with the mount's movement; 10-pound counterweight included
Motors and Gears
- Synchronous belt transmission improves tracking accuracy, with reduced vibration, especially with heavy loads
- Less than ±10 arcsec periodic tracking error
- 1.8° stepper motor with 128x microdivision
- 88mm, 144-tooth right ascension (RA) and declination (dec) worm wheels with zero backlash
- 55mm RA and declination ball bearings provide smooth movement with minimal vibration
- 35mm steel RA and dec axis shafts
- RA and declination gear switches release the gears for balancing OTA
- 0.17 arcsec (200 pulse/sec) motor resolution
- Low-power consumption: 0.5A (tracking), 0.8A (using GoTo)
- Runs on included 12 VDC 5A power adapter; plugs into a standard 110-240 VAC North American outlet
Go2Nova 8409 Hand Controller
- 212,000-object database includes the moon, sun, planets, stars, comets, asteroids, and constellations
- Multiple assisted alignment procedures use the iPolar electronic polar finder
- Slew speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX (6°/sec)
- Permanent periodic error correction eliminates tracking errors for long-exposure astrophotography
- Automatic tracking rate based on the selected object being tracked
- ASCOM-compatible computer control with planetarium software via integrated ST-4 autoguiding port
- Serial port for firmware upgrade
- Adjustable key and display brightness
- 8-line/21-character LCD screen; backlit 19-button user interface
LiteRoc Tripod
- Innovative design provides the stability of a large 2" tripod, but with lighter 1.75" diameter legs
- Specially designed leg cuffs and sockets and locking levers add rigidity with less wobble when legs are fully extended
- Spreader locks legs into position to add stability and vibration suppression
- Set of three vibration-suppression foot pads help to virtually eliminate vibration caused by footsteps, passing cars & trucks, and wind
- Minimum height: 30" (76.5 cm)
- Maximum height: 46" (116.8 cm)
- Weight: 15 pounds

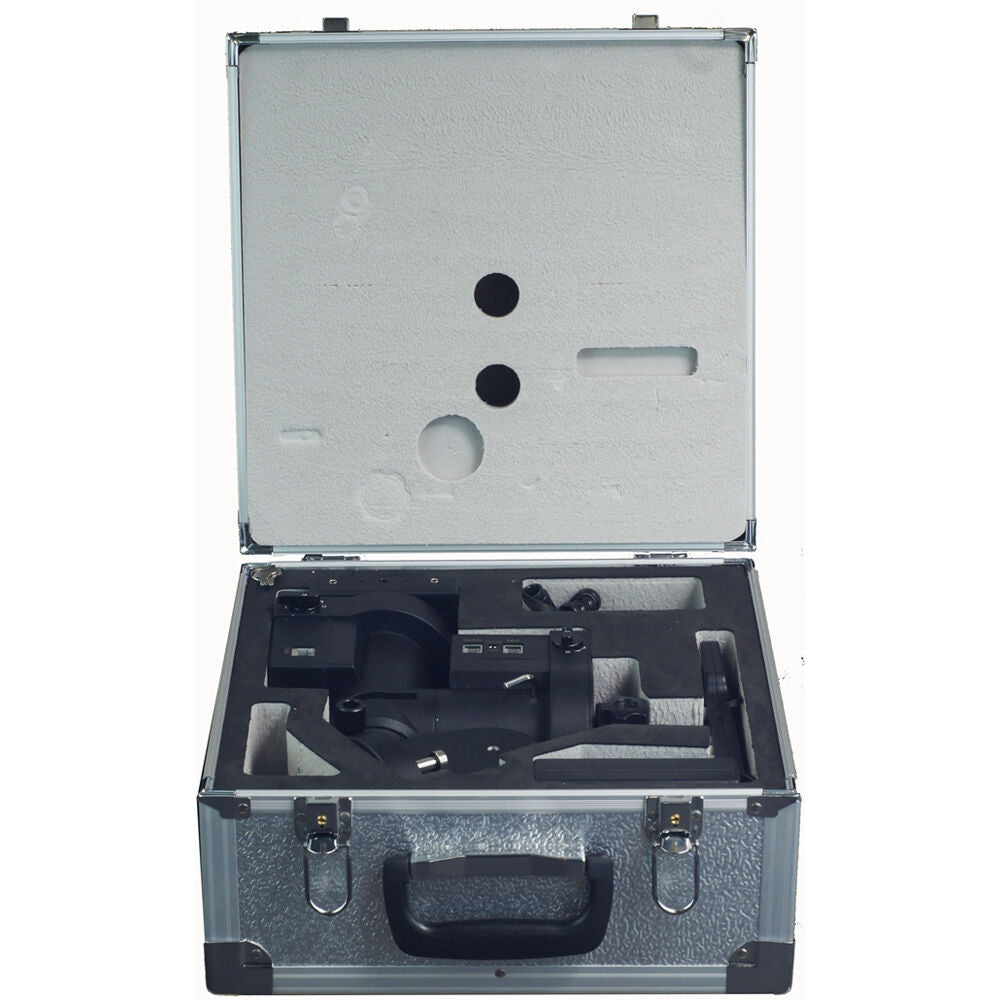

Hard Carrying Case
- Holds mount head, hand controller, and accessories
- Custom-cut foam interior holds contents secure and prevents them from shifting or knocking together
- Foam lid insert provides complete protection for delicate gear
- Lightweight and durable aluminum exterior protects against impacts
- Reinforced edges and corners
- Dual locking lever latches
- Hard hinged carry handle
In the Box
- iOptron CEM26 Center-Balance GoTo EQ Mount with LiteRoc Tripod & Hard Carry Case
- Hard Carrying Case for Mount Head
- LiteRoc Tripod
- 3 x Vibration-Suppression Pad
- iPolar Electronic Polar Scope
- Go2Nova 8409 Controller
- Counterweight Shaft
- 10 lb Counterweight
- 110-240 VAC Power Adapter
- Limited 2-Year Warranty
Table of Contents
- Description
- Mount
- Motors and Gears
- Go2Nova 8409 Hand Controller
- LiteRoc Tripod
- Hard Carrying Case
iOptron CEM26 Specs
Mount
| Mount Type | Motorized; German Equatorial |
| GoTo Capability | Yes, Go2Nova 8409 |
| Payload Capacity | 26 lb / 11.8 kg (without Counterweight) |
| Motor | Dual Axis |
| Tracking Rates | King, Lunar, Sidereal, Solar, User |
| Altitude Adjustment | 12° |
| Latitude Adjustment | 0 to 60° |
| Counterweight | 1 x 10.0 lb / 4.5 kg |
| Polar Axis Scope | Yes (Included) |
Tripod
| Height Adjustment Range | 30 to 46" / 76.2 to 116.8 cm |
| Leg Diameter | 1.75" / 4.45 cm |
| Leg Sections | 2 |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
General
| Power Source | AC Adapter (Included) |
| DC Input Power | 12 VDC |
| Mounting | To Optical Tube Assembly: Vixen-Type Saddle |
| GPS | No |
| Wi-Fi | Yes (Built In) |
| Materials | Steel (Tripod) |
| Dimensions | Not Specified by Manufacturer |
| Weight | 10 lb / 4.5 kg (Mount) 15 lb / 6.8 kg (Tripod) |
