IOGEAR SW8431 Overview

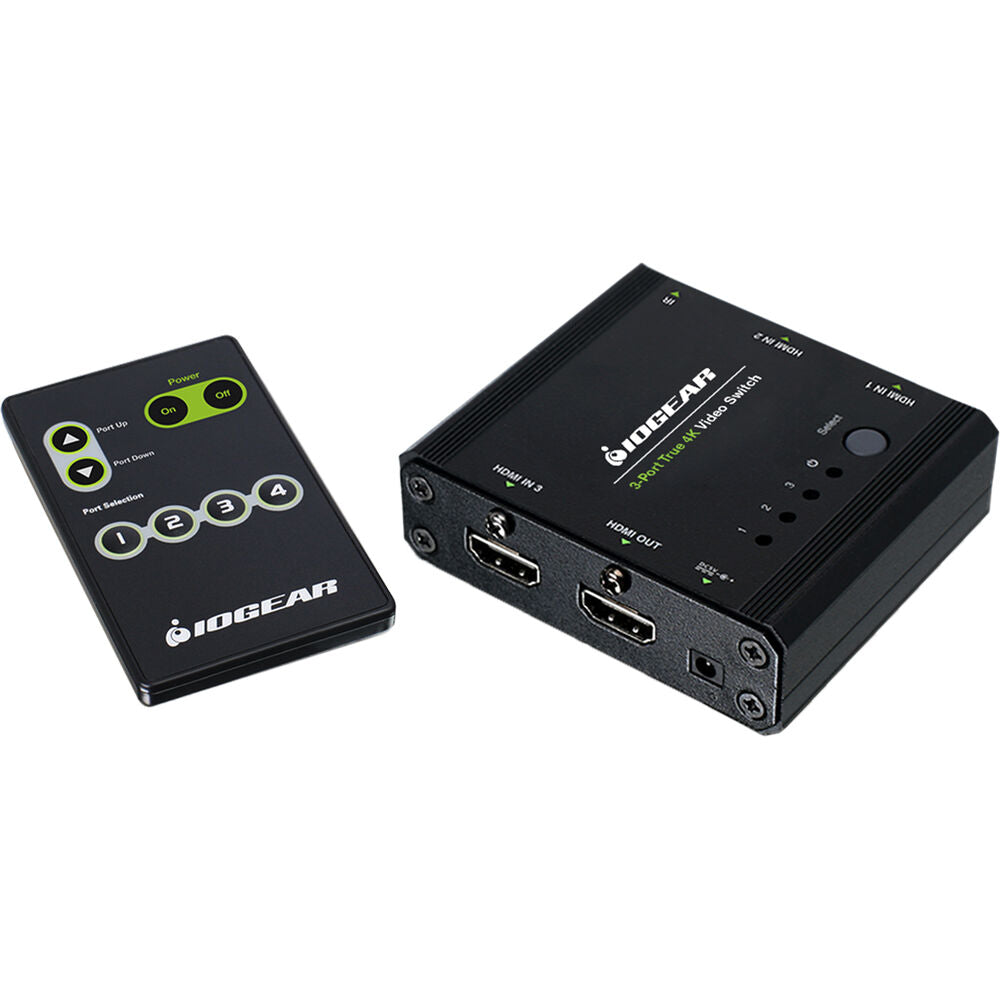

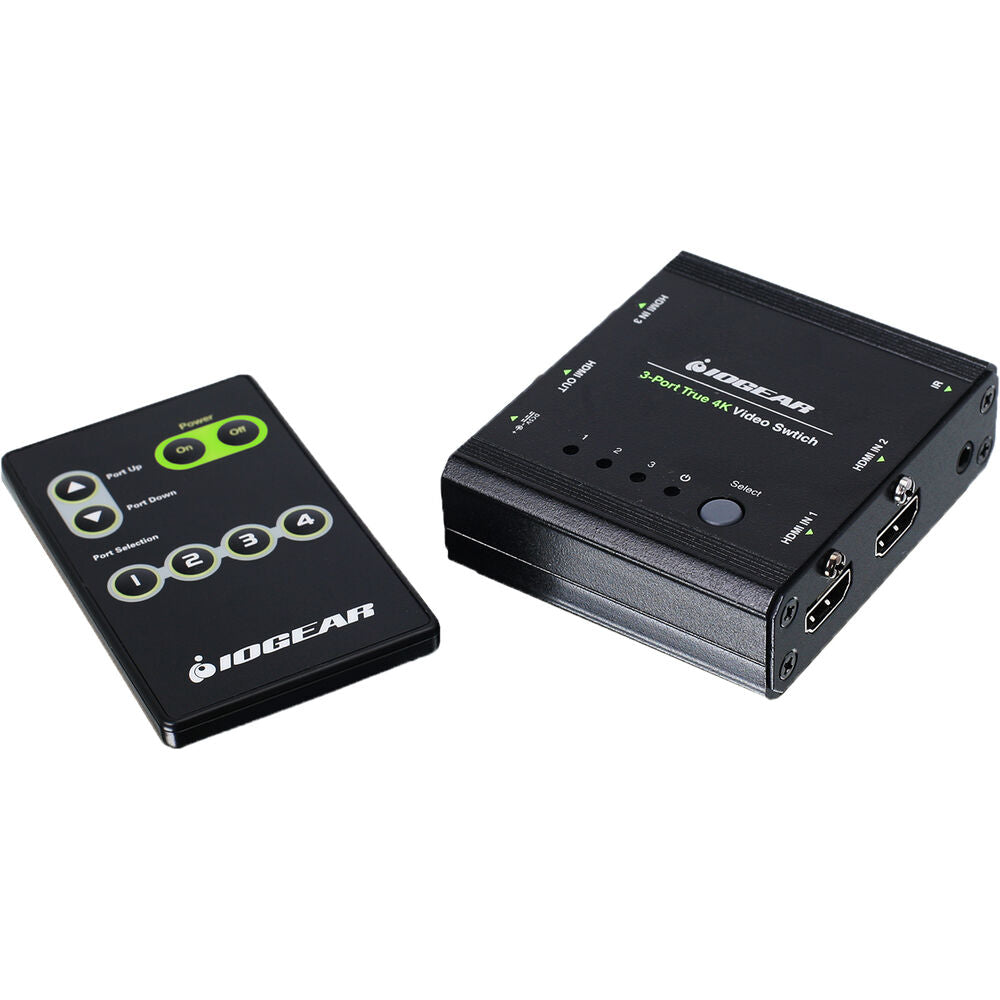

Switch up to three DCI 4K HDMI source onto one 4K display with this True 4K 3-Port HDMI Switch from IOGEAR. The switcher features three HDMI inputs and one HDMI output and supports up to True DCI 4K resolution 4096 x 2160p60. Other feature support includes DTS-HD, Dolby True HD, LPCM 7.1 audio pass-through, HDCP 2.2, and CEC support. It supports data rates up to 18 Gb/s and auto-switching.
You can switch between sources via front-panel push-buttons or the included remote control, while LED indicators on the front panel confirm your selections. There's also an IR extension port that will allow you to connect an optional IR extension cable so you can keep the switcher out of sight. You can also cascade video switchers up to three levels to switch up to 27 sources. The switcher is powered using the included USB to micro-USB cable and a separately available power adapter.
Key Features
Connect and switch between three HDMI sources on one HDMI display
True 4K resolutions to DCI 4K: 4096 x 2160p60 (4:4:4)
Cascade up to 3 levels (27 source ports)
Distribute uncompressed audio formats
Flexible control via push-button, IR remote control
Auto-Switch mode detects and selects new HDMI port connections
7.1 LPCM, Dolby True HD, and DTS-HD Master Audio digital audio output
Supports high-speed data rates up to 18 Gb/s
![]()
UPC: 881317519764
In the Box
- IOGEAR True 4K 3-Port HDMI Switch
- IR Remote Control
- IR Extension Cable
- USB to Micro-USB Power Cable
- Limited 3-Year Warranty
IOGEAR SW8431 Specs
Processing
| Switching Type |
IR Remote, Pushbutton |
Input
| Video Input Connectors |
3 x HDMI Female |
| Input Video Format |
HDMI (4:4:4)
DCI 4K: 60 fps
|
| Embedded Audio Input |
HDMI |
Output
| Video Output Connectors |
3 x HDMI Female (Pass-Through) |
| Output Video Format |
HDMI (4:4:4)
DCI 4K: 60 fps
|
| Embedded Audio Output |
HDMI |
Connectivity
| HDCP Support |
Version 2.2 |
| HDR Compatibility |
HDR10 |
| DTS Compatibility |
DTS-HD Master Audio |
| Dolby Compatibility |
Dolby TrueHD |
Power
| Power Connector |
1 x USB Micro-B (5 VDC) Input |
| Power Consumption |
Device: 500 mA |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Operating Humidity |
0 to 80% |
Packaging Info
| Package Weight |
0.68 lb |
| Box Dimensions (LxWxH) |
6.1 x 5 x 1.7" |
