Description
IOGEAR GBB1000N Overview
- 1Description
- 2Online UPS Battery Design
- 3
- 4Programmable Power Management Outlets
- 5Emergency Power Off Function
- 6SNMP, USB, RS-232 - Multiple Communications
- 7Swappable Battery Design
- 8Efficient Power Modes
- 9Multi-Functional LCD Interface
- 10Add an External Battery Pack for Extended Runtime

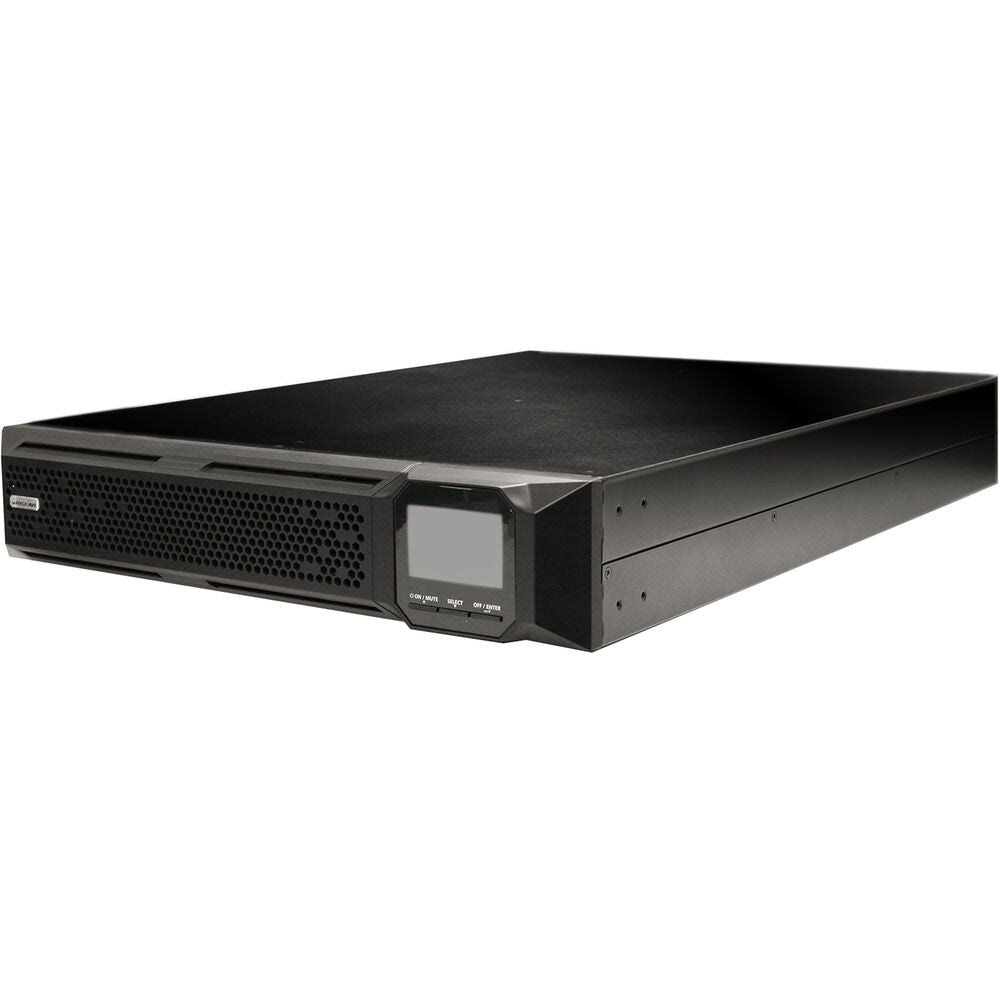

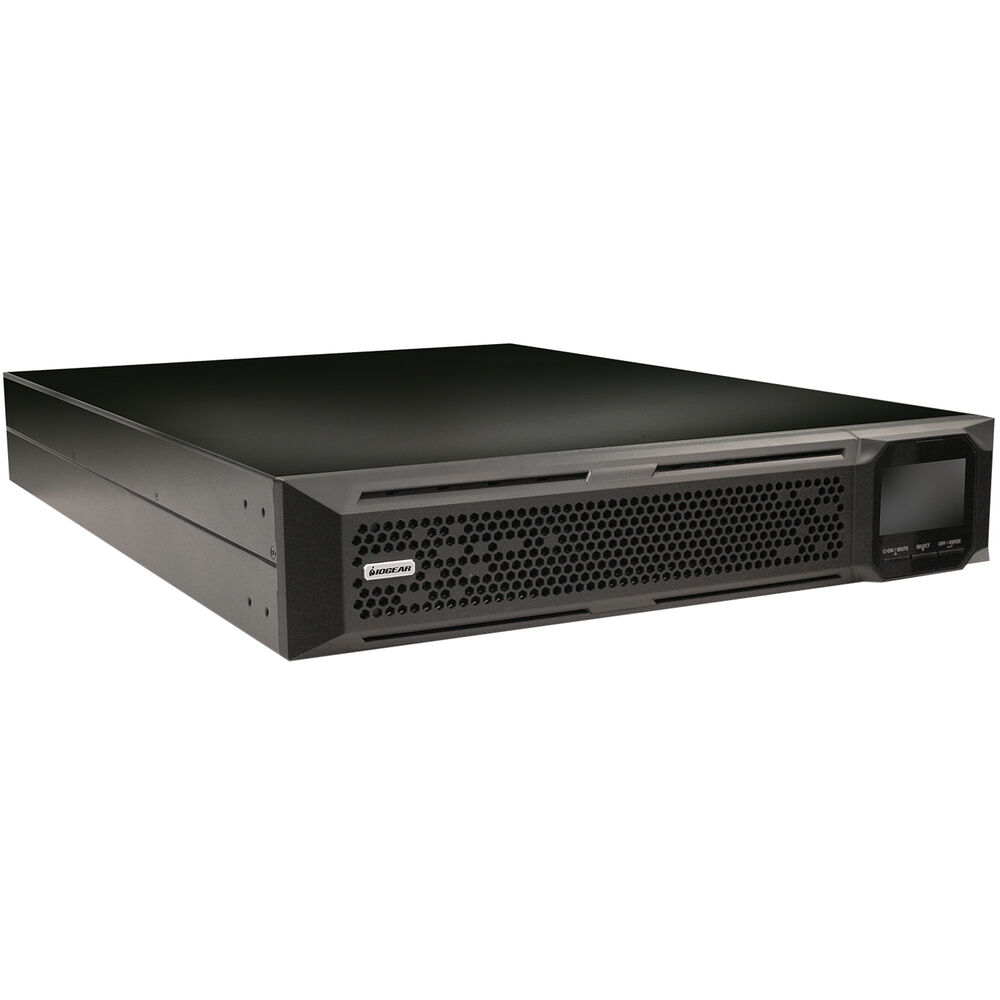

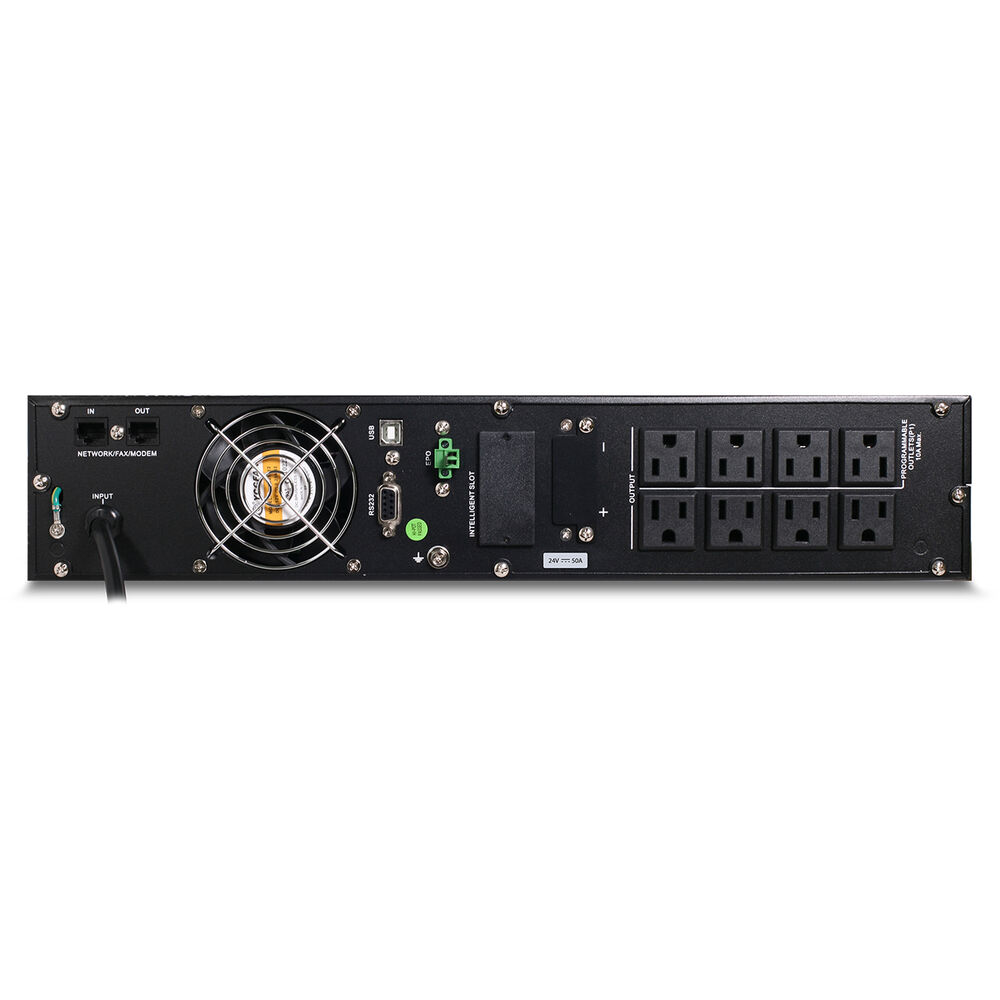

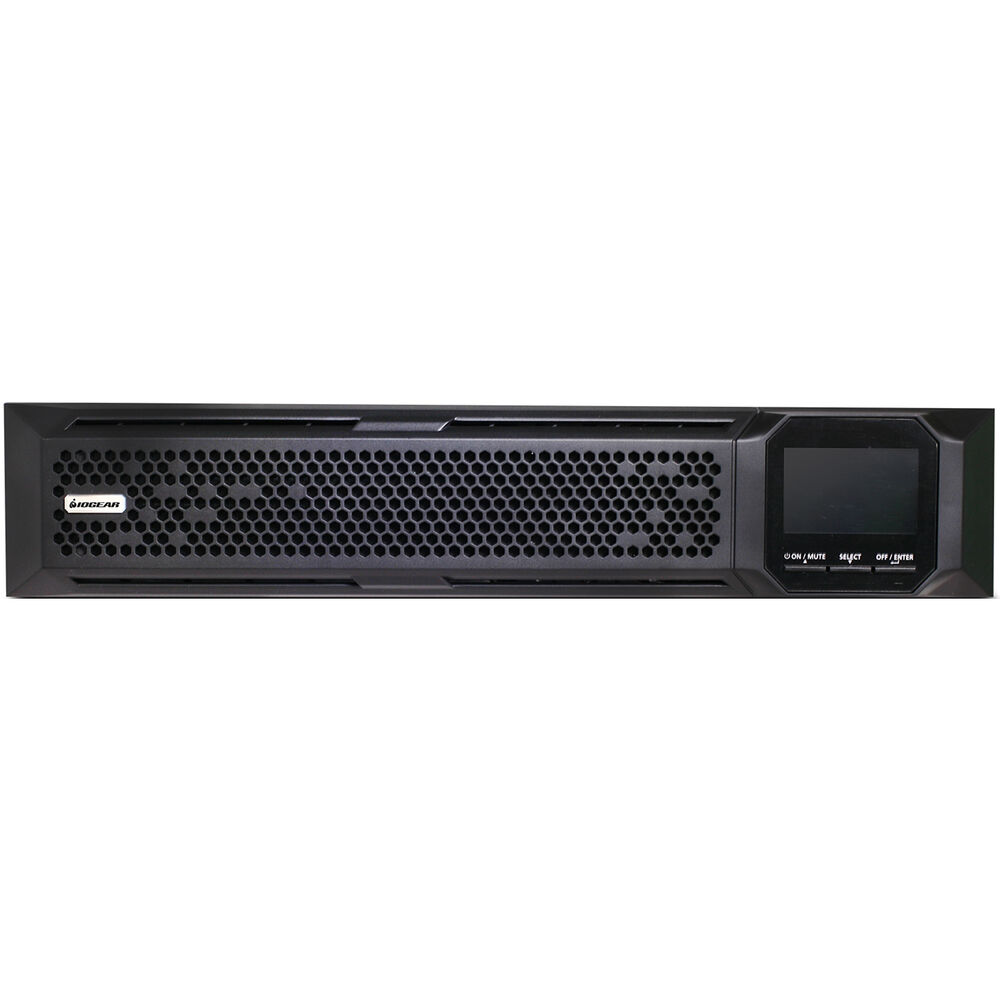

Designed for 2 RU server rack configurations that support data, network, and communication applications, the Online UPS Battery Back Up GBB1000N from IOGEAR is a high-performance UPS with double-conversion topology that provides battery backup and power protection via sine waveform output, plus surge protection to critical applications and equipment that require seamless power correction. The GBB1000N comes equipped with eight NEMA 5-15R battery and surge outlets, a 6' NEMA 5-15P plug, an output capacity of 1000VA / 1000W, an input voltage range of 55-150 VAC @ 40-70 Hz, double-conversion topology, and a sine waveform output, as well as USB Type-B, RS-232, and RJ45 ports. When running a full load, the GBB1500N lasts for 2.95 minutes, while its half load runtime is 10.1 minutes. For those with greater power needs, the runtime of this UPS can be extended with a 24V External Battery Pack (GBP24V18AH).
When its battery is depleted, the GBB1000N can be recharged up to 95% in around 3 hours. Additionally, a smart charging design lets the UPS optimize battery performance by adjusting the charging voltage according to outside temperatures in order to extend the life of its batteries. Thanks to a multi-functional LCD interface, users will be able to easily monitor UPS functions that include input voltage, battery capacity, power status, battery status, operating status, assessed backup runtime, and more.
Note: When any online UPS battery and extendable battery pack, provided or purchased separately, is not in use, recharge it for 4 to 6 hours every 3 to 6 months.
In the Box
- IOGEAR Online UPS Battery Back Up GBB1000N
- Rackmounting Kit Set

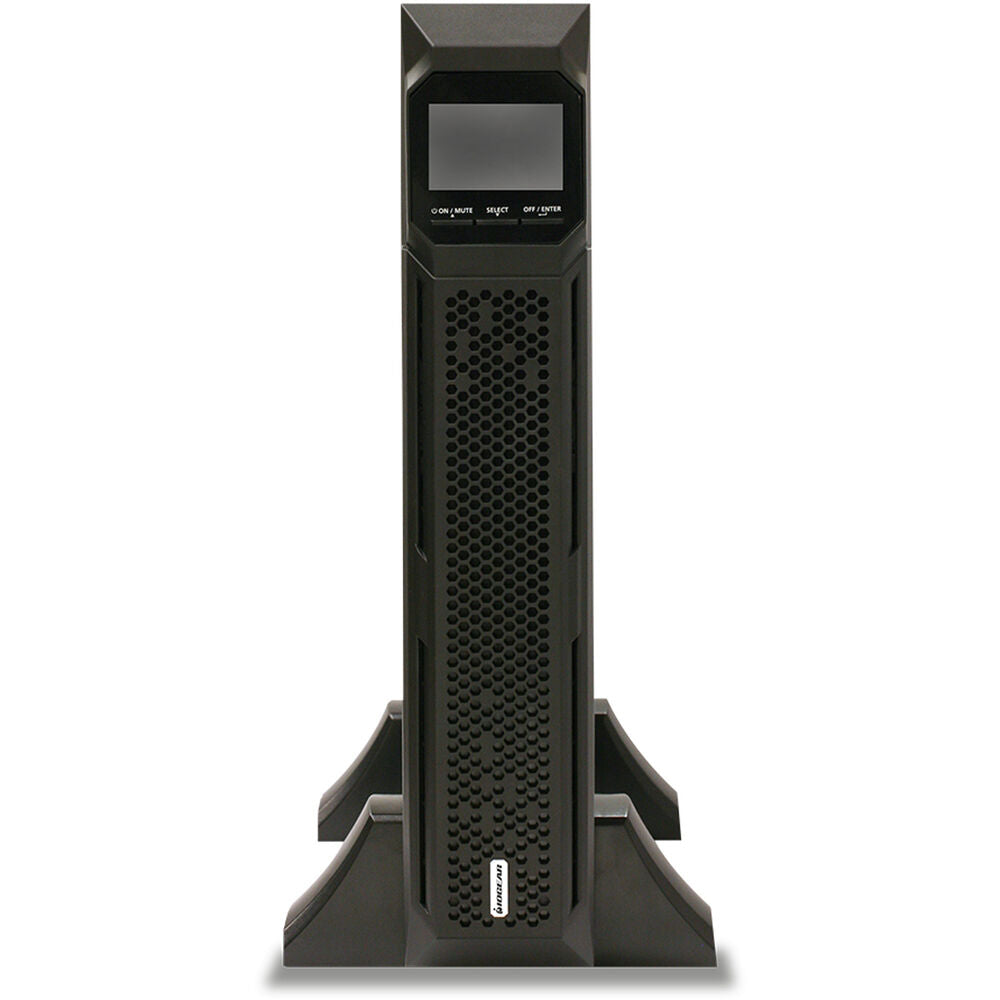

- 4 x Tower Stands
- Rail Slide Kit Set (2 x Slide Rails, 6 x M6 Nuts, 4 x Fixing Studs, 8 x M6 Screws)
- RS-232 Cable
- USB Type-B to Type-A Cable
- Description
- Online UPS Battery Design
- Programmable Power Management Outlets
- Emergency Power Off Function
- SNMP, USB, RS-232 - Multiple Communications
- Swappable Battery Design
- Efficient Power Modes
- Multi-Functional LCD Interface
- Add an External Battery Pack for Extended Runtime
IOGEAR GBB1000N Specs
| Total Outlets | 8 x NEMA 5-15R |
| Protected Outlets | 8 x NEMA 5-15R (Battery and Surge) |
| Plug Type | NEMA 5-15P |
| SmartSlot Interface | 1 |
| Communications | Ethernet (Unspecified) via RJ45 USB via Type-B Serial via DE-9/DB-9 |
| Emergency Power Off (EPO) Support | Yes |
| Topology | Double Conversion |
| Transfer Time | 4 ms |
| Maximum Current | 9.3 A |
| Maximum Wattage | 1000 W |
| Input Voltage Range | 100 to 120 VAC |
| Input Voltage Adjustable Range | 55 to 150 VAC |
| Input Frequency | 50/60 Hz ± 10 Hz |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Load Capacity | 1000 VA |
| Crest Factor | 3:1 |
| Waveform | Sine Wave |
| Cells | 2 |
| Battery Capacity | 108 VAh |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 2.95 Minutes |
| Half-Load Runtime | 10.1 Minutes |
| Recharge Time | 3 Hours |
| User Replaceable | Yes |
| Replacement Battery | GBP24V18AH |
| Hot-Swap Support | Yes |
| External Battery Connection | 1 x IEC Jumper |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Storage Humidity | 10 to 95% (Non-Condensing) |
| Noise Level | 50 dBA |
| Certifications | FCC, UL *as per Manufacturer |
| Cable Length | 6' / 1.8 m |
| Rackmount Size | 2 RU |
| Dimensions (W x H x D) | 17.3 x 3.5 x 16" / 43.9 x 8.9 x 40.6 cm |
| Weight | 28.4 lb / 12.9 kg |
