Description
IOGEAR Dock Pro 4K Quad Overview
By Photo's
John-Paul Palescandolo
Designed for power users looking to expand the connectivity of their USB Type-C laptop or tablet, the Dock Pro Universal 4K Quad Docking Station from IOGEAR is compatible with Windows and Mac. It connects to your host system using a 10 Gb/s USB Type-C port, which also provides it with 100W of passthrough power. The dock itself is powered using either an included 120W AC adapter, or take advantage of a USB Type-C power input to connect a 100W USB Type-C power adapter. Also featured are three 10 Gb/s USB Type-A ports, a dedicated USB Type-A charging port, a 10 Gb/s USB Type-C port, a Gigabit Ethernet port, a 3.5mm audio combo jack, a UHS-I SD card reader, and a UHS-I microSD card reader. There are also four HDMI outputs and four DisplayPort outputs, so you'll be able to connect up to four 4K displays to this dock.
4K Quad View Displays
Expand your desktop with up to four 4K monitors without needing a video adapter. The Universal 4K Docking Station includes four HDMI and four DisplayPort outputs, allowing you to connect any configuration of monitors for your workstation. An Integrated DisplayLink chipset enables most USB Type-C laptops to use up to four 4K displays.
Designed for Power Users
Need more from your laptop? The dock's multiple port options provide everything a power user might need including multiple external hard drives, SD card readers, and wired internet.
Multiple USB Ports
Five built-in 10 Gb/s USB Type-A and USB Type-C (USB 3.2 Gen.2) ports allow you to plug in a variety of different power-user essentials such as keyboards, mice, external hard drives, and more with fast speeds.
Dual Power Options
Power your dock and connected devices with either the provided DC power adapter, or plug in using a USB Type-C power adapter to utilize dynamic power distribution for any connected laptops or peripherals.
Ultimate Compatibility
With an integrated DisplayLink chipset, the dock is compatible with most USB Type-C computers, including Windows 10 and macOS 10.13 and later. It is also compatible with most USB Type-C tablets, such as the iPad Pro and Windows tablets, so you can connect and charge your tablet to experience new connectivity options.
Features

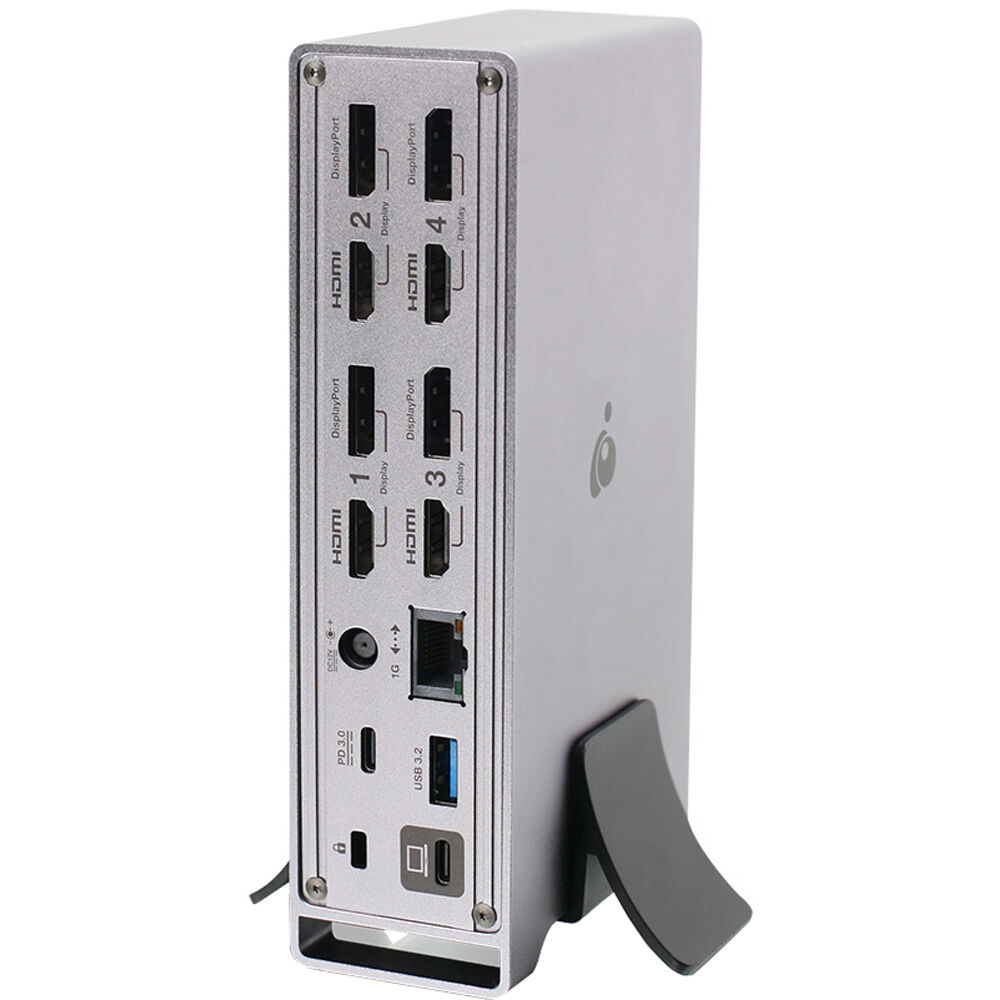

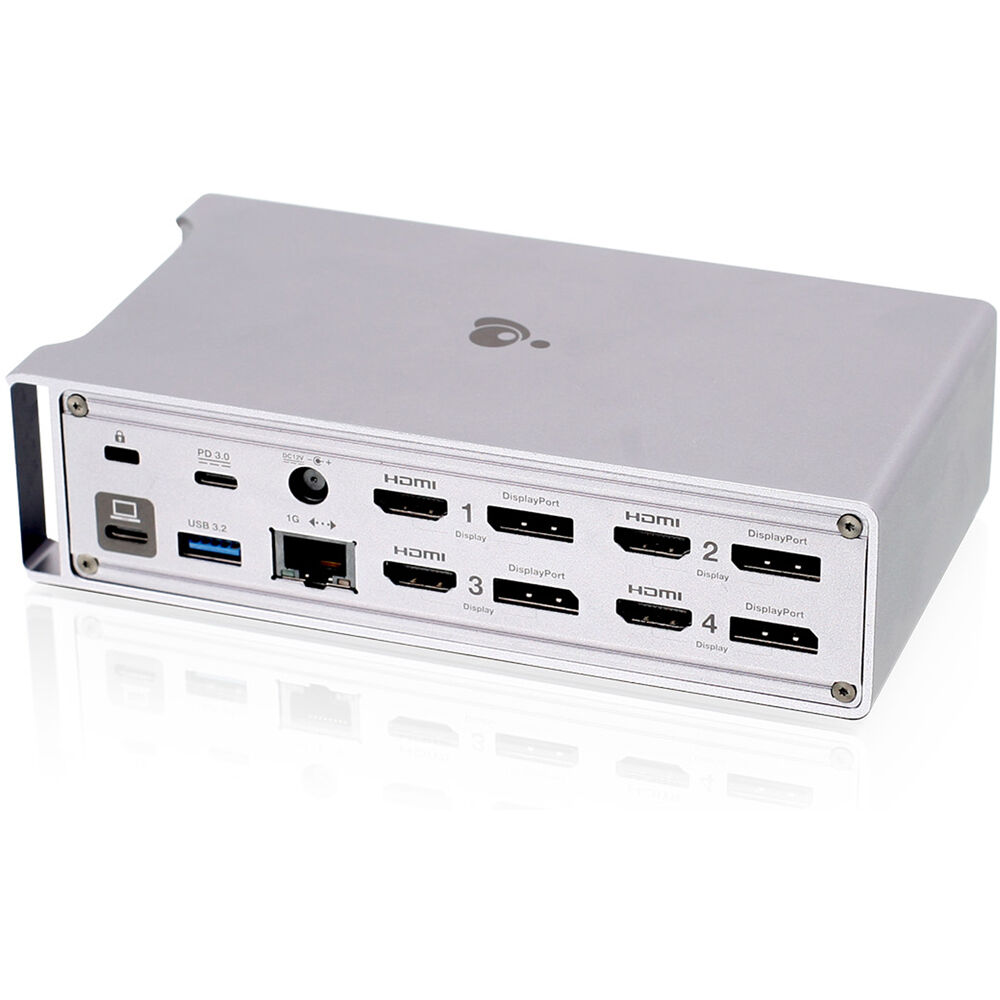

4 x HDMI outputs
4 x DisplayPort outputs

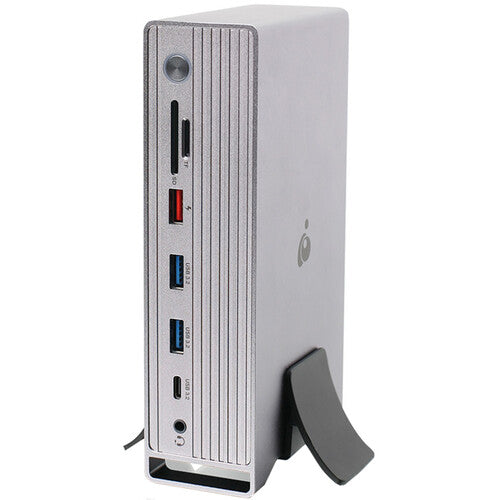

1 x USB Type-C 3.2 Gen 2 (10 Gb/s)
3 x USB Type-A 3.2 Gen 2 (10 Gb/s)
1 x USB Type-A smart charging port (QC 3.0)
1 x Gigabit Ethernet port
1 x 3.5mm combo audio port
1 x UHS-I SD slot
1 x UHS-I microSD slot
DisplayLink chip allows for Windows and macOS compatibility
Power button
Fast role swap of PD3.0
Dynamic power distribution
Dual Power Options
Option 1: DC Jack - max 120W (60-100W for host)
Option 2: USB Type-C PD charging - max 100W (20V/5A)
Requirements
USB Type-C (or Thunderbolt 3) compatible device
Windows 10
macOS 10.13 or later
DisplayLink Driver installation (see DisplayLink's website)
For M1 Mac systems, please check the DisplayLink website for the latest Mac DisplayLink driver
UPC: 881317520890
In the Box
- IOGEAR Dock Pro Universal 4K Quad Docking Station
- Dock Stand
- USB Type-C to Type-A Cable
- 120W DC Power Adapter with Power Cable
IOGEAR Dock Pro 4K Quad Specs
Ports
| USB | 1 x USB-C USB 3.1/3.2 Gen 2 3 x USB-A USB 3.1/3.2 Gen 2 1 x USB-A USB (Charging Only) |
| Thunderbolt | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Display | 4 x DisplayPort 4 x HDMI |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader | 1 x SDXC (UHS-I [104 MB/s]) 1 x microSDXC (UHS-I [104 MB/s]) |
Host Connections
| Host Connection | USB-C 3.1/3.2 Gen 2 |
| Connection Type | Detachable Cable |
| Powered Connection | 100 W USB Power Delivery 3.0 |
General
| Number of Displays Supported | 4 |
| Maximum Resolution Supported | 3840 x 2160 |
| OS Compatibility | Windows 10 macOS 10.13 or Later *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| UASP Support | No |
Power
| Power Source | AC Adapter |
| Power I/O | Barrel Connector (Unspecified Diameter) (Input) USB-C (Input) |
| Maximum Power Consumption | 120 W (AC Adapter) |
Physical
| Color | Silver |
| Lock Slot | Yes |
| Dimensions | 6.6 x 3.5 x 1.7" / 16.8 x 8.9 x 4.3 cm |
| Weight | 1.65 lb / 0.75 kg |
Packaging Info
| Package Weight | 3.345 lb |
| Box Dimensions (LxWxH) | 9.2 x 6.9 x 4" |
