IOGEAR Access Pro Overview
-
1Description
-
2Plug-and-Play
-
34K UHD Resolution
-
4Samsung DeX Support
-
5Compatibility
Access Pro™ 2-Port USB-C KVM Switch with Power Delivery

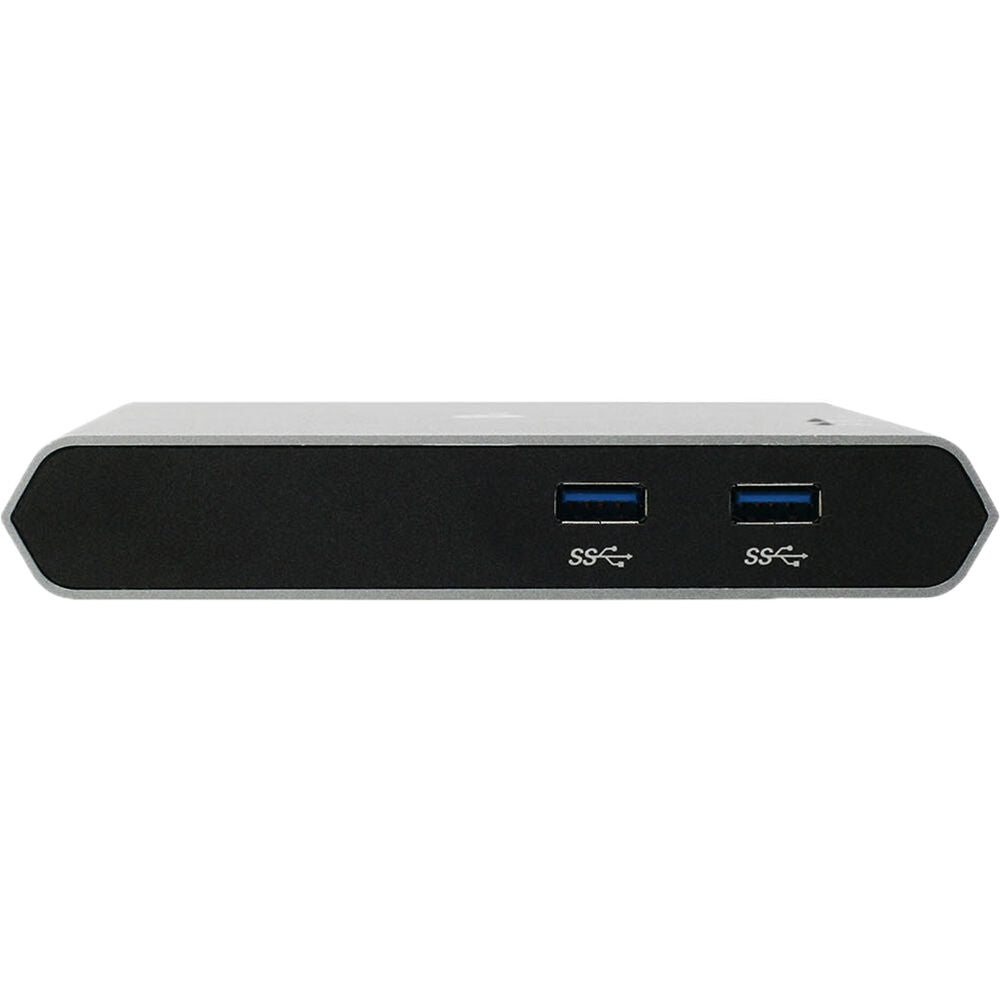

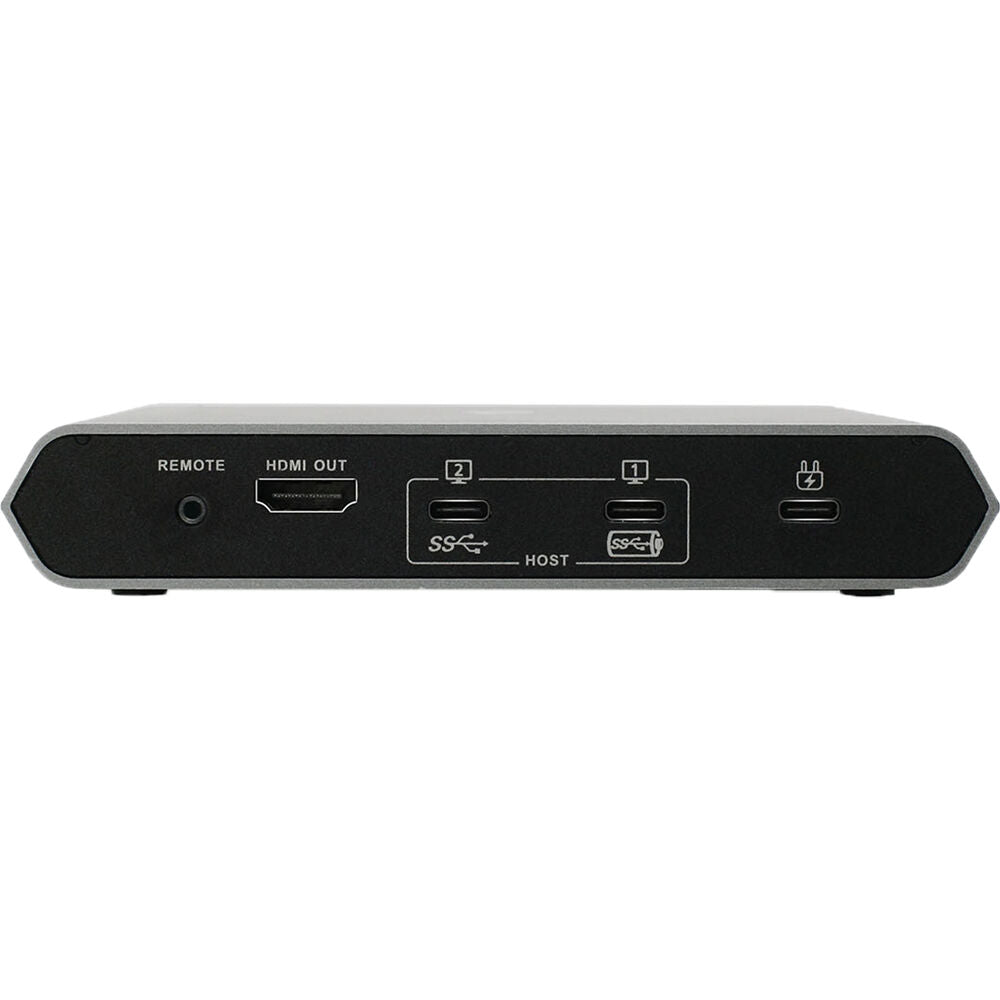

Switch control between two Thunderbolt 3 or USB Type-C devices with DP Alt mode using one keyboard, mouse, and 4K HDMI monitor with the Access Pro 2-Port USB Type-C KVM Switch with Power Adapter Kit from IOGEAR. This kit includes a 2-port USB Type-C KVM switch, a 60W power adapter, and a USB Type-C cable, which connects to the USB Type-C power delivery port. The rear of the KVM switch includes two labeled USB 3.1 Gen 1 Type-C ports, with port 1 providing up to 75W of power for laptops and port 2 providing up to 10W of power for smartphones and other small portable devices. External monitors connect to the HDMI 1.4b port, which supports up to 3840 x 2160 at 30 Hz for laptops and 1920 x 1080 at 60 Hz for smartphones and tablets. There are also two USB 3.1 Gen 1 Type-A ports located on the front that can transfer up to 5 Gb/s from compatible devices such as flash drives. Users can switch between devices using the pushbutton remote, which has an integrated 6' cable that connects to the KVM's rear 3.5mm jack.
Plug-and-Play
No additional hardware or drivers are required. With its compact size, the kit can be stored in a bag for easy travel.
4K UHD Resolution
Enjoy 4K 3840 x 2160 resolution content at 30 Hz with compatible connected USB Type-C and Thunderbolt 3 laptops. The KVM supports 1080p resolution at 60 Hz with connected smartphones and tablets.
Samsung DeX Support
This KVM switch supports DeX Mode on select Samsung USB Type-C devices, including the Galaxy S8, S8+, S9, S9+, S10, and S10+, Note 8 and Note 9, and Tab S4 in addition to other Android devices that support a mirrored screen.
Compatibility
Windows 10 (32- and 64-bit)
macOS 10.12 and later
iPadOS 12.1 and later; iPad Pro 3rd generation (2018)
Android 8+
![]()
UPC: 881317519856

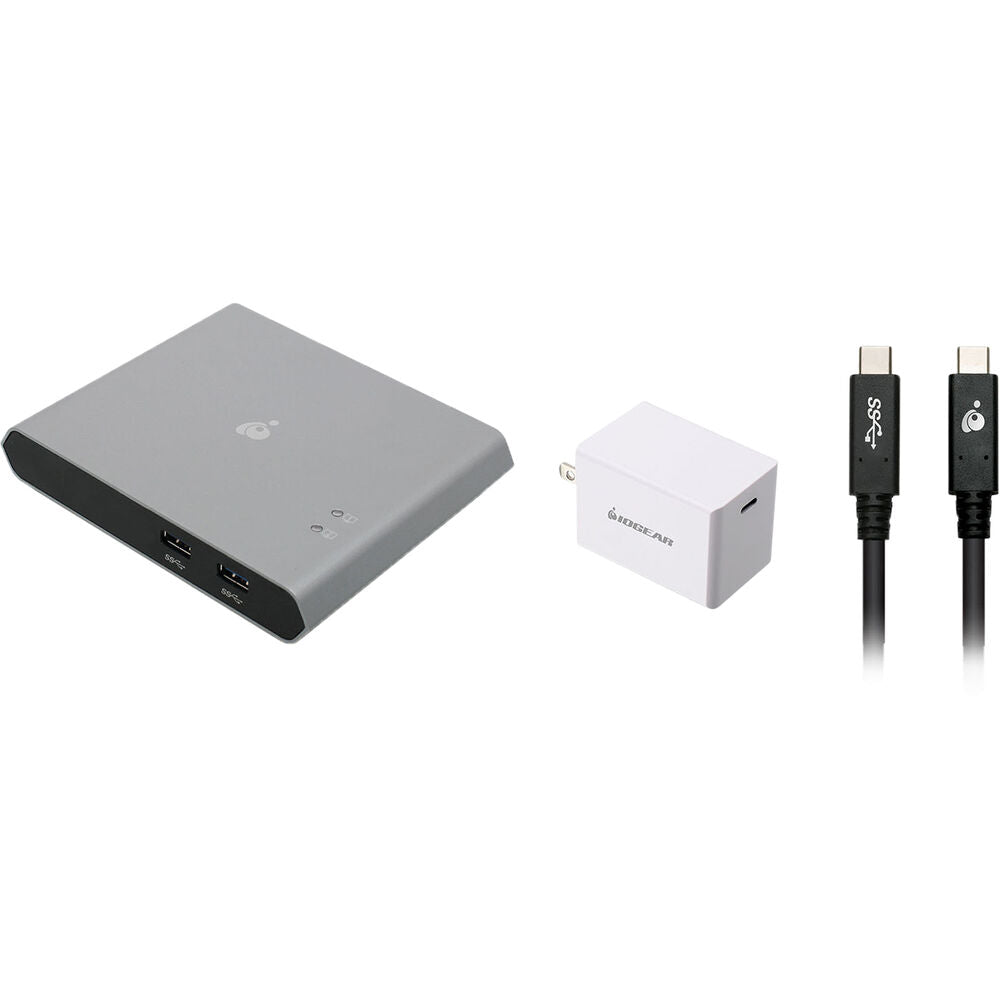

In the Box
- IOGEAR Access Pro 2-Port USB Type-C KVM Switch with Power Adapter Kit
- IOGEAR Access Pro 2-Port USB Type-C KVM Switch with Power Delivery

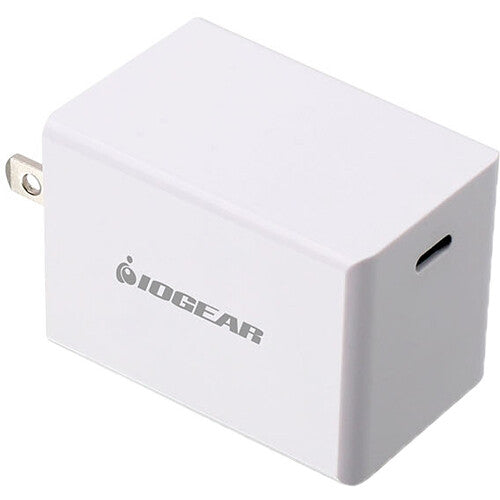

- IOGEAR GearPower 60W USB Type-C GaN Charger

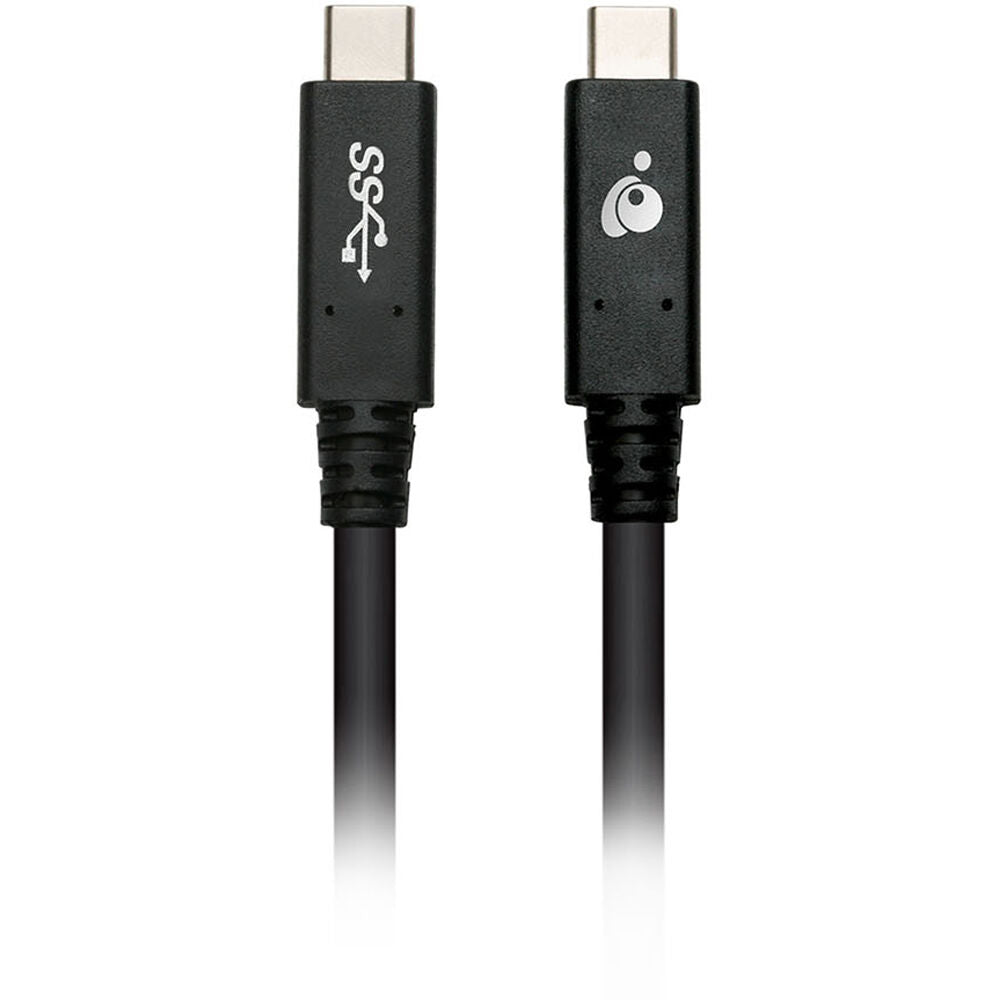

- IOGEAR USB 3.1 Type-C Cable (3.3')
- Limited 3-Year Warranty
Table of Contents
- Description
- Plug-and-Play
- 4K UHD Resolution
- Samsung DeX Support
- Compatibility
IOGEAR Access Pro Specs
General
| # of Systems Supported |
2 |
| KVM Connections |
2 x USB Type-C USB 3.1 / USB 3.2 Gen 1 |
| I/O Connections |
1 x HDMI 1.4 b
2 x USB Type-A USB 3.1 / USB 3.2 Gen 1
1 x USB Type-C (Power) |
| Supported Resolutions |
3840 x 2160 @ 30 Hz
1920 x 1080 @ 60 Hz |
| USB Keyboard/Mouse Emulation |
Yes |
| Operating System Support |
Android, ChromeOS, Windows, iPadOS, macOS/OS X |
Power
| Power Source |
AC Adapter |
| DC Input Power |
5 VDC at 3 A |
| Power Consumption |
15 W |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
80% |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
Physical
| Cable Length |
3.3' / 100.6 cm |
Packaging Info
| Package Weight |
2.29 lb |
| Box Dimensions (LxWxH) |
10.2 x 7.2 x 4.8" |
