Description
- Connects Directly to 8 Computers
- 2-Level Cascade Supports 128 Computers
- 1x 6' USB KVM Cables
- 4x 6' PS/2 KVM Cables
- 4x 10' PS/2 KVM Cables
- Maximum Resolution: 2048 x 1536
- 1U Rack Mount Ready
- Windows, Mac, Linux, Sun Compatible
- Easy Computer Management

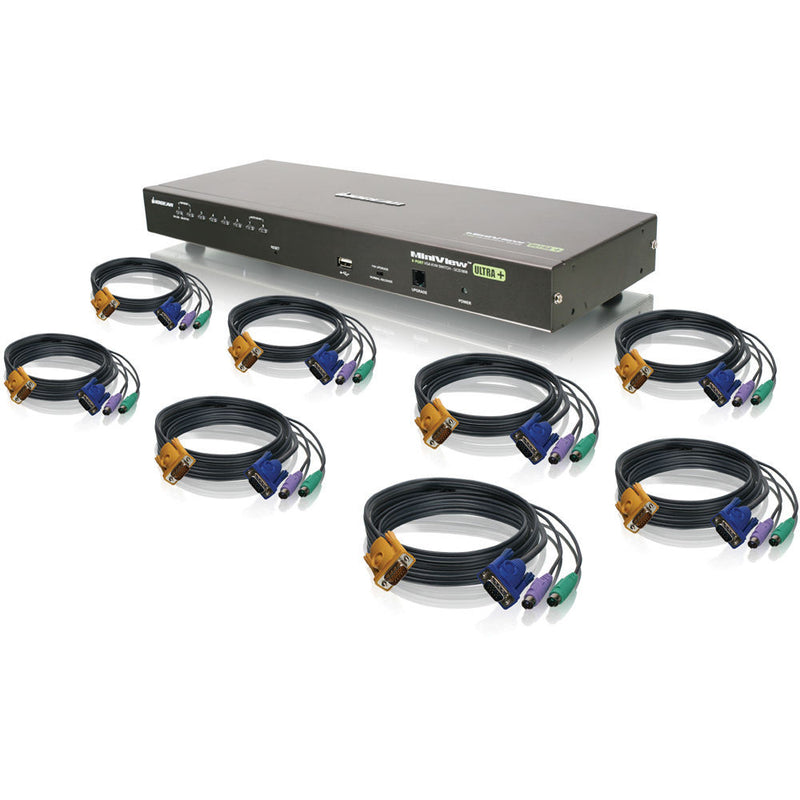

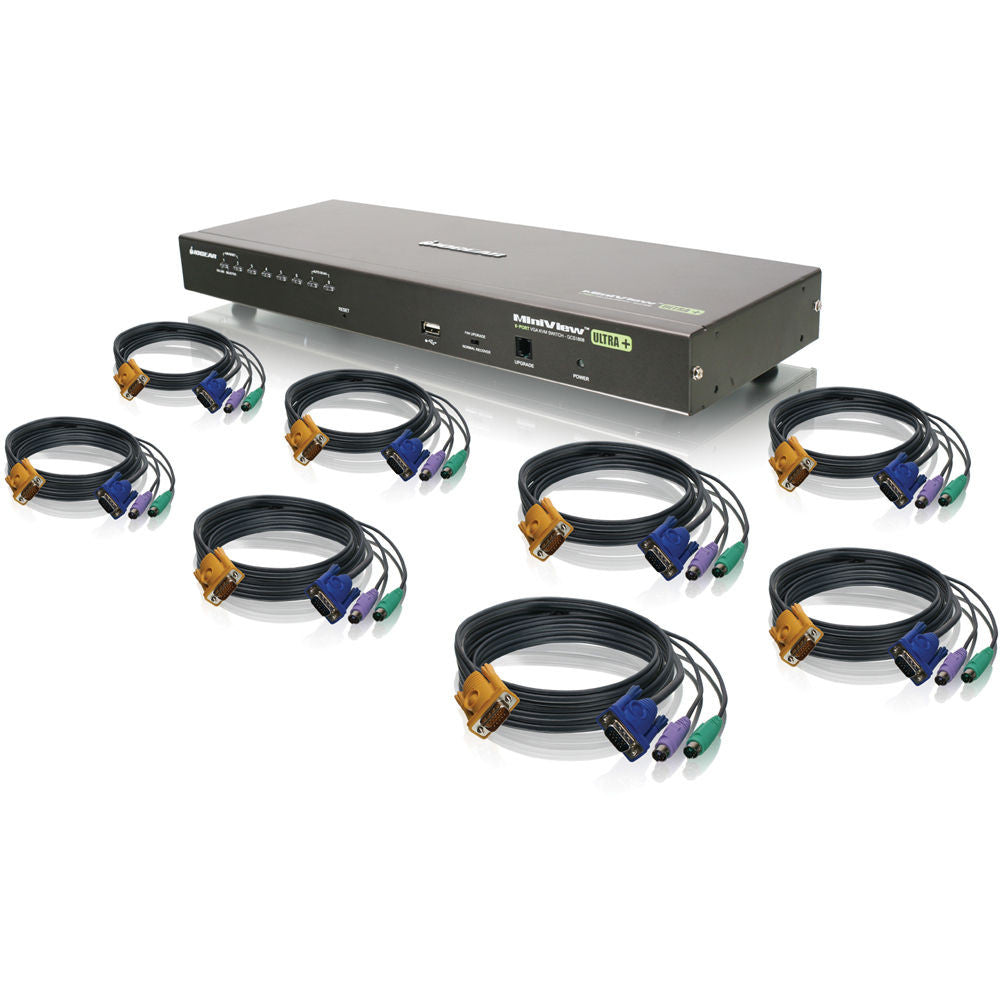

The 8-Port USB PS/2 Combo KVM Switch Kit from Iogear makes connecting a single console to multiple computers extremely easy. In addition to the 8-port switch, you will receive as part of the kit one 6-foot USB KVM cable, four 6-foot PS/2 KVM cables, and four 10-foot PS/2 KVM cables. These cables allow you to connect the switch with computers that rely upon the VGA interface and either PS/2 or USB ports for mouse and keyboard connections.

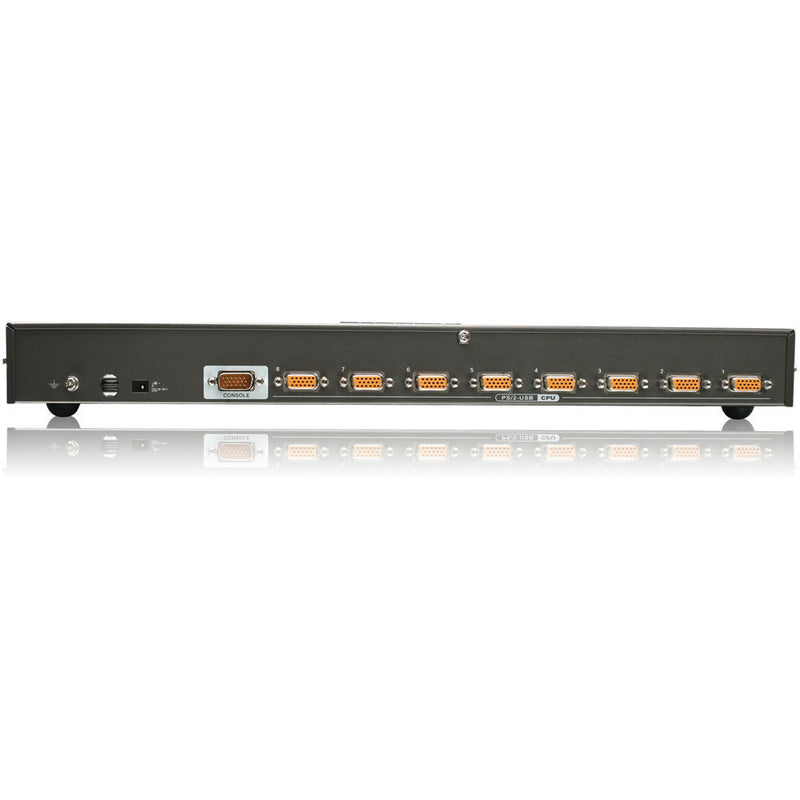

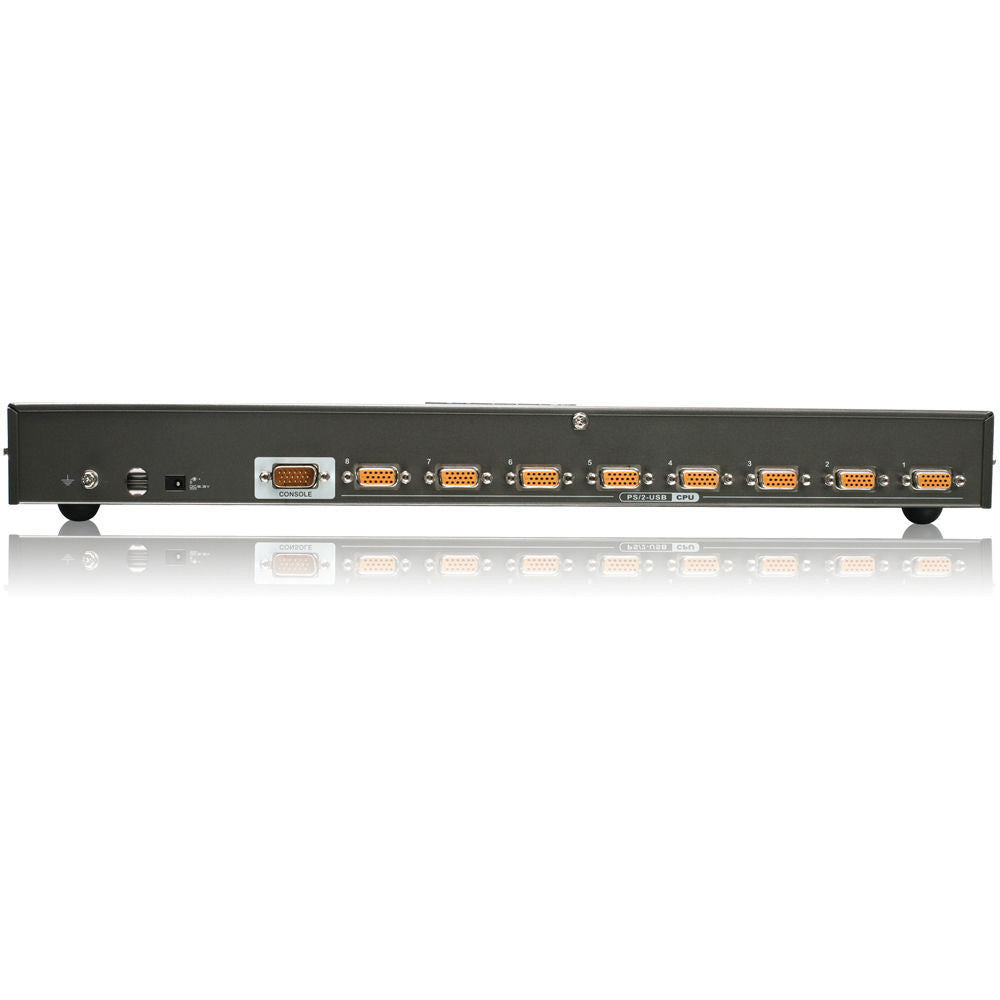

The switch has eight HD-15 connectors for connecting up to eight computers. However, if you utilize the 2-level cascade setup, you can connect up to sixten switches and manage up to 128 computers. If you cascade on only one level, you can connect up to 8 switches and manage up to 64 computers using a single keyboard, mouse, and monitor.
The streamlined form-factor allows the switch to be quickly mounted to a 1U system rack. Whether you have a small handful of computers or a myriad, this switch and the cable kit with it provide simple, powerful and efficient management.
- Compatible with Windows, Mac, Sun Solaris and Linux
- Supports both USB and PS/2, VGA computers

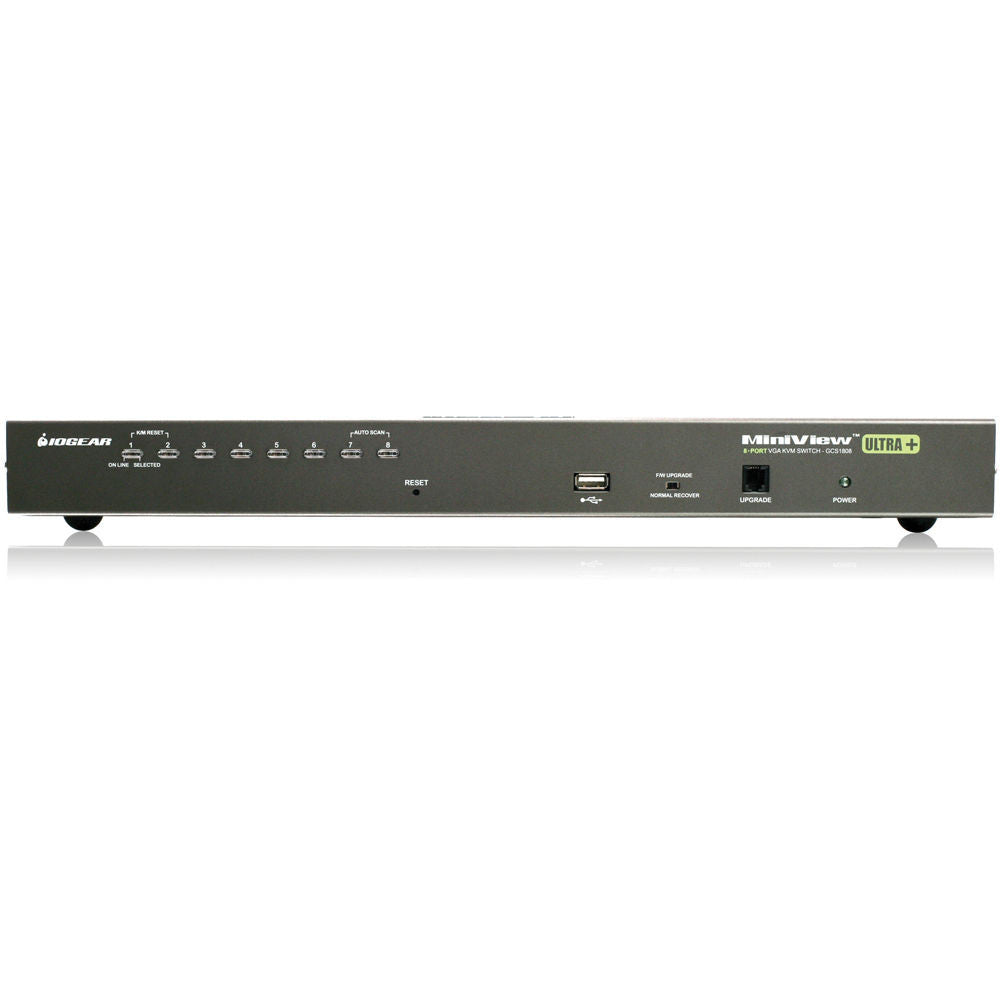

- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Cascade up to 2 levels and control up to 128 computers from a single console
- The switch is secure with a 2-level password protection for OSD
- Supports resolutions up to 2048 x 1536
- Front USB port for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully supports DDC2B
- 4 x 6' (182.9cm) PS/2 KVM Cables (mfr# G2L5202P)
- 4 x 10' (304.8cm) PS/2 KVM Cables (mfr# G2L5203P)
- 6' (182.9cm) USB KVM Cables (mfr# G2L5202U)
- Console Cable
- Cascade Cable
- Firmware Upgrade Cable
- Grounding Wire
- Foot Pad Set (4 Pads)
- Power Adapter
- Standard Rack Mounting Kit
- Installation Guide
- 3-Year Limited Warranty for Switch
- Limited Lifetime Warranty for All USB KVM and PS/2 KVM Cables
| Max Computer Connections | Direct: 8 Via 1-Level Cascade: 64 computers Via 2-Level Cascade: 128 computers |
| PC Connectors | 8 |
| Console Connectors | 1 |
| Video Resolution | Up to 2048 x 1536 |
| Scan Interval | 1-255s |
| Port Selection | Hotkeys, OSD, Button |
| Enclosure | Metal |
| System Requirements | Console: VGA, SVGA, or MultiSync Monitor A Keyboard and Mouse (USB or PS/2) Computers: VGA, SVGA, or MultiSync video graphics card with an HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN) 1x USB port Operating System: �Windows XP, Windows Vista (32-bit / 64-bit) �Windows 7 �Apple Mac OS 9.0 and above �Sun Solaris 8.0 and above �Linux Note : IOGEAR's Display Emulation Technology provides the DDC support for Windows 7 |
| Power Requirements | DC 5.3V/2.4A |
| Dimensions (WxHxD) | 17 x 1.75 x 6.25" (432 x 44 x 159mm) |
| Weight | 5.58 lbs (2.5kg) |
| Packaging Info | |
|---|---|
| Package Weight | 15.35 lb |
| Box Dimensions (LxWxH) | 22.1 x 10.2 x 9.7" |
