Description
- Access & Control up to 8 Computers
- DVI Resolution up to 1920 x 1200
- VGA Resolution up to 2048 x 1536
- Hotkey / Front Panel Switching
- DynaSync Technology
- Firmware Upgradable
- HDCP Compatible
- Multi-Platform OS Support
The 8 Port DVI KVMP Switch with VGA Support & USB KV from Iogear is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels, allowing up to 73 DVI KVMP Switches to control up to 512 computers, all from the original single console. Additionally, the switch comes with Iogear's Video DynaSync technology to optimize the display resolution. The DynaSync* technology reads and remembers the monitor's parameters (EDID) causing no delay or change of video resolution when switching between or booting computers.
Switching between computers can easily be accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard or via the on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitors activities on all connected computers. The DVI KVMP Switch Kit provides 2.1 stereo audio and microphone support as well as multimedia keyboard support.Note: *DynaSync technology provides EDID support for Windows 7.
- One USB console controls eight DVI or VGA computers
- Supports both digital (DVI), analog (DVI) video and analog (VGA)
- Superior video quality: 1920 x 1200 (single link DVI), 2048 x 1536 (VGA); DDC2
- Supports widescreen resolutions

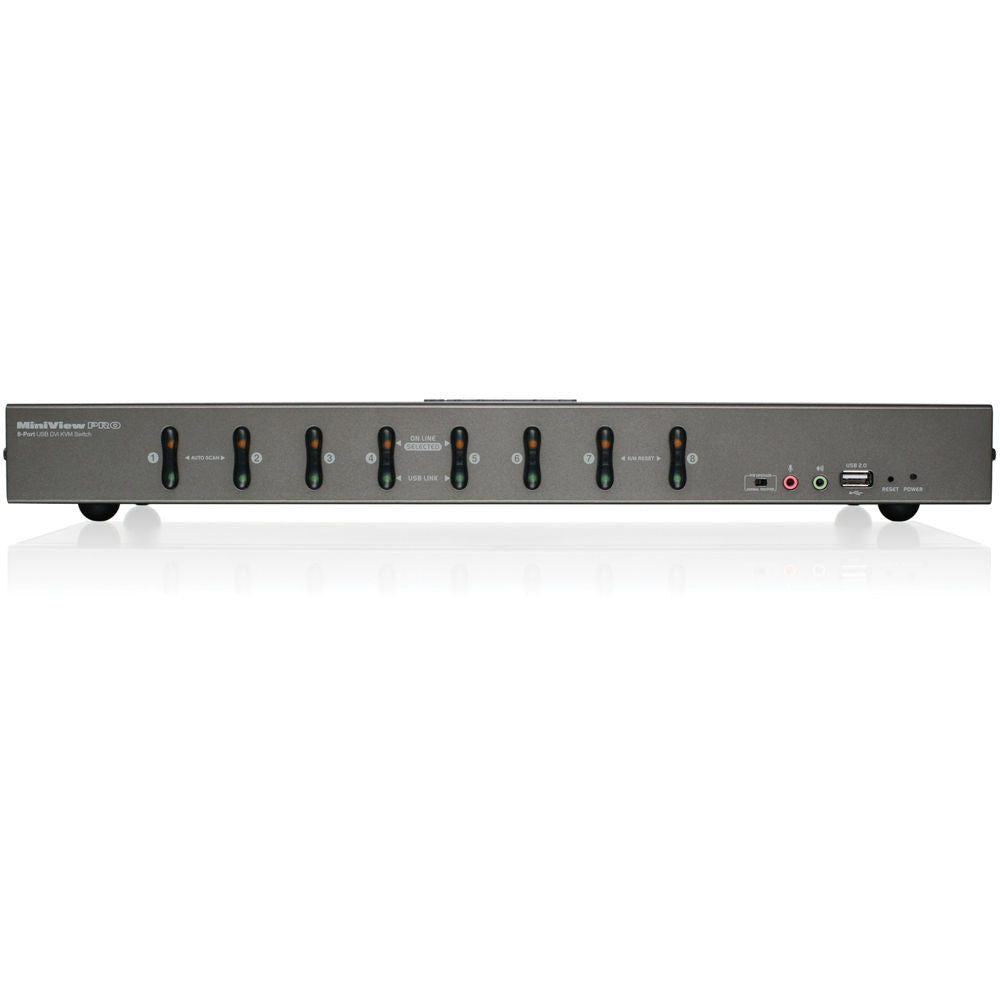

- Computer selection via front panel push buttons, hotkeys and on-screen display (OSD)
- Includes two USB 2.0 peripheral sharing ports
- Console audio ports on front panel for easy access
- Independent switching of KVM and USB focus
- Two-level (administrator / user) password authorization for enhanced security protection
- Cascadable to three levels - control up to 512 computers
- DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between or booting computers 1
Please Note:
*The DynaSync technology provides EDID support for Windows 7.
close
- Full bass response provides a rich experience for 2.1 channel surround sound systems
- Complete keyboard emulation for error-free booting
- Console mouse port emulation / bypass feature supports most mouse drivers and multi-function mice
- Auto-scan mode for monitoring all computers
- Broadcast mode allows you to send commands from the console to all computers to perform operations simultaneously
- Firmware upgradable
- HDCP compatible
- Mac / Sun Solaris keyboard support and emulation* 2
Please Note:
*PC keyboard combinations emulate Mac / Sun Solaris keyboards; does not emulate Mac / Sun Solaris keyboard to PC keyboard.
close
- Supports a multi-platform OS including Windows, Mac, Linux and Sun Solaris
UPC: 881317510587

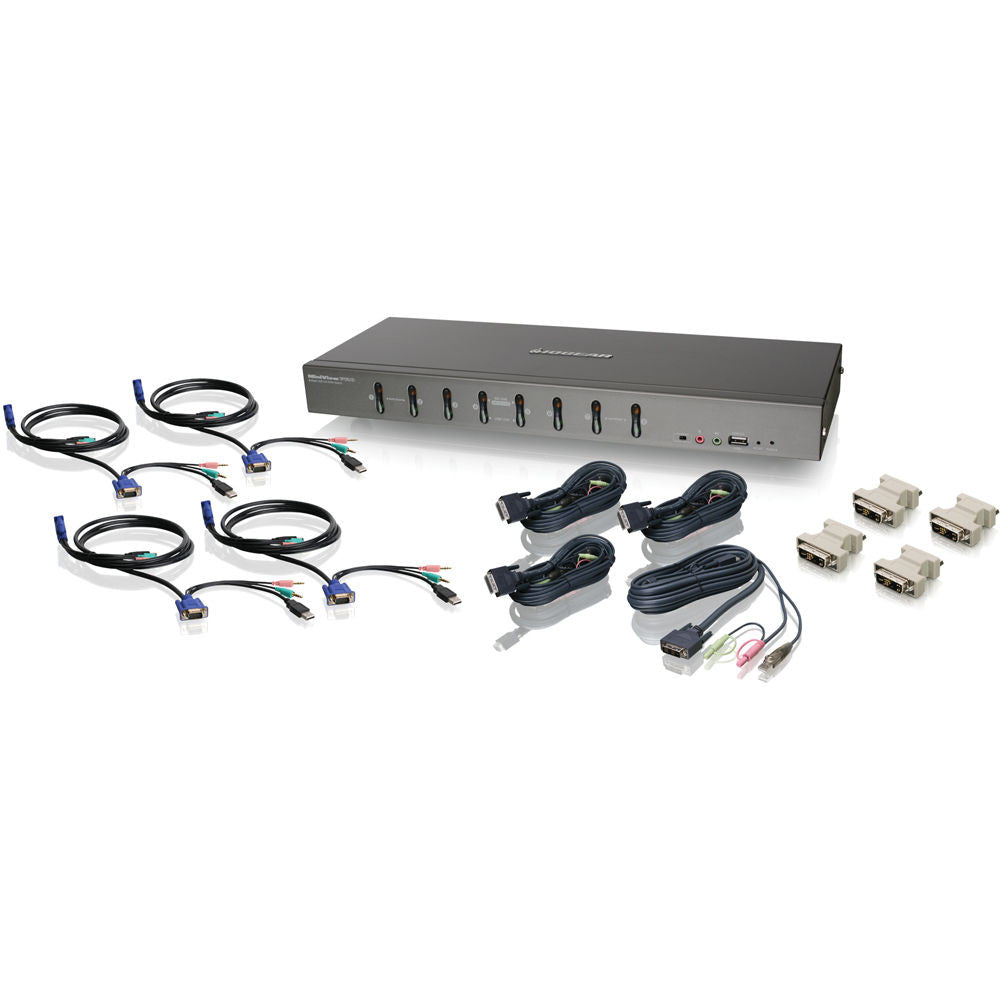

In the Box
IOGEAR 8 Port DVI KVMP Switch with VGA Support & USB KV
- Rack Mounting Kit
- 4 x 6' (1.83 m) Single Link DVI-D USB KVM Cables
- 4 x 6' (1.83 m) VGA USB Audio / Microphone KVM Cables
- Firmware Upgrade Cable
- 4 x DVI-A (M) to VGA (F) Adapters
- Power Adapter
- Foot Pad Set (4 Pieces)
- User Manual
- 3 Year Warranty
| Peripheral Sharing | 2x USB 2.0 |
| Port Selection | Front panel switches; hotkey |
| Video Resolution | DVI: 1920 x 1200 VGA: 2048 x 1536 |
| Scan Interval | 1 - 255 seconds (default: 5 seconds) |
| LEDs | Selected: 8x orange On Line: 8x orange USB Peripherals: 8x green Power On: 1x dark green |
| Computer Connections | |
|---|---|
| Connections | 8 |
| Daisy Chain/Cascading | Up to 512 (via cascade) |
| Connectors | |
|---|---|

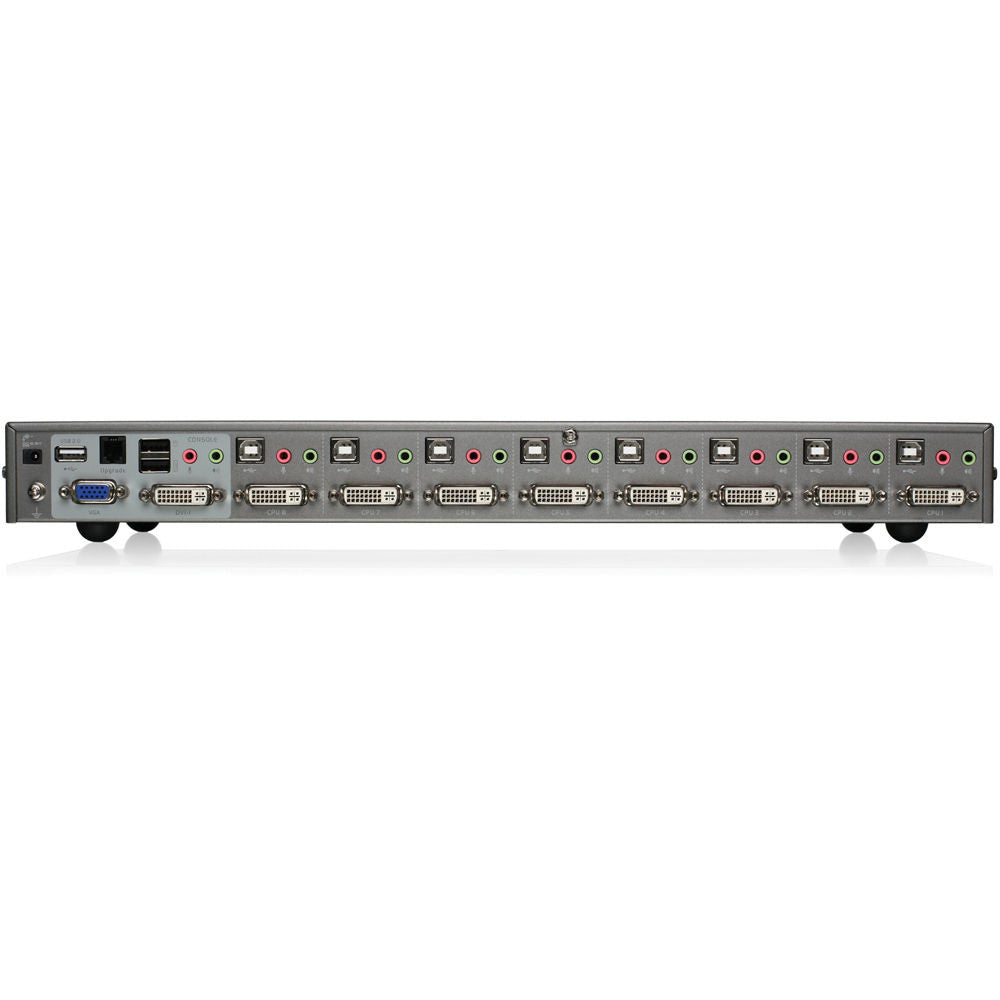

| CPU Connectors | Monitor: 8x DVI-I ports (female) Microphone: 8x microphone jacks Audio: 8x stereo earphone jacks Keyboard / Mouse: 8x USB type B sockets |
| Console Connectors | Mouse: 1x USB type A socket Keyboard: 1x USB type A socket Monitor: 1x VGA port (female) / 1x DVI-I port (female) Microphone: 2x microphone jacks (1x front panel, 1x rear panel) Audio: 2x stereo earphone jacks (1x front panel, 1x rear panel) |
| Emulation | |
|---|---|
| Keyboard / Mouse | USB |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 122�F (0 to 50�C) |
| Storage Temperature | -4 to 140�F (-20 to 60�C) |
| Humidity | 0 to 80% RH |
| General | |
|---|---|
| Enclosure | Metal |
| System Requirements | Console Display option 1: A display with both DVI and VGA connection* Display option 2: A display with DVI-I connection Display option 3: One each of DVI and VGA displays 1x set of USB keyboard and mouse Computers 1x DVI port or 1x VGA port 1x USB port Operating Systems Windows 7*, XP, Vista (32-bit / 64-bit) Mac OS X v10.3.9 or later Sun Solaris Linux *Display Emulation technology provides EDID support for Windows 7 |
| Dimensions | Not specified by the manufacturer |
| Weight | Not specified by the manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 14.2 lb |
| Box Dimensions (LxWxH) | 22.1 x 10.7 x 9.6" |
