Description
- Connects Directly to 4 Computers
- DisplayPort Connectivity
- 2-Port USB 3.0 Hub
- Resolution up to 3840 x 2160
- Hotkey, Pushbutton, Mouse Switching
- KVM Cables Included
- Firmware Upgradeable
- Multi-Platform OS Support

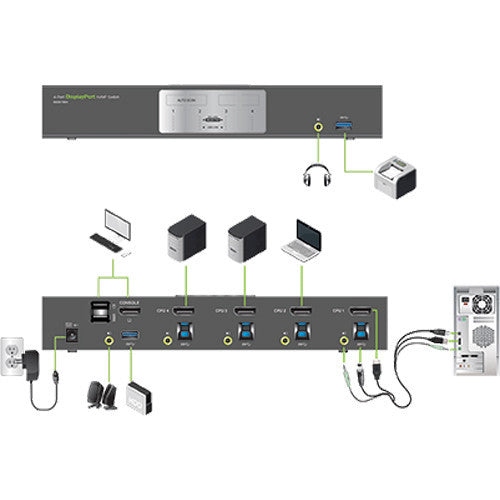

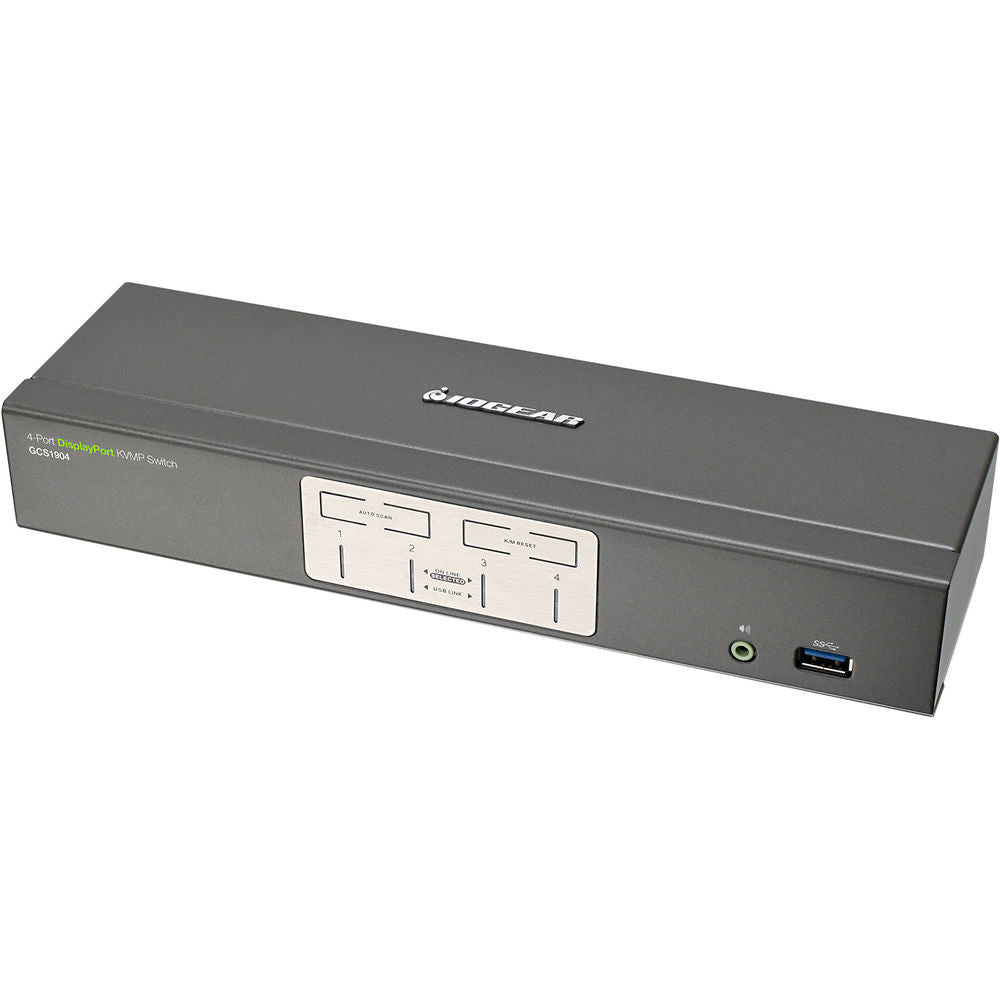

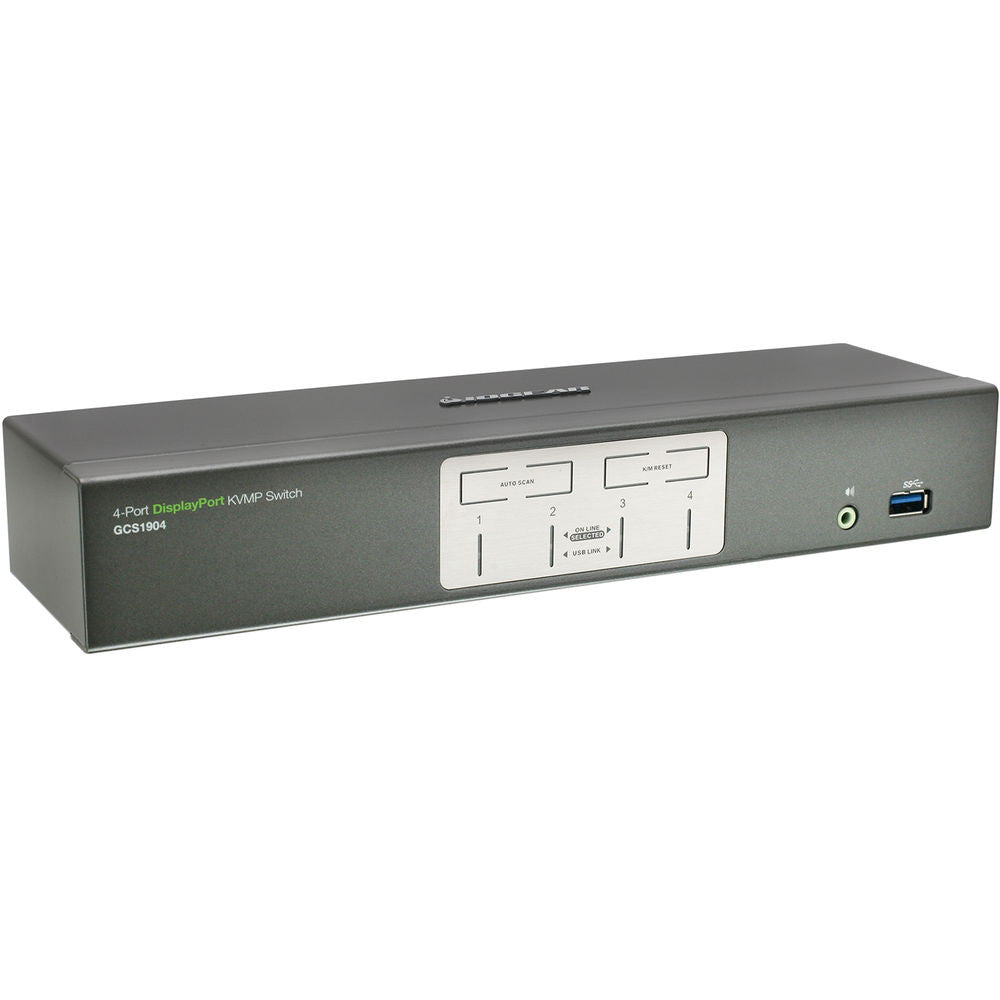

The IOGEAR 4-Port DisplayPort KVMP Switch with USB 3.0 Hub lets you use a single set of console peripherals to control up to four computer systems that have DisplayPort outputs. The switch allows you to quickly move between the systems via hotkey combinations, pushbuttons, or wheel-mouse clicks. KVM cables are included for connecting to your computer's DisplayPort, audio, and USB Type-A ports, and an integrated 2-port USB 3.0 hub is available for equipment sharing with printers, scanners, and external storage drives. For easy installation, it is Plug & Play compatible with a wide-variety of operating systems. Once connected, the switch supports resolutions of up to 3840 x 2160 and 2.1-channel audio.
- Control 4 computers using a single keyboard, mouse, and DisplayPort video console
- Up to UHD 4K resolution (3840 x 2160 @ 30 Hz)
- DisplayPort 1.1 compliant & HDCP compliant
- 2-port USB 3.0 hub with 5 Gb/s max transfer rate
- Dual-Mode DP supports HDMI and DVI output
- Computer selection via front-panel pushbuttons, hotkeys, and mouse
- Independent switching of the KVM, USB, and audio
- Supports HD audio through DisplayPort
- Full bass response for 2.1 channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support - Windows 7 and later, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
- Mac keyboard support and emulation
- Auto-scan mode to monitor all computers
- Power-on detection
- Hot pluggable
- Firmware upgradable

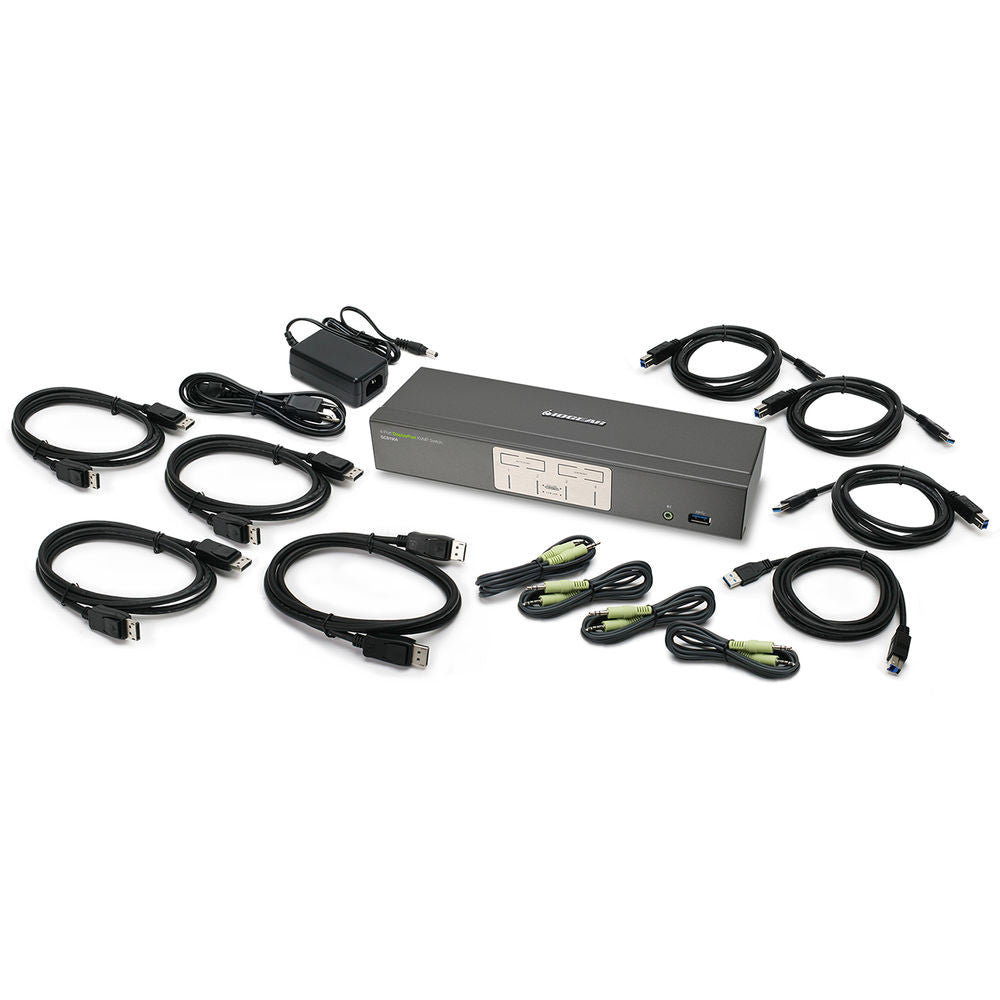

- Package of KVM Cable Sets
- Power Adapter
- Limited 3-Year Warranty
| Computer Connections | 4 |
| Port Selection | Pushbutton, hotkeys, mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode) |
| Console Connectors | 1 x DisplayPort 1 x USB 3.0 Type-A (keyboard) 1 x USB 3.0 Type-A (mouse) 2 x 3.5 mm mini stereo jack (front and rear) |

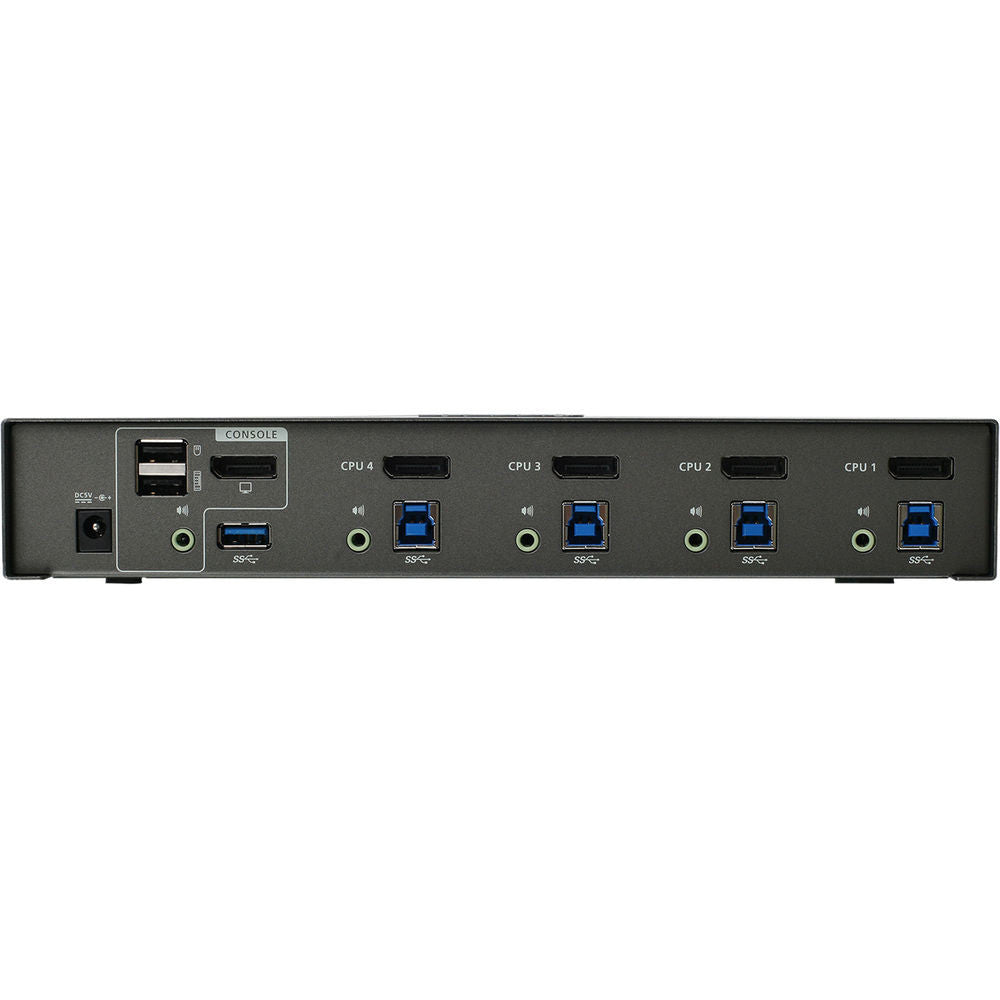

| CPU Connectors | 4 x DisplayPort 4 x 3.5 mm mini stereo jack 4 x USB 3.0 Type-B |
| Switches | 1 x USB Type-B (F/W upgrade) 4 x Pushbutton for port selection |
| Power Connector | 1 x 5 VDC jack |
| USB Connector | 2 x USB 3.0 Type-A (front and rear) |
| LEDs | 4 x Mode (orange) 4 x On Line (green) 4 x KVM (orange) 4 x Audio (orange) 4 x USB Peripherals (green) |
| Emulation | USB keyboard and mouse |
| Video Resolution | 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz (UHD 4K) |
| Scan Interval | 1 to 99 seconds (5 sec default) |
| System Requirements | Console: DisplayPort compatible monitor Standard 104-key wired USB keyboard Standard 2- or 3-button wired USB mouse Speakers (optional) Computers: DisplayPort USB Type-A Audio (optional) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity (Non-Condensing) | 0 to 80% RH |
| Material of Construction | Metal case |
| Certifications | TAA |
| Dimensions (H x D x W) | 2.9 x 1.7 x 10.3" / 7.5 x 4.3 x 26.2 cm |
| Weight | 1.9 lb / 0.9 kg |
| Packaging Info | |
|---|---|
| Package Weight | 5.35 lb |
| Box Dimensions (LxWxH) | 12.8 x 8.3 x 4.1" |
