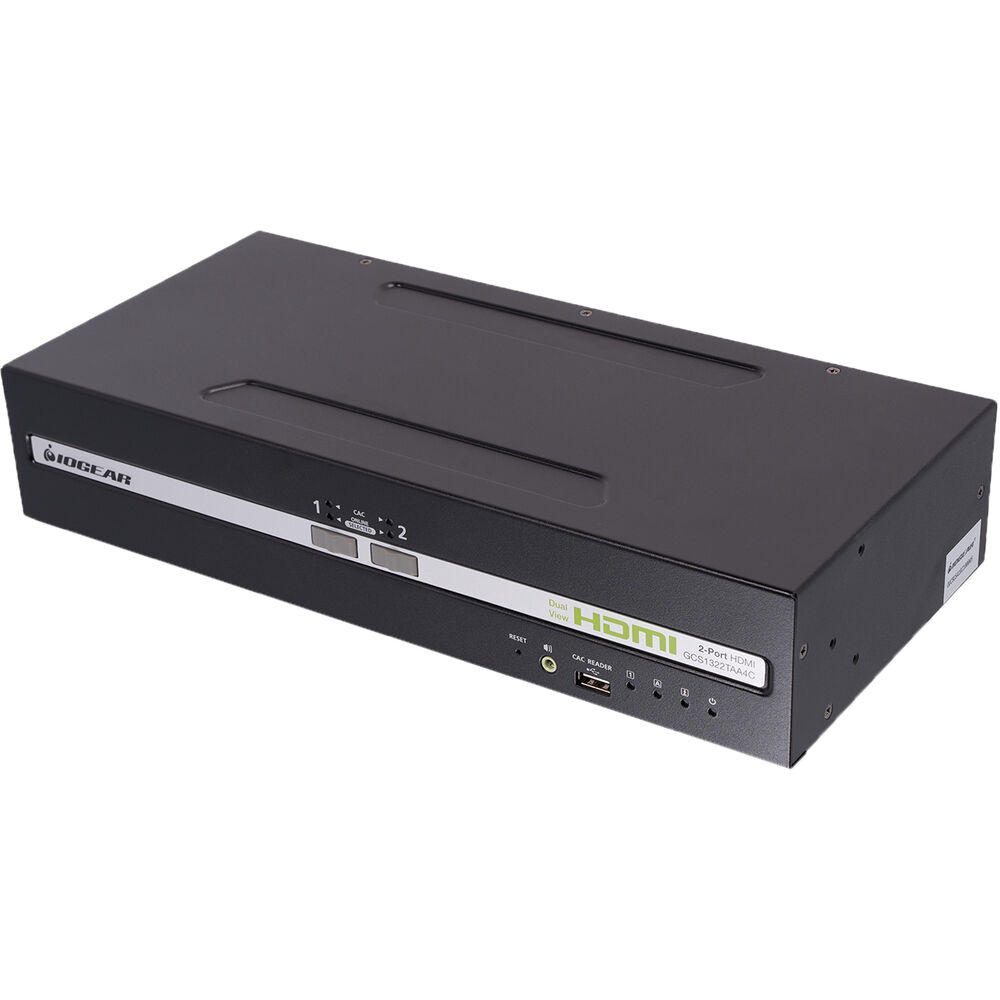

IOGEAR 2-Port Dual View HDMI Secure KVM (CAC, TAA)

HDMI Video

HDMI ports allow you to connect two systems with dual-monitor support, giving you enhanced support whether they are workstations or servers. Additionally, the front panel offers convenient access to audio connectivity.

Connection Support

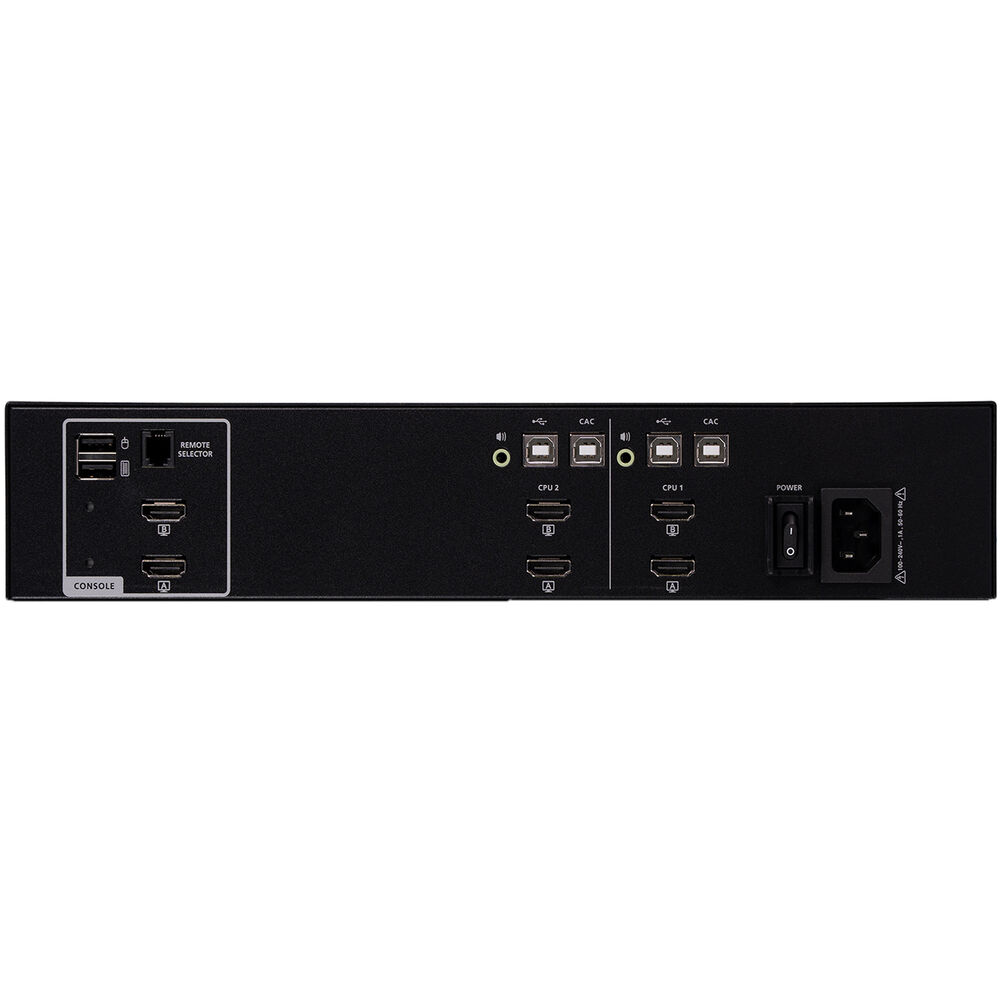

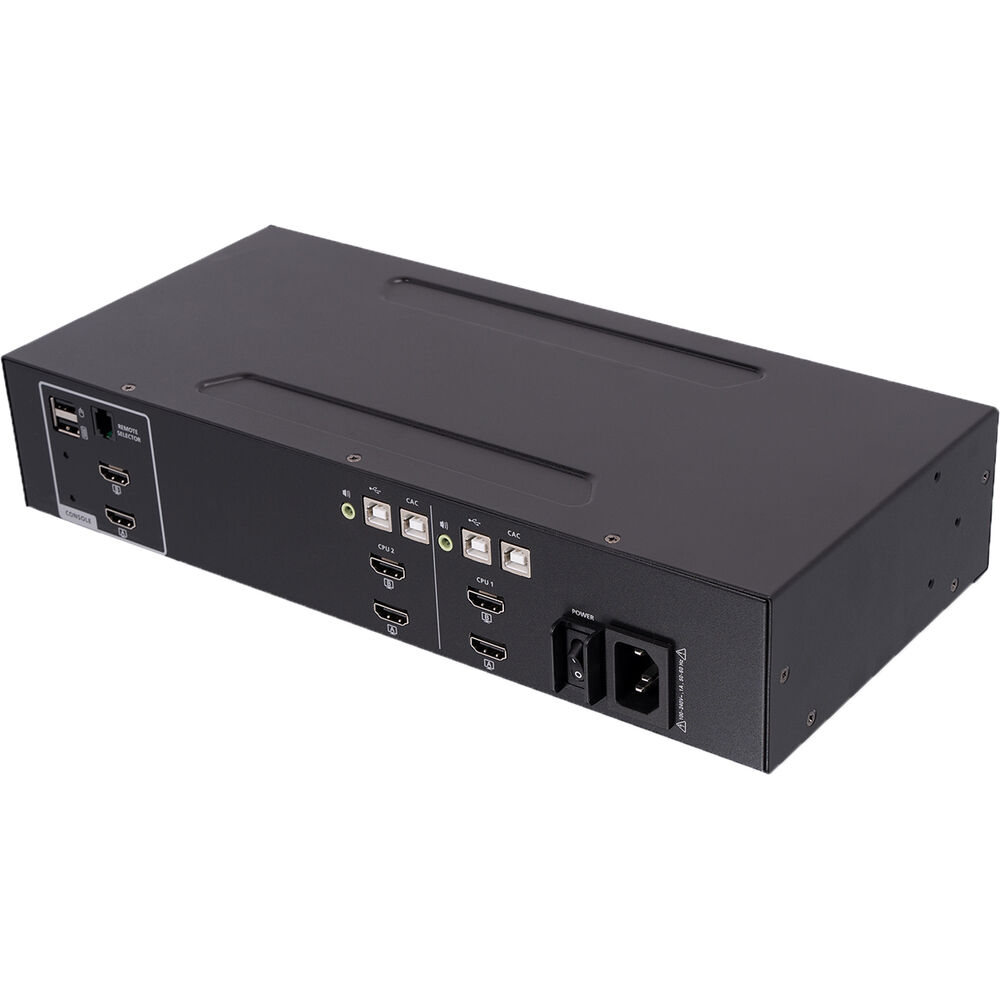

Two USB-A 2.0 connections provide support for your mouse and keyboard, while four USB-B ports connect to your host system's ports with optional cables. The KVM switch features a dedicated USB-A port located at the front of the device for authorized CAC readers and supported Biometric Readers. Additionally, the RJ11 port allows you to connect an optional Remote Selector.

Active Tamperproof System

The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamperproof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards, mice, and other devices while ignoring commands from non-HIDs when switching between ports. The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports, ensuring data travels isolated on each port to prevent exposure.

NIAP-Certified PP4.0

This Secure KVM Switch is NIAP-certified and compliant with PP4.0 (Protection Profile for Peripheral Sharing Switch version 4.0) requirements, satisfying the security requisites set by the US Department of Defense for peripheral sharing switches. Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs�keyboards, mice, speakers, CAC readers, and Microsoft Biometric Readers�between multiple computers. Conformity with Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM, providing high-level security, protection, and data safekeeping.

Compatibility

You can use this KVM switch on a wide range of Windows 7, 8.1, 10, macOS, and Linux systems. Keyboard and mouse emulation allow you to control a macOS-based device with a standard Windows keyboard. Multilingual keyboard mapping supports English, French, and German keyboards for optimal support.

General Features

Validated NIAP-certified PP4.0 (Protection Profile for Peripheral Sharing Device v4.0)

Dedicated CAC & biometrics peripheral port for authorized CAC readers and supported biometrics readers

2-Port HDMI Secure KVM Switch�one USB console controls 2 secure computers

Dual 4K UHD display resolution of 3840 x 2160 at 60 Hz

Port selection via push button for enhanced security

Active Chassis Intrusion Detection�compromising the unit's cover renders the switch inoperable

Tamper-Evident Seals�visually detect attempts to gain access to switch's internal components

Tamperproof Hardware�integrated circuits are soldered directly onto the circuit board to hinder component sabotage

Non-Reprogrammable Firmware�prevents tampering and attempts to reprogram the switch's firmware

Clears Keyboard Buffer�data clears automatically after transmission to switch and resets

Analog Speaker Support

Secure audio data input does not convert digital audio to analog audio

Multiplatform Support�Windows 7 or later, macOS, Linux, and Sun

Rugged metal enclosure with a durable, full metal chassis

Built-in internal power supply

Key Specs

General

Power

Environmental

Physical
