Description
IOGEAR GCMS1922 Overview
- 1Description
- 2Features
- 3Other
- 4System Requirements
View the content from two different computers simultaneously on two screens at resolutions up to 4096 x 2160 with the 2-Port 4K Dual View DisplayPort Matrix KVMP Switch from IOGEAR. Using Extension Mode, users will be able to use one system at a time, which allows the content of the selected computer to be displayed on two monitors. When Matrix Mode is activated, both systems will be simultaneously displayed on both monitors, regardless of which system is selected.

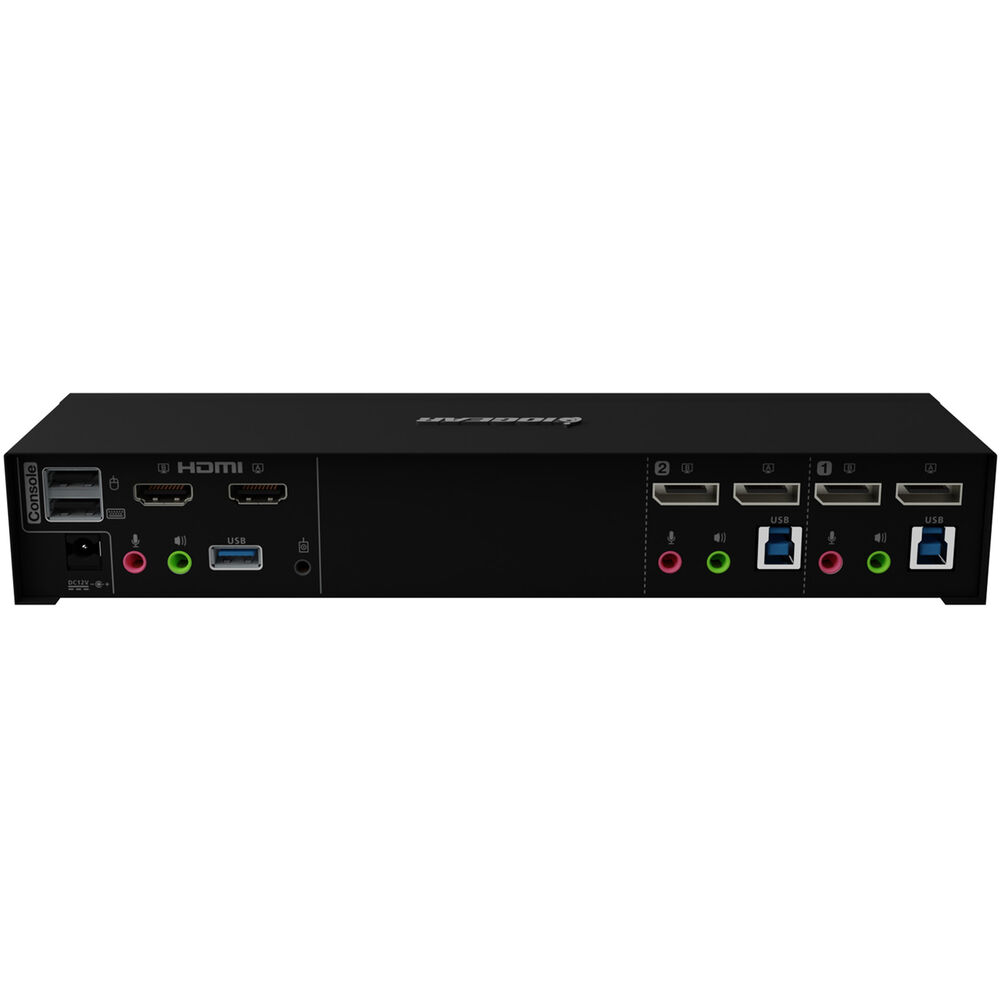

As this switch can be used to control two computers and two displays, there are two CPU inputs, each of which has two DisplayPort 1.2 ports, both of which support audio and video, one 3.5mm audio jack, one 3.5mm microphone jack, and dual 5 Gb/s USB-B ports. Available console connections include two HDMI 2.0 ports, two 5 Gb/s USB-A ports, two 480 Mb/s USB-A ports for a keyboard and mouse, two 3.5mm audio jacks, and two 3.5mm microphone jacks.
Features
Dual Modes to Maximize Productivity

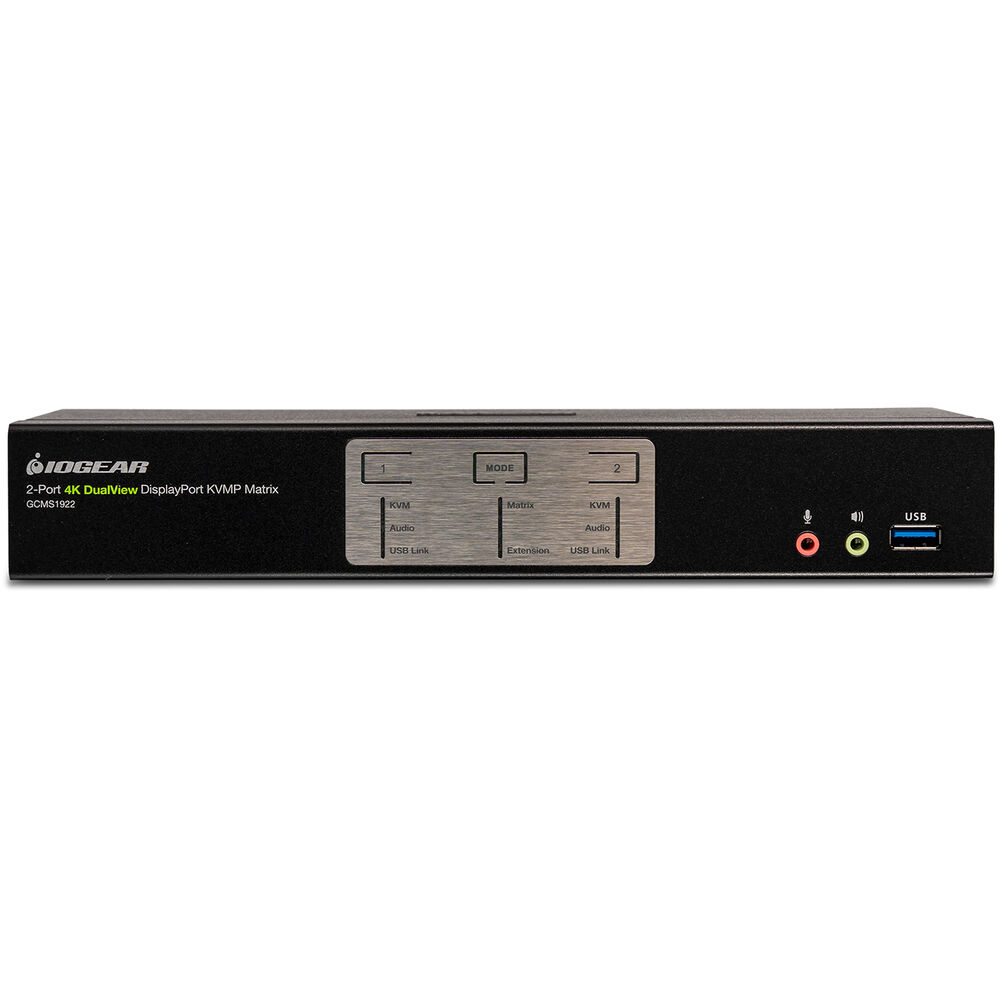

Most multi-monitor KVMs only allow you to extend the desktop of a single computer to two screens. The IOGEAR GCMS1922 is different, as it can also be used in matrix mode. This allows you to see the content from two different computers on each screen. You can easily switch between extension and matrix mode by pressing the mode button on the front panel or the remote port selector module. The GCMS1922 is the ideal tool for users who need to multitask on two computers.
4K Dual View Work Experience
Maximize your high-end workstations with the GCS1922 2-Port 4K Dual View DisplayPort Matrix KVM Switch. Experience Cinema 4K resolutions-up to 4096 x 21 at 60 Hz on each monitor, along with rich bass, 7.1 surround sound via DisplayPort, and two 5 Gb/s USB-A peripheral ports.
Crossover Switching
In Matrix Mode, view two different computer desktops on connected monitors and use your mouse to travel across both systems without needing hotkeys or push button to access either computer. No software is needed and multiple layouts are available.
Audio Mixer for Multitasking Operations
Sound can serve as a helpful alert for better situational awareness while multitasking. When using the Audio Mixer feature, the audio coming from both computers can be mixed up to hear both audio sources simultaneously, regardless of which computer is in focus.
Built-in USB-A 3.0 Peripheral Sharing
You can control and share two USB 3.0 peripherals between two computers at an impressive speed of up to 5 Gb/s. Moreover, the USB peripheral can be disconnected from the KVM port switching. This allows you to work with the connected USB device on one computer while switching to the other one for other tasks without any disruption.
Convenient Switching Methods
There are four ways for GCMS1922 port switching. Hotkeys, pushbuttons on the front panel, the mouse wheel button, and the remote port selector, so you can pick the way that best fits your needs. For mode switching, you can use the mode pushbutton on the front panel, hotkeys, or the remote port selector to implement.
Other
- Dual View Console controls two computers and two USB 3.0 peripherals
- Dual Operation Mode: Extension Mode�access one PC at a time and allows content of the current focus computer to be displayed over two monitors
- Dual Operating Mode: Matrix Mode�allows contents of two computers to be displayed separately on two monitors regardless the computer focus
- Port switching via pushbuttons, hotkeys, mouse wheel, mouse cursor, and remote port selector
- Crossover Switching�under the Matrix Mode, the mouse cursor can across two monitors for instant switching between two computers
- Independent Switching of KVM, USB, and audio focus
- Superior 4K video quality�true 4k (4096 x 2160 at 60 Hz)
- Video DynaSync�optimize video resolution and eliminate display issue between port switching
- DisplayPort 1.2, HDMI, and HDCP compliant
- 2-Port USB-A with a 5 Gb/s transfer rate
- Audio Mixer�enable mixing up to two audio sources and output the mixed audio to the speakers
- Power-on Detection�if a computer is powered off, GCMS1922 automatically switches to the next powered-on computer
- Mouse emulation or bypass feature supports most of the mouse drivers and multi-function mice
- Keyboard emulation or bypass feature supports most multi-function keyboards
- Mac keyboard support and emulation
- Auto Scan Mode to monitor all computers
System Requirements
Console
- 2 x HDMI compatible monitors
- Standard 104-key wired USB keyboard
- Standard 3-button wired USB mouse
- 3.5mm microphone and speakers (optional)
Computer
- 2 x DisplayPort
- USB-A port
- Audio ports (optional)
Operating Systems
- Windows 7, 8.1, 10, 11
- macOS 9 and later
- Linux
UPC: 881317521538
In the Box
- IOGEAR 2-Port 4K Dual View DisplayPort Matrix KVMP Switch
- 2 x DisplayPort KVM Cable Set
- Remote Port Selector
- Power Adapter
- Power Cord
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Features
- Other
- System Requirements
IOGEAR GCMS1922 Specs
Key Specs
| # of Systems Supported |
2
|
| KVM I/O |
4x DisplayPort 1.2
2x USB-B 3.0 / 3.1/3.2 Gen 1 2x 1/8" / 3.5 mm Audio-Out 2x 1/8" / 3.5 mm Microphone |
| Console I/O |
2x HDMI 2.0
2x USB-A 3.0 / 3.1/USB 3.2 Gen 1 2x USB-A (Keyboard/Mouse) 2x 1/8" / 3.5 mm Audio-Out 2x 1/8" / 3.5 mm Microphone 1x 2.5 mm (Remote) |
| Supported Resolutions |
4096 x 2160 @ 60 Hz
|
General
| # of Systems Supported |
2
|
| KVM I/O |
4x DisplayPort 1.2
2x USB-B 3.0 / 3.1/3.2 Gen 1 2x 1/8" / 3.5 mm Audio-Out 2x 1/8" / 3.5 mm Microphone |
| Console I/O |
2x HDMI 2.0
2x USB-A 3.0 / 3.1/USB 3.2 Gen 1 2x USB-A (Keyboard/Mouse) 2x 1/8" / 3.5 mm Audio-Out 2x 1/8" / 3.5 mm Microphone 1x 2.5 mm (Remote) |
| Supported Resolutions |
4096 x 2160 @ 60 Hz
|
| USB Keyboard/Mouse Emulation |
Yes
|
| OS Compatibility |
Windows 11
Windows 10 Windows 8.1 Windows 7 macOS 9 or Later Linux |
Power
| Power Source |
AC Adapter
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
0 to 80% ()
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Physical
| Housing Material |
Metal
|
| Dimensions |
12.8 x 8.3 x 3.9" / 32.5 x 21.1 x 9.9 cm
|
| Weight |
5.1 lb / 2.3 kg
|
Packaging Info
| Package Weight |
5.055 lb
|
| Box Dimensions (LxWxH) |
13.5 x 9.2 x 3.6"
|
