Description
- Control up to 16 Computers
- HDMI & 2.1 Stereo Audio Support
- Video Resolution up to 1920 x 1200
- Cascade up to 2 Levels
- DynaSync with EDID Support
- 2 x USB 2.0 Sharing Ports
- Rack-Mountable
- Firmware Upgradable
- Multi-Platform OS Support
- Includes 2 KVM Cable Sets

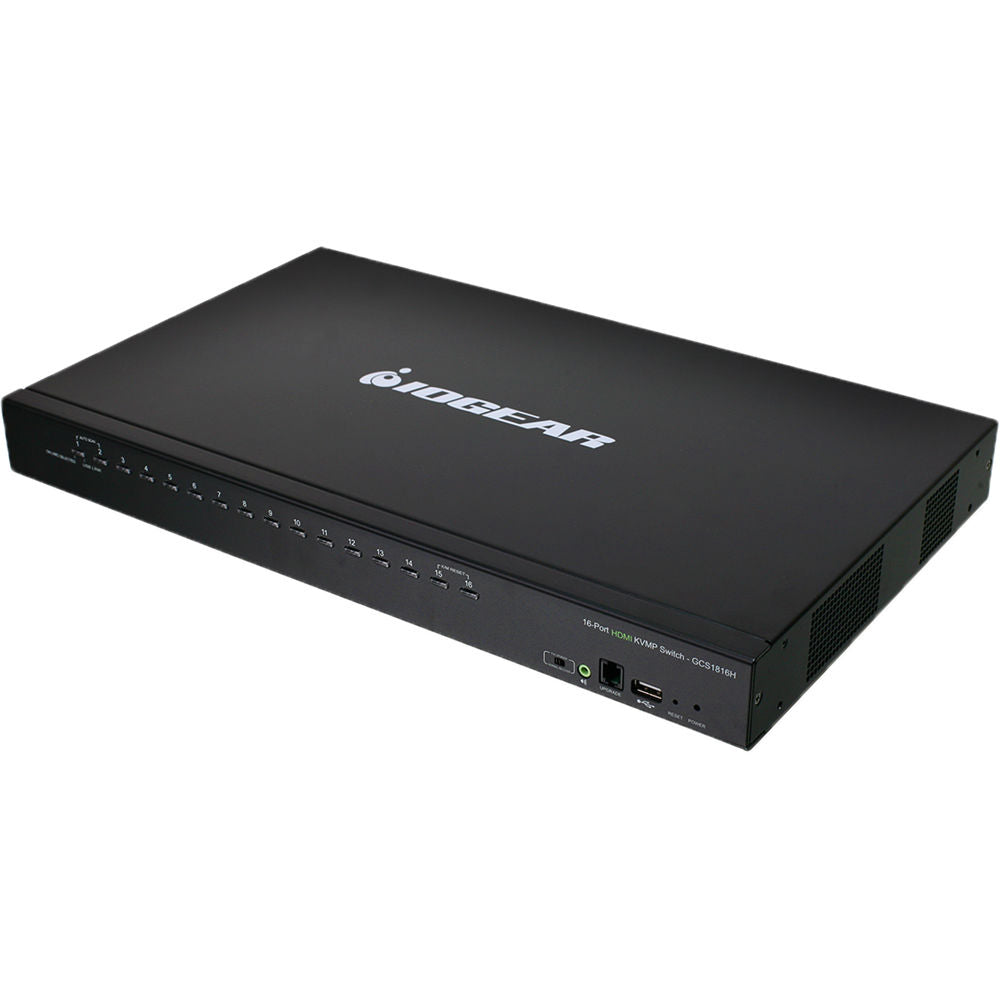

Control up to 16 computers using a single HDMI monitor, keyboard, and mouse with the 16-Port USB HDMI KVMP Switch from IOGEAR . Boasting 16 HDMI inputs and capable of video resolution up to 1920 x 1200, the 16-port switch supports 2.1 stereo surround audio, and it allows you to control up to 256 computers by cascading 2 levels of the switch.
The rack-mountable 16-port KVMP switch features IOGEAR's DynaSync technology with EDID support, which helps to ensure that there is little or no delay or change in video resolution while switching between computers. Two USB 2.0 ports allow you to share peripherals such as printers or USB storage devices. The switch is firmware-upgradable and supports Windows, Mac, Linux, UNIX, and Solaris systems. Two sets of KVM cables are included.
- Expanded Connectivity
- IOGEAR's 16-Port USB HDMI KVMP Switch is designed to control up to 256 computers by cascading 2 levels of the switch. The built-in USB 2.0 Type-A hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can broadcast messages, announcements, firmware updates, or notifications to all connected sources.
- EDID Support
- IOGEAR's Video DynaSync technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID), which helps to ensure there is no delay or change in video resolution when switching between or booting computers.
- Simple Switching Methods

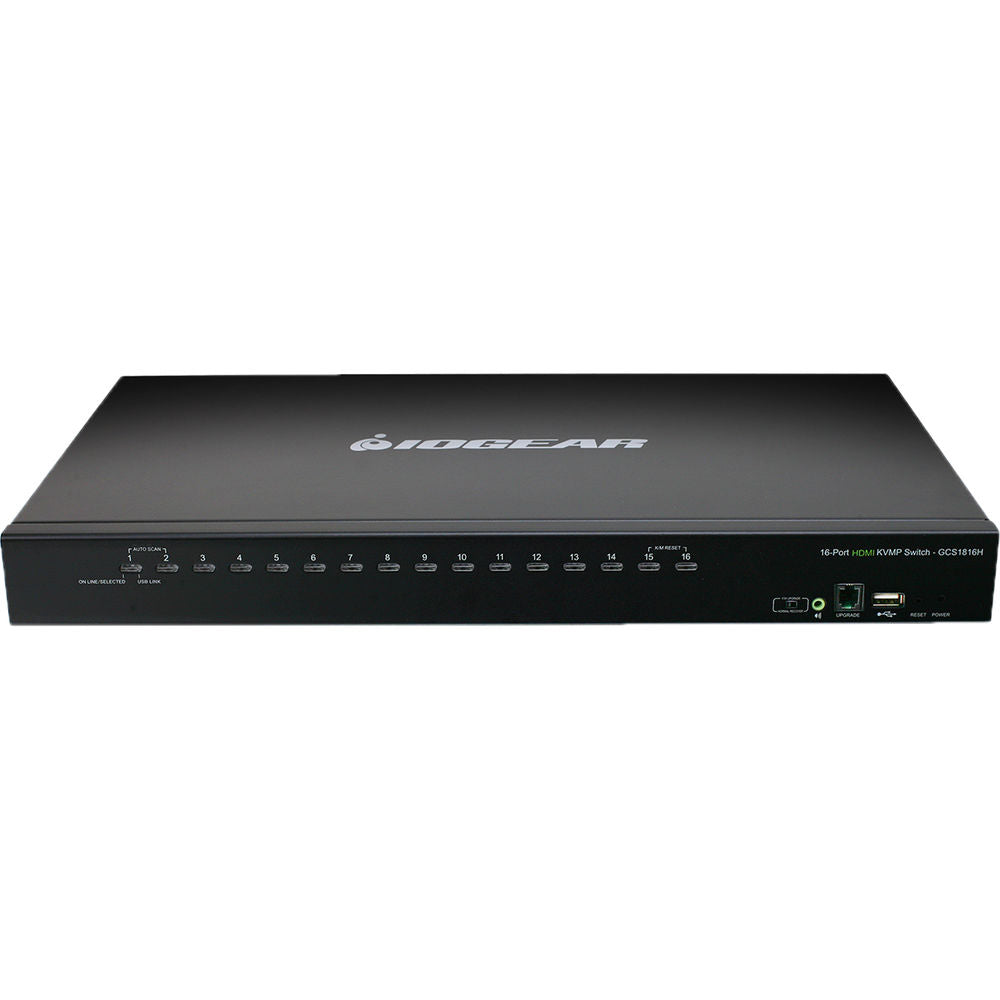

- Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
- 2.1 Surround Sound
- This 16-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
- Multi-Display Setup
- Enhance productivity and view all connected sources on up to eight displays by stacking eight switches together.
- Additional Features
- Supports up to 1080p (1920 x 1200) HD video resolution
Independent KVM and USB focus switching
Supports two-level password protection security for On-Screen Display (OSD)
OSD Backup/Restore configuration and user profile information
Broadcast Mode sends commands to all connected computers
Auto Scan Mode monitors connected computers
HDMI input connectors equipped with screw lock for secure connection
Rack mountable in a 19" (1U) system rack
Console mouse port emulation & bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation designed for error-free booting
Mac/Sun keyboard support and emulation (PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own OS)
Multilingual OSD supports English, German, Japanese, Chinese, Spanish, Russian, and French
Multilingual keyboard mapping supports English (US), English (UK), German, Japanese, Traditional Chinese, Spanish, Korean, and French
HDCP compatible
Firmware upgradable
- Console Requirements
- HDMI display
Standard 104-key wired USB keyboard
Standard 2- or 3-button wired USB mouse
- Source Device Requirements
- HDMI output
USB Type-A port
- OS Requirements
- Windows 10, 8.1, 8, 7, Vista
macOS
Solaris, Linux, Unix, and other USB supported systems
UPC: 881317518385
In the Box

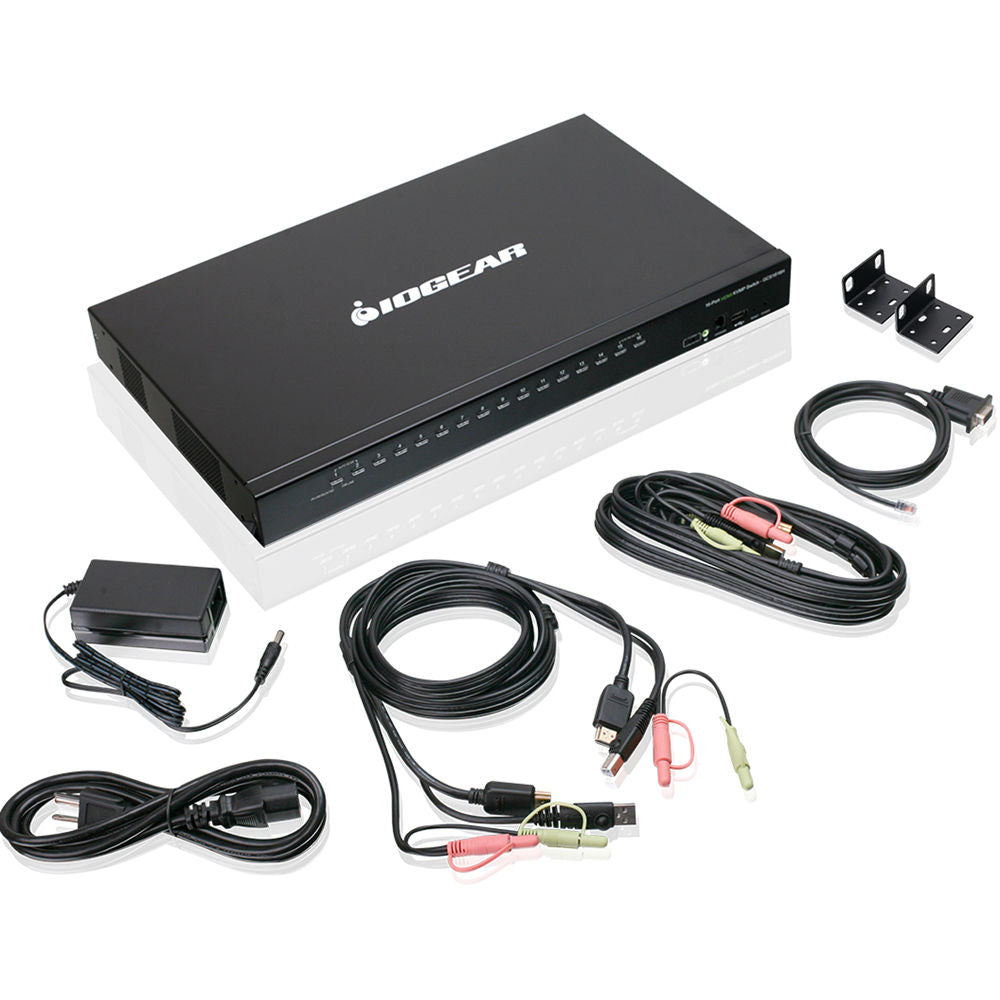

IOGEAR 16-Port USB HDMI KVMP Switch with 2 KVM Cable Sets
IOGEAR GCS1816H Specs
| General | |
|---|---|
| # of Systems Supported | 16 (256 Cascade) |

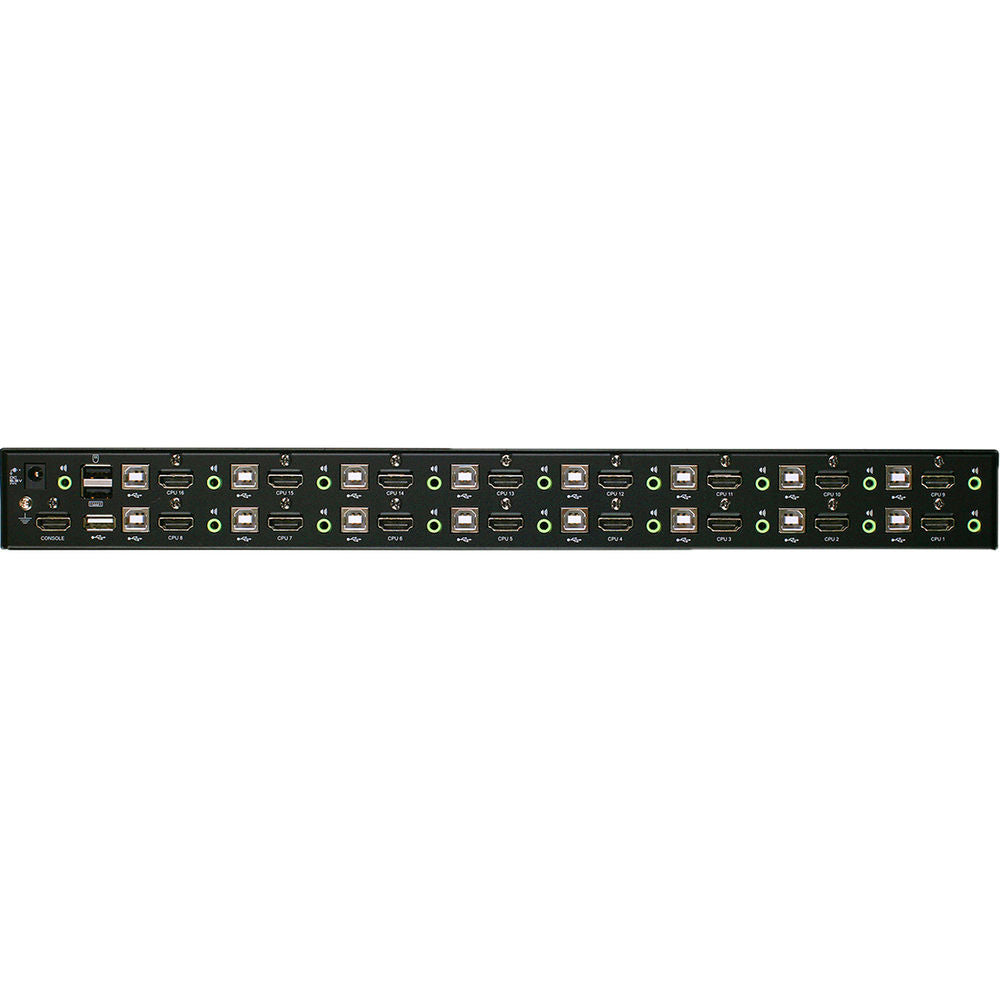

| CPU Connections | 16 x USB 2.0 Type-B (Keyboard/Mouse) 16 x HDMI 16 x 3.5 mm Line-In |
| Console Connections | 1 x USB 2.0 Type-A (Keyboard) 1 x USB 2.0 Type-A (Mouse) 1 x HDMI 2 x 3.5 mm Line-Out |
| USB Peripheral/Firmware Connections | 2 x USB 2.0 Type-A |
| Scan Interval Range | 1 to 255 secs (5 secs Default) |
| Supported Resolutions | 1920 x 1200 @ 60 Hz |
| USB Keyboard/Mouse Emulation | Yes |
| Operating System Support | Linux, Solaris, Windows, macOS/OS X |
| Power | |
|---|---|
| DC Input Power | 5 VDC |
| Power Consumption | 12.2 W |
| Power Source | AC Adapter |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 0 to 80% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Physical | |
|---|---|
| Rack Form Factor | 1 RU |
| Housing Material | Metal |
| Dimensions | 17.0 x 10.0 x 1.8" / 43.2 x 25.4 x 4.6 cm |
| Weight | 8.8 lb / 4 kg |
