Description
The ISL6292-2CR4Z is an integrated single-cell Li-ion or Li-polymer Battery Charger capable of operating with an input voltage as low as 2.4V. This charger is designed to work with various types of AC adapters or a USB port. The ISL6292 operates as a linear charger when the AC adapter is a voltage source. The battery is charged in a CC/CV (constant current/constant voltage) profile. The charge current is programmable with an external resistor up to 2A. The ISL6292 can also work with a current-limited adapter to minimize the thermal dissipation, in which case, the ISL6292 combines the benefits of both a linear charger and a pulse charger. The ISL6292 features charge current thermal foldback to guarantee safe operation when the printed circuit board is space limited for thermal dissipation. Additional features include preconditioning of an over-discharged battery, an NTC thermistor interface for charging the battery in a safe temperature range, automatic recharge.
- Complete charger for single-cell Li-ion batteries
- Very Low thermal dissipation
- Integrated pass element and current sensor
- No external blocking diode required
- 1% Voltage accuracy
- Programmable current limit up to 2A
- Programmable end-of-charge current
- Charge current thermal foldback
- NTC thermistor interface for battery temperature monitor
- Accepts multiple types of adapters or USB bus power
- Guaranteed to operate at 2.65V after start-up
Applications
Portable Devices, Medical, Consumer Electronics, Power Management
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Battery Type | Li-Ion, Li-Pol |
| Operating Temperature Min | -20°C |
| Battery Charge Voltage | 4.2V |
| Operating Temperature Max | 70°C |
| Battery IC Case Style | QFN |
| No. of Pins | 16Pins |
| Input Voltage | 6.5V |
| Product Range | - |
| No. of Series Cells | 1 |
| Charge Current Max | 2.1A |
| Packaging | Each |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | INTERSIL |
| Part Number | ISL6292-2CR4Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

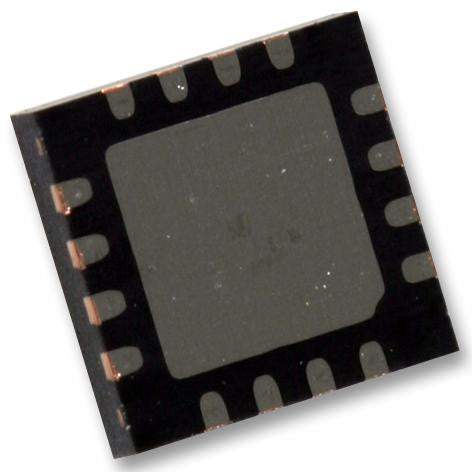

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 354.61 |
| 3-5 | ₹ 350.99 |
| 5-10 | ₹ 343.76 |
| 10+ | ₹ 336.52 |
Bulk discount will be automatically applied during checkout based on quantity.
