Description
The ICL3232CBNZ is a RS-232 Transmitter/Receiver IC which meets ElA/TIA-232 and V.28/V.24 specifications. Lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and automatic power down functions (except for the ICL3232), reduce the standby supply current to a 1µA trickle. Small footprint and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 250kbps are guaranteed at worst case load conditions. Automatic power down function which powers down the on-chip power-supply and driver circuits. This occurs when an attached peripheral device is shut off or the RS-232 cable is removed, conserving system power automatically without changes to the hardware or operating system. These devices power up again when a valid RS-232 voltage is applied to any receiver input.
- 15kV ESD protected
- Low power, pin compatible upgrade for 5V
- Latch-up free
- On-chip voltage converters require only 4 external 0.1µF capacitors
- Receiver hysteresis for improved noise immunity
- 250kbps Minimum data rate
- 6V/µs Minimum slew rate
- 1µA Low supply current in power down state
Applications
Consumer Electronics, Communications & Networking, Portable Devices, Computers & Computer Peripherals
Warnings
Stresses those listed in absolute maximum ratings may cause permanent damage to the device.
Product details
| Operating Temperature Min | 0°C |

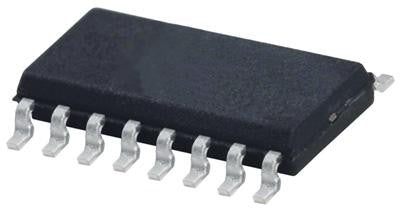

| Driver Case Style | SOIC |
| No. of Receivers | 2Receivers |
| Operating Temperature Max | 70°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Drivers | 2Drivers |
| Supply Voltage Min | 3V |
| IC Interface Type | RS232 |
| Device Type | RS232 Transceiver |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | INTERSIL |
| Part Number | ICL3232CBNZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
