Description
The HIN232CBZ is a RS-232 Transmitter/Receiver Interface Circuit meets all ElA RS-232E and V.28 specifications and is particularly suited for those applications where ±12V is not available. It requires a single 5V power supply and features onboard charge pump voltage converters which generate 10 and -10V supplies from the 5V supply. It offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications. The driver features true TTL/CMOS input compatibility, slew-rate-limited output and 300W power-OFF source impedance. The receiver can handle up to ±30V and has 3 to 7kW input impedance. The receiver also features hysteresis to greatly improve noise rejection.
- 120kbps High data rate
- On-board voltage doubler/inverter
- Low power consumption
- Low power shutdown function
- Three-state TTL/CMOS receiver outputs
- Output current limiting
- TTL/CMOS compatible driver
- 300R Driver power-OFF source impedance
- 30V/µs Maximum driver slew rate
- 0.5V Receiver hysteresis to improve noise rejection
- 3 to 7kR Receiver input impedance
Applications
Consumer Electronics, Portable Devices, Computers & Computer Peripherals, Communications & Networking, Sensing & Instrumentation
Product details
| Operating Temperature Min | 0°C |
| Driver Case Style | SOIC |
| No. of Receivers | 2Receivers |
| Operating Temperature Max | 70°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Drivers | 2Drivers |
| Supply Voltage Min | 4.5V |
| IC Interface Type | RS232 |
| Device Type | RS232 Transceiver |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 2 - 1 year |
Other details
| Brand | INTERSIL |
| Part Number | HIN232CBZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

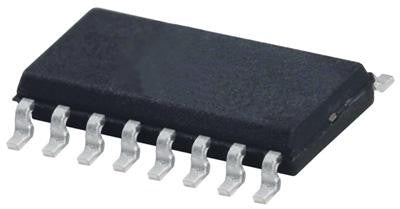

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
