Description
The HIN232ACBNZ is a Transmitter/Receiver Interface Circuit meets all ElA high-speed RS-232E and V.28 specifications and is particularly suited for those applications where ±12V is not available. It requires a single 5V power supply and feature onboard charge pump voltage converters which generate 10 and -10V supplies from the 5V supply. The driver features true TTL/CMOS input compatibility, slew rate-limited output and 300R power-OFF source impedance. The receiver can handle up to ±30V input and have a 3 to 7kR input impedance. The receiver also features hysteresis to greatly improve noise rejection.
- Requires only 0.1µF or greater external capacitors
- 230kbps High data rate
- On-board voltage doubler/inverter
- Output current limiting
- TTL/CMOS compatible
- 0.5V Hysteresis to improve noise rejection
Applications
Consumer Electronics, Portable Devices, Computers & Computer Peripherals, Communications & Networking, Power Management
Product details
| Operating Temperature Min | 0°C |
| Driver Case Style | SOIC |
| No. of Receivers | 2Receivers |
| Operating Temperature Max | 70°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Drivers | 2Drivers |
| Supply Voltage Min | 4.5V |
| IC Interface Type | RS232 |
| Device Type | RS232 Transceiver |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | INTERSIL |
| Part Number | HIN232ACBNZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

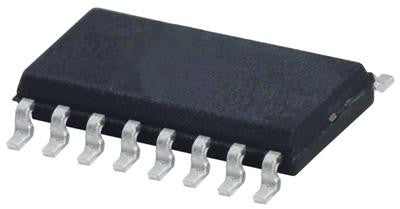

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
