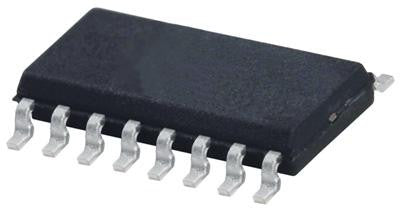

The HIN202CBNZ is a +5V Powered RS-232 Transmitter/Receiver with 0.1µF external capacitors. The HIN202 family of RS-232 transmitters/receivers interface circuits meet all EIA RS-232E and V.28 specifications and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10 and -10V supplies from the 5V supply. The family of devices offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various.
- Meets All RS-232E and V.28 specifications
- Requires only 0.1µF or greater external capacitors
- 120kBps High data rate
- Requires only single +5V power supply
- Onboard voltage doubler/inverter
- 5mA Low power consumption (typical)
- 1µA Low power shutdown function (typical)
- Three-state TTL/CMOS receiver outputs
- Multiple drivers
- ±10V Output swing for +5V input
- 300R Power-off source impedance
- Output current limiting
- TTL/CMOS compatible
- 30V/µs Maximum slew rate
- Multiple receivers
- ±30V Input voltage range
- 3 to 7kR Input impedance
- 0.5V Hysteresis to improve noise rejection
Applications
Communications & Networking, Computers & Computer Peripherals, Portable Devices, Sensing & Instrumentation
Warnings
ESD sensitive device, take proper precaution while handling the device.
