| ₹ 493.06 includes GST and import duties. | |
| B2B customers can avail ₹ 75.19 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The EL7202CSZ is a 2-channel High Speed Power MOSFET Driver that improve the operation of the industry standard DS0026 clock drivers. The Elantec versions are very high speed drivers capable of delivering peak currents of 2.0 amps into highly capacitive loads. The high speed performance is achieved by means of a proprietary "Turbo-Driver" circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. These matched delays maintain the integrity of input-to-output pulse-widths to reduce timing errors and clock skew problems. This improved performance is accompanied by a 10 fold reduction in supply currents over bipolar drivers, yet without the delay time problems commonly associated with CMOS devices. Dynamic switching losses are minimized with non-overlapped drive techniques.
- Industry standard driver replacement
- Improved response times
- Matched rise and fall times
- Reduced clock skew
- Low output impedance
- Low input capacitance
- High noise immunity
- Improved clocking rate
- Low supply current
- Wide operating voltage range
Applications
Power Management, RF Communications
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Output Delay | 20ns |
| Operating Temperature Min | -40°C |
| Peak Output Current | 2A |
| Input Delay | 18ns |

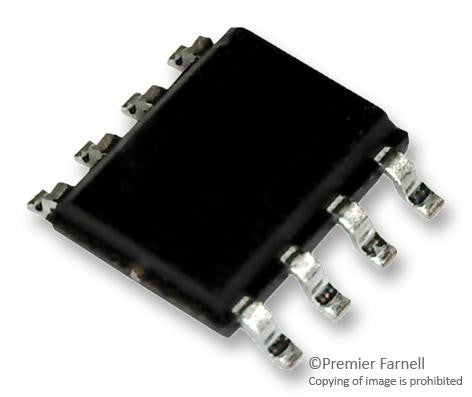

| Driver Case Style | SOIC |
| Operating Temperature Max | 85°C |
| No. of Pins | 8Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 4.5V |
| Packaging | Each |
| Supply Voltage Max | 15V |
| Driver Configuration | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | INTERSIL |
| Part Number | EL7202CSZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 483.2 |
| 3-5 | ₹ 478.27 |
| 5-10 | ₹ 468.41 |
| 10+ | ₹ 458.55 |
Bulk discount will be automatically applied during checkout based on quantity.
