Description

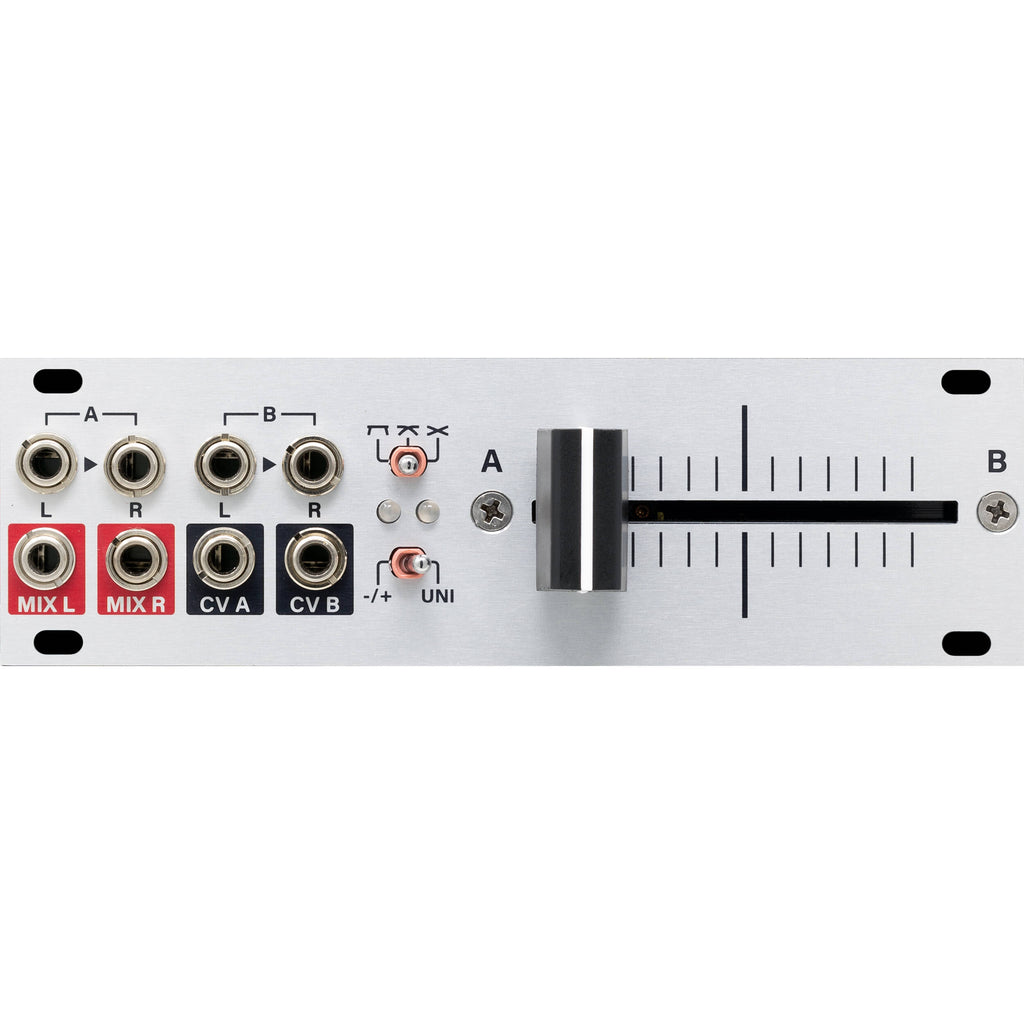

intellijel XFADE-1U Overview
Express yourself like a DJ with the intellijel Xfade 1U, a classic DJ-style stereo crossfader in Eurorack format. The fader module is made by Innofader and features moving capacitance technology. The response is smooth with very low friction. The crossfader also includes three shapes including DJ cut, Constant Power, and Linear.
The A and B sides both have L+R inputs, which allow the crossfader to blend the two stereo input signals together. The blended output appears at the MIX L and MIX R output jacks. Additionally, Xfade 1U can be used as a modulation source for controlling other modules, as the crossfader also outputs control voltages from the CV A and CV B jacks. The module includes a power ribbon cable.
- Smooth and ultralow friction Innofader Mini-Innofader module with moving capacitance technology
- Three crossfade shapes: DJ cut, Constant Power, and Linear
- Stereo or mono operation
- DC coupled inputs and outputs
- Unipolar or bipolar CV outputs
- Output is chainable to intellijel Outs, Mixup, and Stereo Mixer 1U modules via included 3-pin cable
- 26 HP Eurorack format module (1U)
- Maximum depth: 1" (23mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 48mA, -12V: 41mA
Items Included
- intellijel Xfade 1U Stereo DJ-Style Crossfader and Controller Eurorack Module (26 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Eurorack Cases
Additional Resources
intellijel XFADE-1U Specs
| Sound Generation |
Analog
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Line Input (2 Stereo Pairs)
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (1 Stereo Pair) |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Output
|
| Patch Points |
4x 1/8" / 3.5 mm TS Input
4x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
48 mA on +12 V Rail
41 mA on -12 V Rail |
| Horizontal Pitch |
26 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Line Input (2 Stereo Pairs)
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (1 Stereo Pair) |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Output
|
| Patch Points |
4x 1/8" / 3.5 mm TS Input
4x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
48 mA on +12 V Rail
41 mA on -12 V Rail |
| Rackmount Size |
1 U
|
| Horizontal Pitch |
26 HP
|
| Included Accessories |
No
|
| Package Weight |
0.355 lb
|
| Box Dimensions (LxWxH) |
6.4 x 3.4 x 3.2"
|
