Description
intellijel STIO-1U Overview

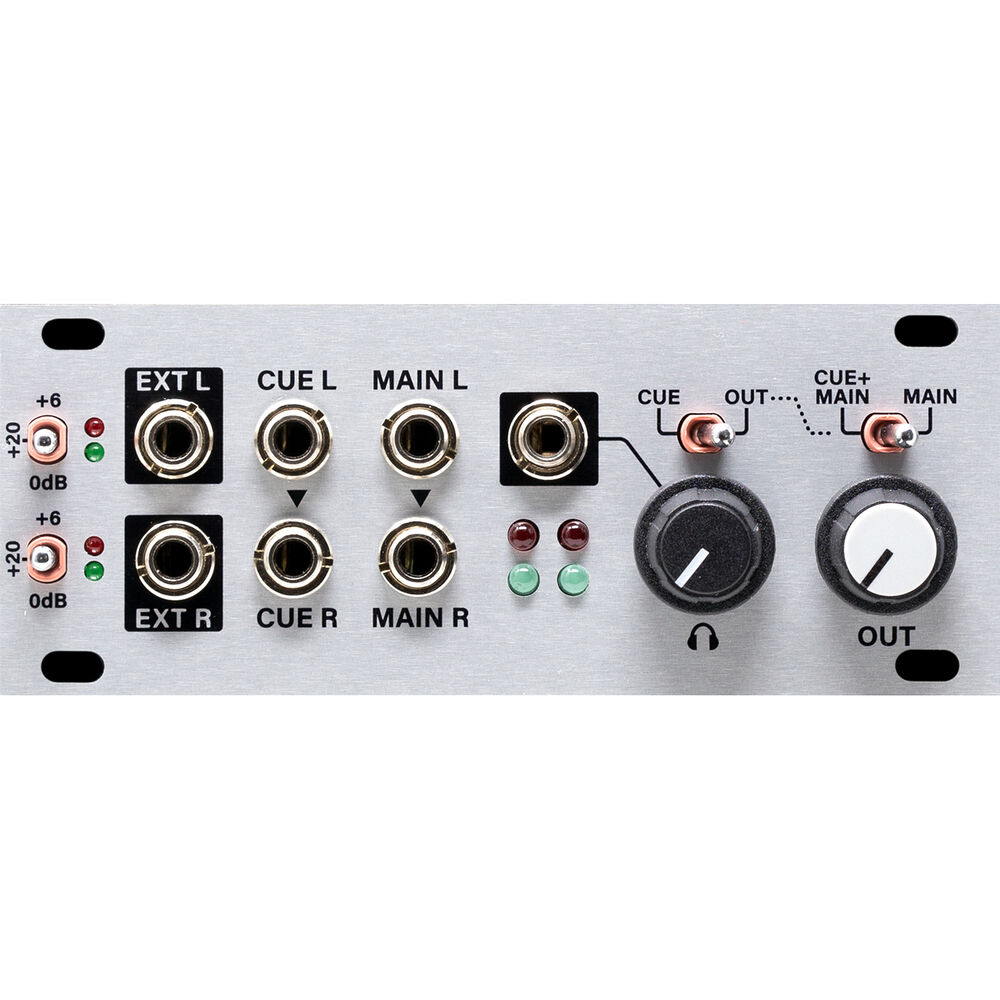

Interface your modular system with the outside world using the highly flexible intellijel Stereo I/O 1U, a space-friendly (1U) and feature-rich Eurorack module for all your stereo line level input and output needs. The module features a dedicated 3.5mm headphone jack with volume control and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.
Designed to bridge the gap between your Eurorack system and line-level devices, the Stereo I/O 1U is an all-in-one audio input/output module that can process external audio with modular, monitor your patch with headphones, or connect your system to mixers or interfaces with line-level inputs and outputs.
- Main output to balanced stereo line level with volume control (for line mixers, FX, speakers etc.)
- Stereo input from balanced line level with gain switches (for grooveboxes, FX, synthesizers etc.)
- 3.5mm stereo headphone output with independent level control and source selection.
- Cue output for monitoring with headphones or summing with the main output.
- Pairs well with the Aux Mix 1U module
- The Audio Jacks board of Intellijel Performance and Palette Cases (7U/4U)
- The Stereo Line In Jacks / Stereo Line Out Jacks 1U modules
- XY IO 1U module
Items Included
- intellijel Stereo I/O 1U Eurorack Module (20 HP)
- Ribbon Power Cable
- 3-Pin and 6-Pin Connector Ribbon Cable
- Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
intellijel STIO-1U Specs
| Power |
48 mA at +12V; 29 mA at -12V
|
| Horizontal Pitch |
20 HP (1 RU)
|
| Depth |
1.7" / 4.2 cm
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.345 lb
|
| Box Dimensions (LxWxH) |
5.9 x 3.2 x 3"
|
