Description

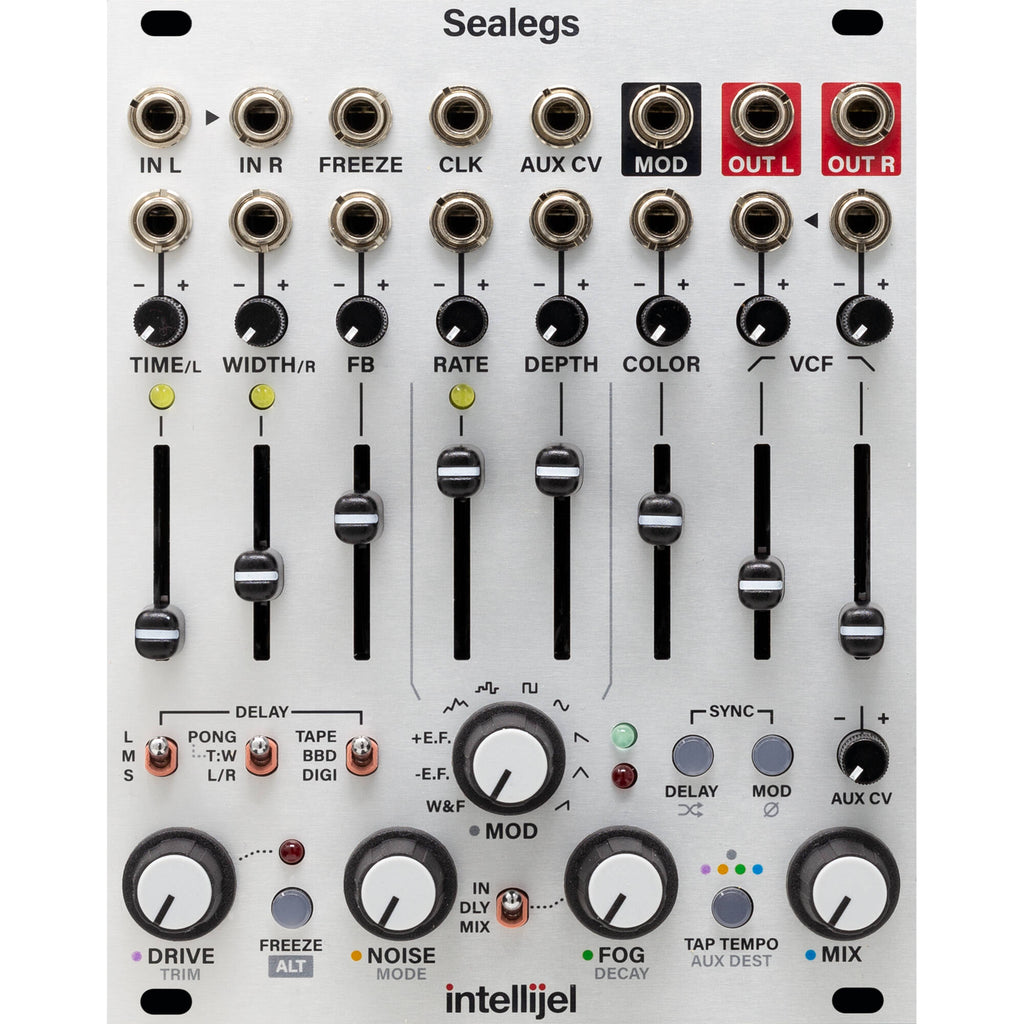

intellijel SEALEGS-3U Overview
Generate warm, musical, and organic delay effects with the intellijel Sealegs, a multimodel stereo character delay with reverb in a Eurorack module. Sealegs is a collection of effects centered around a true stereo multimodel delay. Great care was taken when modeling the most distinctive and desirable sonic characteristics of three types of delay circuits: Tape, Bucket Brigade, and Crossfading Digital.
Other notable features include a saturating input drive, low- and high-pass filters, a crackle and hiss generator, a multiposition 1970s-inspired reverb, internal modulators, nine CV inputs with attenuverters, three sets of ranges, clock sync/tap tempo, and three unique stereo configurations. The module ships with a ribbon power cable and mounting screws.
- Three Unique delay models�Tape, Bucket Brigade, and Crossfading Digital
- Per-model Color, Modulation behavior, and Saturation/Limiting
- True Stereo delay with separate L/R buffers
- Three stereo configurations (PONG, Time/Width, L/R)
- Three Range variations for short chorus-/flanger-style delays to Long ambient repeats.
- Up to 6(L) and 8(R) seconds of delay time (Width can add up to 33% to Time)
- Built in modulator with Wow & Flutter, Envelope Follower, and 7 morphing waveshapes
- Lush 1970s-inspired reverb with 3 insert positions.
- Saturating input drive with level trim
- Stable external clock (or tap tempo) sync for Delay Times or Modulation
- High-pass and Low-pass filters for filtered repeats
- Freeze functionality for holding the buffer and looping
- Nine CV inputs with attenuverters
- 96 kHz 24-bit Stereo I/O and 32-bit floating point internal processing
- 20 HP Eurorack format module
- Maximum depth: 1.1" (29mm)
- Includes power ribbon cable with 16-pin Eurorack power headers
- Power consumption: +12V: 116mA, -12V: 10mA
In the Box
- intellijel Sealegs Multimodel Stereo Character Delay with Reverb Eurorack Module (20 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
intellijel SEALEGS-3USpecs
| Sound Generation |
Digital
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
9x 1/8" / 3.5 mm TS CV Input
1x 1/8" / 3.5 mm TS CV Output 2x 1/8" / 3.5 mm TS Gate/Trigger Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
116 mA on +12 V Rail
10 mA on -12 V Rail |
| Horizontal Pitch |
20 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
3x Delay: Bucket Brigade Delay, Digital Delay, Tape Delay
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
9x 1/8" / 3.5 mm TS CV Input
1x 1/8" / 3.5 mm TS CV Output 2x 1/8" / 3.5 mm TS Gate/Trigger Input |
| Patch Points |
No
|
| Sync I/O |
1x 1/8" / 3.5 mm TS Clock Input
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
116 mA on +12 V Rail
10 mA on -12 V Rail |
| Horizontal Pitch |
20 HP
|
| Included Accessories |
No
|
| Package Weight |
0.78 lb
|
| Box Dimensions (LxWxH) |
6.1 x 5.3 x 4.4"
|
