Description

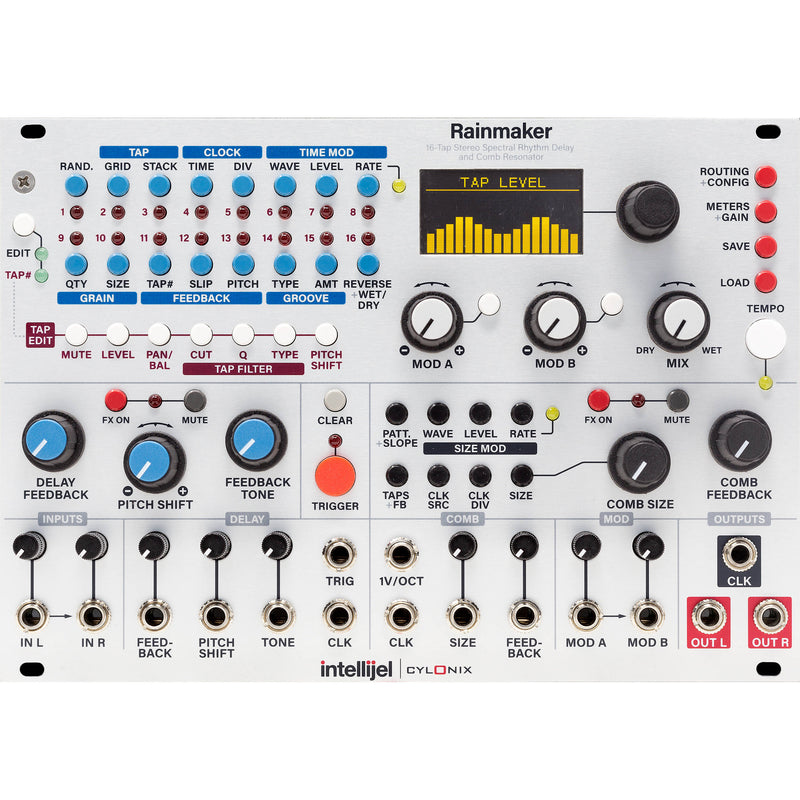

intellijel RAINM-3U Overview
- 1Description
- 2At a Glance
- 316-Tap Stereo Rhythm Delay
- 4Stereo Multi-Tap Comb Resonator
- 5Presets
- 6Presets 1 to 64
- 7Presets 65 to 128
- 8Eurorack Ready
Bring your umbrella and get ready for a deluge with the intellijel Rainmaker, an advanced 16-Tap stereo spectral rhythm delay and comb resonator in Eurorack format. Developed in collaboration with Cylonix, the Rainmaker allows individual control of any or all 16 taps-set timing, level, pan, filter type, cutoff and Q on each tap. The Comb Delay opens up further possibilities for complex comb filtering, along with resonator or reverb effects.
The Rainmaker module has extensive voltage control capabilities. Direct voltage control is available for the delay feedback level and tone, the global pitch shift for all delay taps, the comb resonator size, and comb feedback level. There are two assignable modulation inputs, which can be assigned to different parameters in each preset. A trigger input with assignable functionality can trigger built-in types of noise bursts, freeze the delay buffer, reverse the delay, randomize parameters, mute taps, and much more. The module includes a ribbon power cable.
At a Glance
- 16-tap Rhythm Delay section with comprehensive control of each tap
- Comb Delay section with up to 64 taps controlled by preset patterns, slopes, and filters.
- Delay CLK IN, Comb CLK IN, CLK OUT and clock dividers allow for synchronization with other elements in your patches.
- 96 kHz, 24-bit (32-bit internal) signal processing
- Most parameters are controllable by external control voltages, either directly or through the two auxiliary modulation inputs (MOD A, MOD B)
- Audio-rate randomization of all parameters, or selectable subsets of parameters
- 128 Preset slots with online preset librarian via Laser Mammoth and USB connectivity
16-Tap Stereo Rhythm Delay
- Each of the 16 taps has its own set of audio processors:
- 2nd order resonant multimode filter (LP, BP, HP) with adjustable cutoff frequency and resonance
- Level and Balance setting, with quick-mute capability
- +/-1 octave granular pitch shifter. 1, 2, or 4 grains with adjustable grain size
- Delay line feedback can be taken from any of the 16 taps (pre-filter) or from the sum of the 16 taps (post-filter)
- Delay line feedback has its own granular pitch shifter and 1st-order tone filter
- Global delay time can be set either by manual entry with the encoder, by an external clock with adjustable clock divider, or by tap tempo button
- Individual tap delays are set according to one of 16 preset grooves
- Global delay time modulation by an LFO with 8 selectable waveforms
- Delay times range from 0.1 millisecond to 20 seconds
- Delay buffer freeze and reverse
- Taps can be piled on top of each other to give complex filtering and chord effects
- Global pitch-shift control transposes the delay line output by +/-1 octave
Stereo Multi-Tap Comb Resonator
- Comb can have between 1 and 64 taps allowing for complex resonances
- Three different nonlinear comb feedback structures for spectral shaping
- Comb is pingable to give physically modeled guitar, sitar, and clarinet types of sounds
- 16 different comb tap spacing patterns
- Global comb time can be set either by manual entry with the encoder, or by an external clock (with adjustable clock divider), or by a 1V/oct control voltage
- Global comb time modulation by an LFO with 8 selectable waveforms
- Comb times range from 0.1 millisecond to 20 seconds
Presets
There are 128 nonvolatile memory slots into which you can store sets of parameter values. These can be recalled at any time by pressing the LOAD button, turning the rotary encoder to select the desired memory slot, and then pressing the rotary encoder to execute the loading operation. Although these memory slots can be overwritten by the user, they come prefilled from the factory with interesting preset configurations. These factory presets are listed and briefly described below. Presets 82 to 128 were created by Richard Devine.
Presets 1 to 64
- 1-Tap: Basic single tap (tap #4) delay with no filtering or pitch shifting, 120bpm
- Ping-Pong: Basic two-tap ping-pong delay (taps #2 and #4)
- BouncyPng: Bouncy ping-pong delay
- 4NoteSwing: 4-note swing delay
- Slap-Back: A very short slapback delay, good for vocals or drums
- Panner: Produces a set of echoes that pan across the stereo field
- 2 Swells: Echoes that rise then fall in amplitude, then rise and fall again
- 16tap Beat: 16 echoes with a beat that falls in amplitude as well as in filter cutoff
- 16tap Swell: 16 echoes that rise in amplitude
- 16tapDecay: 16 echoes that fall in amplitude as well as in filter cutoff
- Up Chirp: Delayed 160 msec up chirp, (MODA adjusts CUT, MODB adjusts Q).
- Spectrm Up: 80 msec spectral delay up chirp, (MODA adjusts CUT, MODB adjusts Q).
- Spectr Dwn: 80 msec spectral delay down chirp (MOD adjusts mod level and rate).
- Descender: Slow 2.8 sec spectral decay (MODA adjusts CUT, MODB adjusts Q).
- Rand Reflx: Echoes with random delay times (MODA adjusts CUT, MODB adjusts Q).
- VocalThick: Vocal thickener with two short slightly panned delays.
- Krellverb: Irregular echoes for alien reverbish effects
- Rev Swell: Reverse double swell delay
- Triller: Trill
- Takeoff: UFO takeoff rising pitch
- Fanfare: 5 note fanfare delay
- Devo Octav: Devo ring modulated octave repeats
- II-V-I: II-V-I chord progression using 4 piles of pitch-shifted taps to form chords
- 2Tap Res: Two-tap resonant lowpasses (MODA and MODB adjust filter cutoff frequencies).
- TechnoLoop: Techno beat looper
- Waltz Loop: Waltz beat looper
- FrmntChoir: Formant choir, using 4 piles with 3 high-Q bandpass filters each
- Chorus: Thick chorus
- FilterBank: Four-filter filterbank rhythm
- Up Gliss: Upsweeper (change the feedback pitchshift amount to get different effects)
- Down Gliss: Downward sweeping pitch shifts
- Sub Octave: Adds a delayed suboctave to the input
- Flanger: Flanger (MODA adjusts the depth, and MODB adjusts the rate)
- Resonator: 63-tap comb resonator and delay
- Woodwind: Another type of comb resonator sound
- Chorus Res: Chorus resonator
- Wobblebug: Wiggly wobbly comb resonator
- KarplusStr: Karplus-Strong String (use 1v/oct, full wet, ping with TRIGGER)
- 40tap Res: Slow 40-tap resonator beat
- Bouncy Res: Bouncy comb resonator
- Washboard: Washboard comb
- 1-Tap: Whalesong reverb
- Overdrive: Overdriven delay and resonator
- Dreamy Res: Ethereal, dreamy resonator
- WahVerb: Wah-wah reverb
- Pass Cars: Passing cars doppler shift
- Bubble Png: Bubbling pingpong delay and resonator
- Dual L/R: Delay on the left, comb on the right
- Steel Drum: A rattling steel drum delay
- Insects: Insect swarm
- Roar Surf: Roar of the surf
- NewAgeDrone: New age drone
- ResoBeat: Resonant beat loop
- Phantom Op: Phantom of the opera
- Psycho Rpt: Psycho repeats
- Tinny Beat: Tinny beat
- Funky Drum: Funky Drummer
- Psychedelc: Psychedelic beat
- Film Noir: Film noir soundtrack
- Very Slow: Very slow swell
- Vibration: Vibration
- ParaleVerb: Parallel reverb
- LongReverb: Long resonating reverb
- Symphony: Symphony warmup
Presets 65 to 128
65. Ping Arp: Trigger to ping a rising arpeggio. MODA shifts the frequencies.
66. Modal Ring: Modal synthesis. Use with no input, TRIGGER causes pinging. Play with the MOD A to change the pitch.
67. AllTapz: MODA selects different rhythm grooves
68. Delay*Size: Feedback time is set by COMB SIZE, use the encoder to change
69. Xmod Echo: Modulated delay. MODA controls mod level, MODB the mod rate.
70-81. ( empty ): Blank slots for you to fill with your masterpieces
82. Alienizer: Trigger randomizes tap mutes (i.e. randomly selects taps to hear)
83. Berserker: Trigger randomizes the delay parameters.
84. ShortWave: Trigger randomizes all comb and delay parameters.
85. PitchFrac: Trigger randomizes the tap pitch shifts.
86. Transform: Randomized tap pitch shifts.
87. RandomMute: Trigger randomizes mutes. MODA changes grain size.
88. Electrik: Modulated comb.
89. Mod Maker: MODB controls the comb modulation waveform
90. BrokenPins: Pinged pitch shifted delay and comb
91. GlitchFeed: Trigger randomizes comb parameters after a long delay
92. MachineCut: Trigger to ping delay/comb to give a breathy sound
93. WormHole: Slow chaos, randomization of comb
94. Plextrig: Trigger randomizes all the rhythm delay parameters
95. Spectras: Vibrating ping, with filter bank frequencies adjusted by MODB
96. Spreader: Spectral spreading delay
97. Spiral: Nightmarish spiraling pitch shifts
98. Tick Tock: Noisy grains with downshifted feedback
99. Waves: 16 repeats, giving waves of sound
100. SpineTaps: Filtered echos, rising in frequency
101. Chasers: MODB adjusts feedback pitch shift
102. VocosDecay: Four downshifted piles of vocal repeats
103. GettinAway: Upwardly mobile pitch shifts
104. Imperial: Five repeats with upward pitch shifted feedback
105. KingKarp: Another pingable Karplus-Strong, with Sitar nonlinearity
106. CombCutter: Pingable electronik resonator
107. CombRipple: Trigger a ping to generate Geiger counter ticks
108. DroneChord: Haunting drone creator
109. Weaver: Subtle pitch shifted repeats
110. CombDriper: Juicy ticking comb
111 SnareRolls: Comb resonator for multiplying snare hits
112. RandomFlux: Random comb repeats
113. Complexo: Two piles of long filtered pitch shifted echoes
114. ModCluster: Modulated comb
115. AlienMurk: Murky burbles, moving MODA makes bubbles.
116. CanyonLand: Land of the canyons
117. Tectonic: Whistling plates sliding past, MODA makes ticklets
118. CombGeos: Bright expressive reverb
119. 1V/Ripper: Tunable resonator
120. Steper Verb: Pingable cymbalism
121. GlitchComb: Hairy repeats stuck in the comb
122. SmearSmash: Smeared shifted delay
123. CombDeform: Filtered-Shifted-Deformed
124. Karp&Scuff: Many repeats into a high feedback comb - watch the levels!
125. Vertex: Two filterbank piles, MODA shifts filter cutoff, MODB makes clicks
126. Fade2Metal: Tunable heavy metal digeridoo
127. InvertComb: Fuzzy ping
128. Skip&Fold: 20th century symphonic dancing pitches
66. Modal Ring: Modal synthesis. Use with no input, TRIGGER causes pinging. Play with the MOD A to change the pitch.
67. AllTapz: MODA selects different rhythm grooves
68. Delay*Size: Feedback time is set by COMB SIZE, use the encoder to change
69. Xmod Echo: Modulated delay. MODA controls mod level, MODB the mod rate.
70-81. ( empty ): Blank slots for you to fill with your masterpieces
82. Alienizer: Trigger randomizes tap mutes (i.e. randomly selects taps to hear)
83. Berserker: Trigger randomizes the delay parameters.
84. ShortWave: Trigger randomizes all comb and delay parameters.
85. PitchFrac: Trigger randomizes the tap pitch shifts.
86. Transform: Randomized tap pitch shifts.
87. RandomMute: Trigger randomizes mutes. MODA changes grain size.
88. Electrik: Modulated comb.
89. Mod Maker: MODB controls the comb modulation waveform
90. BrokenPins: Pinged pitch shifted delay and comb
91. GlitchFeed: Trigger randomizes comb parameters after a long delay
92. MachineCut: Trigger to ping delay/comb to give a breathy sound
93. WormHole: Slow chaos, randomization of comb
94. Plextrig: Trigger randomizes all the rhythm delay parameters
95. Spectras: Vibrating ping, with filter bank frequencies adjusted by MODB
96. Spreader: Spectral spreading delay
97. Spiral: Nightmarish spiraling pitch shifts
98. Tick Tock: Noisy grains with downshifted feedback
99. Waves: 16 repeats, giving waves of sound
100. SpineTaps: Filtered echos, rising in frequency
101. Chasers: MODB adjusts feedback pitch shift
102. VocosDecay: Four downshifted piles of vocal repeats
103. GettinAway: Upwardly mobile pitch shifts
104. Imperial: Five repeats with upward pitch shifted feedback
105. KingKarp: Another pingable Karplus-Strong, with Sitar nonlinearity
106. CombCutter: Pingable electronik resonator
107. CombRipple: Trigger a ping to generate Geiger counter ticks
108. DroneChord: Haunting drone creator
109. Weaver: Subtle pitch shifted repeats
110. CombDriper: Juicy ticking comb
111 SnareRolls: Comb resonator for multiplying snare hits
112. RandomFlux: Random comb repeats
113. Complexo: Two piles of long filtered pitch shifted echoes
114. ModCluster: Modulated comb
115. AlienMurk: Murky burbles, moving MODA makes bubbles.
116. CanyonLand: Land of the canyons
117. Tectonic: Whistling plates sliding past, MODA makes ticklets
118. CombGeos: Bright expressive reverb
119. 1V/Ripper: Tunable resonator
120. Steper Verb: Pingable cymbalism
121. GlitchComb: Hairy repeats stuck in the comb
122. SmearSmash: Smeared shifted delay
123. CombDeform: Filtered-Shifted-Deformed
124. Karp&Scuff: Many repeats into a high feedback comb - watch the levels!
125. Vertex: Two filterbank piles, MODA shifts filter cutoff, MODB makes clicks
126. Fade2Metal: Tunable heavy metal digeridoo
127. InvertComb: Fuzzy ping
128. Skip&Fold: 20th century symphonic dancing pitches
Eurorack Ready
- 36 HP Eurorack format module
- Maximum depth: 1.7" (44mm)
- Includes power ribbon cable with Eurorack power headers
- Power: +12V: 270mA, -12V: 24mA
In the Box
- intellijel Rainmaker 16-Tap Stereo Spectral Rhythm Delay and Comb Resonator Eurorack Module (36 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Table of Contents
- Description
- At a Glance
- 16-Tap Stereo Rhythm Delay
- Stereo Multi-Tap Comb Resonator
- Presets
- Presets 1 to 64
- Presets 65 to 128
- Eurorack Ready
intellijel RAINM-3U Specs
Key Specs
| Sound Generation |
Digital
|
| Audio I/O |
2x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS CV Input
1x 1/8" / 3.5 mm TS Trigger Input |
| Patch Points |
13x 1/8" / 3.5 mm TS Input
3x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
270 mA on +12 V Rail
24 mA on -12 V Rail |
| Horizontal Pitch |
36 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Number of Rhythm Pattern Presets |
128x Factory
|
| Built-In Effects |
1x Delay: Digital Delay, Stereo (Rhythm), Digital Delay, Stereo ()
|
| Built-In Speaker |
No
|
Synthesis
| Filters |
Characteristic: Digital Stereo Type: Comb |
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS CV Input
1x 1/8" / 3.5 mm TS Trigger Input |
| Control Voltage Level |
-5 to +5 V
0 to +10 V |
| Patch Points |
13x 1/8" / 3.5 mm TS Input
3x 1/8" / 3.5 mm TS Output |
| Sync I/O |
1x 1/8" / 3.5 mm Clock Output
2x 1/8" / 3.5 mm TS Clock Input |
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
270 mA on +12 V Rail
24 mA on -12 V Rail |
Physical
| Horizontal Pitch |
36 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
1.165 lb
|
| Box Dimensions (LxWxH) |
8.9 x 6.8 x 3.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 89880.7 |
| 3-5 | ₹ 88963.55 |
| 5-10 | ₹ 87129.25 |
| 10+ | ₹ 85294.95 |
Bulk discount will be automatically applied during checkout based on quantity.
