Description

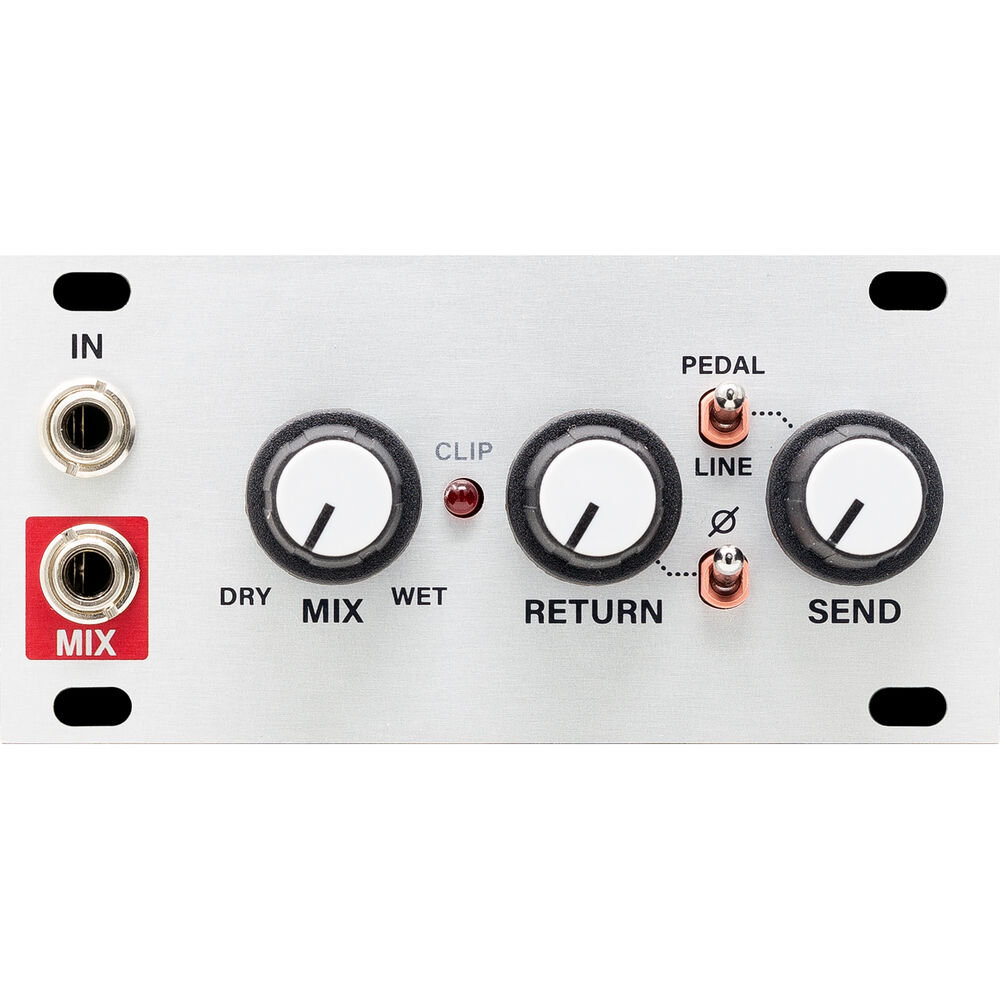

intellijel PEDALIO-1U Overview
- 1Description
- 2At a Glance
- 3Stereo Line In 1U System
- 4Eurorack Ready
Route your modular through various effects pedals and amplifiers with the intellijel Pedal I/O 1U, a Eurorack module that's part of the Pedal I/O 1U system, which enables the modular synthesist to interact with the impressive assortment of delays, choruses, flangers, phasers, fuzz boxes, tremolos, wah-wahs, amp simulators, compressors and pitch shifter pedals available to guitarists. It also grants guitarists access to the myriad filters, ring mods, wavefolders and the near infinite CV modulation delights inherent in Eurorack.
Pedal I/O is an impedance converter, which provides proper drive and loading for any FX pedals or instruments you connect. The Pedal Interface 1U module connects either to the Pedal I/O Jacks 1U module or directly to intellijel's 7U cases using the 7U Case Adaptor. Two Pedal Interface modules can be connected to a 7U case in this manner, with one taking the left input and output on the case, while other takes the right. The module includes a power ribbon cable.
- Use the Pedal I/O�s Return circuit as a direct box for connecting any instrument.
- Signals arriving at the Pedal I/O System pass through a Class-A triode emulator, allowing for some tubelike overdrive at high gain setting.
- Separate gain controls on both the Send and Return.
- Use Pedal I/O in the studio as an active re-amping device to play prerecorded tracks back through guitar amplifiers or pedals.
- Low Mix output impedance for driving long cables, lower noise, and minimum interference from outside sources.
- Switch to invert phase of the return signal.
- Switch to select line or pedal/instrument level output.
- Pedal I/O 1U Module
- A pair of 1/4" jacks (one send, and one return) for connecting your pedal
- 16 HP Eurorack format module (1U)
- Maximum depth: 1.1" (29mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 10mA, -12V: 10mA
In the Box
- intellijel Pedal I/O 1U Hi-Z Send/Return Eurorack Module (16 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
- Description
- At a Glance
- Stereo Line In 1U System
- Eurorack Ready
intellijel PEDALIO-1U Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
1x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
10 mA on +12 V Rail
10 mA on -12 V Rail |
| Horizontal Pitch |
16 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
1x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
10 mA on +12 V Rail
10 mA on -12 V Rail |
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
16 HP
|
| Included Accessories |
No
|
| Package Weight |
0.235 lb
|
| Box Dimensions (LxWxH) |
4.5 x 3.3 x 3.2"
|
