Description

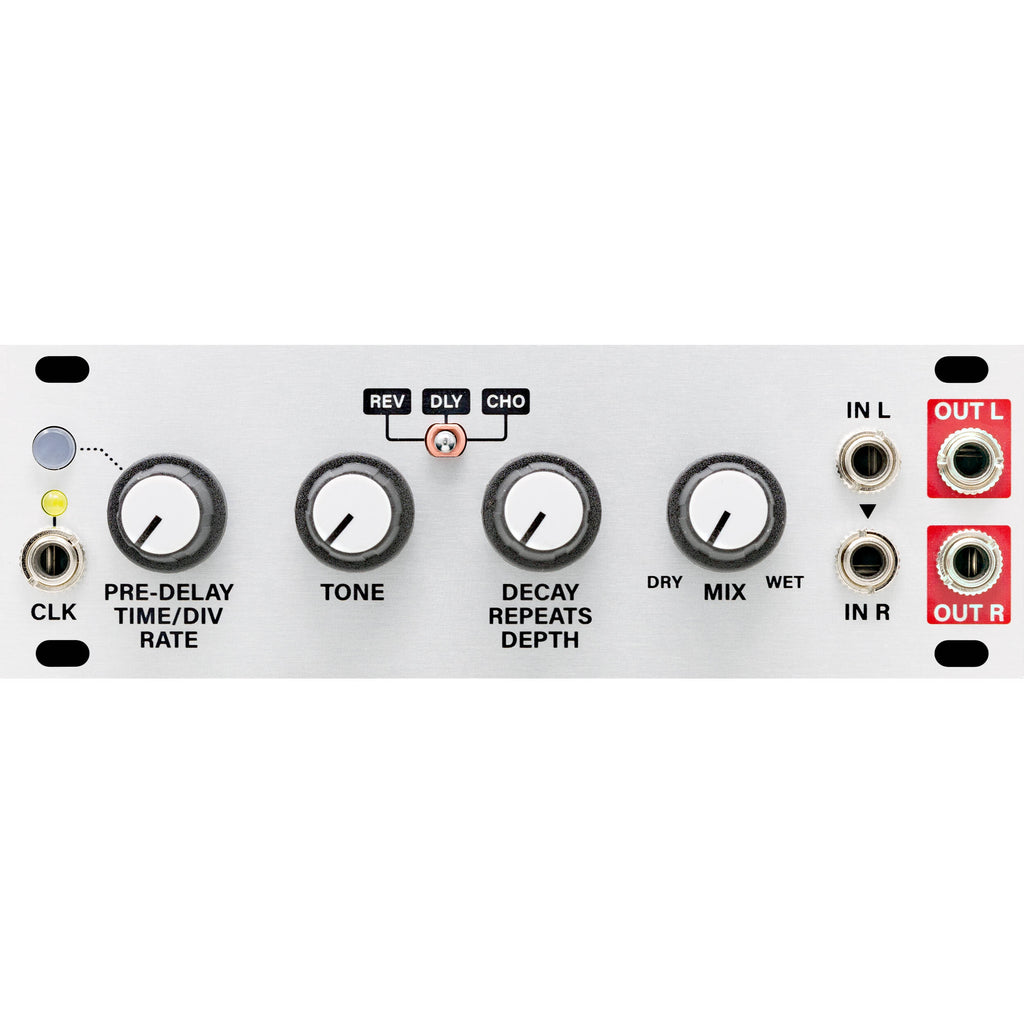

intellijel MULTIFX-1U Overview
Add some spice to your modular patch with the intellijel Mult-FX 1U, a 1U Eurorack module with three effects: Delay, Chorus, and Reverb. Each effect shares the same set of controls. There are stereo inputs and outputs, as well as a dedicated clock input for synchronization. The module includes a ribbon power cable.
Three FX Modes
- Delay: Tap-/clock-syncable, controls for rate/division, tone (feedback, low-pass filtering), and feedback amount
- Chorus: Controls for modulation rate, tone (brightness), and modulation depth
- Plate Reverb: Controls for predelay, tone (brightness), and decay time
- Stereo Wet/Dry balance for all three FX mode
Eurorack Ready
- 24 HP Eurorack format module (1U)
- Maximum depth: 1.3" (33mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 130mA, -12V: 12mA
In the Box
- intellijel Multi FX 1U Clockable Reverb, Delay, and Chorus Effect Eurorack Module (24 HP, 3U)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
intellijel MULTIFX-1U Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Eurorack Current Consumption |
130 mA on +12 V Rail
12 mA on -12 V Rail |
| Horizontal Pitch |
24 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
1x Delay: Clockable
1x Reverb: Plate 1x Modulation: Chorus |
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
1x 1/8" / 3.5 mm Clock Input
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
130 mA on +12 V Rail
12 mA on -12 V Rail |
Physical
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
24 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.305 lb
|
| Box Dimensions (LxWxH) |
5.8 x 3.8 x 2.4"
|
