Description

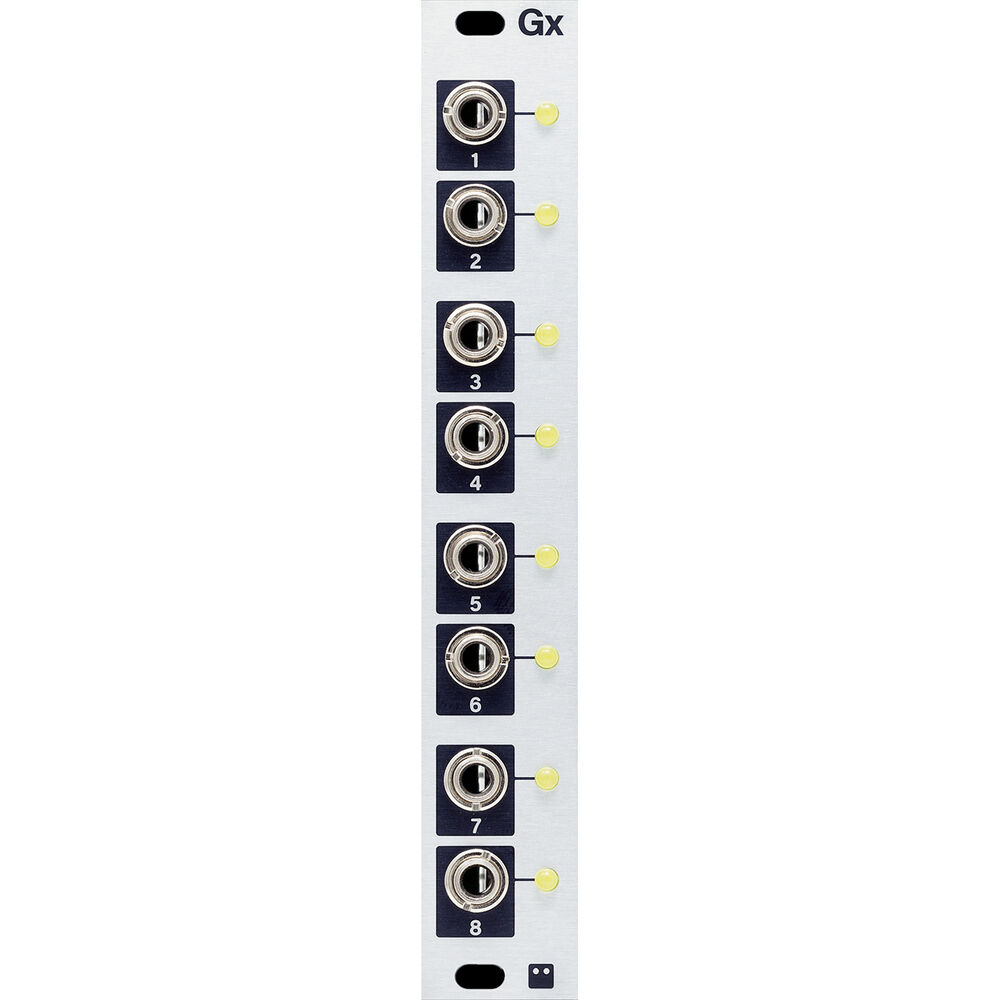

intellijel GX-3U Overview
Add 8 additional gate, trigger, clock, and logic outputs with intellijel Gx, a Eurorack gate expander for Metropolix and Quadrax modules. The module connects via a ribbon cable to the I2C expansion port of select modules in the intellijel product line. The Gx includes a power ribbon cable and a set of mounting screws.
At a Glance
- The Gx (Gate Expander) adds 8 additional Gate/Trigger/Clock/Logic outputs to compatible modules like the Metropolix and Quadrax.
- On Metropolix you can configure the Gx via the MX menu. Functions such as transport control, per-stage gates, and mod lane clock outputs are example options.
- It connects via a ribbon cable to the I2C expansion port of select modules in the intellijel product line.
Eurorack Ready
- 4 HP Eurorack format module
- Maximum depth: 0.9" (22mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 8mA, -12V: 0 mA
In the Box
- intellijel Gx Gate Expander Eurorack Module (4 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
intellijel GX-3U Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS Gate/Trigger Output
|
| Patch Points |
8x 1/8" / 3.5 mm TS Output
|
| Eurorack Current Consumption |
8 mA on +12 V Rail
0 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS Gate/Trigger Output
|
| Patch Points |
8x 1/8" / 3.5 mm TS Output
|
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
8 mA on +12 V Rail
0 mA on -12 V Rail |
Physical
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.22 lb
|
| Box Dimensions (LxWxH) |
5.9 x 3.3 x 2.9"
|
