intellijel DUATT-1U Overview
- 1Description
- 2At a Glance
- 3Special Functions
- 4Eurorack Ready

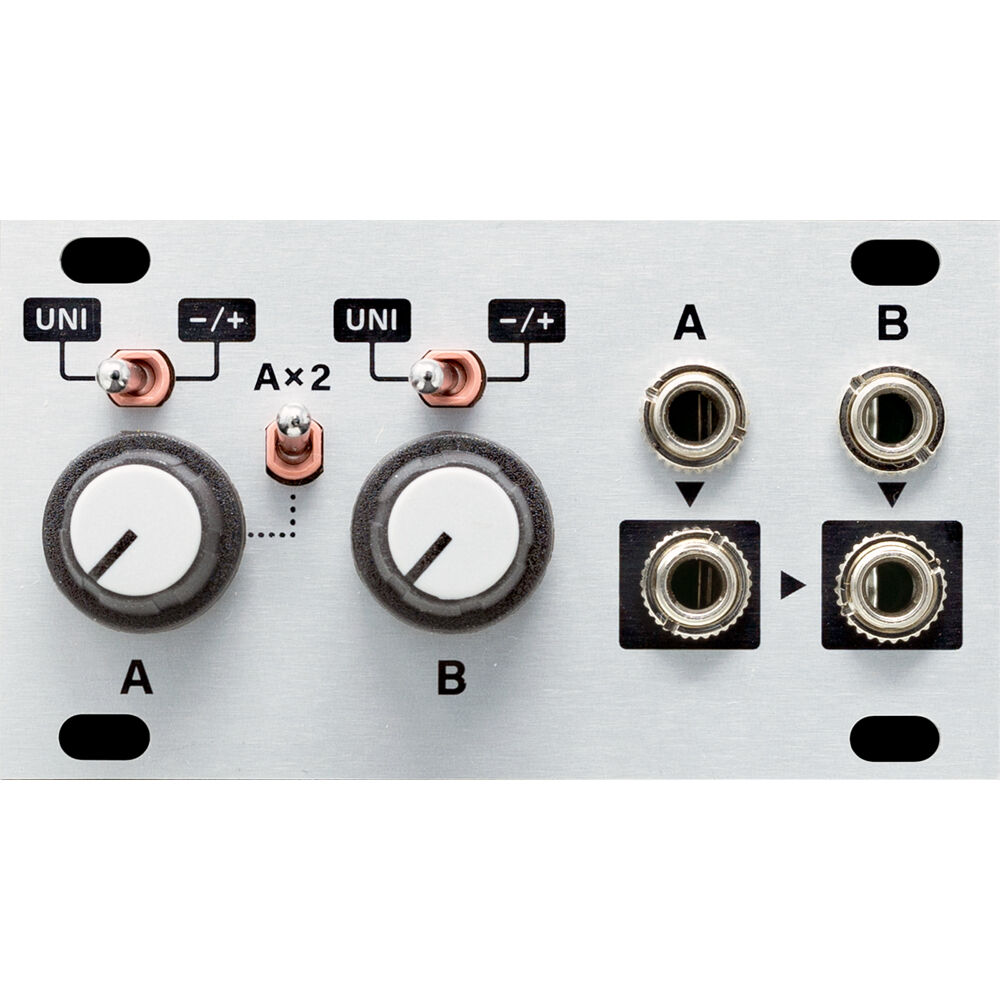

Wrangle your signals while dialing in the perfect voltage with the intellijel Duatt 1U, a 2-channel active/buffered attenuverter and summing mixer utility in Eurorack format. The Duatt 1U features two attenuators, inverters, attenuverters, multipliers, adders, mixers, and DC voltage sources.
Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. Each input is normalled to a built-in +5 VDC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch. Each output is normalled to mix into the output of the channel below, making it possible to do a sub mix. The module includes a power ribbon cable.
- Dual attenuator / inverter / attenuverter / multiplier / adder / mixer / DC voltage source
- Two Modes for each channel (positive or bipolar)
- Voltage doubler on Channel A
- Precision 5V source normalling to inputs
- Skiff/Palette friendly
- Each input is normalled to a built-in +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.
- Channel A�s output is normalled into the output of channel B for mixing duties, and channel A has has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A.
- 14 HP Eurorack format module
- Maximum depth: 0.9" (22mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 12mA, -12V: 10 mA
In the Box
- intellijel Duatt 1U Dual Attenuator CV Processor Eurorack Module (14 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
- Description
- At a Glance
- Special Functions
- Eurorack Ready
intellijel DUATT-1U Specs
| Sound Generation |
Analog
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
4x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
4x 1/8" / 3.5 mm TS Input
4x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
12 mA on +12 V Rail
10 mA on -12 V Rail |
| Horizontal Pitch |
14 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
4x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
4x 1/8" / 3.5 mm TS Input
4x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
12 mA on +12 V Rail
10 mA on -12 V Rail |
| Horizontal Pitch |
14 HP
|
| Included Accessories |
No
|
| Package Weight |
0.21 lb
|
| Box Dimensions (LxWxH) |
4.9 x 3.9 x 2.2"
|
